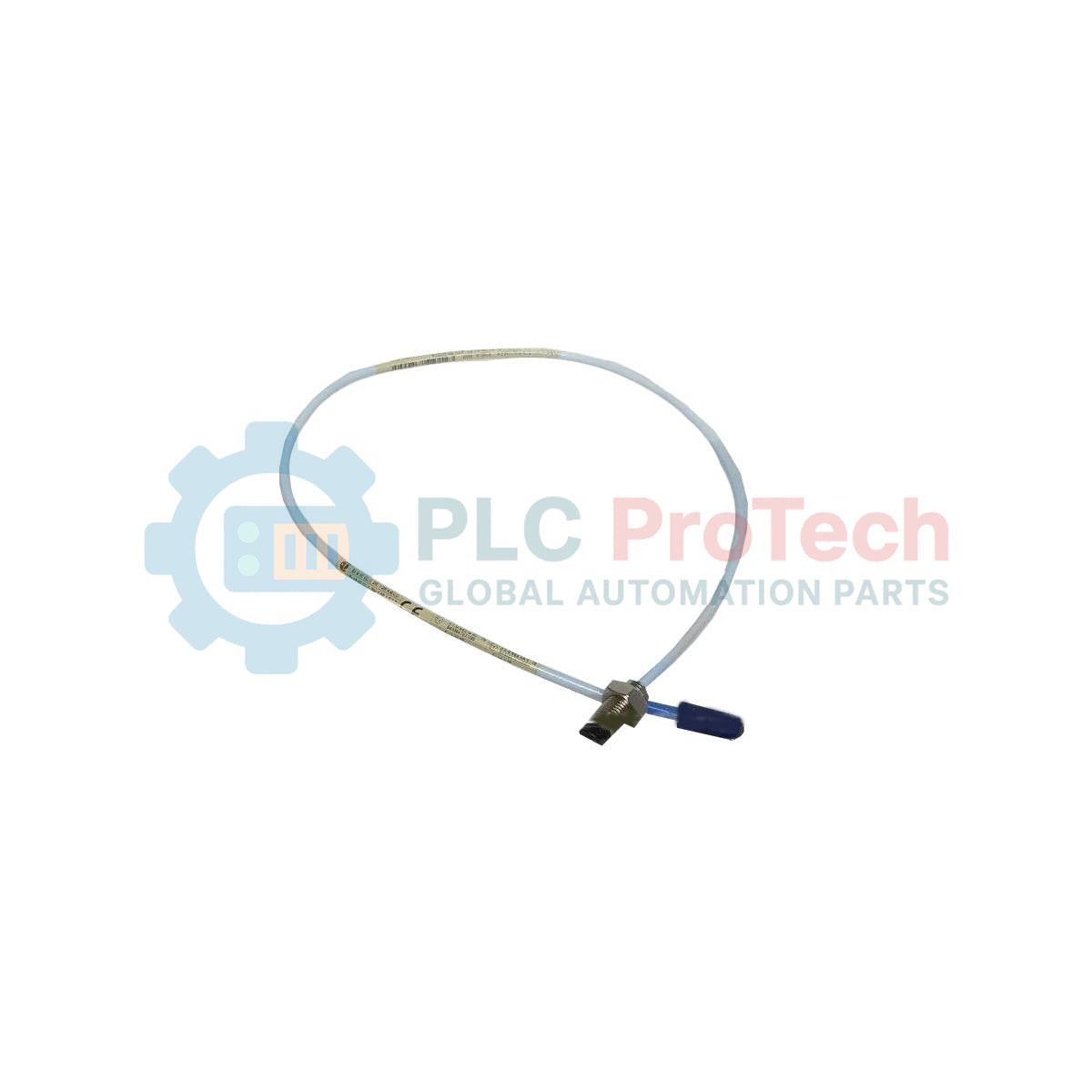

Optimized for continuous, high-reliability machinery protection, the Bently Nevada 330101-00-08-10-02-CN eddy current transducer provides accurate shaft vibration and position measurements in critical industrial rotating equipment. As a core component of the 3300 XL 8mm Proximity Transducer System, this probe converts physical displacement into proportional voltage signals. Engineered with a 3/8-24 UNF thread, a 0.8-inch case length, and a 1.0-meter total cable length, this imperial-threaded sensor is designed to interface with demanding industrial environments while complying with country-specific regulatory approvals.
| Option Code | Option Name | Configured Specification |
|---|---|---|
| 00 | Unthreaded Length | 0.0 in (Fully threaded) |
| 08 | Overall Case Length | 0.8 in |
| 10 | Total Length | 1.0 meter (3.3 feet) |
| 02 | Connector and Cable Type | Miniature coaxial ClickLoc connector, standard cable |
| CN | Agency Approvals | Country Specific (CN Approvals) |
| Parameter | Value / Specification |
|---|---|
| Manufacturer | Bently Nevada |
| Model Code | 330101-00-08-10-02-CN |
| System Compatibility | 3300 XL 8mm Proximity Transducer System |
| Probe Diameter | 8 mm |
| Thread Size | 3/8-24 UNF (Imperial) |
| Linear Range | 2.0 mm (80 mils) typical |
| Scale Factor | 7.87 V/mm (200 mV/mil) typical when paired with compatible Proximitor |
| Operating Temperature | -51 to +177 degC (-60 to +350 degF) |
| Connection Material | Gold-plated brass ClickLoc miniature coaxial connector |
| Country of Origin | United States (U.S.A.) |
| Net Weight | 0.323 kg (0.71 lbs) |
| Shipping Weight (Calculated) | 1.500 kg (3.31 lbs) |
| Package Dimensions (Calculated) | 25.0 cm x 20.0 cm x 8.0 cm (9.8 in x 7.9 in x 3.1 in) |
| Interface Component | Description / Function |
|---|---|
| Probe Tip | 8 mm diameter polyphenylene sulfide (PPS) tip housing the sensing coil. Must face target area. |
| Coaxial Cable | 75 ohm miniature coaxial cable with integrated shielding, 1.0 meter total length. |
| ClickLoc Connector | Requires a standard 3300 XL extension cable connection. Clean and dry contacts are necessary for signal integrity. |
The 330101-00-08-10-02-CN probe represents the 1.0-meter configuration of the 3300 XL 8mm series. To build a standard 5.0-meter system, this probe must be paired exclusively with a 4.0-meter extension cable. For a 9.0-meter system, it requires an 8.0-meter extension cable. Mixing components from different overall system lengths (e.g., using a 5-meter system proximitor with 9-meter system cables) will severely alter the electrical calibration curves and void measurement accuracy.
When installing in oil-mist or wet-sump conditions, the miniature coaxial ClickLoc connection point is highly susceptible to fluid-borne high-impedance electrical leaks. To prevent signal attenuation and erroneous gap voltage readings, the connection must be sealed inside a dedicated connector protector or wrapped tightly with high-temperature self-fusing silicone tape. Additionally, avoid routing the probe cable close to high-voltage AC lines to prevent magnetic noise induction on the raw RF signal.
During the machine gap setting procedure, verify that the probe tip is clear of side-metal interference. Maintain a minimum physical radial clearance of at least 15.0 mm around the 8 mm probe tip to prevent surrounding structures (such as bearing housings or lock washers) from altering the magnetic field. Use a digital multimeter at the Proximitor sensor output to check that the gap voltage settles around -10.0 VDC (the midpoint of the linear range) before final locknuts are torqued.
Inspect the threads on the mounting bracket and clean the target track of any debris, oil, or rust to ensure a clean reference area.
Thread the probe into the bracket by hand, turning carefully to avoid cross-threading the 3/8-24 UNF imperial housing.
Connect the ClickLoc coaxial connector to the extension cable, ensuring the mechanical lock is fully clicked into place.
Adjust the gap physically while reading the output voltage. Once the voltage reaches the system specification, torque the locking nut to 4.5 Nm (40 in-lb) maximum to secure the probe assembly.
