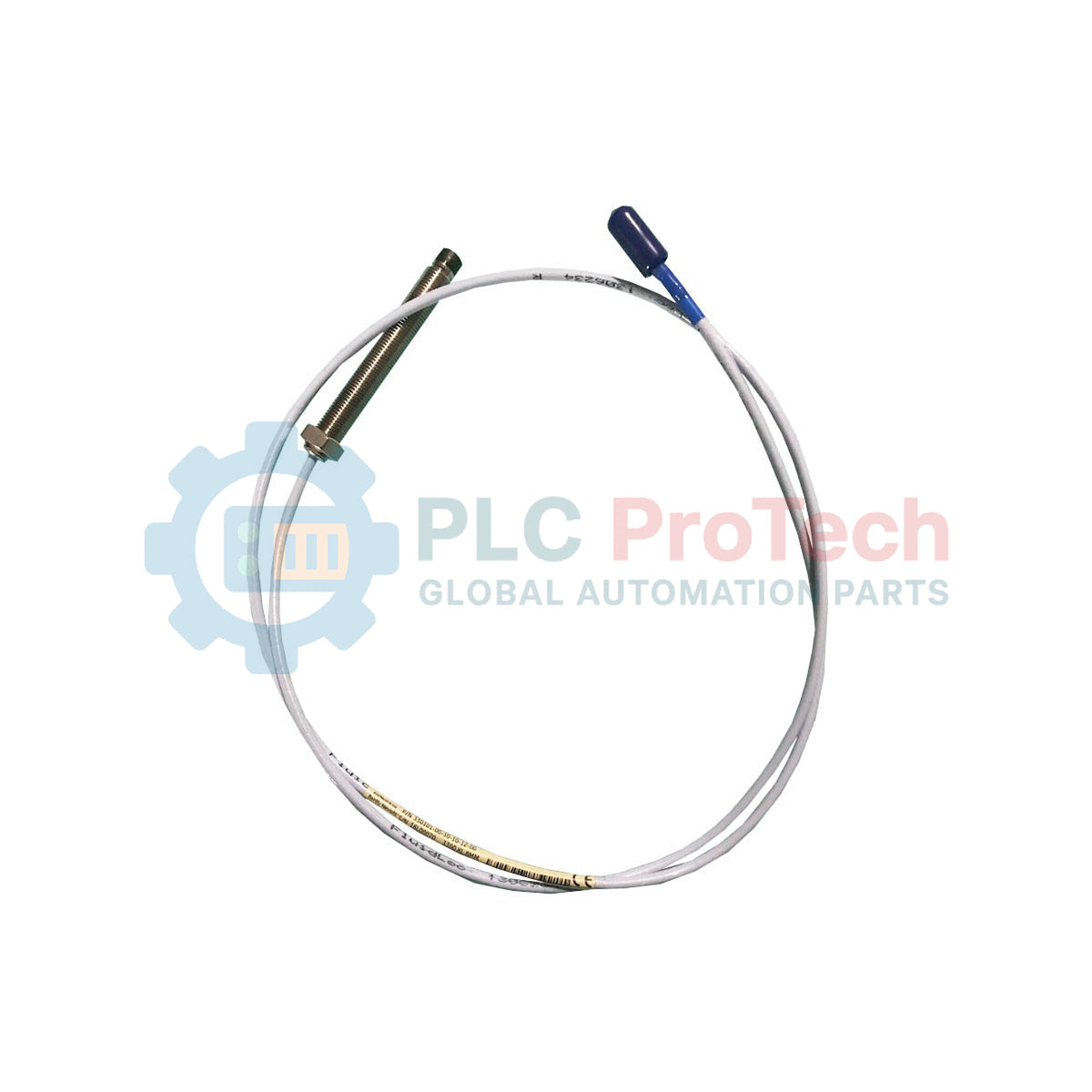

Engineered for critical machinery protection, the Bently Nevada 330101-00-10-05-02-CN delivers highly accurate, non-contacting vibration and displacement measurements on high-speed rotating shafts. This 3300 XL 8 mm proximity probe acts as a primary sensor transducer, translating physical shaft movement into dynamic electrical signals when paired with a compatible 3300 XL Proximitor Sensor. It features a rugged 3/8-24 UNF threaded body, an unthreaded length optimized for precise positioning, and an unarmored standard coaxial cable with a ClickLoc connector, making it ideal for standard industrial fluid-film bearing housings where mechanical shielding is not required.
| Option Code | Parameter Description | Configured Selection |
|---|---|---|
| 00 | Unthreaded Length Option | 0.0 in (0 mm) |
| 10 | Overall Case Length Option | 1.0 in (25.4 mm) |
| 05 | Total Length Option | 0.5 meter (1.6 feet) |
| 02 | Connector and Cable Type Option | Miniature coaxial ClickLoc connector, standard cable |
| CN | Agency Approval Option | Country-specific certifications (CN Approvals) |
| Specification Parameter | Value / Rating |
|---|---|
| Probe Tip Diameter | 8 mm |
| Thread Size | 3/8-24 UNF |
| Linear Range | 2.0 mm (80 mils) nominal |
| System Scale Factor | 7.87 V/mm (200 mV/mil) +/-5% (when system matched) |
| Operating Temperature Range | -51 degC to +177 degC (-60 degF to +350 degF) |
| Connector System | Coaxial ClickLoc connector (Gold-plated brass) |
| Minimum Bend Radius | 25.4 mm (1.0 in) |
| Manufacturer | Bently Nevada (Baker Hughes) |
| Country of Origin | United States of America |
| Shipping Weight (Calculated) | 2.0 kg |
| Packaging Dimensions (Calculated) | 220 mm x 180 mm x 60 mm |
To ensure correct system configuration and prevent measurement interference, verify the following field-validated engineering guidelines during the design and installation phase:
This 0.5-meter probe is engineered for use with a 3300 XL Proximitor Sensor. It requires a specific extension cable (typically 4.5 meters or 8.5 meters) to achieve a matched system length of 5.0 meters or 9.0 meters. Intermixing 3300 XL components with older, non-XL 3300 series Proximitors or probes is physically possible but degrades the system's thermal stability and linearity curves.
Maintain a clearance zone around the probe tip of at least 1.5 times the tip diameter (12 mm) from any adjacent metal structures to avoid side-loading (cross-talk) errors. Misaligning the probe face more than 5 degrees relative to the shaft surface target face degrades measurement linearity and changes the default 200 mV/mil calibration curve.
Clean the internal gold pin contacts of the coaxial ClickLoc connector with electronics-grade isopropyl alcohol before mating. Ensure the connector is fully inserted (indicated by an audible click) before tightening the knurled sleeve. Never use standard pliers directly on the connector bodies; always use specialized connector tools to avoid cracking the insulating layers.
