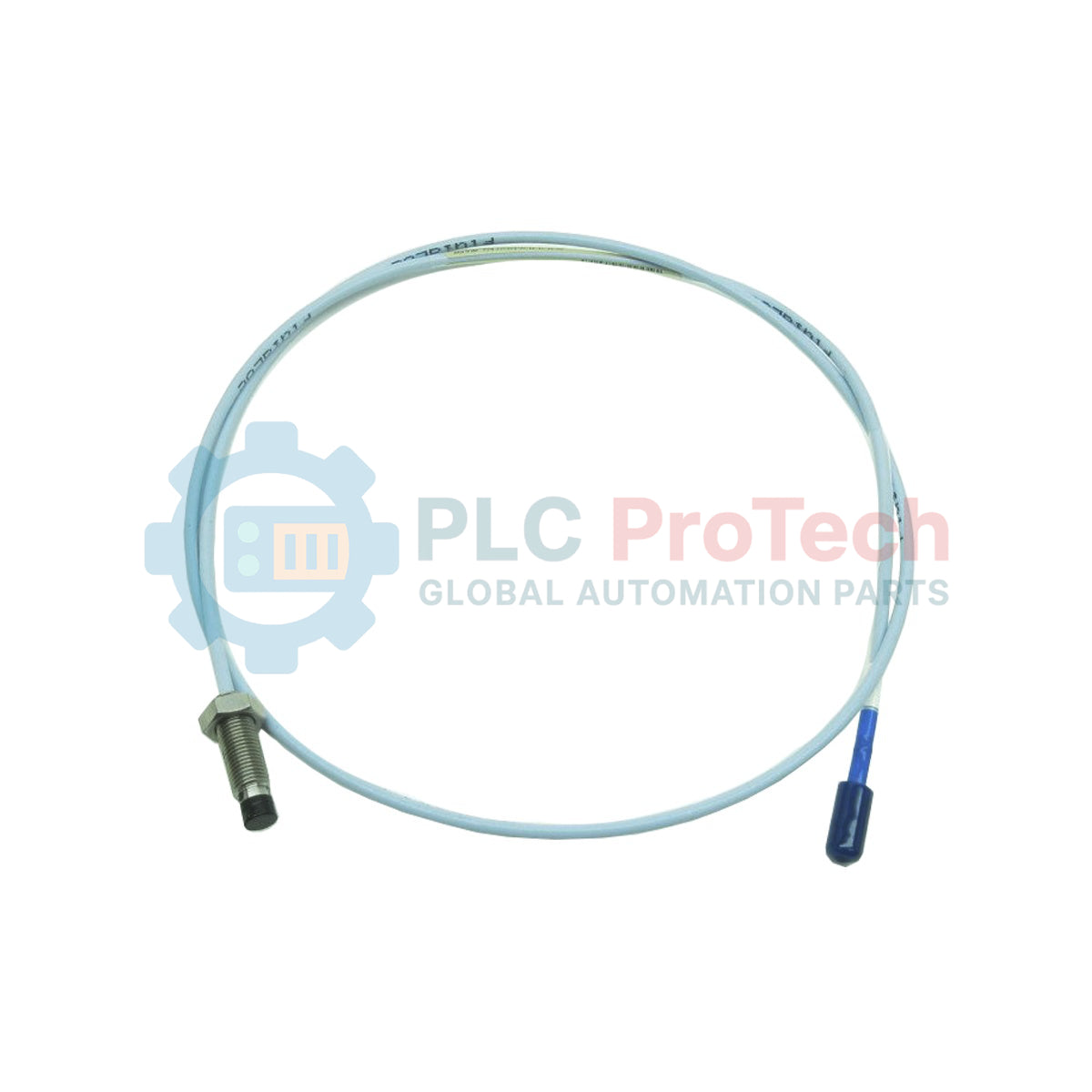

The 330101-00-12-10-01-05 3300 XL 8 mm proximity probe from Bently Nevada is designed for continuous vibration and shaft position monitoring in turbines, compressors, pumps, and other critical rotating machinery. It is widely applied in power plants, oil and gas refineries, LNG facilities, and petrochemical industries where accurate machine protection is required to reduce unplanned downtime and improve operational reliability.
This probe operates as part of the 3300 XL proximity transducer system and ensures stable signal performance in harsh industrial environments with vibration, thermal stress, and contamination exposure. The 1.2 in overall case length supports compact installation in tight mechanical assemblies. The 1.0 m total cable length allows flexible routing in machine housings and monitoring enclosures. The PPS probe tip material provides high chemical resistance and mechanical stability under continuous operation. The stainless steel probe case improves corrosion resistance in demanding industrial environments. The CSA, ATEX, and IECEx approvals support installation in global hazardous area applications requiring strict compliance standards.
| Code Segment | Description |
|---|---|
| 330101 | 3300 XL 8 mm probe series, 3/8-24 UNF thread, without armor |
| 00 | Unthreaded length: 0.0 in |
| 12 | Overall case length: 1.2 in |
| 10 | Total cable length: 1.0 m |
| 01 | Miniature coaxial ClickLoc connector with standard cable |
| 05 | CSA, ATEX, IECEx hazardous area approvals |
| Parameter | Value |
|---|---|
| Model | 330101-00-12-10-01-05 |
| Brand | Bently Nevada |
| Product Type | 3300 XL 8 mm Proximity Probe |
| Origin | USA |
| Thread Type | 3/8-24 UNF |
| Probe Tip Material | Polyphenylene sulfide (PPS) |
| Probe Case Material | AISI 303 or 304 stainless steel |
| Unthreaded Length | 0.0 in |
| Case Length | 1.2 in |
| Cable Length | 1.0 m |
| Connector Type | Miniature coaxial ClickLoc |
| Cable Type | Standard cable |
| Shipping Weight | 1.5 kg |
| Operating Temp | -52 to 177 deg C |
| System Compatibility | 3300 XL Proximitor system |
| Measurement Function | Shaft vibration and radial position monitoring |
| Power Consumption | Passive device |
What does the 05 approval option include?
The 05 option includes CSA, ATEX, and IECEx approvals for use in hazardous industrial environments with explosive gas or dust risk.
Is the PPS probe tip suitable for harsh environments?
Yes. PPS material provides strong chemical resistance and stable mechanical performance under continuous industrial operation.
Can this probe be used in turbine monitoring systems?
Yes. It is commonly used in turbines, compressors, and pumps for vibration and shaft position monitoring.
Is this probe compatible with all 3300 XL systems?
It is compatible with Bently Nevada 3300 XL systems when electrical length matching is correctly configured.
Maintain correct probe gap adjustment during commissioning to ensure linear measurement response and stable vibration output.
Route probe cables away from VFD output lines and high voltage conductors to reduce electromagnetic interference in monitoring systems.
Ensure proper mechanical fixation in high vibration zones to prevent connector stress and long term signal degradation.
