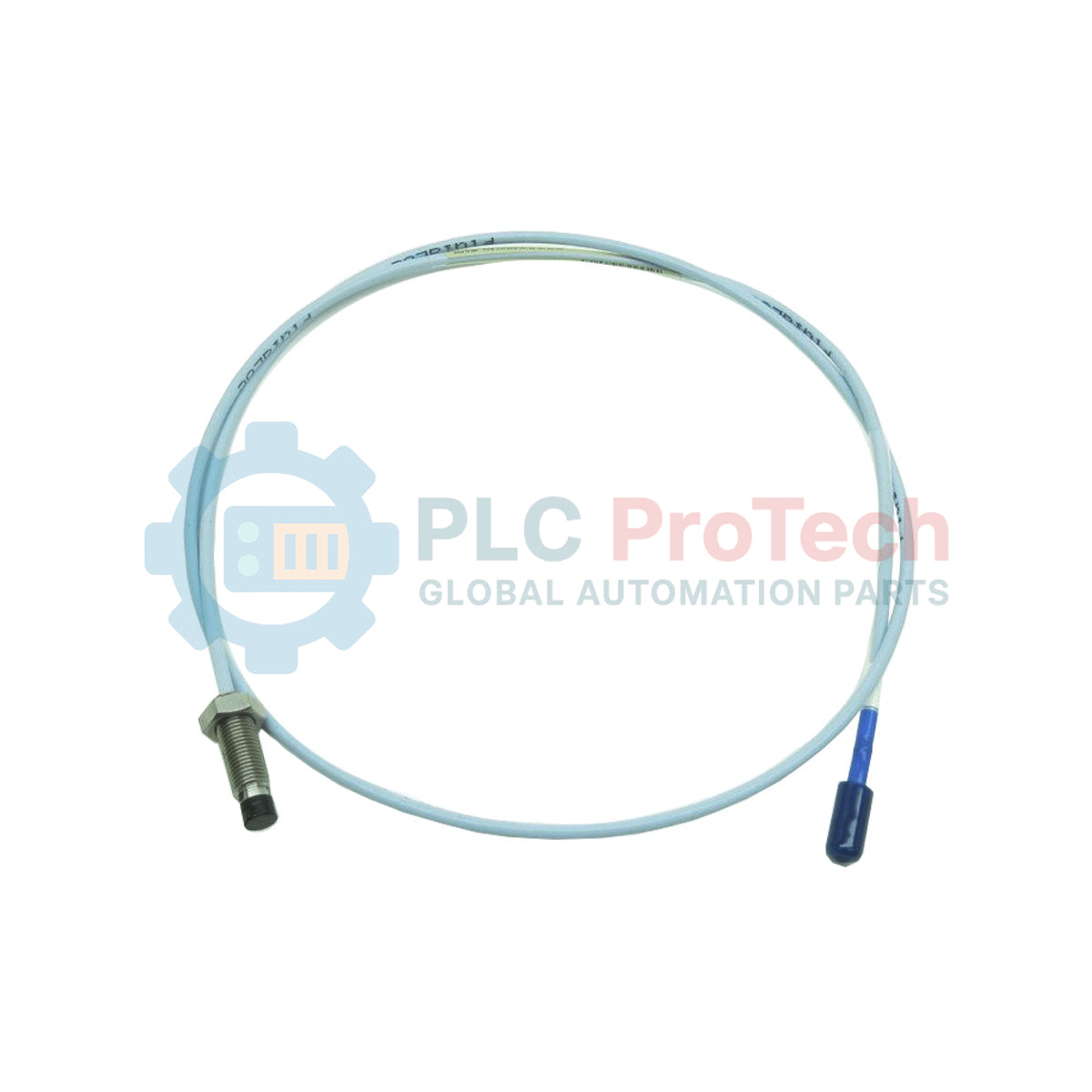

Engineered for high-reliability vibration and displacement monitoring in demanding industrial environments, the Bently Nevada 330101-00-20-10-02-CN belongs to the renowned 3300 XL series of 8 mm proximity probe systems. This robust sensor operates on eddy current principles to measure static and dynamic distances between the probe tip and a conductive target, such as a rotating shaft. Featuring a 3/8-24 UNF thread profile without armor, this configuration provides a streamlined physical envelope suitable for standard bracket or sleeve mounts.
The system parameters for this specific part number define a 0.0-inch unthreaded length, paired with a 2.0-inch overall case length. Signal transmission is managed via a 1.0-meter (3.3 feet) standard coaxial cable terminating in a miniature coaxial ClickLoc connector. Optimized for compatibility with 3300 XL proximity transducer systems, this probe supports country-specific hazardous area certifications denoted by the CN option code, ensuring compliant operation across globally regulated facilities.
| Option Code | Specification Type | Selected Option Value |
|---|---|---|
| 330101 | Base Model Type | 3300 XL 8 mm Probe, 3/8-24 UNF thread, without armor |
| 00 | Unthreaded Length | 0.0 in |
| 20 | Overall Case Length | 2.0 in |
| 10 | Total Length Option | 1.0 meter (3.3 feet) |
| 02 | Connector and Cable-Type | Miniature coaxial ClickLoc connector, standard cable |
| CN | Agency Approval | Country-specific certifications (CN Option) |
| Parameter | Specification Details |
|---|---|
| Manufacturer | Bently Nevada |
| Part Number | 330101-00-20-10-02-CN |
| Probe Tip Diameter | 8 mm |
| Thread Specification | 3/8-24 UNF |
| Unthreaded Length | 0.0 inches |
| Overall Case Length | 2.0 inches |
| Total Cable Length | 1.0 meter (3.3 feet) |
| Probe Tip Material | Polyphenylene sulfide (PPS) |
| Probe Case Material | AISI 303 or 304 Stainless Steel (SST) |
| Connector Style | Miniature coaxial ClickLoc connector |
| Operating Temperature Range | -51 degC to +177 degC |
| Weight | 0.323 kg |
| Connector Component | Interface Standard |
|---|---|
| Probe Cable Connection | Coaxial ClickLoc interface (gold-plated brass body) |
Global Express Shipping
Returns & Warranty
Manufacturer: Bently Nevada
Product No.: 330101-00-20-10-02-CN
Country of origin:United States
Product Type: Proximity Probes
Payment: T/T, Western Union
Weight: 323g
Shipping port: Xiamen
Warranty: 12 months
Engineered for high-reliability vibration and displacement monitoring in demanding industrial environments, the Bently Nevada 330101-00-20-10-02-CN belongs to the renowned 3300 XL series of 8 mm proximity probe systems. This robust sensor operates on eddy current principles to measure static and dynamic distances between the probe tip and a conductive target, such as a rotating shaft. Featuring a 3/8-24 UNF thread profile without armor, this configuration provides a streamlined physical envelope suitable for standard bracket or sleeve mounts.
The system parameters for this specific part number define a 0.0-inch unthreaded length, paired with a 2.0-inch overall case length. Signal transmission is managed via a 1.0-meter (3.3 feet) standard coaxial cable terminating in a miniature coaxial ClickLoc connector. Optimized for compatibility with 3300 XL proximity transducer systems, this probe supports country-specific hazardous area certifications denoted by the CN option code, ensuring compliant operation across globally regulated facilities.
| Option Code | Specification Type | Selected Option Value |
|---|---|---|
| 330101 | Base Model Type | 3300 XL 8 mm Probe, 3/8-24 UNF thread, without armor |
| 00 | Unthreaded Length | 0.0 in |
| 20 | Overall Case Length | 2.0 in |
| 10 | Total Length Option | 1.0 meter (3.3 feet) |
| 02 | Connector and Cable-Type | Miniature coaxial ClickLoc connector, standard cable |
| CN | Agency Approval | Country-specific certifications (CN Option) |
| Parameter | Specification Details |
|---|---|
| Manufacturer | Bently Nevada |
| Part Number | 330101-00-20-10-02-CN |
| Probe Tip Diameter | 8 mm |
| Thread Specification | 3/8-24 UNF |
| Unthreaded Length | 0.0 inches |
| Overall Case Length | 2.0 inches |
| Total Cable Length | 1.0 meter (3.3 feet) |
| Probe Tip Material | Polyphenylene sulfide (PPS) |
| Probe Case Material | AISI 303 or 304 Stainless Steel (SST) |
| Connector Style | Miniature coaxial ClickLoc connector |
| Operating Temperature Range | -51 degC to +177 degC |
| Weight | 0.323 kg |
| Connector Component | Interface Standard |
|---|---|
| Probe Cable Connection | Coaxial ClickLoc interface (gold-plated brass body) |
