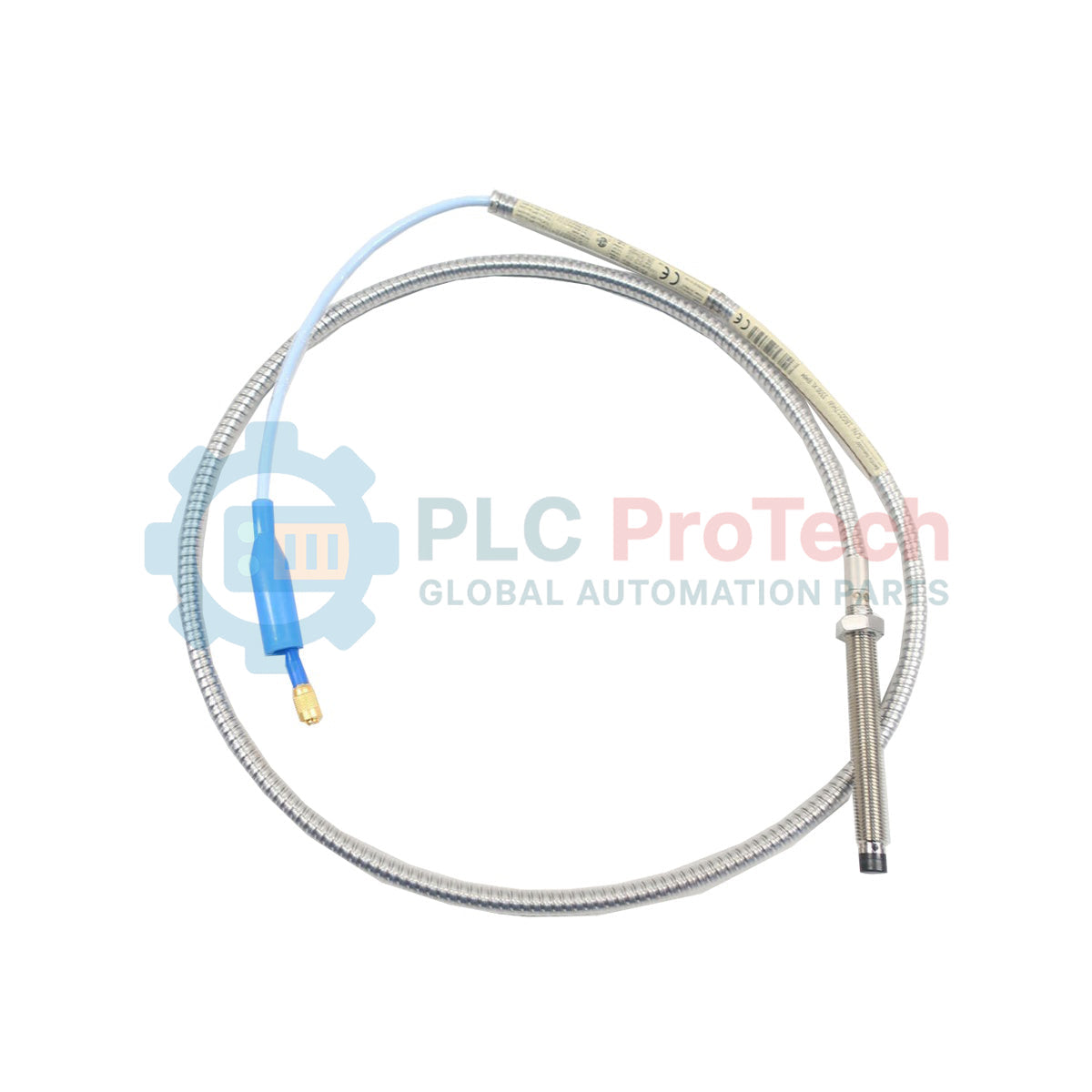

Engineered for highly accurate non-contact dynamic displacement and vibration measurements, the Bently Nevada 330101-00-22-05-02-CN acts as a key transducer component within critical machinery protection systems. This 3300 XL 8 mm series proximity probe is built to operate under demanding conditions, converting physical shaft movement into clean electrical signals when paired with a compatible Proximitor Sensor. It features an unthreaded body design with a 2.2-inch overall case length and is terminated with a 0.5-meter cable and a robust ClickLoc miniature coaxial connector. This configuration is ideal for fluid-film bearing monitoring in high-vibration turbomachinery environments requiring certified compliance under localized agency standards.
| Parameter | Specification |
|---|---|
| Manufacturer | Bently Nevada |
| Model / Part Number | 330101-00-22-05-02-CN |
| Product Series | 3300 XL 8 mm |
| Unthreaded Length Option | 00 (0 inches) |
| Overall Case Length Option | 22 (2.2 inches) |
| Total Length Option | 05 (0.5 meter / 1.6 feet) |
| Connector & Cable Option | 02 (Miniature coaxial ClickLoc connector, standard cable) |
| Agency Approval Option | CN (Country-specific approvals for China / Zone Ex) |
| Country of Origin | United States (U.S.A.) |
| Net Weight | 0.323 kg (0.71 lbs) |
| Shipping Weight | 1.500 kg (3.31 lbs) |
| Connector Component | Function / Circuit Assignment |
|---|---|
| Center Conductor | High-frequency RF signal path (connects to Proximitor core) |
| Outer Coaxial Shield | Common Return / Shield path (must be isolated from local machine ground) |
| ClickLoc Coupling | Interlocking mechanisms lock physical components to prevent disconnects |
The total physical length of your transducer system must always match the calibration system of the Proximitor Sensor. Because this model features a 0.5-meter probe length, it is strictly designed to pair with either a 4.5-meter extension cable (forming a complete 5.0-meter system) or an 8.5-meter extension cable (forming a complete 9.0-meter system). Mixing incompatible probe/cable lengths shifts the system's electrical resonance, leading to severe linear scale-factor errors (deviating from the nominal 7.87 V/mm scale factor).
Care must be exercised when handling proximity probe cables to prevent kinking. The minimum bend radius of the coaxial cable is 25.4 mm (1.0 inch). Exceeding this limit can crush the dielectric core, altering the cable impedance and introducing measurement errors. Ensure that the total run length of extension cabling is properly secured within protective conduits to avoid physical wear and electrical noise pick-up in high EMI/RFI machinery spaces.
When making connections with the ClickLoc coaxial system, ensure the physical terminations are completely dry and free from contaminants like oil or coolant. Once mated, wrap the connector interface with a specialized silicone connector protector sleeve. This sleeve acts as a moisture barrier and isolates the outer metallic shield from machine ground, preventing ground loop interference that degrades dynamic vibration readings.
De-energize the associated machinery and isolate the monitoring loops before attempting to adjust or replace the proximity probe. CN-approved installations in hazardous areas must conform strictly to localized electrical codes and intrinsic safety parameters. Failure to isolate physical power loops before performing system maintenance can result in dangerous electrical discharge or equipment damage.
Thread Probe Body: Mount the probe housing into the bracket or sleeve, threading carefully to prevent thread cross-alignment.
Set Voltage Offset Gap: Use a multimeter connected to the Proximitor output to measure the gap voltage. Adjust the physical probe depth until the target voltage (typically -10.0 VDC for middle-of-range calibration) is observed.
Tighten Locknut: Torque the locknut to the recommended specification for the mounting thread to prevent target gap shifting during operation.
Secure and Insulate Cable: Install the silicone protection sleeve over the ClickLoc coaxial junction and route the probe cable away from rotating parts.
Global Express Shipping
Returns & Warranty
Manufacturer: Bently Nevada
Product No.: 330101-00-22-05-02-CN
Country of origin:United States
Product Type: 3300 XL 8 mm Proximity Probe
Payment: T/T, Western Union
Weight: 320g
Shipping port: Xiamen
Warranty: 12 months
