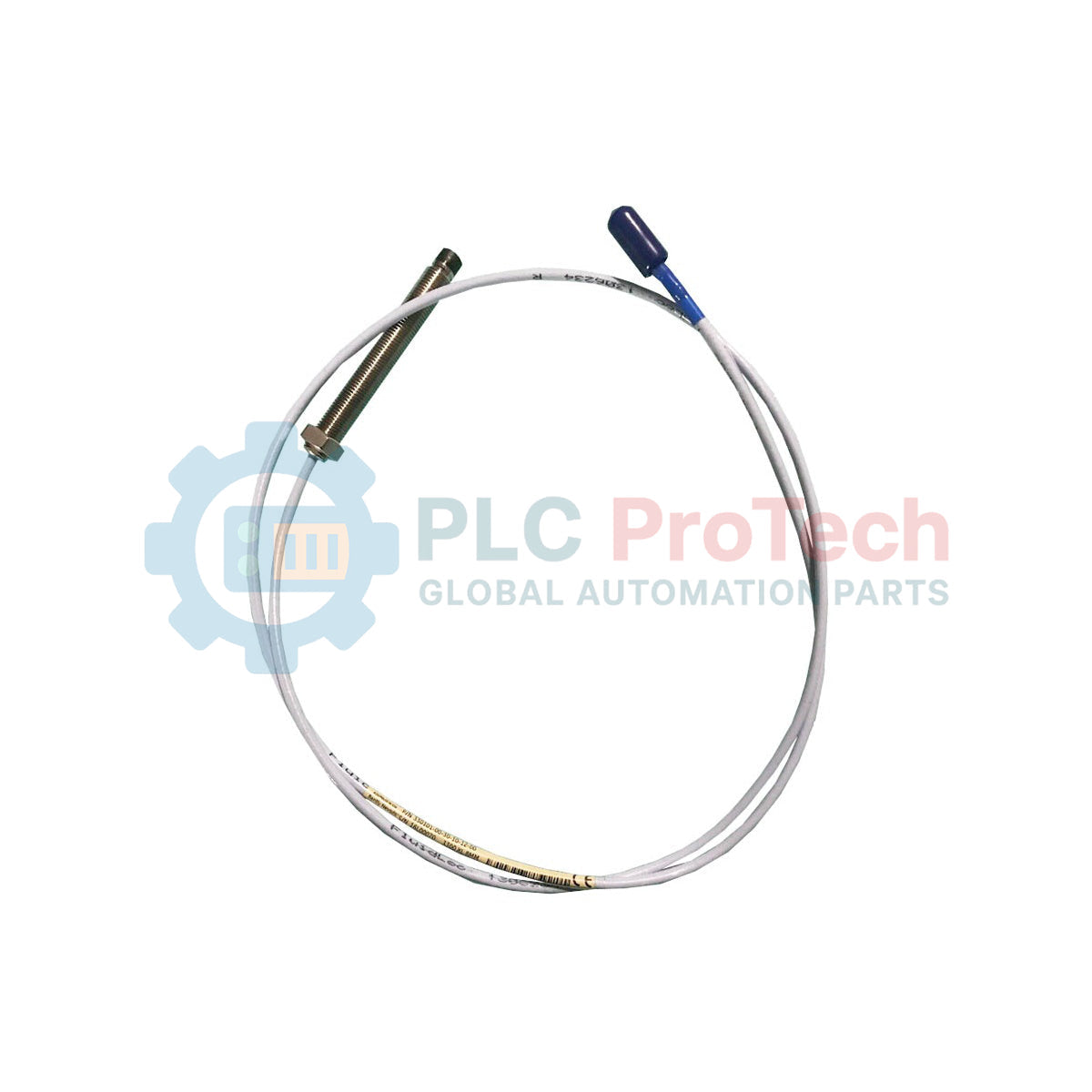

Designed for high-precision, non-contact dynamic and static measurements, the Bently Nevada 330101-00-27-15-02-00 proximity probe monitors vibration, position, and speed in critical rotating machinery. As a key sensing element within the 3300 XL 8 mm series, this eddy current probe converts distance variations between the probe tip and the target shaft into a proportional electrical signal when paired with a matching Proximitor sensor.
| Manufacturer | Bently Nevada |
| Model Code | 330101-00-27-15-02-00 |
| Series | 3300 XL 8 mm Proximity Probes |
| Thread Size | 3/8-24 UNF |
| Unthreaded Length | 0.0 in |
| Overall Case Length | 2.7 in (69 mm) |
| Total Length | 1.5 meters (4.9 feet) |
| Connector Option | Miniature coaxial ClickLoc connector, standard cable |
| Agency Approval | Not required (Standard environment) |
| Net Weight | 0.323 kg |
| Shipping Weight (Calculated) | 1.500 kg |
| Country of Origin | United States (U.S.A.) |
The proximity probe uses a coaxial interface architecture to transmit raw RF and DC signals to the monitoring system:
| Interface Element | Physical Form | Functional Assignment |
|---|---|---|
| Inner Conductor | Coaxial Core | RF signal transmission and DC bias voltage supply pathway |
| Outer Shield | Braided Return | Signal return ground path and high-frequency EMI shielding |
| ClickLoc Connector | Coaxial Lock-Ring | Secure physical connection to the system's extension cable |
When deploying the 330101-00-27-15-02-00, ensure it is integrated within a matched Bently Nevada 3300 XL system. Probe electrical length (1.5 meters) must correspond with the appropriate extension cable (e.g., 3.5-meter extension cable) to construct a complete 5.0-meter system. Mixing components from 5.0-meter and 9.0-meter systems will result in severe calibration and output deviations.
To prevent reading errors caused by magnetic field interference (cross-talk), do not route probe cables alongside high-voltage AC electrical lines. The probe tip must clear surrounding non-target metal components by at least three probe-tip diameters (24 mm) to avoid inductive coupling losses.
Before final coupling, clean the ClickLoc connectors with pure isopropyl alcohol. Once clean, lock the connector securely. To guarantee long-term operation inside fluid-sprayed areas, wrap the connector joint in oil-resistant fluoropolymer tape or protect it with Bently Nevada’s proprietary connector sleeve protectors.
