Description

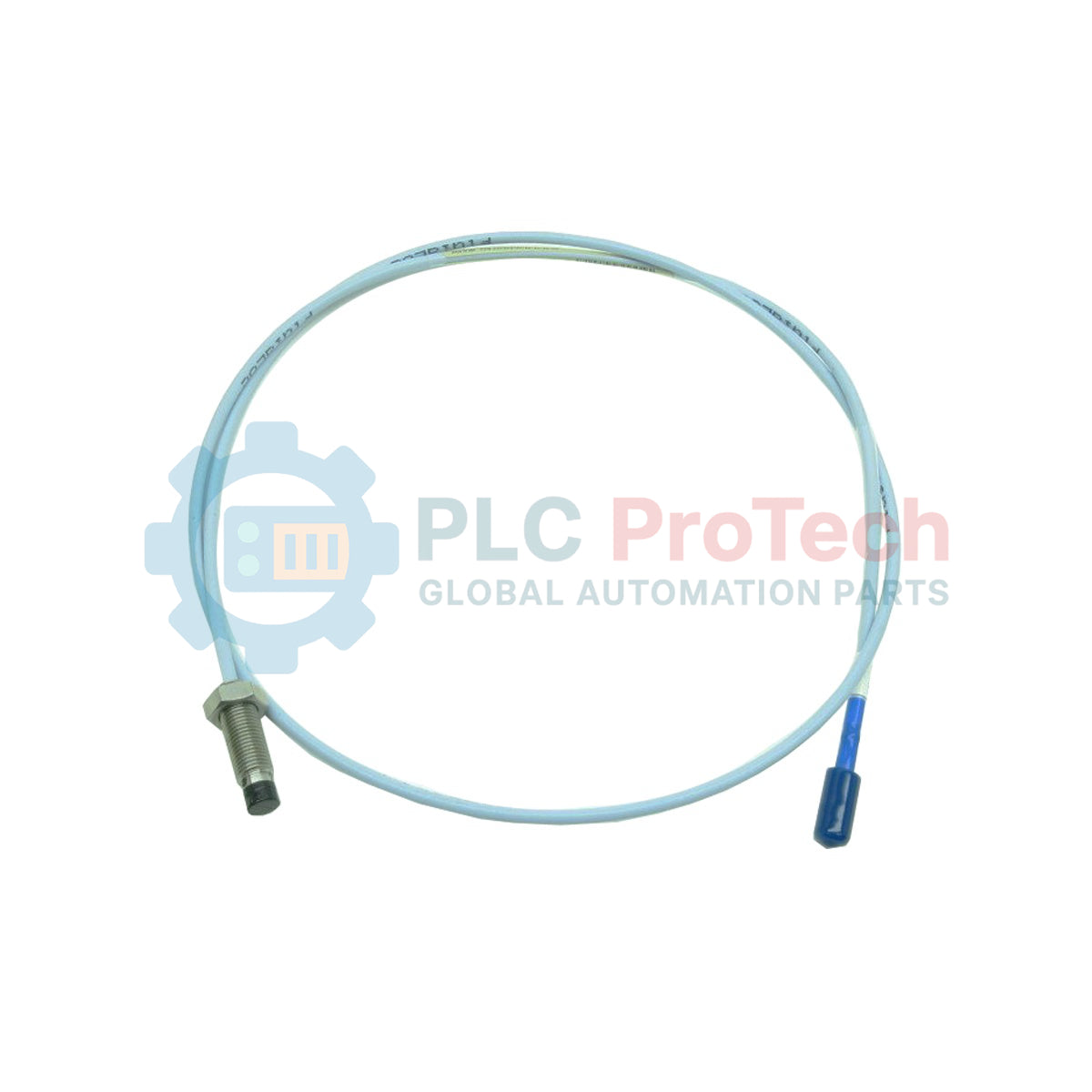

Engineered for high-reliability vibration and position monitoring in critical rotating machinery, the Bently Nevada 330101-00-40-10-01-CN is an industrial-grade non-contacting transducer from the 3300 XL 8 mm series. This proximity probe features a 3/8-24 UNF threaded casing, designed specifically to operate within extreme thermal and chemical environments. Configured without protective armor, this model includes a 4.0-inch overall case length and a 1.0-meter total system length, terminating in a premium coaxial ClickLoc connector with integrated protection. The "CN" designation certifies compliance with country-specific hazardous area regulations, enabling seamless integration into international safety systems.

Key Features

• Resilient Construction: Case fabricated from premium AISI 303 or 304 stainless steel to resist oxidation and chemical degradation.
• Advanced Tip Design: Probe tip molded from Polyphenylene Sulfide (PPS) for superior dielectric strength and physical endurance.
• ClickLoc Coaxial Connection: Gold-plated miniature coaxial ClickLoc connector reduces signal loss and resists connection fatigue.
• Unarmored Configuration: Designed for direct routing through conduit systems where external mechanical armor is not required.
• Wide Thermal Range: Full performance envelope rated for continuous operation from -51 degC to +177 degC.

Applications

• Radial Vibration Measurements: Monitoring dynamic shaft movement in high-speed fluid-film bearing machines.
• Axial Thrust Position: Detecting thrust collar displacement to prevent catastrophic rotor-stator contact.
• Phase Reference: Keyphasor sensor integration for rotational speed tracking and phase angle calculations.
• Industrial Sectors: Deployed extensively across steam turbines, centrifugal compressors, gas turbines, and heavy-duty process pumps.

Technical Specifications

Empirical Engineering Insights

Alternative Models & Compatibility

The 330101 series probe is fully backward-compatible with legacy Bently Nevada 3300 systems. However, utilizing a 3300 XL 8 mm probe with a non-XL Proximitor sensor or mismatching the electrical system length (mixing 5-meter and 9-meter subcomponents) will degrade calibration accuracy. To ensure the standard 7.87 V/mm (200 mV/mil) scale factor, verify that the combined probe and extension cable length precisely matches the calibrated length parameter of the Proximitor sensor.

Application Pitfalls & Engineering Notes

Because this is an unarmored coaxial cable configuration (-00 unthreaded option with no armor), routing must be performed inside dedicated rigid steel conduits or protective cable trays. In petrochemical or oil-mist applications, the absence of protective conduit can expose the coaxial core to physical shearing, leading to signal loss and false "danger" alarms on connected monitoring channels. Avoid routing this high-impedance coaxial line in the same tray as high-voltage AC motor lines to prevent electromagnetic cross-coupling.

Commissioning & Wiring Tips

When installing the ClickLoc connection, verify the connector protector is clean and dry. Moisture ingress into the gold coaxial contact points behaves as a parallel resistance path, causing the Proximitor to read an artificially high voltage (making the system appear to have a larger physical gap than actual). Always torque the lock-nut to the machine casing using a calibrated crowfoot wrench to prevent backing-out caused by rotor-induced structural vibrations.
