Description

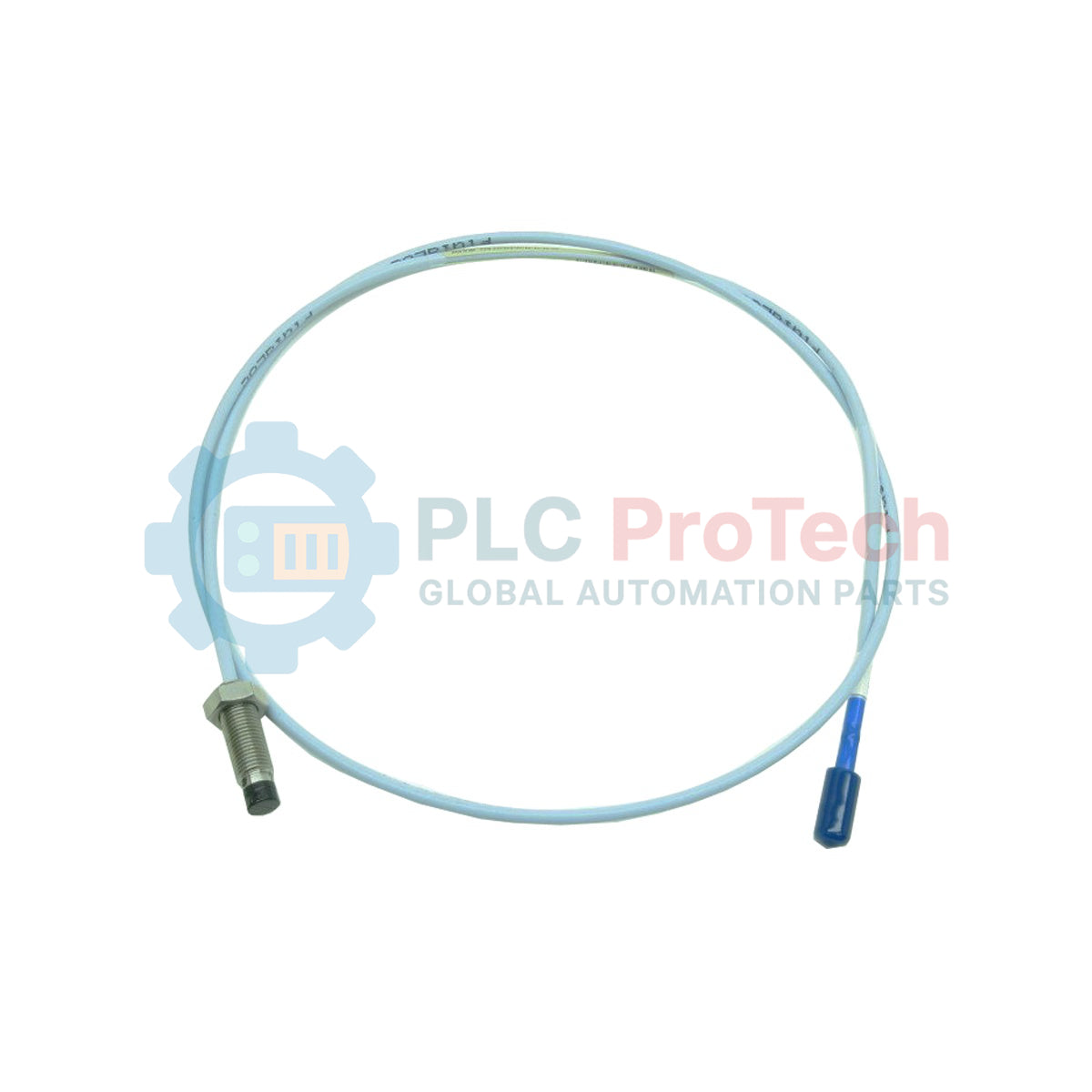

Engineered for critical industrial shaft vibration and position measurements in high-speed rotating machinery, the Bently Nevada 330101-00-55-05-02-00 acts as a reliable transducer component within the 3300 XL 8 mm Proximity Transducer System. This robust non-contacting sensor provides precise dynamic and static gap measurements, enabling operators to continuously evaluate the mechanical health of steam turbines, compressors, and high-pressure pumps. Constructed with a 3/8-24 UNF thread pattern and a 5.5-inch case length, this probe integrates directly into standard machine casings without requiring protective armor.
Key Technical Features
-
8 mm Probe Tip: Molded from advanced polyphenylene sulfide (PPS) for superior resistance to corrosive industrial fluids and high operating temperatures.
-
AISI 303/304 Stainless Steel Case: Heavy-duty construction ensures physical rigidity and chemical stability in harsh mounting locations.
-
ClickLoc Coaxial Connector: Features a corrosion-resistant miniature coaxial connector with ClickLoc positive-locking technology to prevent disconnects from machine vibration.
-
Optimized System Length: Engineered as a 0.5-meter (1.6 feet) total length configuration, ideal for setups utilizing extension cables to reach distant junction boxes.
Heavy Industrial Applications
- Radial vibration and shaft centerline tracking in power generation steam turbines.
- Thrust position measurement in critical centrifugal compressors and expanders.
- Eccentricity and phase reference tracking (Keyphasor) on industrial generator rotors.
- Structural casing displacement and thermal expansion monitoring.
Technical Specifications
| Parameter |
Specification |
| Manufacturer |
Bently Nevada |
| Part Number |
330101-00-55-05-02-00 |
| Thread Size |
3/8-24 UNF |
| Unthreaded Length |
0.0 in |
| Overall Case Length |
5.5 in |
| Total Length Option |
0.5 meter (1.6 feet) |
| Connector / Cable Option |
Miniature coaxial ClickLoc connector, standard cable |
| Agency Approvals |
Not required (00 Option) |
| Probe Tip Material |
Polyphenylene sulfide (PPS) |
| Case Material |
AISI 303 or 304 Stainless Steel (SST) |
| Operating Temperature Range |
-51 degC to +177 degC (-60 degF to +351 degF) |
| Linear Range |
2.0 mm (80 mils) starting at 0.25 mm (10 mils) clearance |
| Actual Net Weight |
0.323 kg |
| Shipping Weight (Calculated) |
1.3 kg |
| Country of Origin |
United States |
Connections and Interfaces
| Coaxial Component |
Electrical Assignment |
| Inner Conductor |
High-frequency AC signal (RF excitation from Proximitor Sensor) |
| Outer Shield / Braid |
Common signal return / shielding path (ground reference) |
Empirical Engineering Insights
Alternative Models & Compatibility
The Bently Nevada 330101 series is fully compatible with all 3300 XL Proximitor sensors configured for 8 mm tips. When replacing older 3300 series non-XL 8 mm probes, ensure the entire system loop length is calculated. Mismatching system lengths (e.g., using a 0.5-meter probe with a 9-meter cable on a 5-meter calibrated proximitor) will cause severe calibration slope errors. Always match probe and extension cable combined length to the Proximitor's calibrated length (typically 5.0m or 9.0m).
Application Pitfalls & Engineering Notes
Mechanical interference can result if correct side clearance is not maintained during drilling and tapping. Ensure a minimum physical clearance of at least 1.5 times the probe tip diameter (12 mm) from any surrounding metal structure to avoid eddy-current side-loading. Side-loading artificially biases the sensor, shifting the baseline DC voltage and distorting the dynamic measurement range. Avoid exposure to hot concentrated acids, which can degrade the polyphenylene sulfide (PPS) tip material.
Commissioning & Calibration Tips
During initial installation, use a digital multimeter to measure the DC gap voltage at the Proximitor sensor's output terminal. Adjust the mechanical positioning of the probe until the gap voltage reaches approximately -10.0 VDC (the nominal center point of the 3300 XL linear curve). Always clean the coaxial connectors with electronic contact cleaner before connection and apply silicone self-fusing tape to prevent moisture and oil ingress at the junction.
Installation Guidelines
CRITICAL SAFETY WARNING
Isolate, lockout, and tagout the rotating machine before inserting or adjusting proximity probes. Verify that the rotor is stationary and free from static charge buildup. Grounding the shaft prior to mechanical installation is necessary to prevent accidental electrostatic discharge (ESD) through the probe tip to the sensor circuitry.
1
Inspect and clean the mounting port threads, verifying compatibility with the 3/8-24 UNF specification of the probe housing.
2
Thread the probe into the mounting port until the PPS tip gently touches the target surface (shaft) to establish a zero-gap reference.
3
Back the probe out of the mounting hole by approximately 1.27 mm (50 mils) or until the real-time gap voltage matches your target system specification (typically -10 VDC).
4
Tighten the locknut to secure the probe body. Hand-tighten the miniature coaxial ClickLoc connector; do not apply excessive force with pliers.
