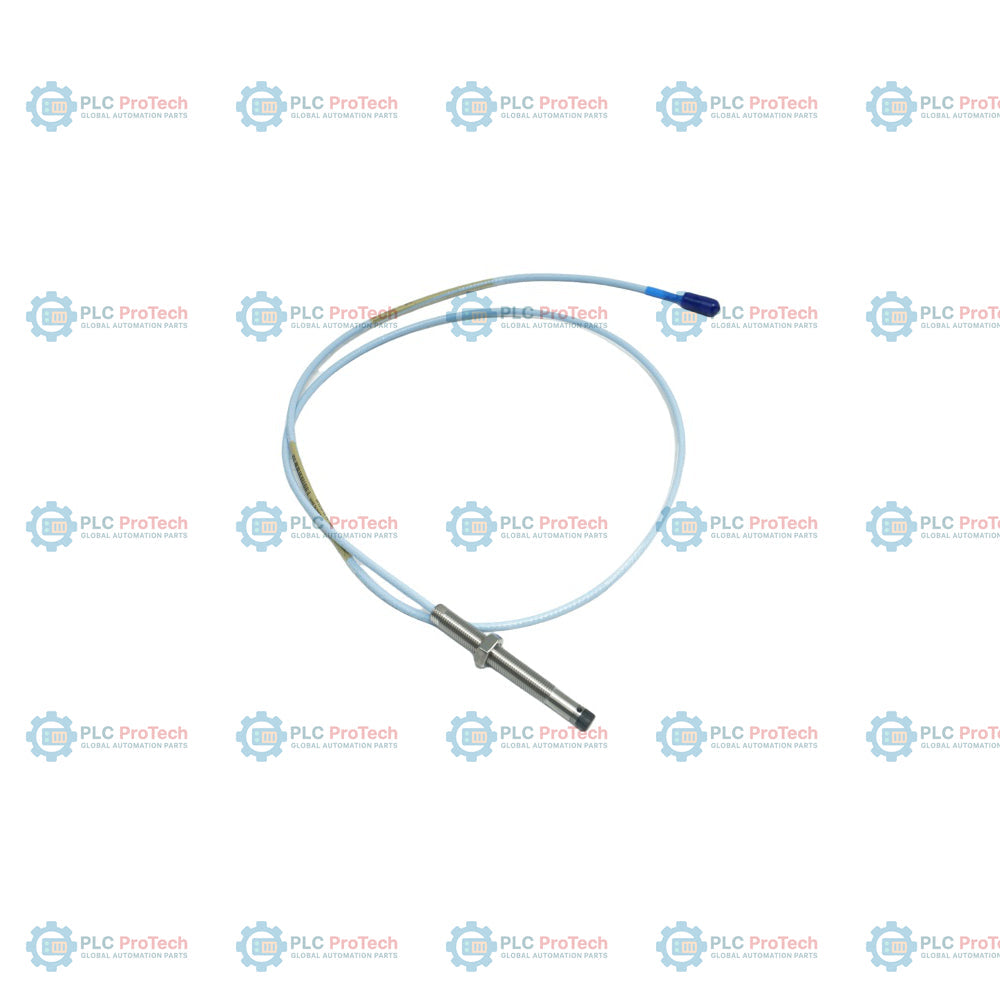

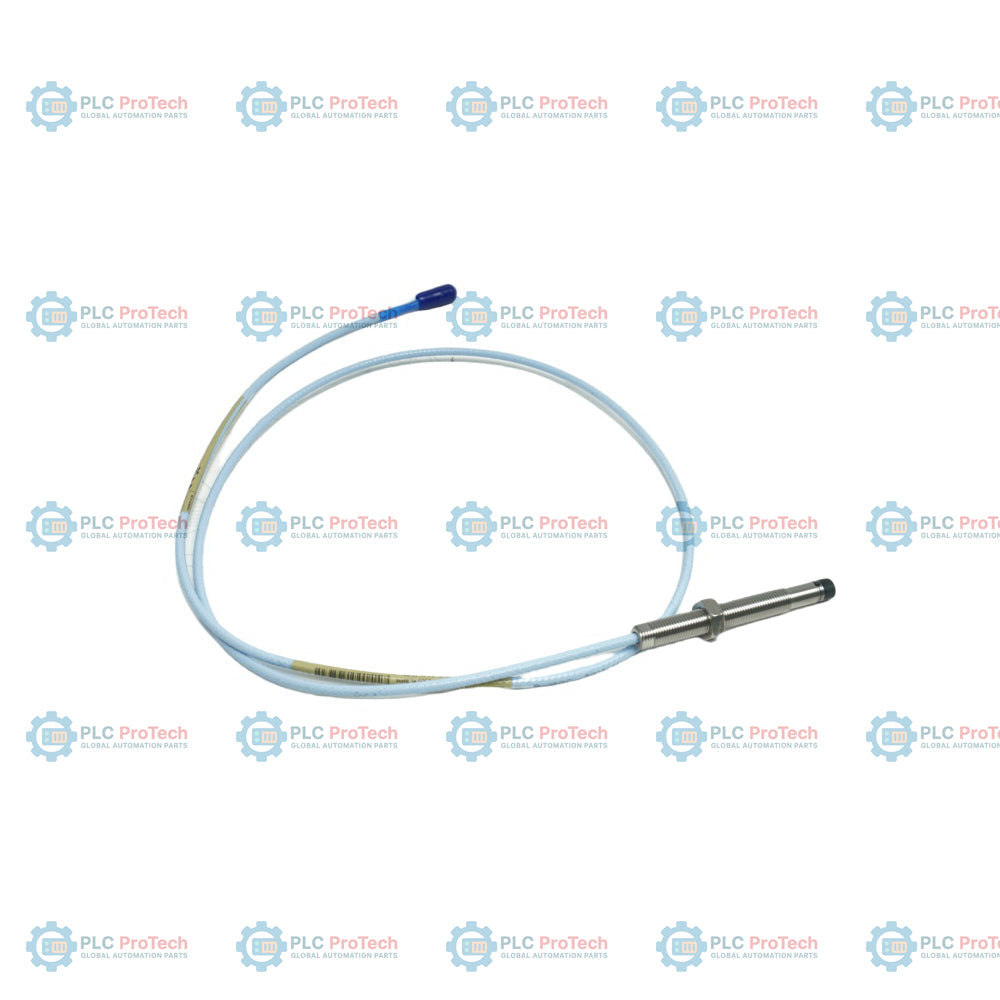

330101-05-30-10-02-00: 3300 XL 8 mm proximity probe configured with 3/8-24 UNF threads, a 0.5 in unthreaded length, a 3.0 in overall case length, a 1.0 m total cable length, and a miniature coaxial ClickLoc connector on a standard unarmored cable. This proximity probe serves as a non-contact sensor used for shaft vibration and axial position measurement on industrial rotating machinery. It is a critical sensor for monitoring dynamic machine behavior in steam and gas turbines, compressor systems, and pump bearing housings.
This specific configuration lacks a protective stainless steel armor layer on the coaxial cable, offering optimal flexibility for installations utilizing dedicated protective conduit paths. It features a direct-connection miniature coaxial ClickLoc connector (Option 02) without an integrated connector protector. With the Option 00 selection, this probe is suited for installations that do not require specialized agency approvals, providing a straightforward option for general industrial and non-hazardous environments.
| Option Type | Code Value | Configuration Meaning |
|---|---|---|
| Orderable Part Number | 330101-05-30-10-02-00 | 3300 XL 8 mm Proximity Probe, 3/8-24 UNF thread, without armor |
| A - Unthreaded Length | 05 | 0.5 in (12.7 mm) unthreaded length |
| B - Overall Case Length | 30 | 3.0 in (76.2 mm) case length |
| C - Total Length | 10 | 1.0 meter (3.3 feet) total cable length |
| D - Connector and Cable Type | 02 | Miniature coaxial ClickLoc connector, standard cable |
| E - Agency Approval Option | 00 | No agency approvals required |
| Manufacturer | Bently Nevada |
| Model / Part Number | 330101-05-30-10-02-00 |
| Product Family | 3300 XL 8 mm Proximity Transducer System |
| Probe Diameter | 8 mm |
| Thread Size | 3/8-24 UNF |
| Unthreaded Length | 0.5 in (12.7 mm) |
| Case Length | 3.0 in (76.2 mm) |
| Total Cable Length | 1.0 meter (3.3 feet) |
| Connector Type | Miniature coaxial ClickLoc |
| Cable Type | Standard unarmored coaxial |
| Operating Principle | Eddy current |
| Measurement Type | Displacement (proximity) |
| Dimensions | 45 mm x 95 mm x 95 mm (H x W x D) |
| Weight | 0.14 kg |
Position and mount the probe with the appropriate probe gap distance per system calibration, typically corresponding to -10 VDC in the linear measurement range. Standard coaxial cables should be routed within protective conduits to safeguard them from mechanical abrasion or environmental contamination. Ground the cable shields at the Proximitor sensor end only to prevent ground loops in high-frequency monitoring systems.
