Description

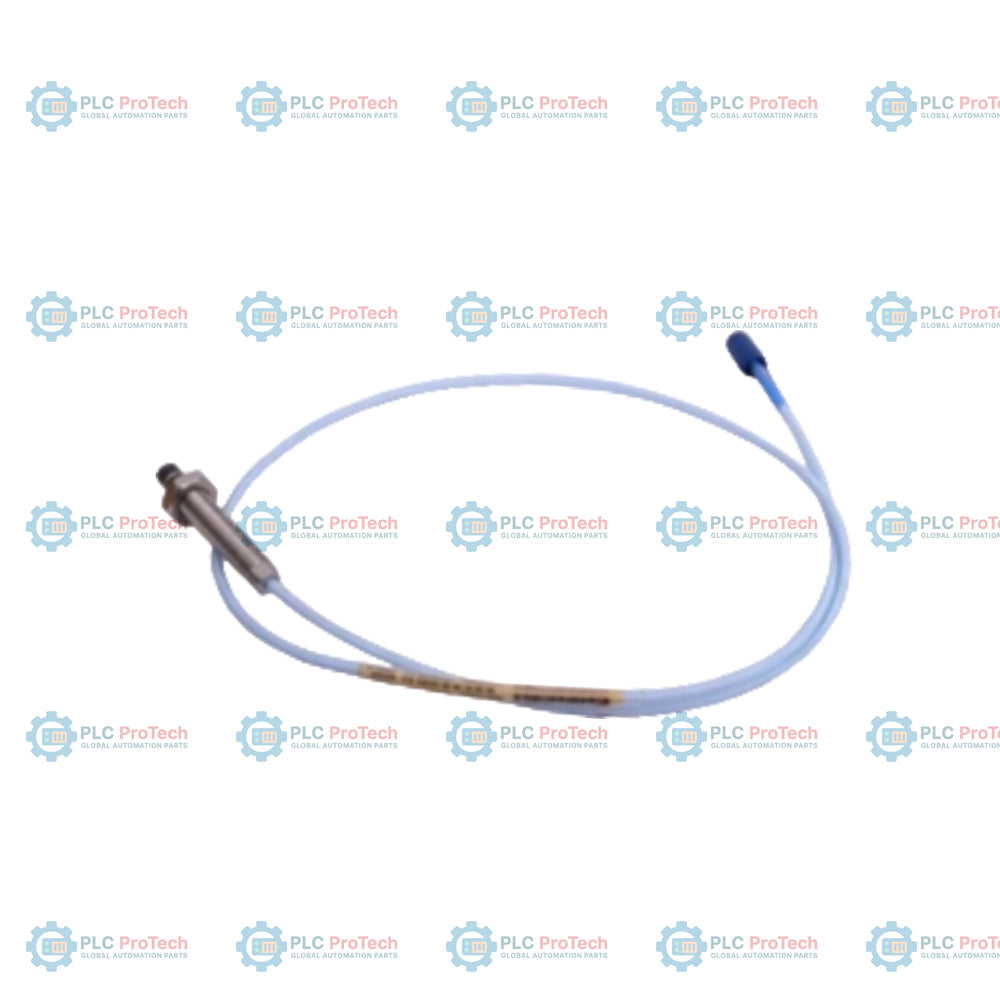

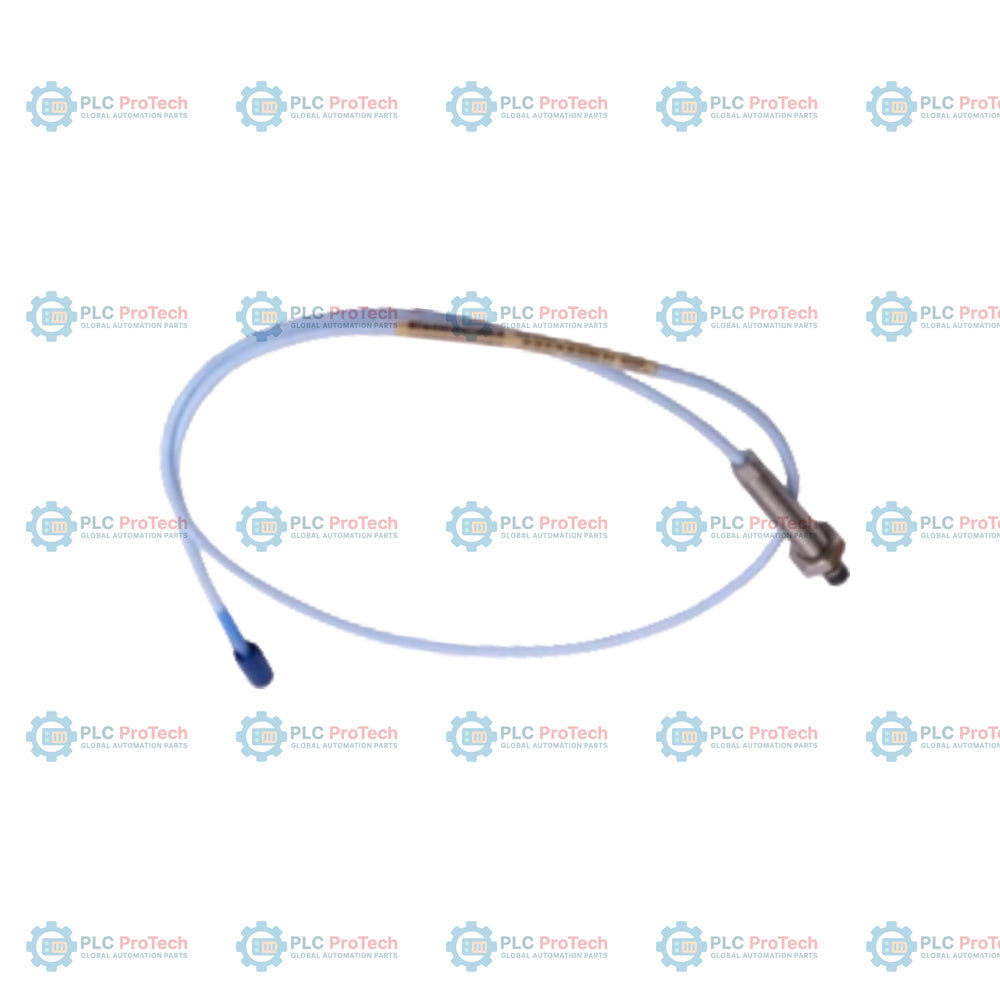

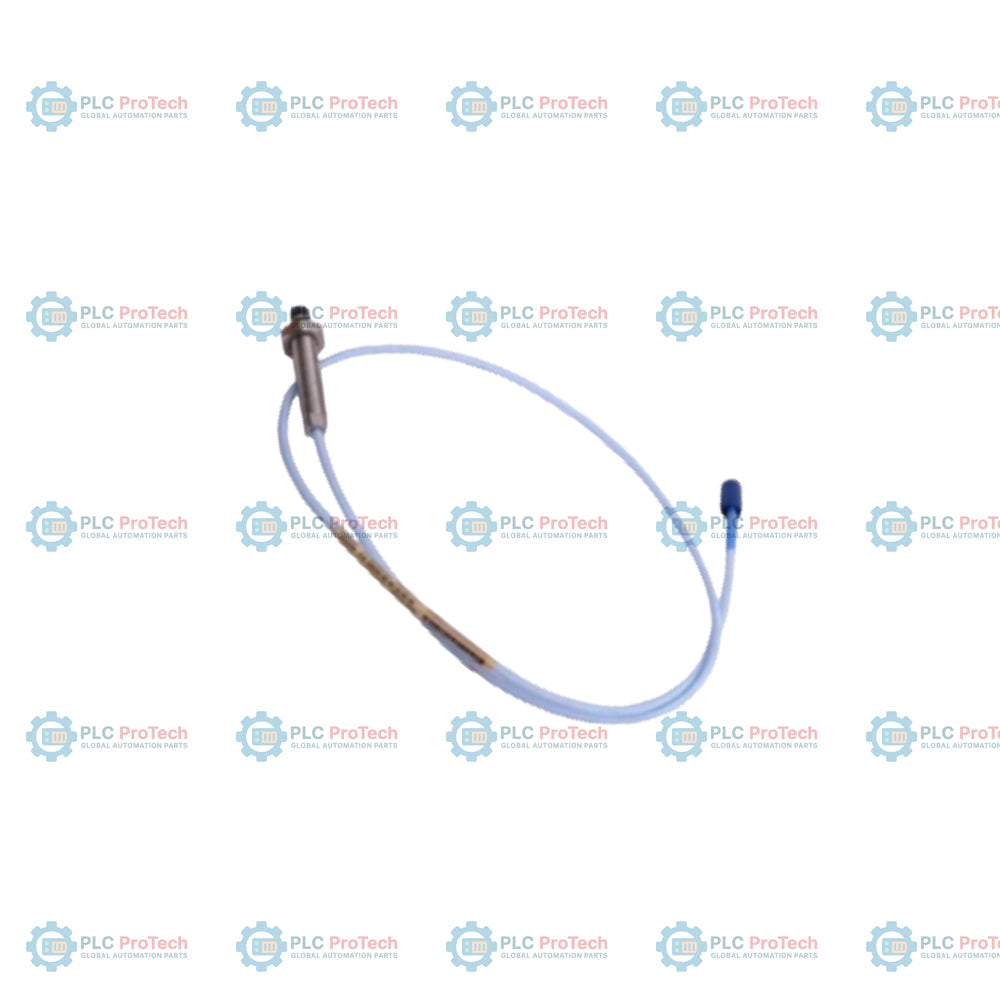

The 330103-00-06-05-02-CN is a 3300 XL 8 mm proximity probe designed for non-contact eddy-current displacement measurement in high-criticality rotating machinery. This specific configuration features a metric M10 x 1 thread (330103 series) without armor, an unthreaded length of 0.0 in (Option 00), a case length of 0.6 in (Option 06), and a total system length of 0.5 m (Option 05). It is terminated with a miniature coaxial ClickLoc connector and uses standard cabling (Option 02). This unit includes the -CN suffix, which signifies a China hazardous area approval package (NEPSI + CCC compliance).

As a core component of the 3300 XL 8 mm transducer system, this probe must be paired with a compatible 3300 XL Proximitor sensor and extension cable of the same total system length to maintain calibrated performance. The 3300 XL 8 mm probe series is widely used for monitoring shaft vibration and axial position on turbines, compressors, pumps, and motors, providing reliable signal transmission in demanding industrial environments.

Features

• M10 x 1 thread, non-armored 3300 XL 8 mm probe configuration
• Option 00: 0.0 in unthreaded length
• Option 06: 0.6 in case length
• Option 05: 0.5 m total system length
• Option 02: Miniature coaxial ClickLoc connector with standard cabling
• -CN suffix: Includes China hazardous area approval package (NEPSI + CCC)
• Designed for 3300 XL Proximitor sensor compatibility

Applications

• Turbine and compressor shaft vibration monitoring
• Rotor axial position (thrust) measurement
• Critical rotating machinery protection
• Industrial applications requiring NEPSI/CCC certification

Ordering Information

Technical Specifications

Installation Guidelines

• Ensure the probe gap is set according to the 3300 XL Transducer System manual for the specific machinery application.
• The 3300 XL probe and extension cable must match the total system length requirement of the Proximitor sensor to ensure correct calibration.
• Avoid sharp bends in the coaxial cable; observe the minimum bend radius requirements during routing.
• For installations requiring electrical isolation, use the recommended non-conductive mounting hardware.
• Verify all connections are secure and that connector protectors are used if the environment exposes the connectors to moisture or debris.

Compliance and Certifications

• Compliance: NEPSI, CCC (China hazardous area package per -CN suffix)
• System compatibility: Designed for 3300 XL system performance specifications
