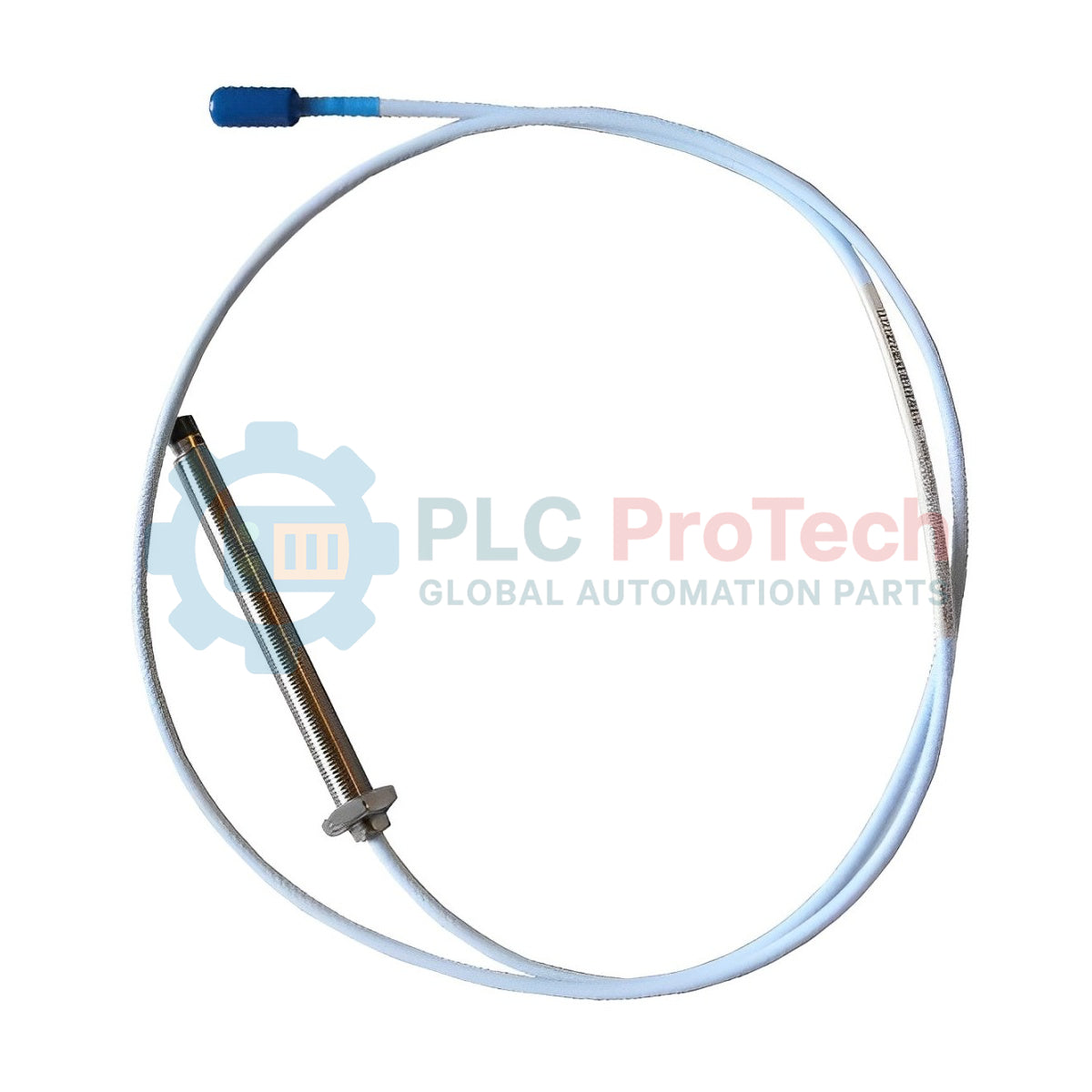

Optimized for industrial vibration monitoring and shaft position sensing, the Bently Nevada 330103-00-07-10-01-CN eddy current sensor is a precision engineered element of the 3300 XL 8 mm Proximity Transducer System. This robust transducer translates the physical distance between its probe tip and a target conductive surface into an electrical signal, enabling real-time monitoring of fluid-film bearing clearance, radial shaft vibration, and thrust displacement in critical rotating machinery. Designed with an M10 x 1 metric thread and a fully unarmored cable jacket, this model ensures high reliability under continuous operation in harsh industrial environments.
| Parameter | Specification |
|---|---|
| Manufacturer | Bently Nevada |
| Model Number | 330103-00-07-10-01-CN |
| Transducer System Series | 3300 XL 8 mm |
| Thread Size | M10 x 1 (Metric) |
| Unthreaded Length (AA) | 0 mm (0.0 inches) |
| Overall Case Length (BB) | 70 mm (2.8 inches) |
| Total Cable Length (CC) | 1.0 meter (3.3 feet) |
| Connector and Cable Option (DD) | Miniature coaxial ClickLoc connector with connector protector, standard cable |
| Agency Approvals (EE) | ATEX/IECEx and Chinese NEPSI hazardous area markings |
| Cable Mass (Nominal) | 323 g/m (11.4 oz/m) |
| Shipping Weight (Calculated) | 1.5 kg (3.3 lbs) |
This probe must be matched with a Proximitor sensor configured for a 1.0-meter system length when using standard 3300 XL extension cables. If replacing older, non-XL 3300 series probes, ensure that both the extension cable and the Proximitor sensor are upgraded simultaneously to maintain accurate calibration curves and prevent signal attenuation.
Because this probe does not feature a stainless steel armored sleeve, routing through high-vibration areas inside or outside the machine casing requires structured conduit paths. Avoid running the unarmored coaxial cable in parallel close to high-voltage phase lines or motor supply cables to prevent electromagnetic coupling and high-frequency noise interference from skewing the proximity readout.
Always clean the ClickLoc connector with a quick-drying solvent cleaner before installation. Ensure the protective connector sleeve is fully pushed into position to seal out machine oil, moisture, and fine metal dust, which can cause grounding faults and compromise low-amplitude signal integrity.
Carefully thread the probe into the mounting bracket or sleeve using appropriate hand tools. Use a calibrated torque wrench to ensure the M10 threads are not over-torqued beyond the OEM recommended limits for the housing material.
Route the 1.0-meter integrated coaxial cable through the designated protection conduit, avoiding sharp bends. The minimum bend radius for unarmored coaxial cable must be strictly respected (typically 25.4 mm or 1.0 inch) to prevent internal core damage.
Connect the ClickLoc connector to the extension cable of the monitoring system, ensuring a firm snap-lock connection. Ensure the integrated connector protector is slid over the connection to guard against environmental exposure.
