Description

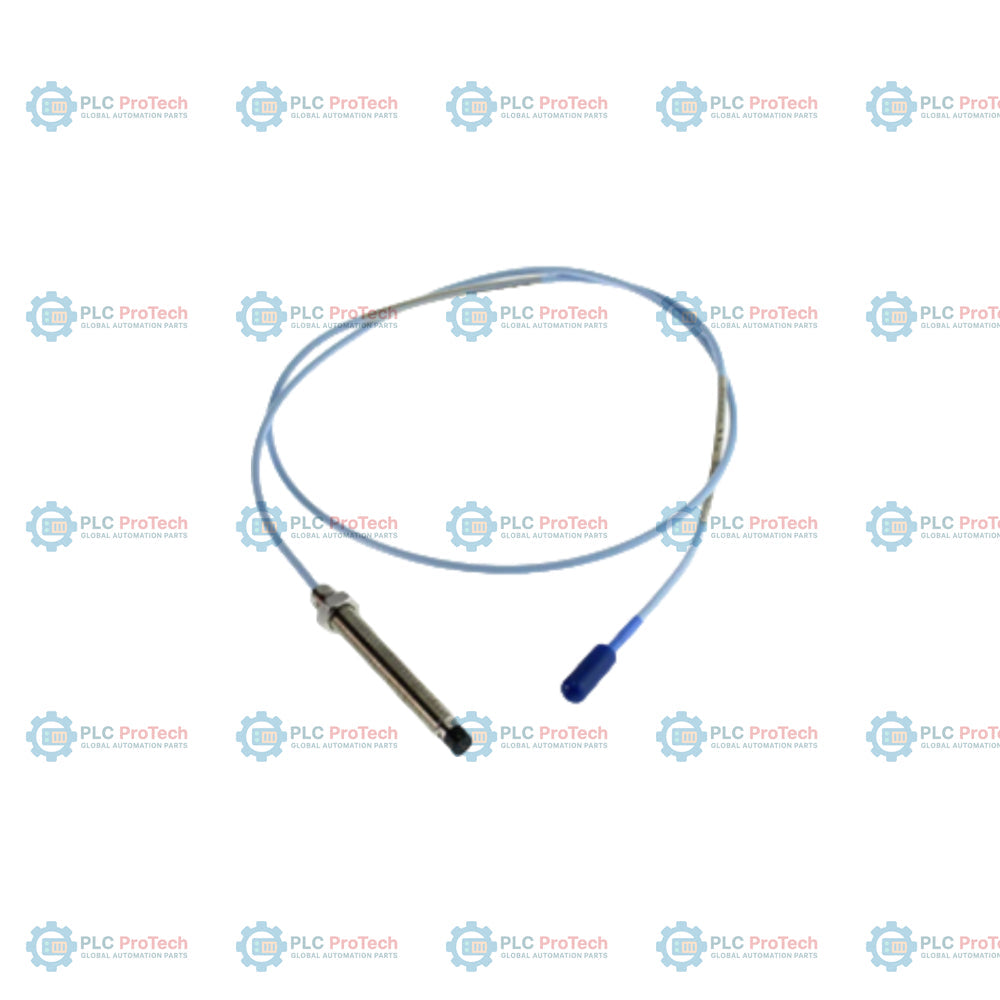

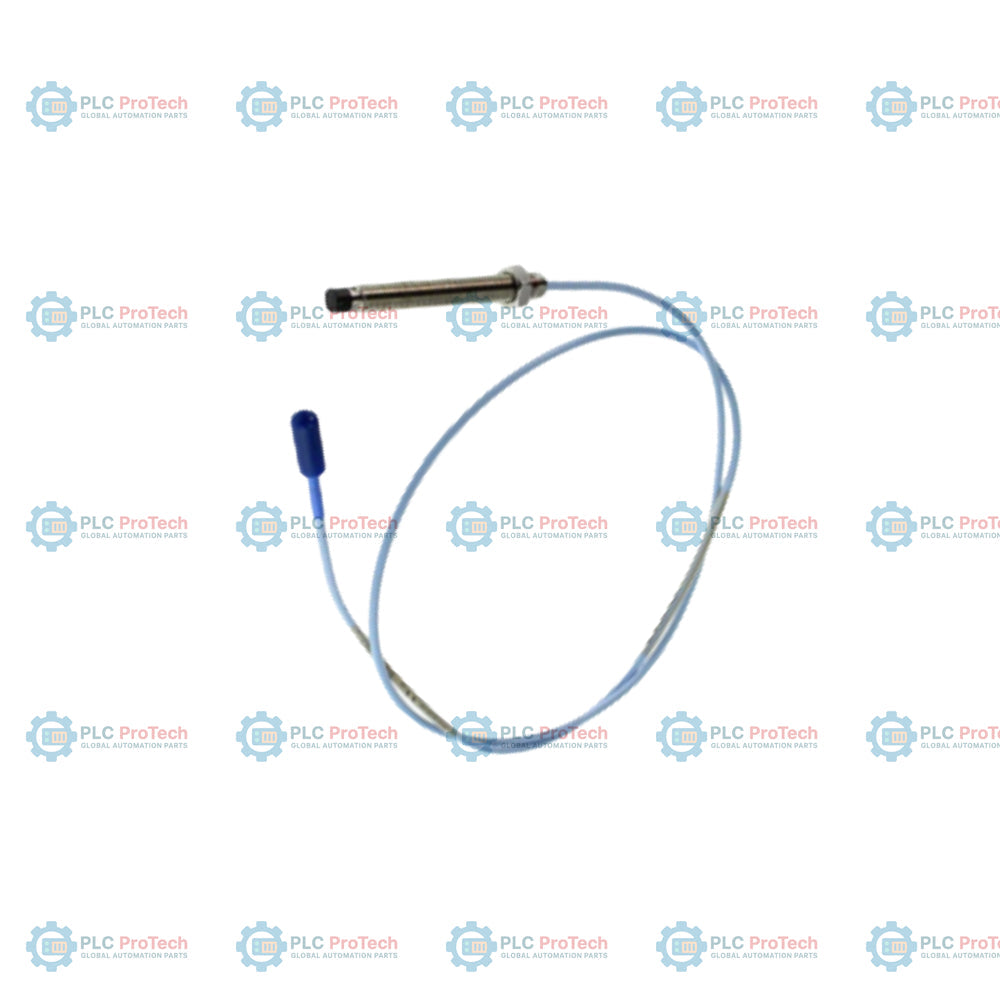

Non-contact eddy-current displacement probe for 3300 XL monitoring chains; orderable configuration 330103-00-10-10-02-CN (1.0 m total length, 1.0 in case length, rear connector). This sensor provides critical position and vibration data for rotating machinery, serving as a core component of the 3300 XL 8 mm proximity transducer system. The -CN suffix on this unit designates a specific hazardous area approval package designed for the Chinese market, incorporating NEPSI and CCC requirements. This configuration features an M10 x 1 thread, utilizes the standard Miniature ClickLoc connector, and is calibrated for performance within the 3300 XL system, pairing with the 330180 Proximitor Sensor and 330130 extension cable.

Features

• 3300 XL 8 mm probe diameter
• M10 x 1 thread configuration (330103)
• Rear connector design
• 1.0 m total system length (Option 10)
• 1.0 in case length (Option 10)
• Miniature ClickLoc coaxial connector, standard cable (Option 02)
• -CN hazardous area approval package (NEPSI + CCC)

Applications

Typical applications include shaft vibration and axial position measurement on critical rotating machinery such as:

• Steam and gas turbines
• Centrifugal and axial compressors
• Gearboxes and pumps
• Electric motors and generators

Ordering Information

Option	Code on This SKU	Description
Orderable Part Number	330103-00-10-10-02-CN	3300 XL 8 mm Proximity Probe, M10 x 1, Rear Connector
A - Unthreaded Length	00	0.0 in unthreaded length
B - Case Length	10	1.0 in case length
C - Total Length	10	1.0 m total length
D - Connector	02	Miniature ClickLoc, standard cable
Suffix	-CN	China hazardous area approval package (NEPSI + CCC)

Technical Specifications

Manufacturer	Bently Nevada
Part Number	330103-00-10-10-02-CN
Probe Diameter	8 mm (0.31 in)
Thread Size	M10 x 1
Case Length	25.4 mm (1.0 in)
Total Length	1.0 m (3.3 ft)
Connector Type	Miniature ClickLoc coaxial
Cable Type	Standard
Operating Temperature	-51 degC to +177 degC
Case Material	AISI 303 or 304 stainless steel
Tip Material	Polyphenylene sulfide (PPS)

Installation Guidelines

Ensure the probe is gapped according to the 3300 XL system manual for the specific machinery type. Verify the total system length (probe + extension cable) matches the Proximitor sensor calibration (1.0 m, 5.0 m, or 9.0 m). Ensure proper cable routing to prevent abrasion and electrical interference. Use appropriate mounting brackets (ordered separately) for M10 threads to maintain consistent gap measurement.

Compliance and Certifications

• -CN suffix: NEPSI, CCC (China hazardous area approval package)
• Compliant with 3300 XL system standards for critical machinery protection
