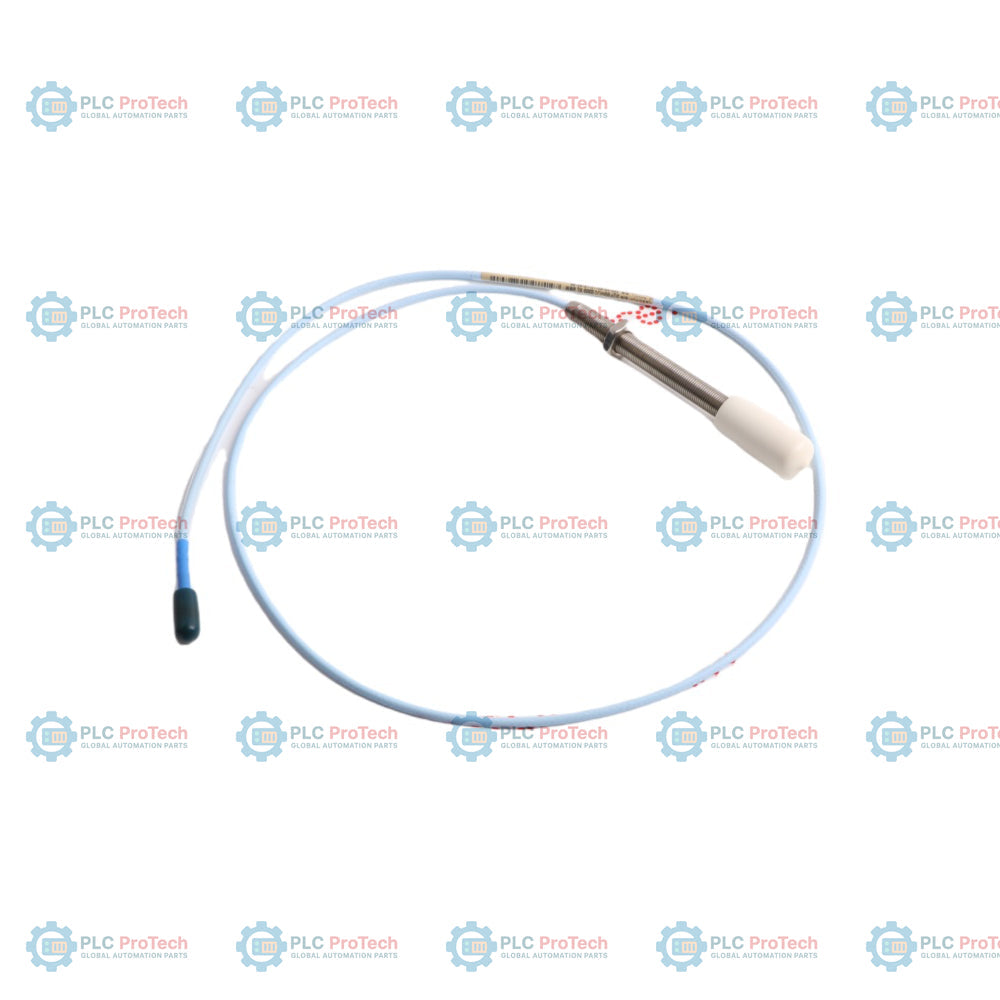

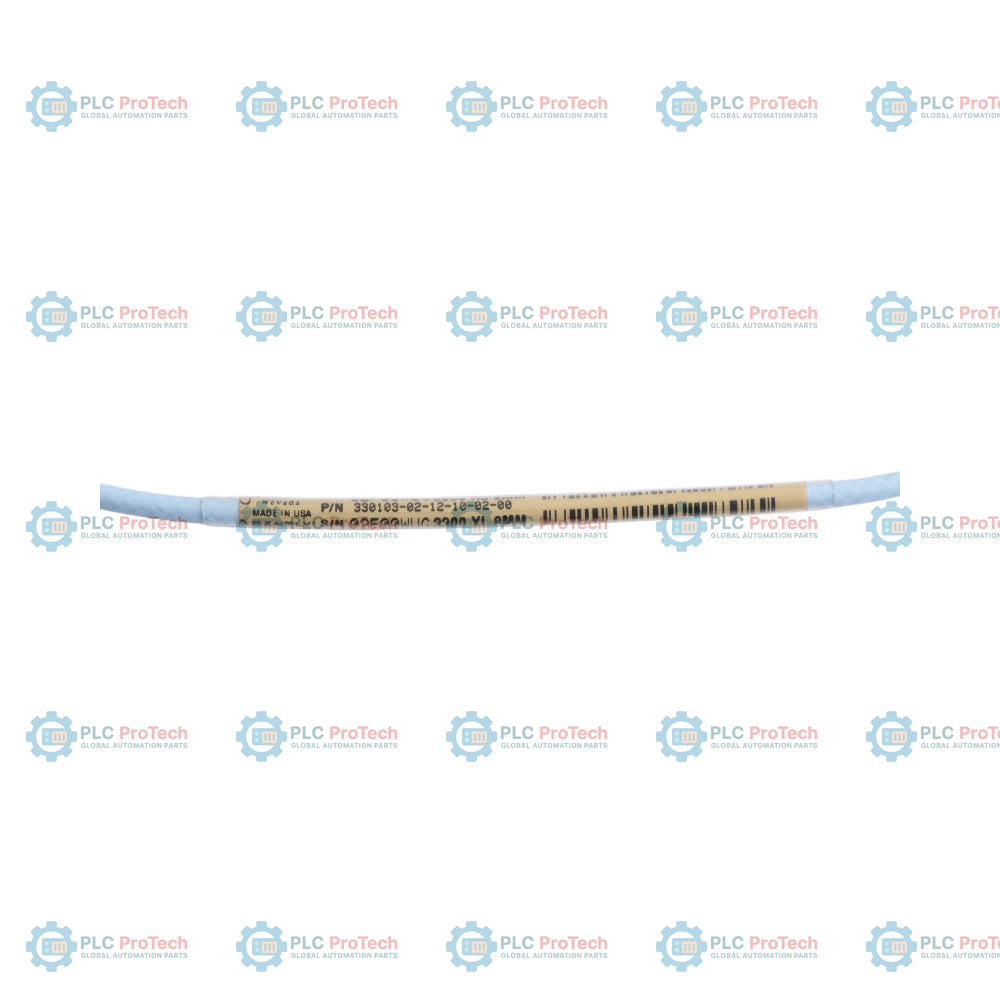

The 330103-02-12-10-02-00 is a 3300 XL 8 mm proximity probe configuration featuring an M10 x 1 thread and unarmored construction. This probe is a core component of the 3300 XL 8 mm Transducer System, utilizing non-contact, eddy-current technology to provide precise measurements of shaft radial vibration, axial position, and rotor speed in critical rotating machinery.
This specific unit includes 20 mm of unthreaded length (Option 02) and a 120 mm total case length (Option 12). The probe is factory-configured with a 1.0 meter total system length (Option 10) and a miniature coaxial ClickLoc connector on a standard cable (Option 02). This configuration is designed for general-purpose applications where hazardous area approvals are not required (Option 00).
| Option | Code on This SKU | Description |
|---|---|---|
| Orderable Part Number | 330103-02-12-10-02-00 | 3300 XL 8 mm Proximity Probe, M10 x 1 thread |
| A - Unthreaded Length | 02 | 20 mm |
| B - Case Length | 12 | 120 mm |
| C - Total Length | 10 | 1.0 meter (3.3 feet) |
| D - Connector/Cable | 02 | Miniature coaxial ClickLoc, standard cable |
| E - Agency Approval | 00 | Not required |
| Manufacturer | Bently Nevada (Baker Hughes) |
| Model | 330103 |
| Probe Diameter | 8 mm |
| Thread Size | M10 x 1 |
| Case Length | 120 mm |
| Unthreaded Length | 20 mm |
| Total Length | 1.0 meter |
| Connector Type | Miniature coaxial ClickLoc |
| Cable Type | Standard (Unarmored) |
| Agency Approval | None (Not required) |
| System Compatibility | 3300 XL Proximitor Sensor, Extension Cable |
Ensure the probe is gapped correctly according to the machine specifications. Bently Nevada recommends using a thread-mounted bracket for secure installation. When installing, verify that the probe tip is not in contact with the target. Tighten mounting nuts to the recommended torque to prevent vibration-induced loosening. Keep the cable run away from high-voltage AC lines to prevent signal interference.
