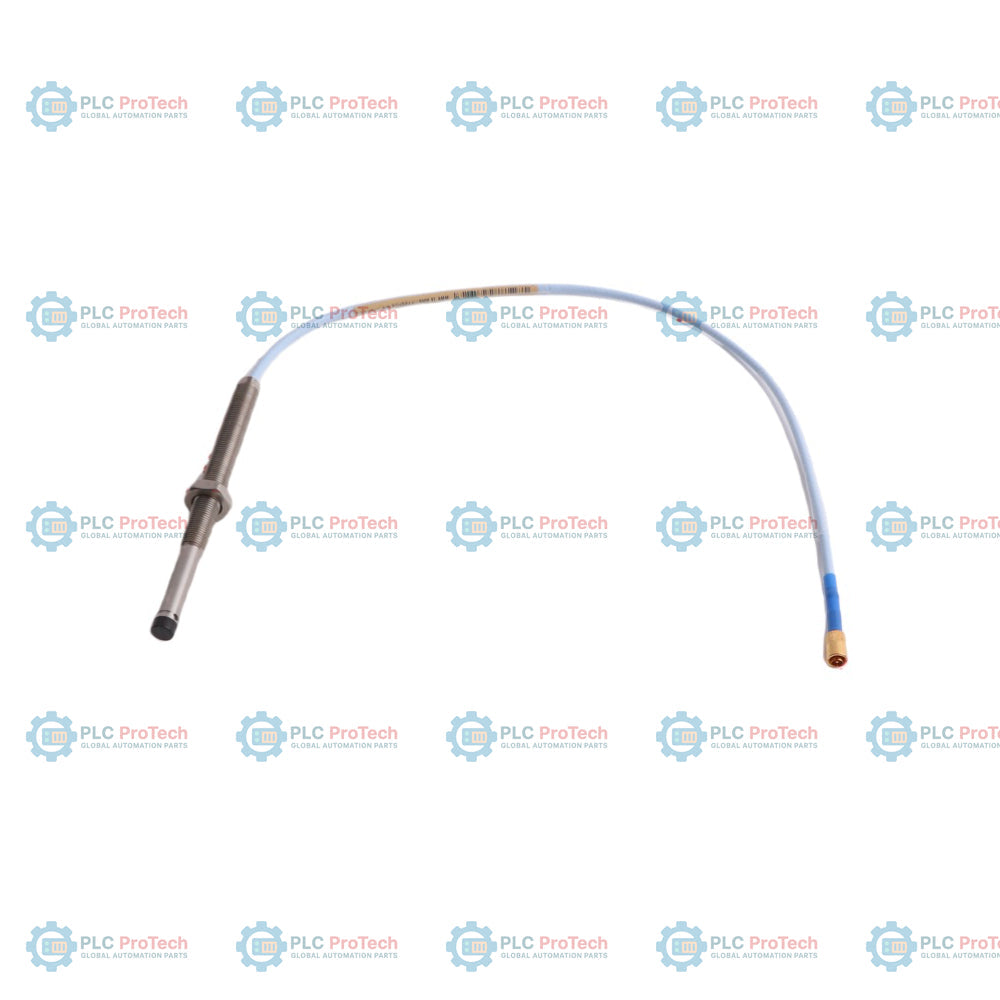

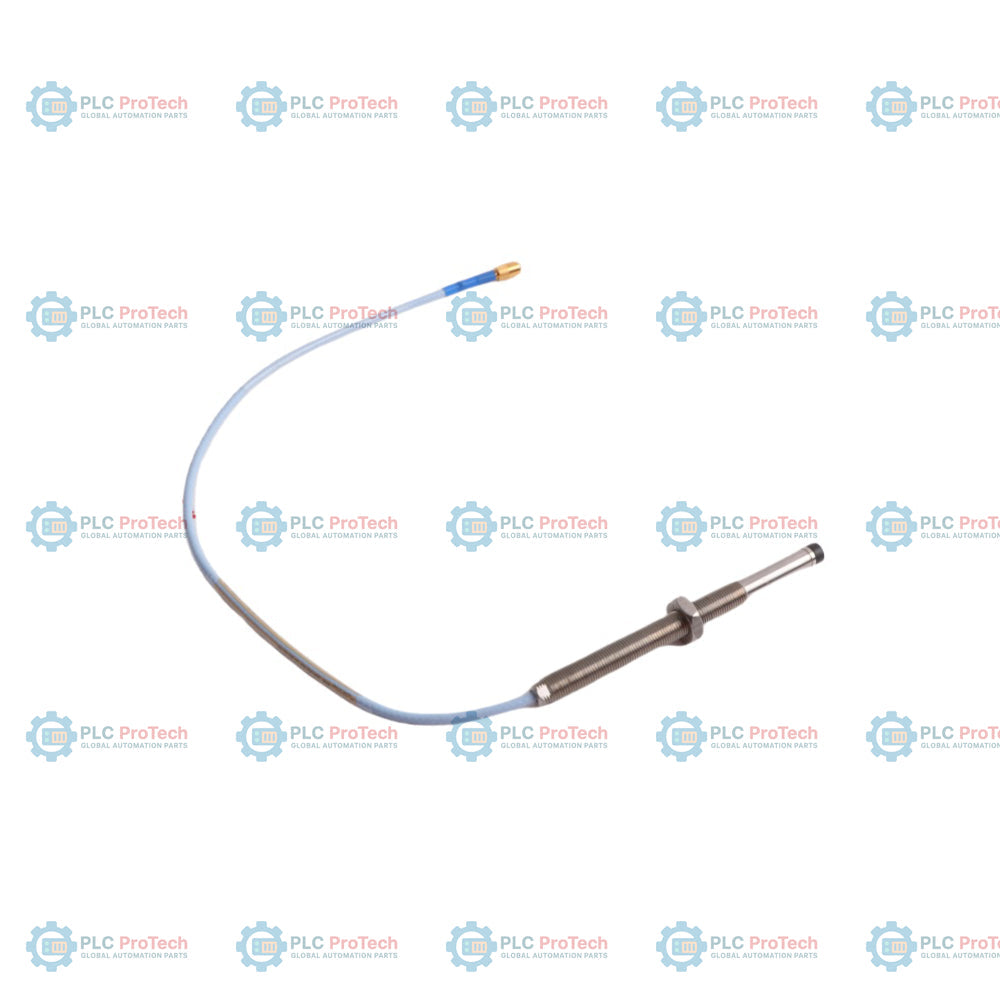

The 330103-03-12-05-02-00 is a 3300 XL 8 mm proximity probe configured for reverse mount installations. This eddy-current displacement transducer features an M10 x 1 thread, a 30 mm unthreaded length (Option 03), and a 120 mm case length (Option 12). Designed for accurate non-contact measurement of shaft vibration and axial position, this assembly includes a 0.5-meter total length (Option 05) and utilizes a standard miniature coaxial ClickLoc connector (Option 02) without armor.
As part of the 3300 XL 8 mm transducer system, this probe is engineered for operation with the 3300 XL Proximitor sensor and extension cable. The reverse mount design is optimized for specific machinery housings where standard forward-mounting is not feasible. The absence of agency approvals (Option 00) makes this specific configuration suitable for installations where hazardous area certification is not required.
| Option | Code on This SKU | Description |
|---|---|---|
| Orderable Part Number | 330103-03-12-05-02-00 | 3300 XL 8 mm Proximity Probe, M10 x 1 |
| A - Unthreaded Length | 03 | 30 mm unthreaded length |
| B - Case Length | 12 | 120 mm case length |
| C - Total Length | 05 | 0.5 meter |
| D - Connector | 02 | Miniature coaxial ClickLoc, standard cable |
| E - Agency Approval | 00 | Not required |
| Parameter | Specification |
|---|---|
| Manufacturer | Bently Nevada (Baker Hughes) |
| Product Type | 3300 XL 8 mm Proximity Probe |
| Mounting | Reverse Mount |
| Thread Size | M10 x 1 |
| Total Length | 0.5 meter |
| Cable Type | Standard coaxial cable |
| Connector | Miniature ClickLoc |
| Linear Range | 2 mm (80 mil) |
| Operating Temperature | -52 degC to +177 degC |
| Agency Approvals | None (Option 00) |
Ensure the M10 x 1 threads are clean prior to installation to prevent binding. Bently Nevada recommends limiting thread engagement to 15 mm maximum to avoid mechanical strain. When connecting the miniature ClickLoc coaxial connector to the extension cable or Proximitor, ensure the connection is finger-tight to maintain proper electrical continuity. Use appropriate housing (e.g., DIN-mount or panel-mount) to protect the Proximitor sensor from environmental moisture and mechanical stress.
Global Express Shipping
Returns & Warranty
Manufacturer: Bently Nevada
Product No.: 330103-03-12-05-02-00
Country of origin:United States
Product Type: 3300 XL 8 mm Proximity Probe
Barcode: 8537101190
Payment: T/T, Western Union
Weight: 140g
Dimensions: 45 mm x 95 mm x 95 mm (H x W x D)
Shipping port: Xiamen
Warranty: 12 months
