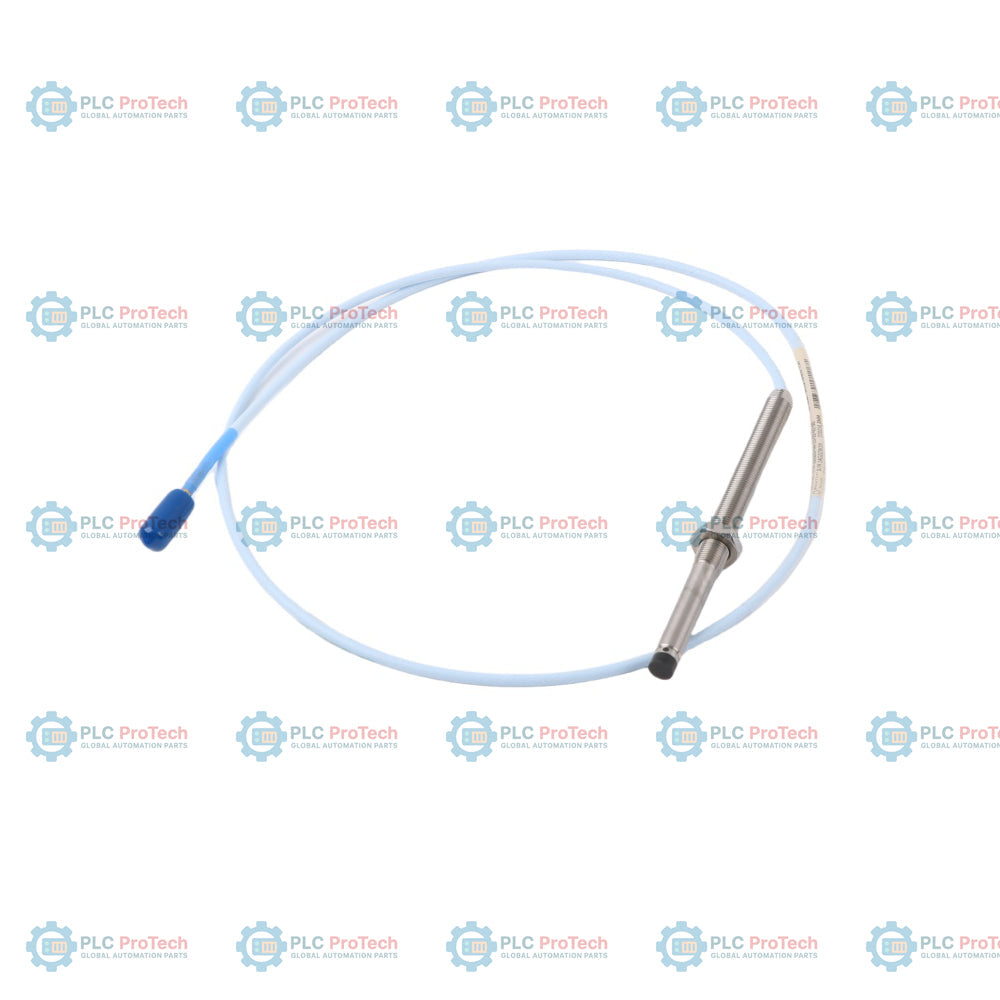

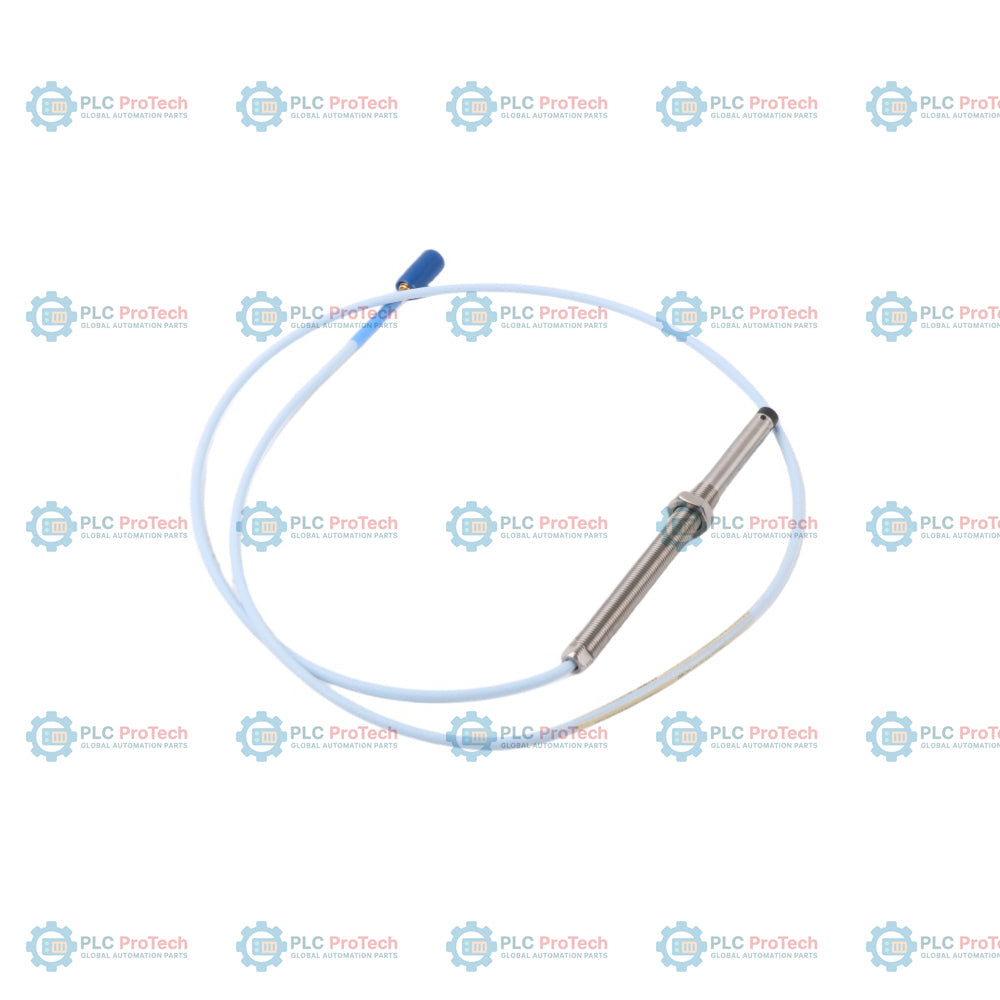

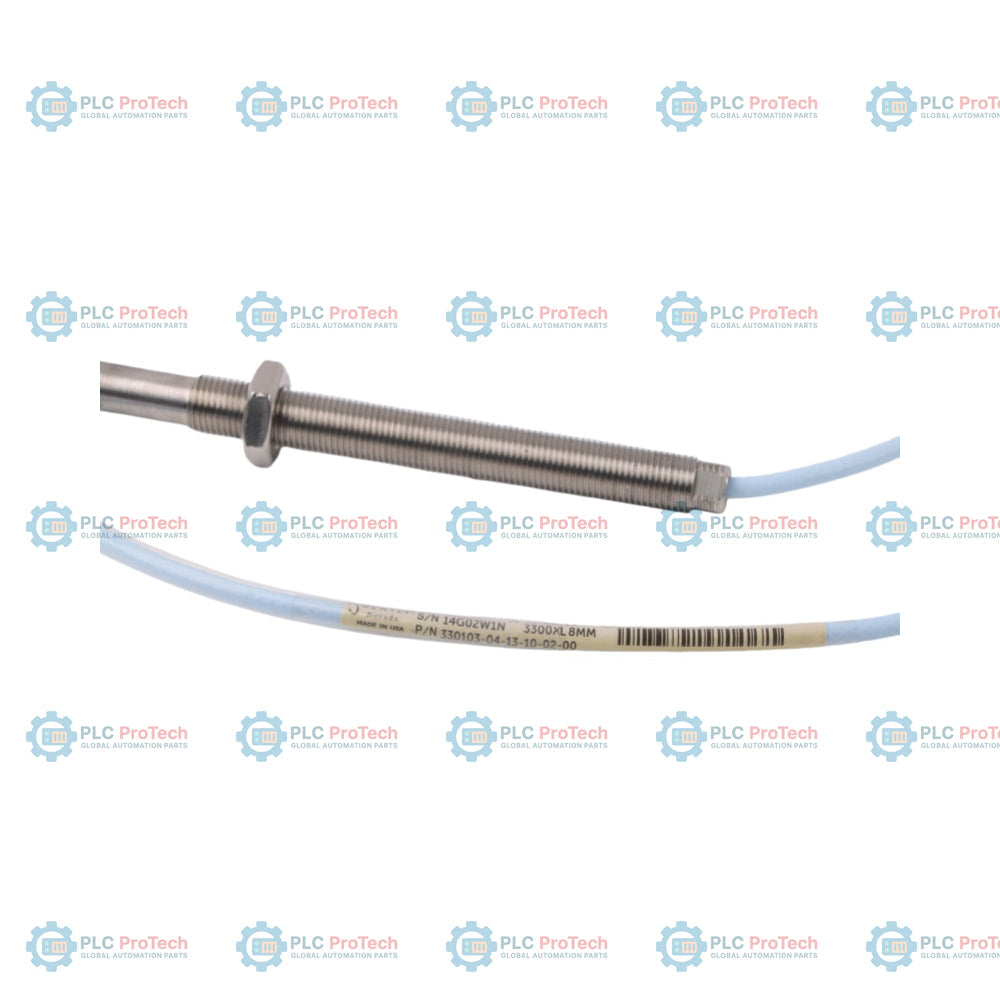

The 330103-04-13-10-02-00 is an 8 mm Bently Nevada 3300 XL proximity probe configured with an M10 x 1 thread, 04 (0.4 in) unthreaded length, 13 (1.3 in) case length, 1.0 m total length, and a standard miniature coaxial ClickLoc connector (Option 02). This transducer is designed for non-contact eddy-current displacement measurement within 3300 XL monitoring chains, providing precise data for shaft vibration and axial position monitoring on critical rotating machinery.
This 3300 XL probe ensures compatibility with 3300 XL Proximitor sensors and extension cables, facilitating reliable signal transmission in demanding industrial environments. The M10 x 1 thread design is suitable for standard metric mounting applications. This specific configuration (Option 00) does not include hazardous area approvals, making it ideal for general-purpose installations where such certifications are not required.
| Orderable Part Number | 330103-04-13-10-02-00 | 3300 XL 8 mm Proximity Probe |
| A - Unthreaded Length | 04 | 0.4 in |
| B - Case Length | 13 | 1.3 in |
| C - Total Length | 10 | 1.0 m |
| D - Connector/Cable | 02 | Miniature coaxial ClickLoc connector, standard cable |
| E - Agency Approval | 00 | Not required |
| Manufacturer | Bently Nevada (Baker Hughes) |
| Part Number | 330103-04-13-10-02-00 |
| Probe Diameter | 8 mm |
| Thread Type | M10 x 1 |
| Total Length | 1.0 m |
| Connector Type | Miniature coaxial ClickLoc |
| Cable Type | Standard |
| Probe Case Material | AISI 303 or 304 stainless steel |
| Operating Temperature | -52 degC to +177 degC |
| Agency Approvals | Not required (Option 00) |
Ensure the probe tip is installed with the correct gap as specified by the machinery monitoring system requirements. Use caution to avoid excessive torque during installation; the M10 x 1 probe has a maximum thread engagement limit of 15 mm. Tighten the ClickLoc connectors finger-tight. Ensure proper shielding and grounding of the extension cable to maintain signal integrity.
Global Express Shipping
Returns & Warranty
Manufacturer: Bently Nevada
Product No.: 330103-04-13-10-02-00
Country of origin:United States
Product Type: 3300 XL 8 mm Proximity Probe
Barcode: 8537101190
Payment: T/T, Western Union
Weight: 140g
Dimensions: 45 mm x 95 mm x 95 mm (H x W x D)
Shipping port: Xiamen
Warranty: 12 months
