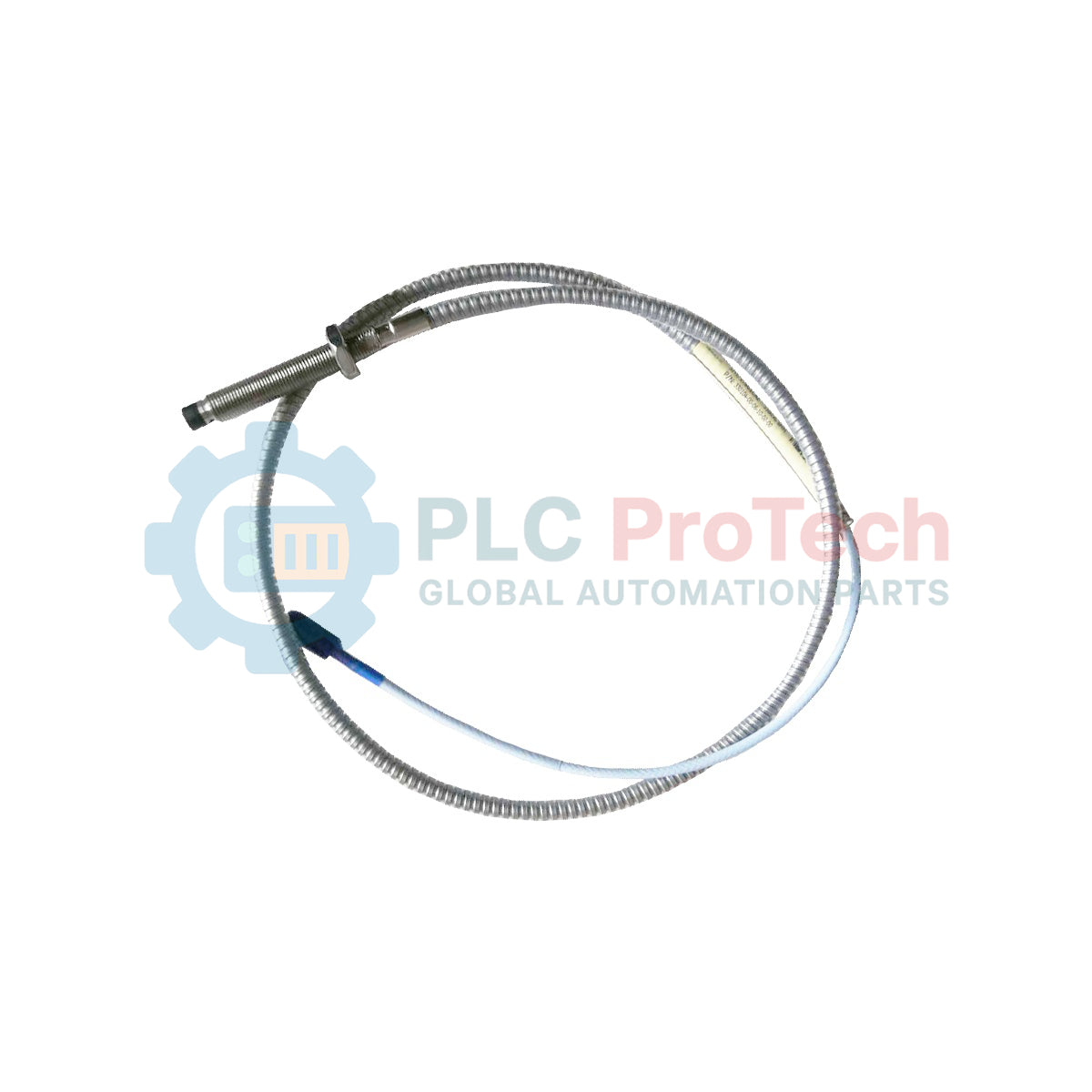

The Bently Nevada 330104-00-04-10-02-CN is an eddy current proximity transducer probe designed for non-contacting vibration and position measurement applications on fluid-film bearing machinery. It operates by detecting static displacement and dynamic vibration relative to an observed conductive surface, utilizing an eddy current sensing coil encapsulated in a Polyphenylene Sulfide (PPS) tip. Constructed with an AISI 303 or 304 stainless steel case and flexible armor, the 330104-00-04-10-02-CN transfers signals over a 75 ohm triaxial cable terminated with a gold-plated ClickLoc coaxial connector.
| Option | Option Description | Selected Code |
|---|---|---|
| A | Unthreaded Length Option | 00 (0 mm) |
| B | Overall Case Length Option | 04 (40 mm) |
| C | Total Length Option | 10 (1.0 metre / 3.3 feet) |
| D | Connector and Cable-Type Option | 02 (Miniature coaxial ClickLoc connector, standard cable) |
| E | Agency Approval Option | CN (Approvals country specific) |
| Parameter | Specification |
|---|---|
| Manufacturer | Bently Nevada |
| Country of Origin | Made in U.S.A |
| Probe Model | 330104 (M10x1 thread, with armor) |
| Probe Tip Material | Polyphenylene sulfide (PPS) |
| Probe Case Material | AISI 303 or 304 stainless steel (SST) |
| Cable Type | 75 ohm triaxial, FEP insulated with SST armor |
| Connector Type | Miniature coaxial ClickLoc connector |
| Linear Range | 2 mm (80 mils) |
| Recommended Gap Setting | 1.27 mm (50 mils) |
| Incremental Scale Factor (ISF) | 7.87 V/mm (200 mV/mil) nominal |
| Minimum Target Size | 15.2 mm (0.6 in) diameter flat target |
| Minimum Shaft Diameter | 50.8 mm (2 in) |
| Tensile Strength | 330 N (75 lbf) probe case to lead |
| Operating Temperature (Probe/Lead) | -51 degC to +177 degC (-60 degF to +351 degF) |
| Minimum Bend Radius | 25.4 mm (1.0 in) |
Global Express Shipping
Returns & Warranty
Manufacturer: Bently Nevada
Product No.: 330104-00-04-10-02-CN
Country of origin:United States
Product Type: 3300 XL 8 mm Proximity Probes
Payment: T/T, Western Union
Weight: 2000g
Dimensions: Total Cable Length: 1.0 m
Shipping port: Xiamen
Warranty: 12 months
