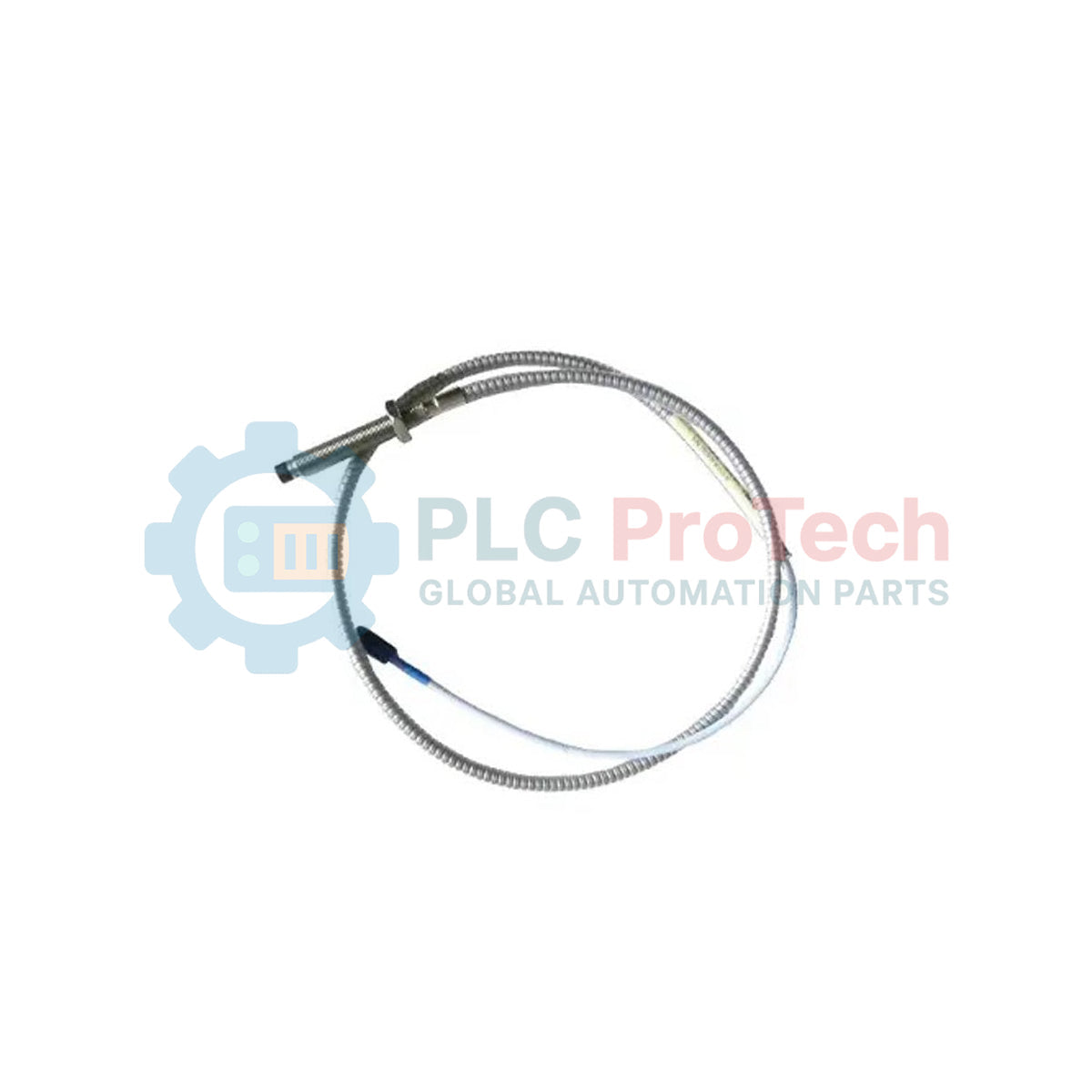

The 330104-00-08-05-02-00 Bently Nevada 3300 XL 8 mm Probe is a compact, armored proximity sensor designed for precise vibration and position measurement in industrial machinery. Featuring an M10 x 1 threaded body, this model includes a 0.5-meter cable and a miniature coaxial ClickLoc™ connector for secure, reliable signal transmission. The probe is built with robust materials, including a Polyphenylene Sulfide (PPS) tip and a stainless steel (SST) case, offering excellent durability in harsh environments.
M10 x 1 threaded body for secure, universal mounting
0.5 m (1.6 ft) cable length for flexible installation options
Miniature coaxial ClickLoc™ connector with standard cable for stable connections
Armored design for increased mechanical protection in rugged industrial environments
Made with Polyphenylene Sulfide (PPS) for the probe tip and AISI 303/304 stainless steel (SST) for the case, ensuring corrosion resistance
Viton® O-ring for sealing differential pressure between probe tip and case
Suitable for use in applications where pressure sealing is required (custom pressure testing available upon request)
| Parameter | Specification |
|---|---|
| Model | 330104-00-08-05-02-00 |
| Product Type | 3300 XL 8 mm Probe |
| Thread Type | M10 x 1 |
| Unthreaded Length | 0 mm |
| Case Length | 80 mm |
| Total Length | 0.5 m (1.6 ft) |
| Connector Type | Miniature coaxial ClickLoc™ |
| Cable Type | Standard cable with armor |
| Probe Tip Material | Polyphenylene Sulfide (PPS) |
| Probe Case Material | AISI 303/304 Stainless Steel (SST) |
| Probe Pressure Seal | Viton® O-ring |
| Agency Approval | None required |
| Shipping Weight | 2 kg |
| Country of Origin | USA |
Vibration monitoring for rotating machinery, including turbines, pumps, and compressors
Non-contact shaft displacement and vibration measurements
Machinery protection systems in harsh or rugged environments
Suitable for installations with pressure-sealing requirements
Global Express Shipping
Returns & Warranty
Manufacturer: Bently Nevada
Product No.: 330104-00-08-05-02-00
Country of origin:United States
Product Type: 3300 XL 8 mm Probe, M10 x 1 thread, witharmor
Payment: T/T, Western Union
Weight: 320g
Shipping port: Xiamen
Warranty: 12 months
