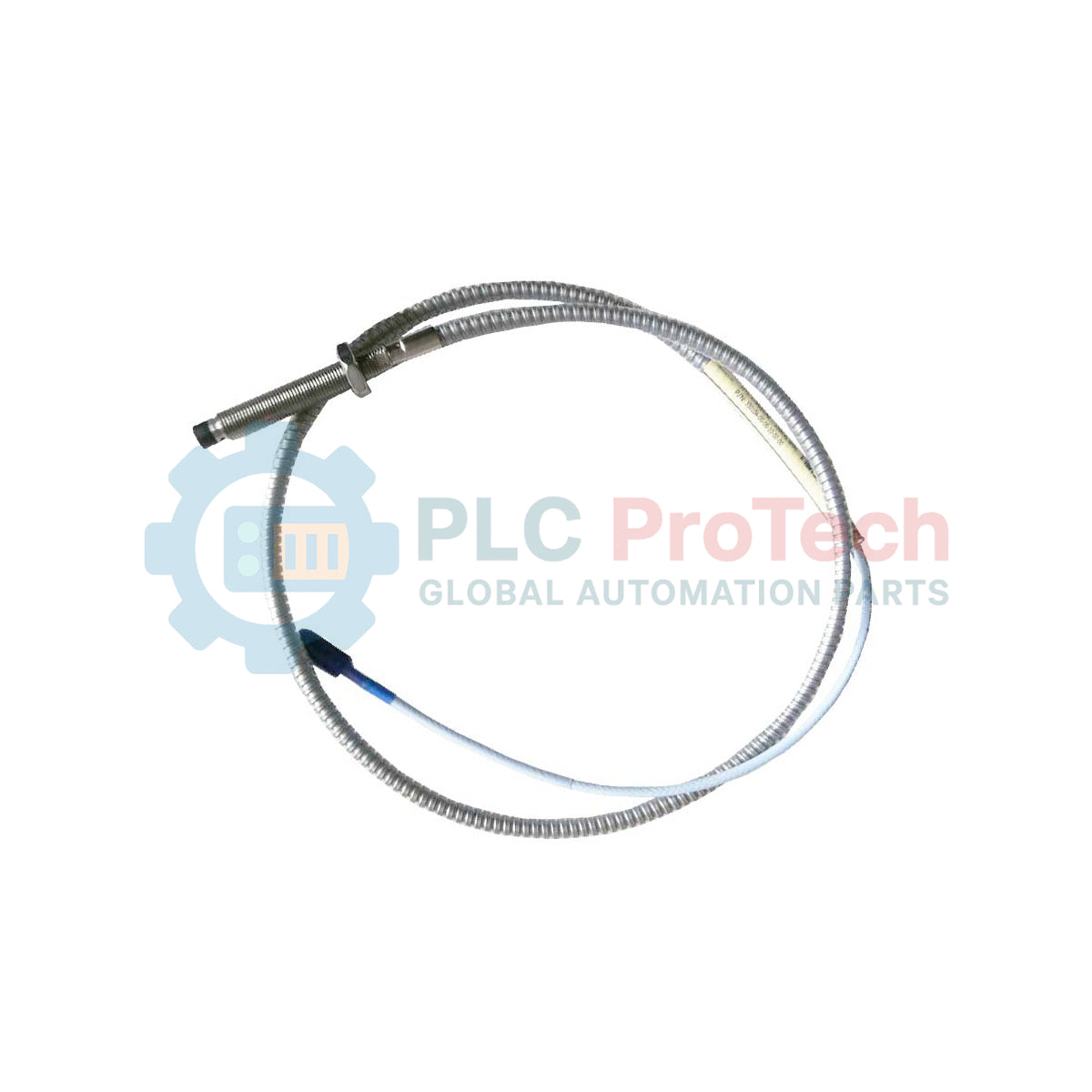

Designed for critical machinery protection systems, the Bently Nevada 330104-00-18-10-01-CN metric proximity probe provides accurate non-contact measurement of static and dynamic shaft displacement. This metric proximity probe operates as part of the 3300 XL 8 mm transducer system, measuring vibration, position, and speed on fluid-film bearing machines such as steam turbines, gas turbines, compressors, and pumps.
The sensor is built with a rugged polyphenylene sulfide (PPS) tip, which is overmolded onto the stainless steel probe case to form a hermetic seal against oil, water, and industrial solvents. With an M10 x 1 thread specification, a 180 mm overall case length, and a total cable length of 1.0 meter, this configuration ensures reliable physical integration and precise gapping in heavy industrial environments.
| Parameter | Specification Value |
|---|---|
| Manufacturer | Bently Nevada |
| Part Number | 330104-00-18-10-01-CN |
| Series | 3300 XL 8 mm Proximity Transducer System |
| Thread Size | M10 x 1 (Metric) |
| Unthreaded Length Option (00) | 0 mm |
| Overall Case Length Option (18) | 180 mm |
| Total Length Option (10) | 1.0 meter (3.3 feet) |
| Connector Option (01) | Miniature coaxial ClickLoc connector with connector protector, standard cable |
| Approvals Option (CN) | Country-specific CN approvals |
| Probe Tip Material | Polyphenylene sulfide (PPS) |
| Probe Case Material | AISI 303 or 304 stainless steel |
| Operating Temperature (Probe) | -51 degC to +177 degC (-60 degF to +350 degF) |
| Minimum Bend Radius | 25.4 mm (1.0 inch) for coaxial cable |
| Shipping Weight | 2.0 kg |
| Connector Component | Description and Function |
|---|---|
| ClickLoc Connector Center Pin | RF / Signal transmission to Proximitor sensor |
| ClickLoc Connector Outer Shield | Shield / Common ground reference |
| Connector Protector | Prevents moisture, oil, and dust ingress at the junction |
Global Express Shipping
Returns & Warranty
Manufacturer: Bently Nevada
Product No.: 330104-00-18-10-01-CN
Country of origin:United States
Product Type: Proximity Probes
Payment: T/T, Western Union
Weight: 2000g
Shipping port: Xiamen
Warranty: 12 months
