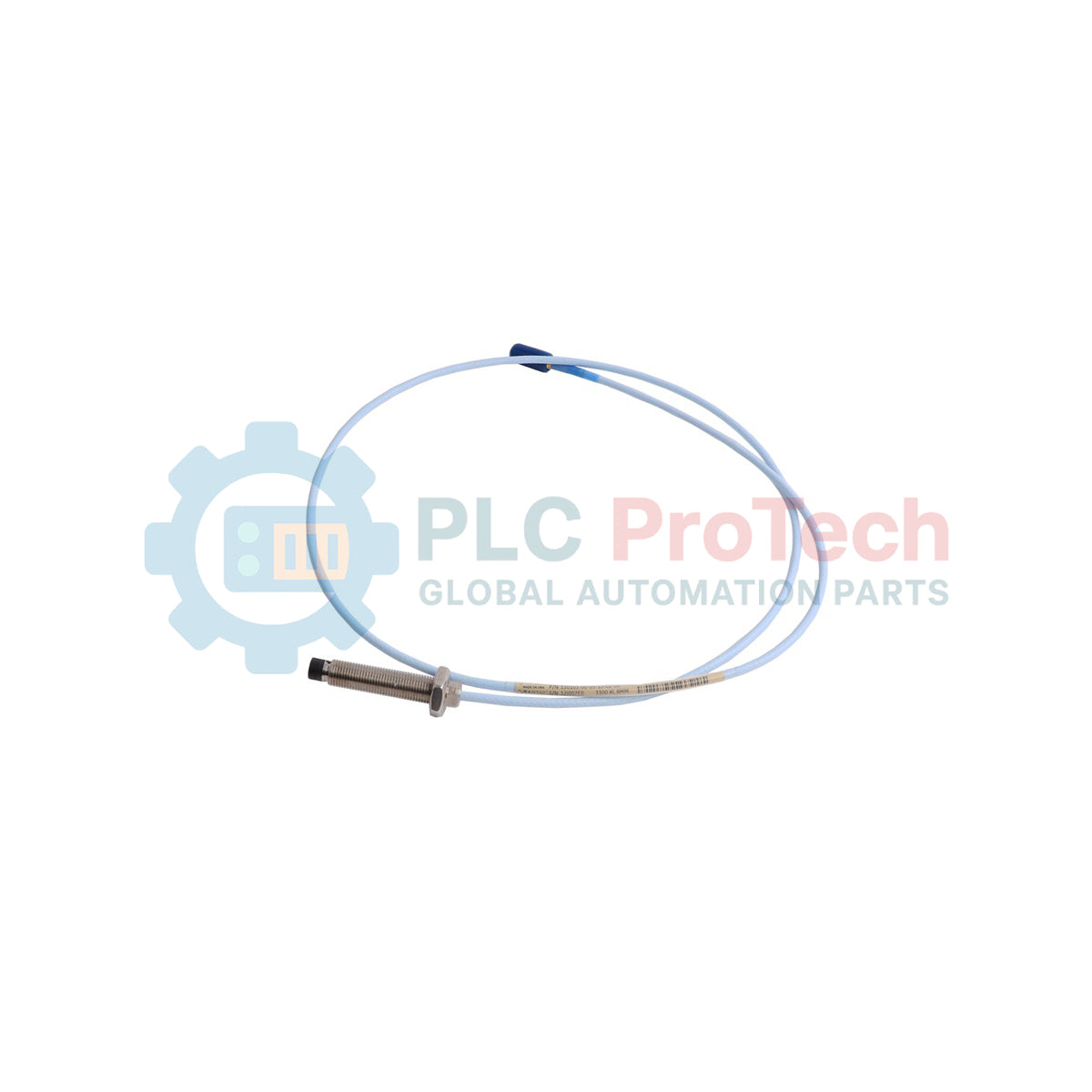

Bently Nevada 330104-00-23-10-02-00 3300 XL Proximity Probe

SKU 330104-00-23-10-02-00

Disponibile
  • 12-month warranty
  • Free returns within 30 days
  • Manufacturer: Bently Nevada
  • Product No.: 330104-00-23-10-02-00
  • Origin United States
  • Product Type: Proximity Probes
  • Payment: T/T, Western Union
  • Weight: 0.7 kg
  • Shipping port: Xiamen
  • Warranty: 12 months

Tags

3300 XL Proximity Probes

Product Documentation

Technical Datasheet (PDF) Complete specifications and technical drawings.

Technical Datasheet

Bently Nevada 330104-00-23-10-02-00 3300 XL Proximity Probe

Download Open in new tab
Quantità
Call sales Contact

Product Description

Description

Engineered for high-reliability vibration and shaft position monitoring, the 330104-00-23-10-02-00 is an industrial-grade 3300 XL 8 mm proximity probe manufactured by Bently Nevada. This sensor operates as a core component of the 3300 XL proximity transducer system, transducing the distance between the probe tip and a conductive target into a precise electrical signal.

This specific model features an M10 x 1 metric thread configuration integrated with robust stainless steel armor to shield the internal coaxial cable from harsh industrial fluids, mechanical abrasion, and environmental hazards. Configured with a 0 mm unthreaded length and a 230 mm overall case length, it provides the physical reach required for deep-pocket machine casings. The 1.0-meter standard cable is terminated with a miniature coaxial ClickLoc connector, ensuring a secure, vibration-resistant electrical connection to the extension cable and proximitor sensor.

Features

  • Rugged Stainless Steel Armor: Provides exceptional mechanical protection for the coaxial cable against cutting, pinching, and industrial fluids.
  • ClickLoc Coaxial Connector: Features a gold-plated, miniature coaxial connection mechanism that resists loosening under high-frequency machinery vibration.
  • Standard Temperature Rating: Built to withstand demanding casing environments without signal degradation.
  • Metrological Threading: Standard M10 x 1 metric thread allows precise positioning and depth adjustment during gapping.

Applications

  • Radial shaft vibration and dynamic motion analysis on rotating machinery.
  • Thrust and axial position measurement on industrial steam turbines, gas turbines, and compressors.
  • Speed measurement and keyphasor reference phase detection.
  • Turbine Supervisory Instrumentation (TSI) integration for machinery protection systems.

Technical Specifications

Manufacturer Bently Nevada
Part Number 330104-00-23-10-02-00
Probe Series 3300 XL 8 mm
Thread Type M10 x 1 thread (with armor)
Unthreaded Length Option 00 (0 mm)
Overall Case Length Option 23 (230 mm)
Total Length Option 10 (1.0 meter / 3.3 feet)
Connector & Cable Option 02 (Miniature coaxial ClickLoc connector, standard cable)
Agency Approval Option 00 (Not required)
Probe Operating Temperature -51 degC to +177 degC
System Compatibility 3300 XL 8 mm Proximitor Sensor
Net Weight 0.7 kg

Installation Guidelines

  • Gapping and Calibration: Ensure the sensor is calibrated for the specific target material (typically AISI 4140 steel) and gapped using a digital voltmeter at the nominal center of the linear range.
  • Cable Handling: Do not exceed the minimum bend radius of the armored cable during installation to avoid damaging the internal coaxial core.
  • Connector Protection: Ensure ClickLoc connectors are clean, dry, and fully clicked into place before applying silicone self-insulating tape or connector protectors.
Shipping & Returns

Global Express Shipping

  • Standard Delivery: 4–6 business days via DHL, FedEx, and UPS.
  • Express Dispatch: Same-day dispatch for in-stock orders placed before 2:00 PM (GMT+8).
  • Worldwide Coverage: Serving over 150 countries.

Returns & Warranty

  • 30-Day Guarantee: Returns accepted for in-stock products in original, factory-sealed packaging.
  • 12-Month Warranty: Every industrial component is backed by our technical warranty.
FAQ
What is the physical size of the thread on the 330104-00-23-10-02-00 probe?
This probe features a metric M10 x 1 thread, which includes protective stainless steel armor over the cable.
Does this proximity probe require external agency approvals?
No, the '00' suffix at the end of this model number specifies that agency approval is not required for this part.
What is the total system length requirement for this probe?
The probe itself has a 1.0-meter cable length option (10). It is designed to connect to an extension cable and a 3300 XL Proximitor to match a standard 5-meter or 9-meter system length calibration.
What is the operational temperature range for this sensor?
The probe tip and armored cable are designed to operate within a temperature range of -51 degC to +177 degC (-60 degF to +350 degF).
