Description

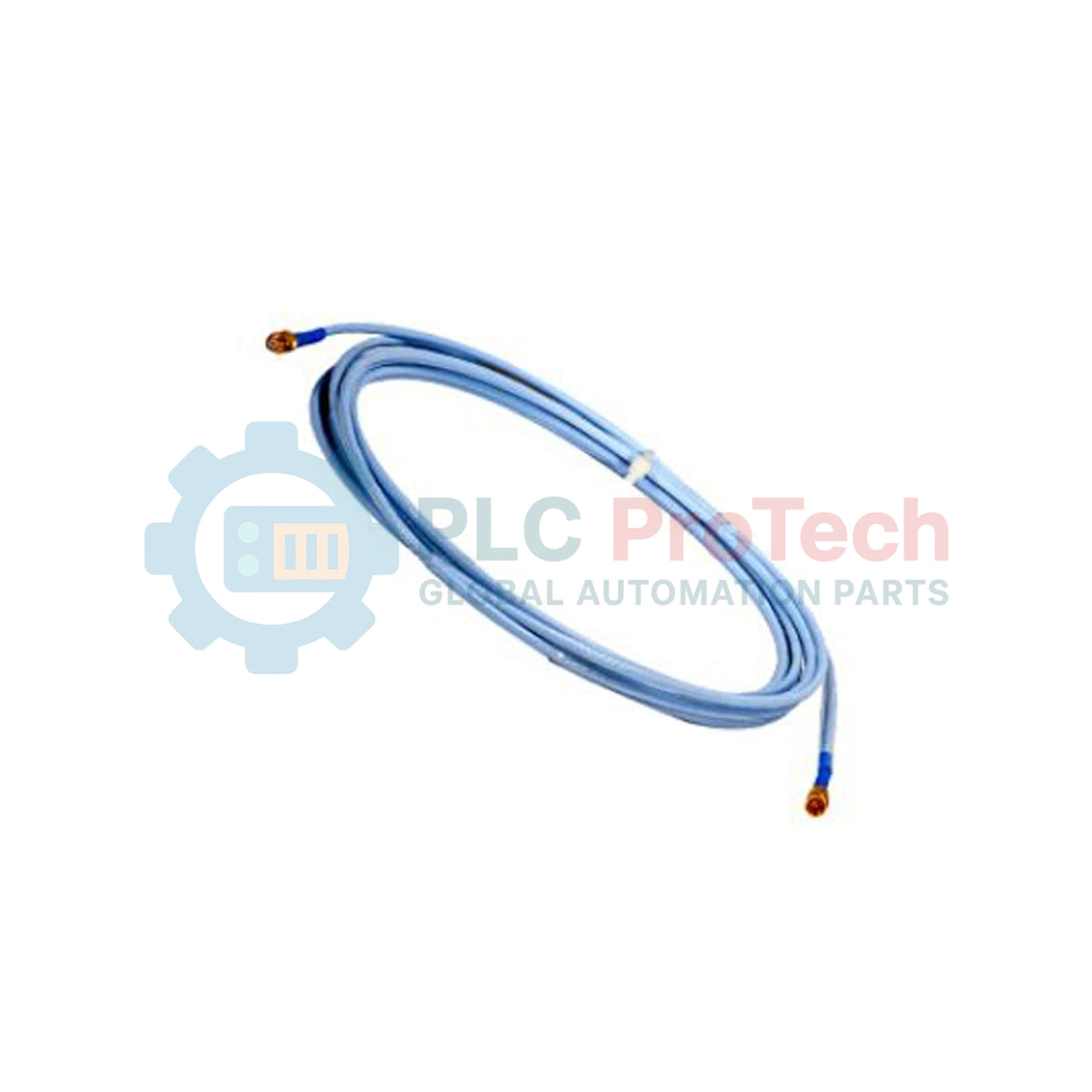

Transmitting critical high-frequency eddy current signals with minimal loss, the Bently Nevada 330130-045-03-CN serves as an indispensable link in machinery protection architectures. This premium extension cable interfaces directly with the 3300 XL 8mm proximity transducer system, delivering precision gap and vibration measurements to industrial monitoring systems. Engineered for harsh industrial environments, this specific model features integrated mechanical armoring and robust connector protection to guarantee signal integrity even when subjected to physical stress or chemical exposure.

Features

• Integrally Armored Protection: Outfitted with stainless steel armor wrapping to shield the delicate internal coaxial line from mechanical crush hazards, abrasive wear, and cutting forces.
• Connector Protectors Included: Factory-installed silicone elastomer connector protectors prevent fluid ingress, particulate contamination, and accidental disconnects at critical junction points.
• Matched Impedance Coaxial Core: Specifically calibrated electrical characteristics prevent signal reflection and maintain phase accuracy across the entire frequency spectrum.
• Regional Regulatory Compliance: The "CN" designation specifies authorization and documentation compliance tailored to strict national import and hazardous area certifications.

Applications

• Steam & Gas Turbines: High-reliability radial vibration and axial thrust position monitoring.
• Centrifugal & Axial Compressors: Shaft dynamics and casing vibration analysis in petrochemical processing plants.
• Large Boiler Feed Pumps: Continuous health tracking of bearing clearances under high operational pressures.
• Industrial Generators & Gearboxes: Early fault detection via dynamic proximity measurement inside enclosed machine housings.

Technical Specifications

Connections and Interfaces

Empirical Engineering Insights

Alternative Models & Compatibility

The 4.5-meter physical cable length is specifically designed to work in conjunction with a 0.5-meter proximity probe to achieve a total calibrated electrical system length of 5.0 meters. Substituting a 9.0-meter system component (such as a 9.0-meter Proximitor sensor) with this 5.0-meter configuration will result in immediate calibration mismatch errors and highly inaccurate scale factor readings. Verify your Proximitor sensor's calibrated system length before deployment.

Application Pitfalls & Engineering Notes

While the armored casing provides extreme protection against mechanical damage, it increases the minimum physical bending radius. Forcing this cable into standard conduit bends tighter than 75 mm can pinch the inner dielectric core, altering the capacitance and degrading the system's overall frequency response. Always design junction boxes and conduit entries with generous sweep bends.

Commissioning & Wiring Tips

Ensure that all coaxial interfaces are perfectly dry and free from grease or cutting oil prior to making the final connection. Use a specialized coaxial connector torque wrench (recommending 0.45 to 0.56 Nm) to avoid over-tightening or stripping the delicate miniature threads, which can introduce intermittent signal noise or micro-disconnections under heavy machinery vibration.

Installation Guidelines
