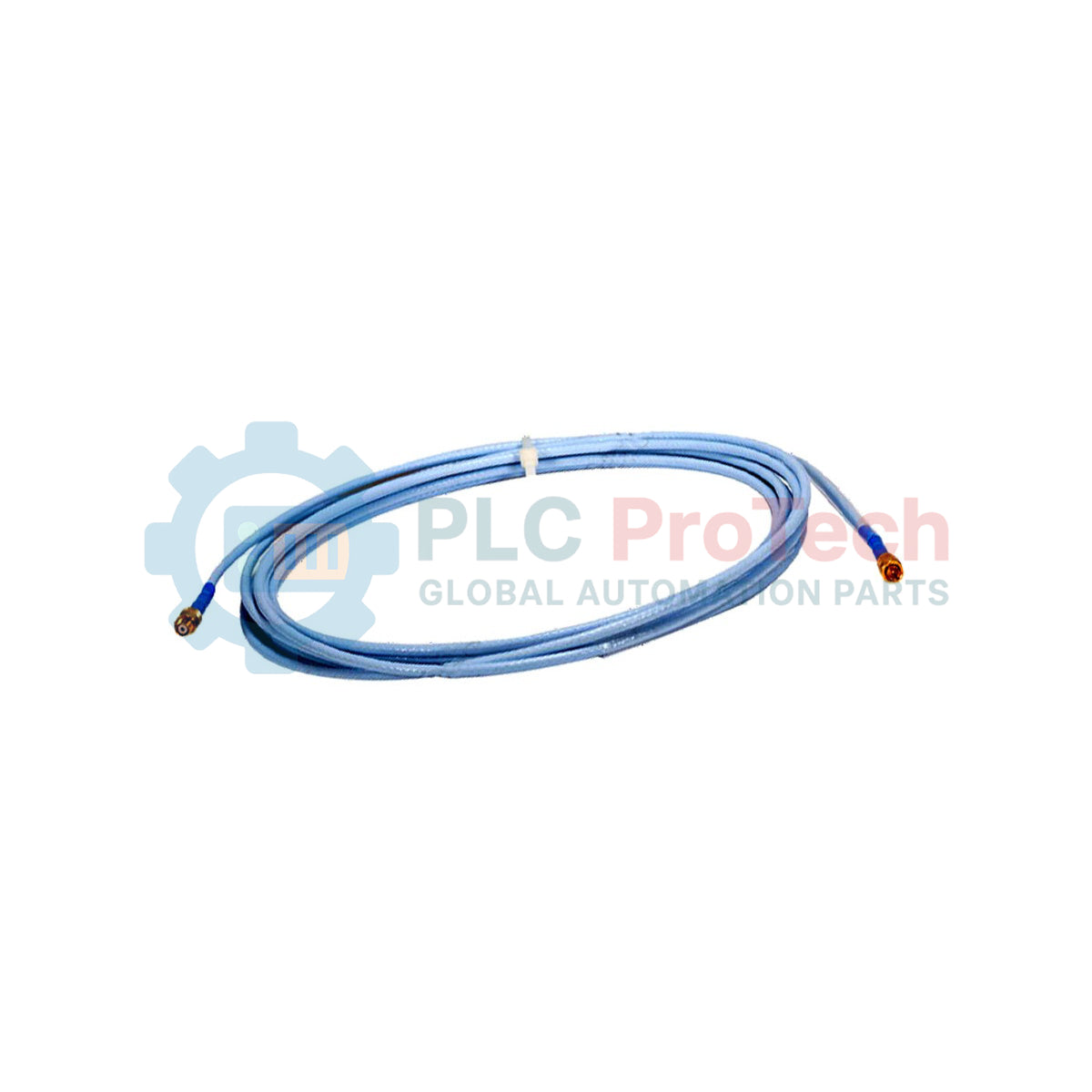

330130-080-02-CN | Bently Nevada | 3300 XL Extension Cable

Bently Nevada

Bently Nevada 330130-080-02-CN 3300 XL Standard Extension Cable

SKU 330130-080-02-CN

Disponibile
  • 12-month warranty
  • Free returns within 30 days
  • Manufacturer: Bently Nevada
  • Product No.: 330130-080-02-CN
  • Origin United States
  • Product Type: Extension Cables
  • Payment: T/T, Western Union
  • Weight: 0.272 kg
  • Dimensions: 8.0 meters (26.2 feet)
  • Shipping port: Xiamen
  • Warranty: 12 months

Tags

3300 XL Extension Cables

Product Documentation

Technical Datasheet (PDF) Complete specifications and technical drawings.

Technical Datasheet

Bently Nevada 330130-080-02-CN 3300 XL Standard Extension Cable

Download Open in new tab
Quantità
Call sales Contact

Product Description

Description

Engineered for demanding industrial environments, the 330130-080-02-CN functions as an integral component of the Bently Nevada 3300 XL proximity transducer system. This extension cable bridges the connection between the proximity probe and the Proximitor sensor, facilitating precise eddy current measurements for vibration monitoring, shaft positioning, and rotating machinery diagnostics.

Constructed with a 75-ohm triaxial design, the cable utilizes fluoroethylene propylene (FEP) insulation. This material offers exceptional resistance to environmental degradation, oil, solvents, and temperature extremes typically encountered in heavy industrial processes. The configuration of the 330130-080-02-CN includes pre-installed connector protectors to shield critical junction points from moisture ingress, dust, and physical damage, ensuring stable signal transmission over its operational lifespan.

Features

  • Standard 75-ohm triaxial cable core ensuring reliable signal transmission.
  • Fluoroethylene propylene (FEP) insulation provides robust protection against chemical exposure and thermal stress.
  • Equipped with integrated connector protectors for added connection-point sealing.
  • Specifically designed for compatibility with standard 3300 XL 8mm proximity probe systems.
  • Meets country-specific agency approval requirements under the CN designation.

Applications

  • Turbomachinery shaft vibration and position monitoring.
  • Steam and gas turbine diagnostics.
  • Hydroelectric generator shaft alignment.
  • Industrial compressors, pumps, and gearboxes.

Technical Specifications

Parameter Specification
Manufacturer Bently Nevada
Part Number 330130-080-02-CN
Series 3300 XL Proximity Transducer System
Cable Length Option 8.0 meters (26.2 feet)
Cable Material 75-ohm triaxial, FEP insulated
Connector and Cable Option Standard cable with connector protectors
Agency Approval Option CN (Country-specific approvals)
Net Weight 0.272 kg

Installation Guidelines

To ensure optimal signal integrity and longevity of the 330130-080-02-CN extension cable, comply with the following mechanical installation criteria:

  • Maintain recommended minimum bend radii to prevent coaxial/triaxial core kinking and dielectric damage.
  • Avoid routing cables through areas with sharp metal edges or high abrasive potential without dedicated conduit or protective sleeving.
  • Ensure connector protectors are fully sealed and seated over the probe-to-extension cable junction to prevent environmental contamination.
  • Utilize adequate cable clamping and strain relief near terminal junctions to limit vibration-induced physical fatigue.
Shipping & Returns

Global Express Shipping

  • Standard Delivery: 4–6 business days via DHL, FedEx, and UPS.
  • Express Dispatch: Same-day dispatch for in-stock orders placed before 2:00 PM (GMT+8).
  • Worldwide Coverage: Serving over 150 countries.

Returns & Warranty

  • 30-Day Guarantee: Returns accepted for in-stock products in original, factory-sealed packaging.
  • 12-Month Warranty: Every industrial component is backed by our technical warranty.
FAQ
What is the physical length of the 330130-080-02-CN extension cable?
The cable has a length of 8.0 meters (approximately 26.2 feet), as designated by the '080' option code.
What function do the connector protectors serve on this model?
The connector protectors (Option 02) shield the connection point between the probe and extension cable from fluid ingress, dust, and physical damage in harsh process environments.
Can this extension cable be used with non-3300 XL probe systems?
This cable is specifically engineered and calibrated for the Bently Nevada 3300 XL 8mm proximity transducer system. Mixing with other non-compatible systems may result in calibration errors.
