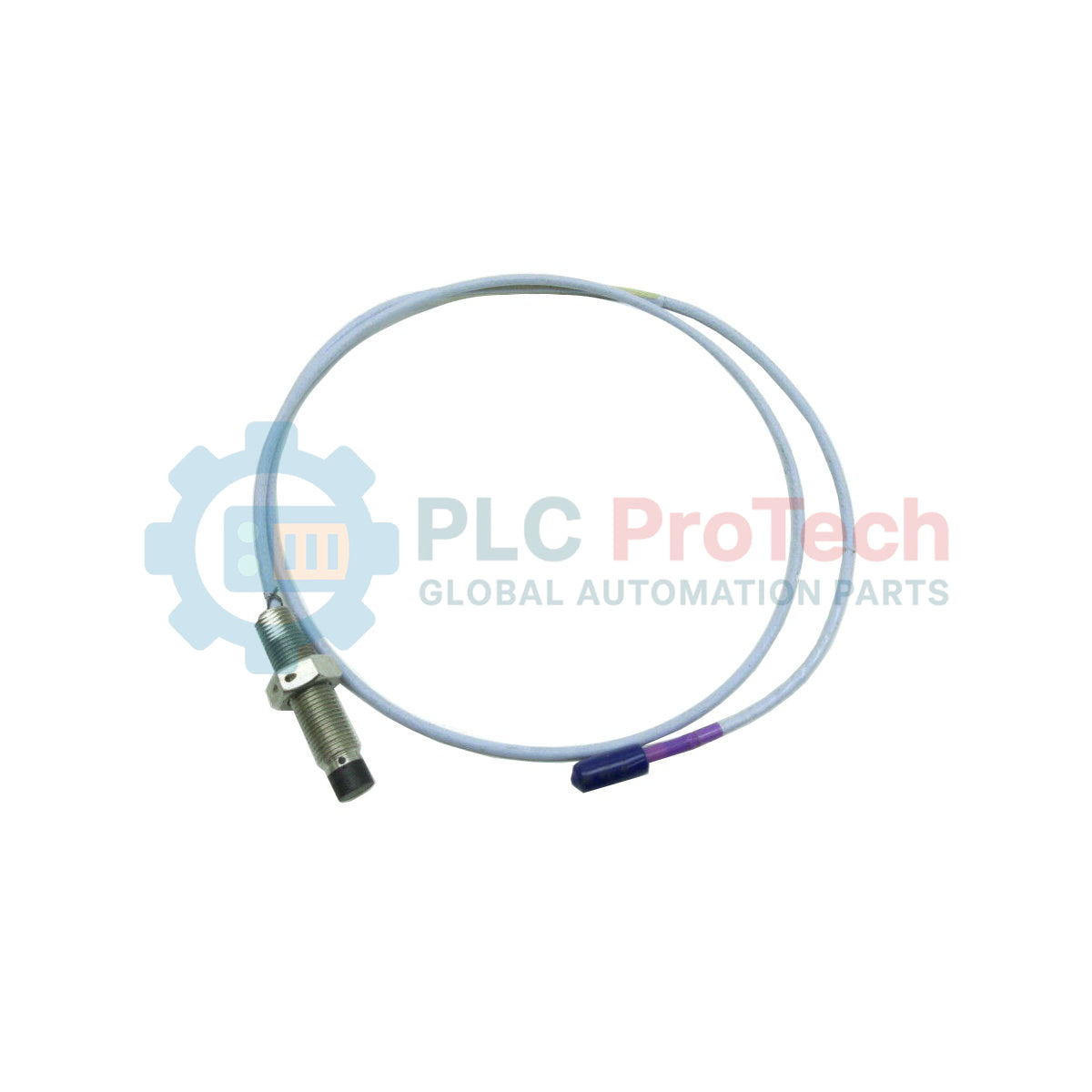

Engineered for high-reliability vibration and shaft position monitoring in demanding industrial environments, the Bently Nevada 330701-00-15-50-01-CN belongs to the rugged 3300 XL 11 mm Proximity Probes family. This system provides a wider linear measurement range compared to standard 8 mm probes, making it highly effective for applications requiring larger displacement tracking. The specific configuration features an unthreaded length of 0.0 inches, an overall case length of 1.5 inches, and a total cable length of 5.0 meters (16.4 feet). It comes equipped with a miniature coaxial ClickLoc connector with an integrated connector protector, ensuring exceptional signal integrity and resistance to fluid ingress under harsh operational conditions.
| Parameter | Value / Specification |
|---|---|
| Manufacturer | Bently Nevada |
| Model / Article Number | 330701-00-15-50-01-CN |
| Series | 3300 XL 11 mm Proximity Probes |
| Unthreaded Length Option | 0.0 inches (0 mm) |
| Overall Case Length Option | 1.5 inches (38.1 mm) |
| Total Length Option | 5.0 meters (16.4 feet) |
| Connector and Cable-Type Option | Miniature coaxial ClickLoc connector with connector protector, standard cable |
| Agency Approval Option | CN (Country-specific approvals for China region) |
| Probe Case Material | AISI 304 Stainless Steel (SST) |
| Probe Tip Material | Polyphenylene sulfide (PPS) |
| Sealing Method | Viton O-ring differential pressure seal |
| Country of Origin | United States |
| Shipping Weight (Calculated) | 1.5 kg (3.3 lbs) |
The 11 mm proximity probe requires a matching 3300 XL 11 mm Proximitor Sensor for correct operation. Do not attempt to pair this probe with a standard 8 mm or 5 mm Proximitor Sensor, as the differences in coil impedance and calibration curves will cause severe non-linearity and rendering the machinery protection system inaccurate.
Because 11 mm probes have a larger physical diameter, they are more susceptible to side-viewing (cross-talk) if mounted too close to adjacent metal structures or other probes. Ensure that you maintain the minimum clearance specifications outlined in the OEM technical reference to prevent unwanted signal interference and false vibration readings.
When routing the 5-meter coaxial cable, avoid tight bends that violate the minimum bend radius. Ensure that the ClickLoc coaxial connection is completely clean, dry, and free of oil or grease before sliding the connector protector into place. Even minor contamination on the gold pins can cause signal noise or mimic false shaft displacement.
Inspect the installation port and thread adapter. Clean out any metal shavings or old thread compound from the mounting tap.
Screw the probe into the mounting bracket or housing, ensuring that the cable rotates freely to avoid twisting and damaging the internal coaxial conductors.
Connect the probe to the extension cable and monitor the DC voltage gap using a digital multimeter connected to the Proximitor Sensor output to set the mechanical target distance correctly.
Tighten the mounting locknut to the recommended torque value. Avoid over-tightening as it can warp the stainless steel casing.
Secure the ClickLoc connector protector and anchor the coaxial cable inside standard flexible conduit for physical protection.
Global Express Shipping
Returns & Warranty
Manufacturer: Bently Nevada
Product No.: 330701-00-15-50-01-CN
Country of origin:United States
Product Type: Proximity Probes
Payment: T/T, Western Union
Weight: 320g
Shipping port: Xiamen
Warranty: 12 months
