Functional Summary & Industrial Application

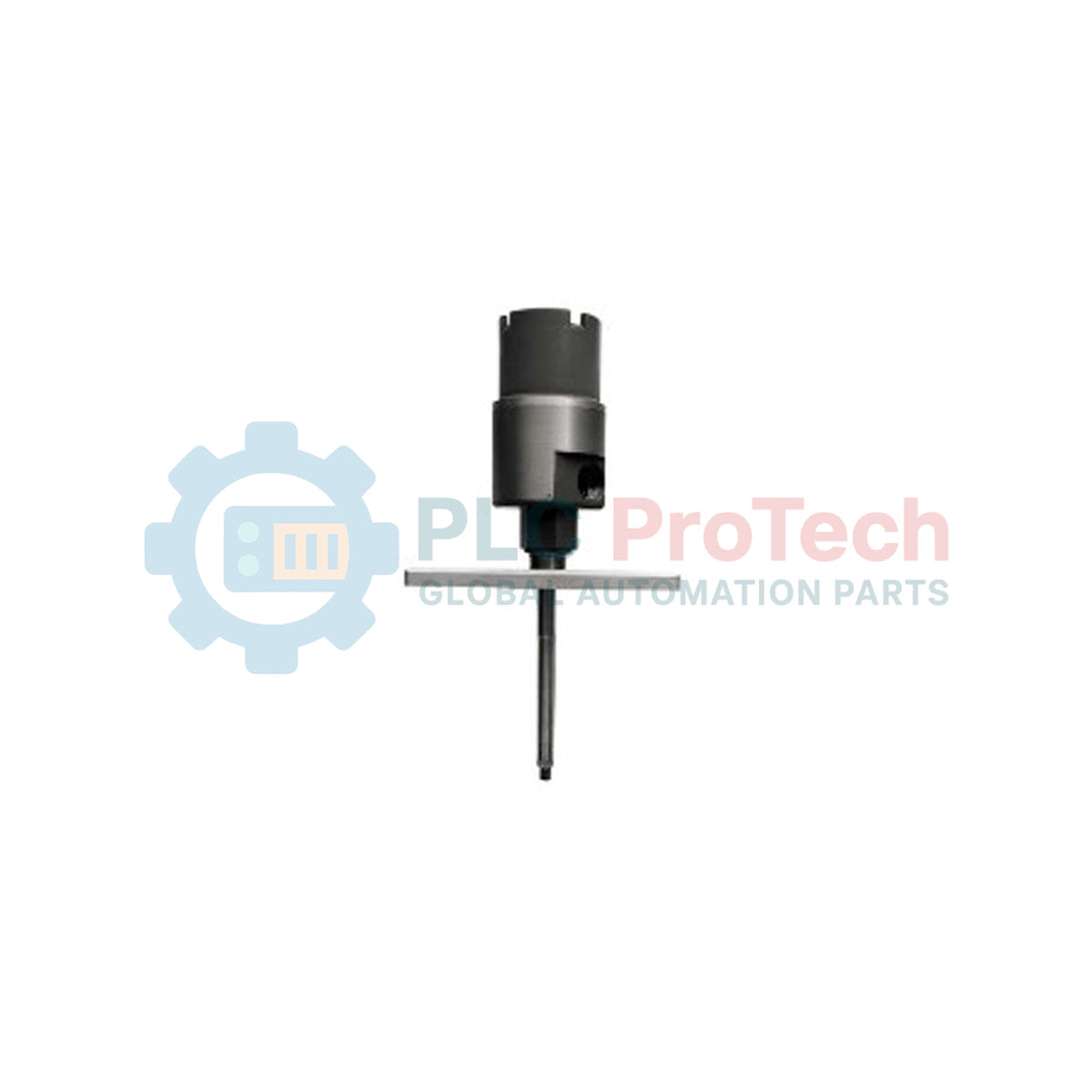

The Bently Nevada CA21000-28-05-00-020-01-02, also referenced as the CA21000-28-05-00-020-01-02 explosion-proof housing assembly, provides critical mechanical and environmental protection for proximity probe systems in hazardous industrial environments. Engineered specifically for heavy-duty turbomachinery instrumentation, this robust housing guards vulnerable sensor connections against catastrophic impacts, moisture ingress, and corrosive atmospheres. It is widely deployed across critical assets in petroleum refining, petrochemical processing, natural gas compression, and thermal power generation. By securing the integrity of 3300 XL proximity probes, this assembly prevents signal degradation and false trips, directly minimizing unscheduled downtime and safeguarding high-value rotating machinery.

Model Suffix Breakdown

The part number CA21000-28-05-00-020-01-02 defines a highly specific hardware configuration optimized for severe-duty industrial deployments. The precise engineering options for this assembly include:

1. Probe Option with Connector (28): Integrates a 3300 XL 8 mm probe engineered for multiple international hazardous area approvals and certifications.
2. Probe Cable Length Option (05): Standardized with a 0.5 meter (20 in) integrated probe cable.
3. Standoff Adapter Option (00): Configured with no standoff adapter.
4. Probe Penetration Option (020): Specifies a calibrated probe penetration depth of 2.0 in into the machine casing.
5. Fittings Option (01): Outfitted with one certified explosion-proof conduit fitting and one heavy-duty blanking plug.
6. Mounting Thread Option (02): Utilizes a standard 3/4-14 NPT mounting thread connection, required for direct casing installation when no standoff adapter is utilized.

Engineering & Performance Specifications

Field Support & Technical FAQs

Q: Can this housing assembly be used with non-XL 8 mm proximity probes?

A: This housing is specifically optimized for the 3300 XL 8 mm probe series under option 28. Mixing components with older 7200 series or non-XL legacy systems can alter the electrical characteristics and calibration, leading to inaccurate gap voltage readings.

Q: What is the purpose of the 304 stainless steel sleeve combined with the aluminum body?

A: The aluminum body provides a lightweight, spark-resistant, and corrosion-resistant outer enclosure, while the 304 stainless steel sleeve delivers superior mechanical rigidity and wear resistance where the assembly penetrates the machine casing.

Q: Does this housing assembly maintain its hazardous area rating if alternative fittings are used?

A: No. The explosion-proof integrity is only guaranteed when using the factory-supplied explosion-proof fittings or certified equivalents torqued to exact regulatory standards. Replacing components with non-certified commercial fittings voids all hazardous area ratings.

Field Installation & Safety Protocols

1. Proximity Probe Gap Voltage Calibration: Prior to final locking of the housing thread, connect the probe to the 3300 XL Proximitor Sensor and monitor the DC gap voltage using a digital multimeter. Adjust the probe depth until the voltage reads exactly -10.0 VDC (corresponding to the center of the linear range for standard calibrated targets), then secure the mounting locks.
2. NPT Thread Sealing and Torque: Apply a high-grade, electrically conductive anti-seize compound or Teflon tape to the 3/4-14 NPT mounting threads. Thread the assembly into the casing hand-tight, then wrench-tighten an additional 1.5 to 3.0 turns to ensure an explosion-proof, gas-tight seal. Do not over-torque, as this can distort the stainless steel sleeve.
3. Conduit Sealing and Moisture Prevention: Ensure the explosion-proof conduit fitting is filled with approved sealing compound after routing the probe extension cable. Route the external conduit with a low-point drip loop to prevent ambient moisture and condensation from draining into the aluminum enclosure.
4. Severe Environment Durability: This assembly is engineered to withstand high-frequency structural vibration typical of large centrifugal compressors and steam turbines. Inspect the housing integrity and internal sleeve alignment during scheduled turnaround windows to ensure no mechanical loosening has occurred due to thermal cycling up to 177 deg C.
