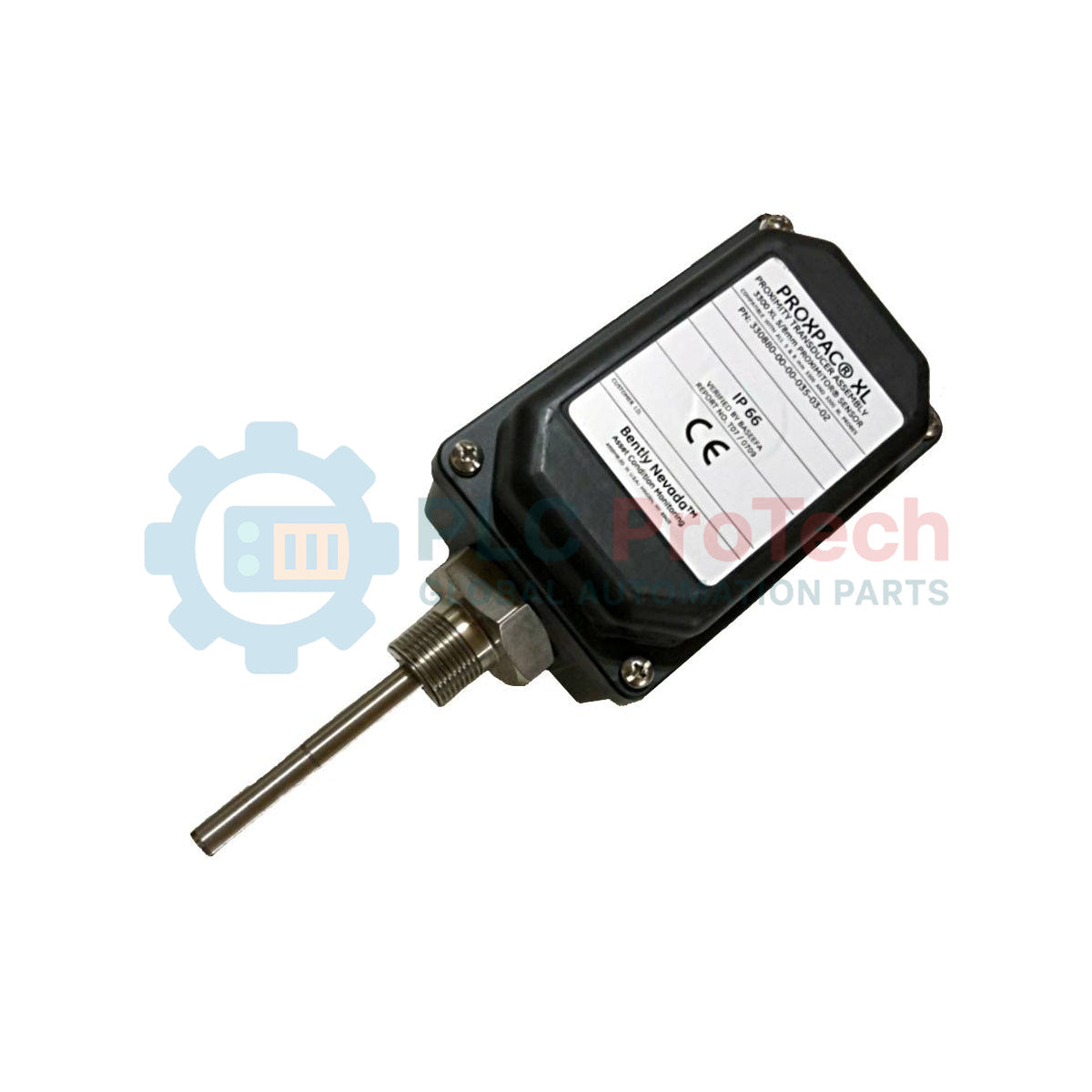

The Bently Nevada 330880-16-35-036-00-02 is a self-contained proximity transducer system designed for continuous vibration and position monitoring in harsh industrial environments. This specialized PROXPAC XL proximity transducer assembly integrates the functionalities of a conventional proximity probe housing and a 3300 XL Proximitor sensor directly into the housing cover. This integrated approach eliminates the need for an external extension cable and separate sensor housing, allowing field wiring to connect directly from the monitoring system to the assembly. Encased in a glass-reinforced Polyphenylene Sulfide (PPS) thermoplastic housing with conductive fibers, the system provides excellent resistance against mechanical impacts and dissipates electrostatic charges effectively. The system interfaces with a standard 3300 XL 8 mm proximity probe and provides a reliable analog voltage output directly proportional to the distance between the probe tip and the target surface. It is widely used in Machinery Protection Systems (such as Bently Nevada 3500 Series) for monitoring critical machinery parameters like radial vibration, axial position, and shaft alignment across demanding industries including oil and gas, power generation, and chemical processing.
The component breakdown below corresponds to the explicit technical specifications verified for the ordering option code 330880-16-35-036-00-02:
| Option Code | Specification |
|---|---|
| 330880 | PROXPAC XL Proximity Transducer, English |
| 16 | 3300 XL 8 mm probe without approvals |
| 35 | 3.5 in (89 mm) Standoff Adapter Option (B Dimension) |
| 036 | 3.6 in (91 mm) Probe Penetration Option (C Dimension) |
| 00 | No fittings; two plugs and two washers |
| 02 | 3/4-14 NPT Mounting Thread Option (Required if ordering Standoff Adapter Option) |
| Parameter | Value |
|---|---|
| Proximitor Sensor Input | 3300 XL 8 mm Proximity Probe with a 1-metre cable length installed in the probe sleeve |
| Power Input Requirements | -17.5 Vdc to -26 Vdc without barriers at 12 mA maximum consumption; -23 Vdc to -26 Vdc with barriers |
| Supply Sensitivity | Less than 2 mV change in output voltage per volt change in input voltage |
| Output Resistance | 50 Ohm |
| Nominal Probe DC Resistance (RPROBE) | Center conductor to outer conductor: 7.59 +/- 0.50 Ohm (for 1.0 m length) |
| Field Wiring Specification | 0.2 to 1.5 mm2 (16 to 24 AWG); 3-conductor shielded triax cable recommended; 305 metres (1,000 feet) max to monitor |
| Linear Range | 2 mm (80 mils); begins at approx. 0.25 mm (10 mils) up to 2.3 mm (90 mils) |
| Recommended Gap Setting | 1.27 mm (50 mils) |
| Incremental Scale Factor (ISF) | 7.87 V/mm (200 mV/mil) +/- 5% including interchangeability error (0 degC to +45 degC) |
| Frequency Response | 0 to 10 kHz: +0, -3 dB (with up to 305 metres of field wiring) |
| Parameter | Value |
|---|---|
| Manufacturer | Bently Nevada (A Baker Hughes Company) |
| Origin Country | USA |
| Probe Tip Material | Polyphenylene Sulfide (PPS) |
| Probe Case / Sleeve Material | AISI 304 stainless steel |
| Housing Material | Ultraviolet (UV) resistant, glass-reinforced polyphenylene sulfide (PPS) thermoplastic |
| Sleeve O-Ring Material | Neoprene |
| Retaining Nut Torque | 29.5 N-m (260 in-lb) |
| Probe Sleeve Locknut Torque | 39.3 N-m (350 in-lb) |
| Total System Weight | 1.44 kg (3.2 lbm) typical with 0.3 metre (12 in) sleeve length |
| Housing Dimensions (Depth) | 92.7 mm (3.65 in) |
| Parameter | Value |
|---|---|
| Probe Operating Temperature | -52 degC to +177 degC (-62 degF to +351 degF) |
| Housing and Sensor Temp | -52 degC to +100 degC (-62 degF to +212 degF) |
| Storage Temperature | -52 degC to +105 degC (-62 degF to +221 degF) |
| Relative Humidity | 100% condensing, non-submersible when connectors are protected |
| Housing Mechanical Ingress | Type 4X and IP66 rating verified by BASEEFA report T07/0709 |
| Housing Impact Strength | Certified by BASEEFA to withstand two 4 Joule impacts at -39 degC and +115 degC |
