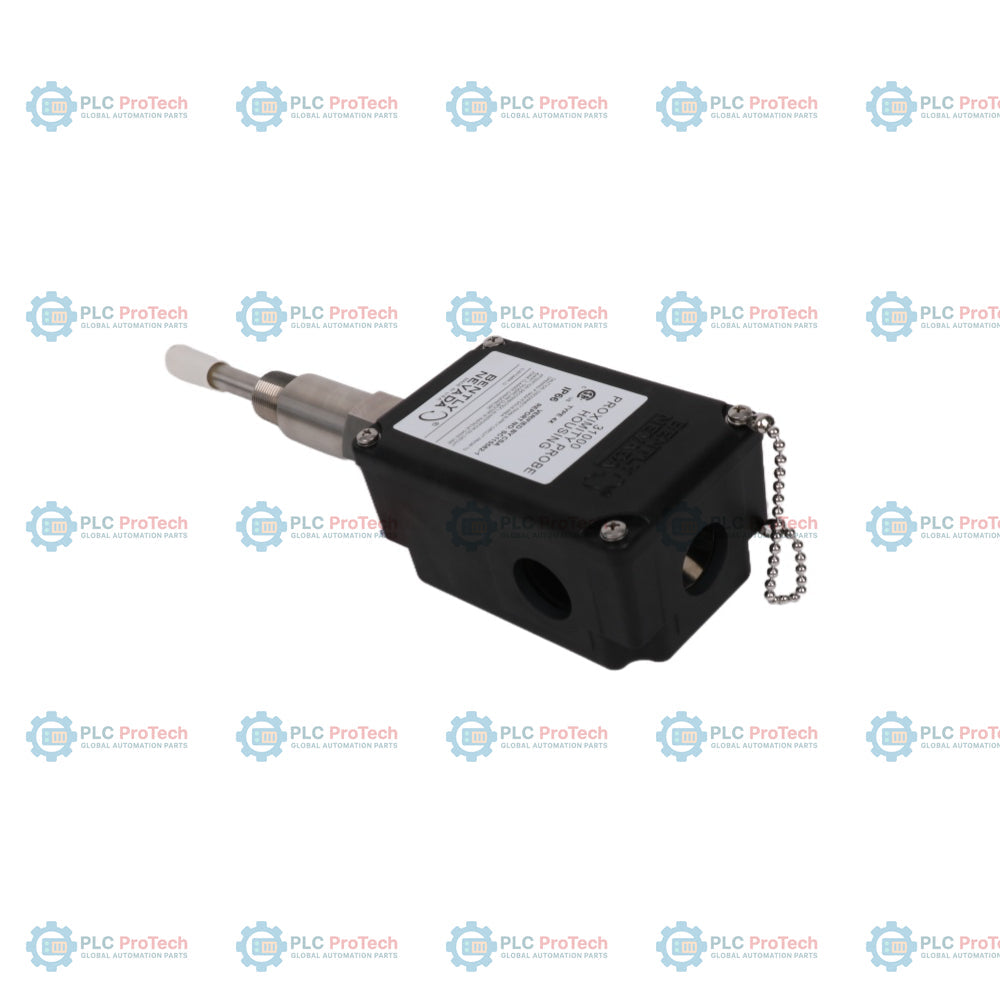

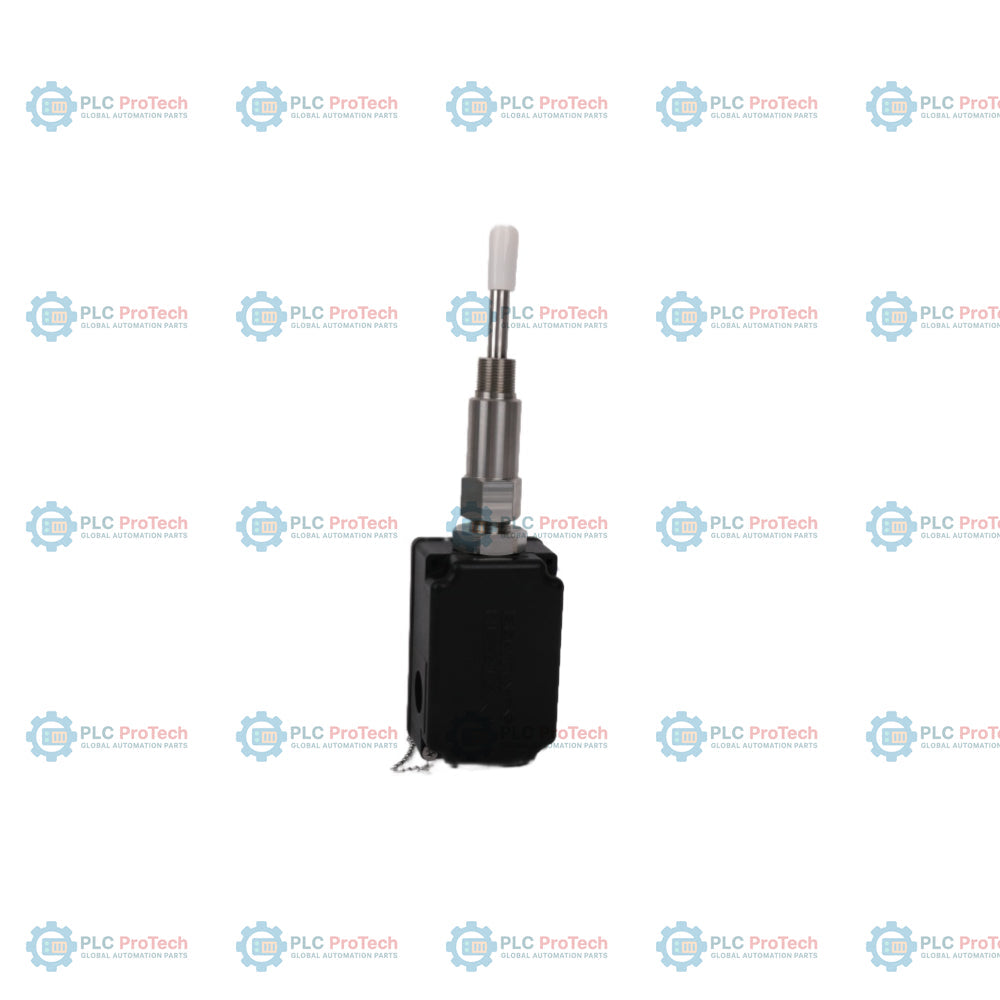

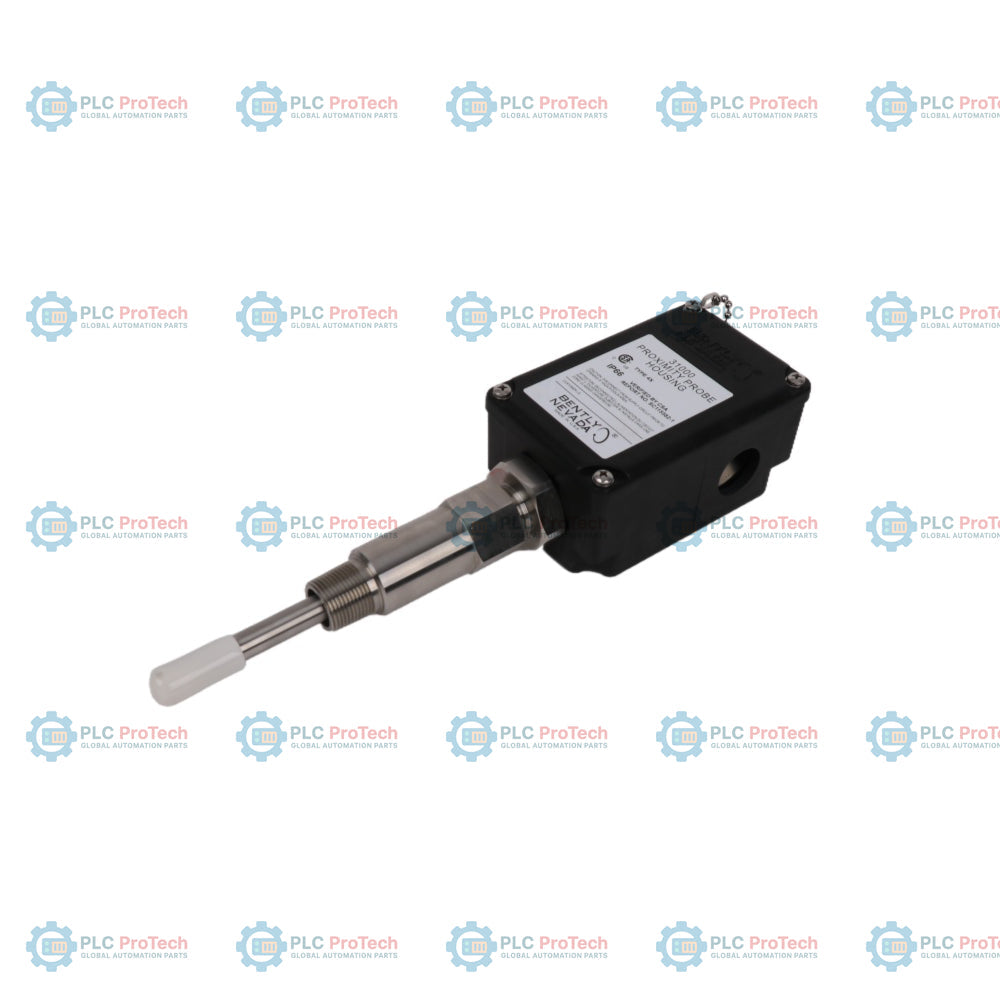

330881-BR-07-155-06-02: This metric PROXPAC XL Proximity Transducer features a 3300 XL 8 mm proximity probe with Brazil INMETRO hazardous area approvals (Option BR), an integrated 70 mm standoff adapter (Option 07), and a 155 mm probe penetration sleeve length (Option 155). This configuration is supplied with one 3/4-14 NPT fitting, one 3/4-14 NPT to 1 1/2-14 NPT stainless steel reducer, and two conduit plugs (Option 06) and utilizes a 3/4-14 NPT mounting thread (Option 02).
The integrated design combines both the 3300 XL 8 mm probe and its matching Proximitor sensor into a single, self-contained polyphenylene sulfide (PPS) housing. This approach eliminates the separate extension cable and external Proximitor enclosure, allowing field wiring to connect directly from the monitoring system to the terminal block inside the transducer cover. The glass- and conductive-fiber-reinforced PPS housing delivers IP66 and Type 4X environmental protection, securing the internal electronics against severe industrial conditions, moisture ingress, and electrostatic buildup.
| Option / Segment | Code on This SKU | Description / Meaning |
|---|---|---|
| Orderable Part Number | 330881-BR-07-155-06-02 | PROXPAC XL Proximity Transducer Assembly (Metric Model) |
| A - Probe and Approvals Option | BR | 3300 XL 8 mm probe with Brazil / INMETRO approvals |
| B - Standoff Adapter Option | 07 | 70 mm standoff adapter length (ordered in increments of 10 mm) |
| C - Probe Penetration Option | 155 | 155 mm probe sleeve penetration length (ordered in increments of 1 mm) |
| D - Fittings Option | 06 | One 3/4-14 NPT fitting, one 3/4-14 NPT to 1 1/2-14 NPT stainless steel reducer, and two plugs |
| E - Mounting Thread Option | 02 | 3/4-14 NPT mounting thread (required with Standoff Adapter Option) |
| Manufacturer | Bently Nevada (Baker Hughes) |
| Model / Part Number | 330881-BR-07-155-06-02 |
| Transducer Type | PROXPAC XL Integrated Proximity Transducer |
| Probe Type | 3300 XL 8 mm proximity probe |
| Proximitor Input Cable | Integral 1-meter cable pre-connected within the housing |
| Linear Range | 2 mm (80 mils), starting 0.25 mm (10 mils) from target to 2.3 mm (90 mils) |
| Incremental Scale Factor (ISF) | 7.87 V/mm (200 mV/mil) +/-5% over linear range (0 to 45 degC) |
| Linearity Deviation (DSL) | Less than +/-0.025 mm (+/-1 mil) deviation from standard straight line |
| Recommended Gap | 1.27 mm (50 mils) |
| Power Requirements | -17.5 Vdc to -26 Vdc (without barriers) at 12 mA max; -23 Vdc to -26 Vdc (with barriers) |
| Output Resistance | 50 Ohm |
| Probe DC Resistance | 7.59 +/-0.50 Ohm (nominal) |
| Housing Material | Ultraviolet (UV) resistant, glass- and conductive-fiber-reinforced polyphenylene sulfide (PPS) |
| Sleeve and Retaining Chain | AISI 304 stainless steel |
| Retaining Screws and Outer Sleeve | AISI 303 stainless steel |
| Sleeve O-Ring Material | Neoprene |
| Vibration Isolation Material | Extra Soft Cellular Silicone |
| Torque Limits | Retaining Nut: 29.5 N-m (260 in-lb); Probe Sleeve Locknut: 39.3 N-m (350 in-lb) |
| Probe Operating Temperature | -52 degC to +177 degC (-62 degF to +351 degF) |
| Enclosure Rating | IP66 and Type 4X |
| Interface / Terminals | Specification |
|---|---|
| Field Wiring Connection | Screw terminal block inside the housing lid |
| Terminal Wire Capacity | Accepts wire sizes from 0.2 to 1.5 mm2 (16 to 24 AWG) |
| Recommended Field Cable | 3-conductor shielded triax cable with tinned field wiring |
| Maximum Distance to Monitor | 305 meters (1,000 feet) between PROXPAC XL and monitor |
Mount the housing securely using the 3/4-14 NPT thread. Ensure the standoff adapter is aligned correctly with the machinery sleeve port. Tighten the probe sleeve locknut to a torque of 39.3 N-m (350 in-lb) and the retaining nut to 29.5 N-m (260 in-lb) to maintain a secure physical seal. Field cables must be routed through the conduit fittings provided by Option 06; tighten all compression fittings and plugs to maintain the IP66 and Type 4X rating of the PPS enclosure. Ensure local grounding guidelines are followed using the integrated internal ground liner assembly.
This transducer assembly is designed and certified under the following industrial standards:
Global Express Shipping
Returns & Warranty
Manufacturer: Bently Nevada
Product No.: 330881-BR-07-155-06-02
Country of origin:United States
Product Type: Trasduttore di prossimità PROXPAC XL
Barcode: 8537101190
Payment: T/T, Western Union
Weight: 250g
Dimensions: 60 mm x 110 mm x 110 mm (H x W x D)
Shipping port: Xiamen
Warranty: 12 months
