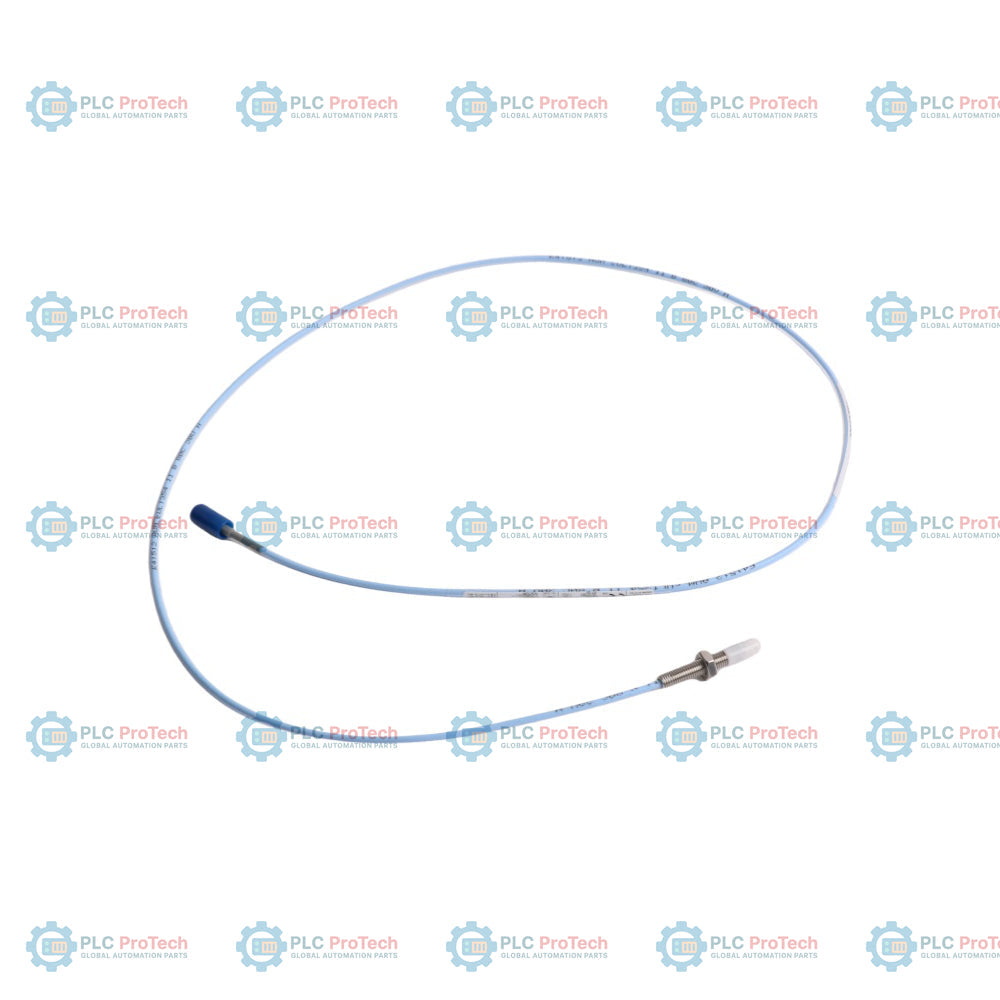

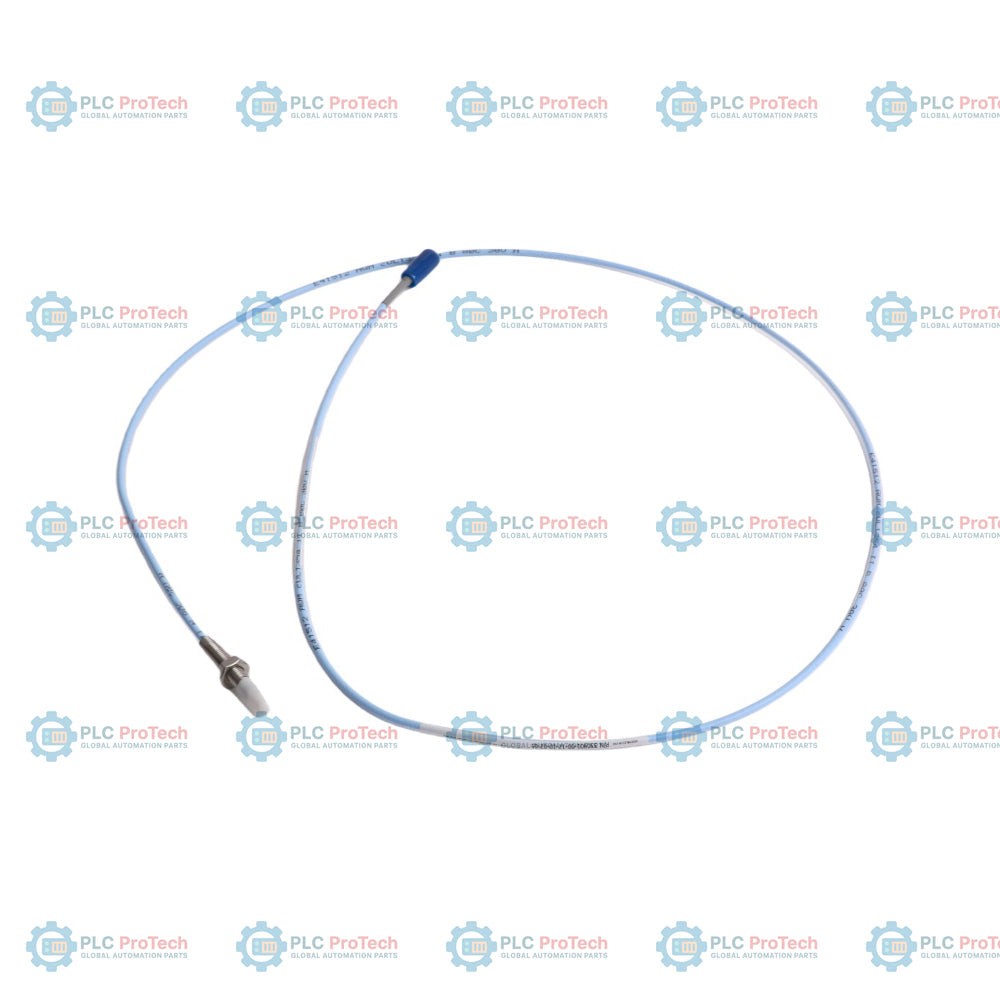

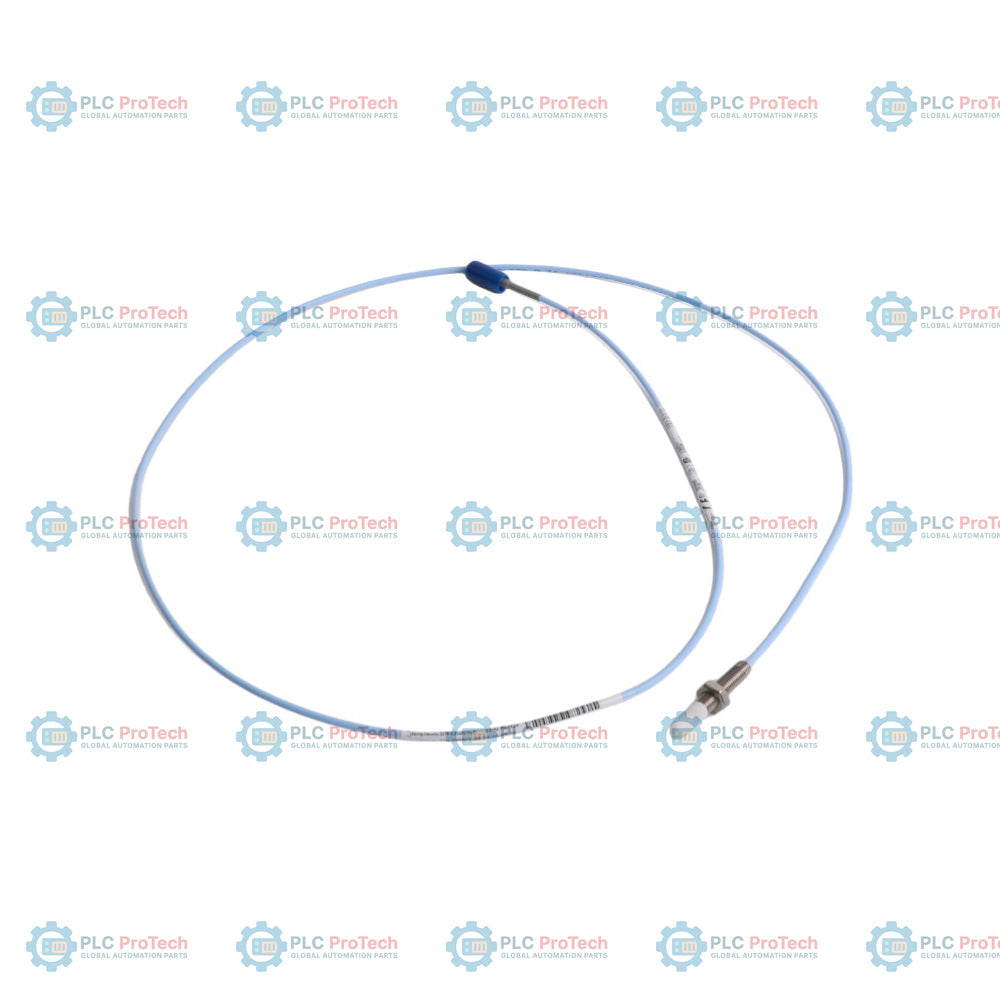

Unarmored 1/4-28 UNF threaded probe body (Option 00) with 1.5 in overall case (Option 15) and 0.5 m lead length (Option 05) — 330901-00-15-05-02-05. This eddy-current non-contacting transducer is a part of the 3300 NSv proximity probe system, used in confined spaces with tight clearances, small-bore machinery, and aeroderivative turbines where standard 5 mm or 8 mm systems do not fit because of sideview, counterbore, or rearview constraints.
Unlike the armored 330902 variants, this configuration features a lightweight unarmored 1/4-28 UNF threaded case. Its ClickLoc miniature coaxial connector connects directly to a 330930 extension cable and a 330980 Proximitor sensor. Option 02 specifies standard cabling without an integrated connector protector, and Option 05 grants multiple international hazardous area certifications (CSA, ATEX, IECEx) for installations in explosive atmospheres.
| Option | Code on This SKU | Description |
|---|---|---|
| Orderable Part Number | 330901-00-15-05-02-05 | 3300 NSv Proximity Probe, 1/4-28 UNF thread, standard mount, without armor |
| A - Unthreaded Length Option | 00 | 0.0 in (0 mm) unthreaded length |
| B - Overall Case Length Option | 15 | 1.5 in (38 mm) case length (ordered in increments of 0.1 in) |
| C - Total Length Option | 05 | 0.5 meter (20 in) total system length |
| D - Connector and Cable Option | 02 | Miniature coaxial ClickLoc connector, standard cable |
| E - Agency Approval Option | 05 | Multiple Approvals (including CSA, ATEX, IECEx) |
| Parameter | Specification Value |
|---|---|
| Manufacturer | Bently Nevada (Baker Hughes) |
| Part Number | 330901-00-15-05-02-05 |
| Transducer System Type | 3300 XL NSv Proximity Transducer System |
| Thread Size | 1/4-28 UNF-2A |
| Mechanical Armor | None (unarmored cable) |
| Linear Range | 1.5 mm (60 mils) |
| Average Scale Factor (ASF) | 7.87 V/mm (200 mV/mil) |
| Recommended Gap Setting | 1.0 mm (40 mils) |
| Frequency Response | 0 to 10 kHz |
| Probe Tip Material | Polyphenylene sulfide (PPS) |
| Probe Case Material | AISI 304 stainless steel (SST) |
| Cable Type | 75 ohm coaxial, fluoroethylene propylene (FEP) insulated |
| Probe Cable Length | 0.5 meters (19.7 inches) |
| Connector Type | Miniature coaxial ClickLoc connector |
| Operating Temperature Range | -52 degC to +177 degC (-62 degF to +351 degF) |
| Pressure Sealing | Viton O-ring pressure seal (sustained temperatures below -34 degC can affect seal) |
| Maximum Rated Torque | 7.3 Nm (65 in-lb); Recommended torque: 5.1 Nm (45 in-lb) |
| Tensile Strength | 220 N (50 lb) max rating (probe case to lead) |
| Minimum Bend Radius | 25.4 mm (1.0 in) |
| Relative Humidity | 100% condensing, non-submersible |
Maintain correct thread engagement. For 1/4-28 UNF threads, the maximum length of thread engagement should not exceed 0.375 inches to avoid binding during installation. Ensure the minimum bend radius of 25.4 mm (1.0 in) is respected during cable routing. Secure the ClickLoc connection by hand-tightening, then applying the specified finger-tight torque. Exposing the probe to temperatures below -34 degC for sustained periods may degrade the Viton O-ring seal; verify your operating environment matches this limit.
