Description

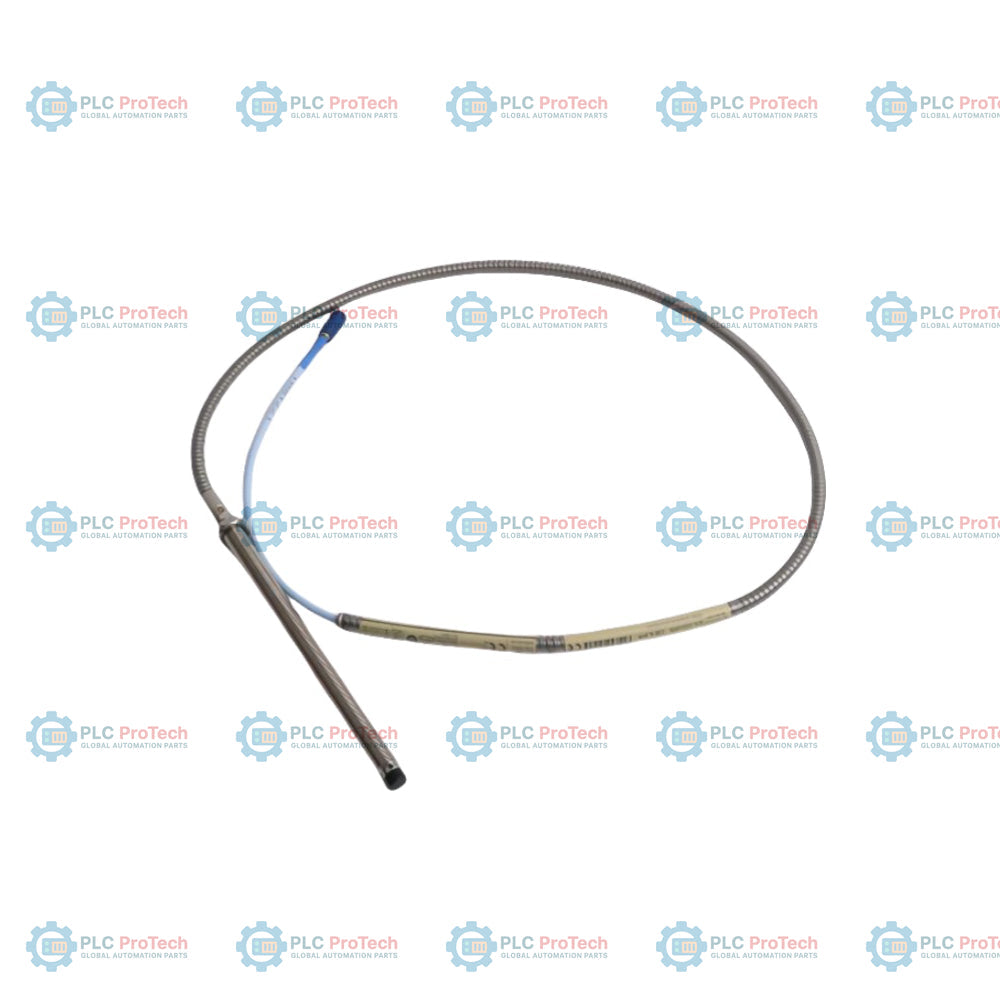

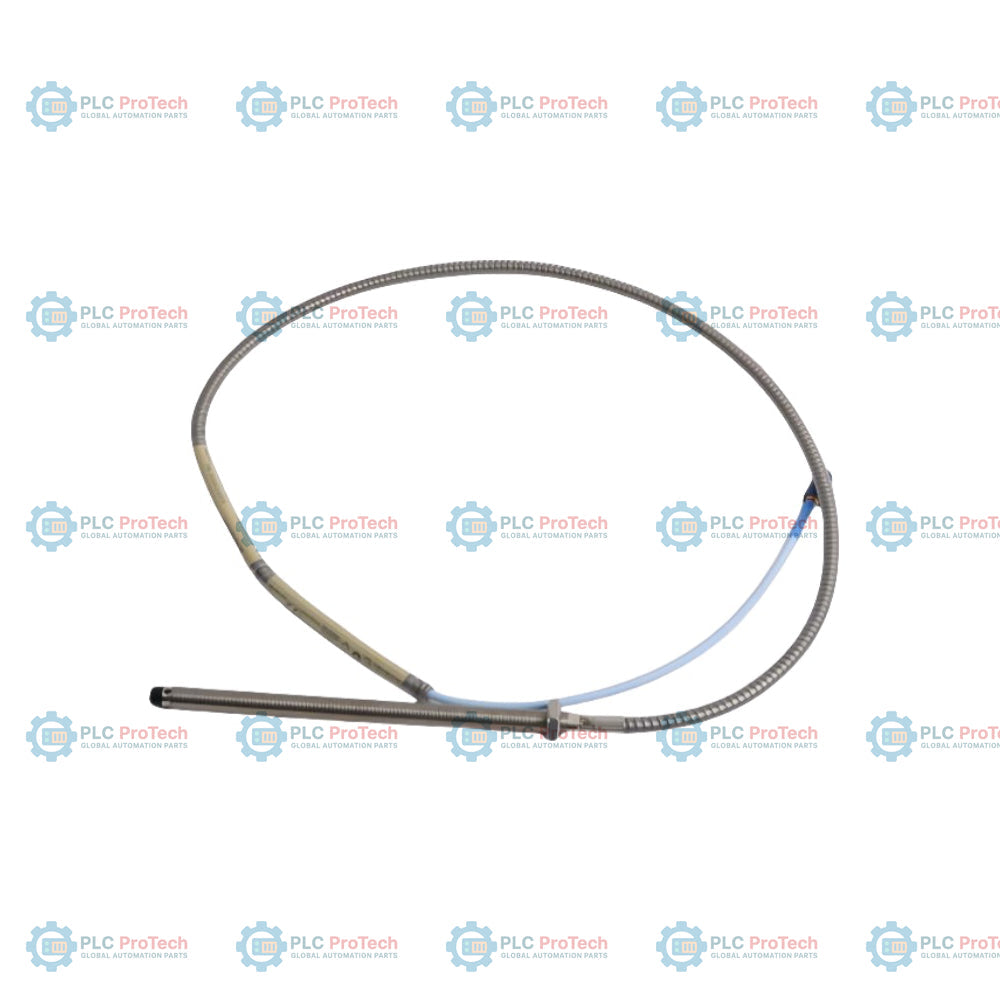

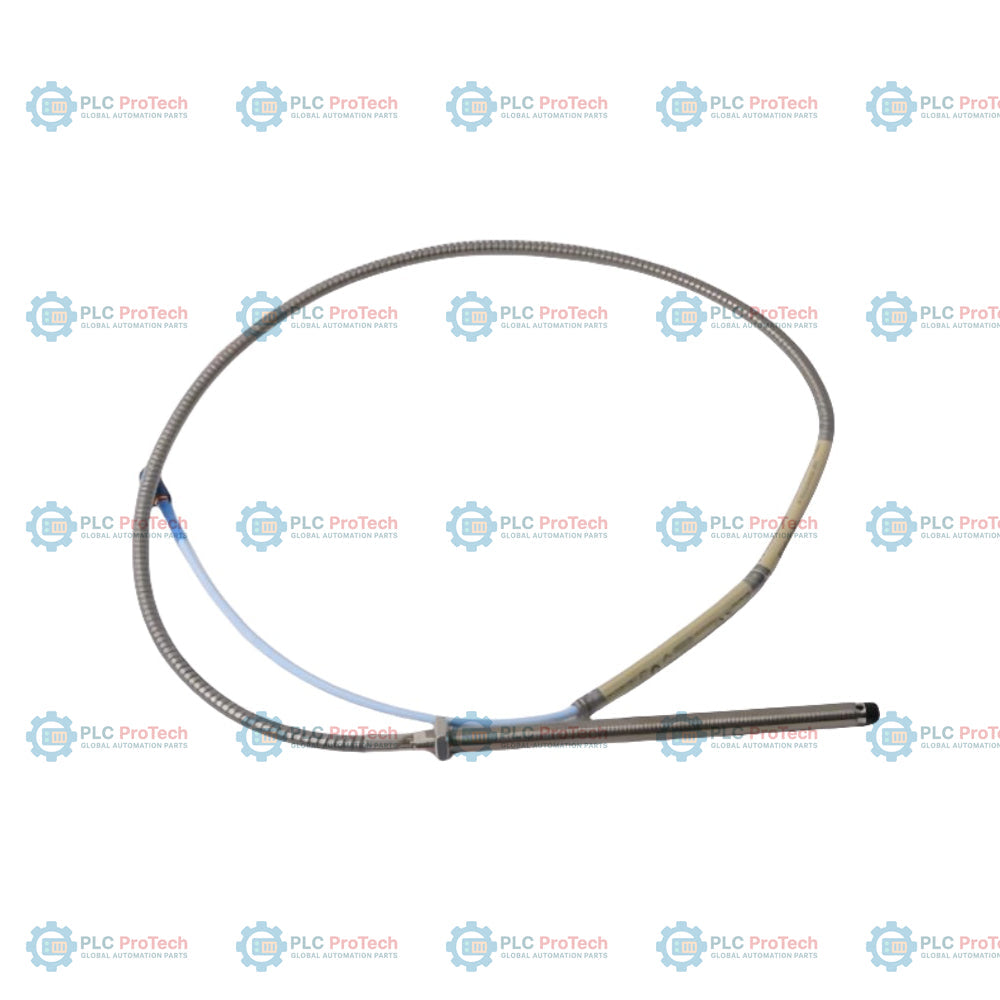

Option 00 (0.0 in unthreaded length) and Option 40 (4.0 in overall case length) specify this armored 3300 NSv 1/4-28 UNF proximity probe configuration — 330902-00-40-10-01-05. This non-contact eddy-current proximity probe is used for vibration and position measurements on rotating machinery with limited target areas or tight clearances. The stainless steel armor sheath physically protects the coaxial cable from mechanical damage, abrasion, and harsh operating environments.

The system is compatible with the 3300 XL NSv Proximitor Sensor (330980) and the 3300 NSv Extension Cable (330930). This configuration utilizes a 1.0-meter total cable length ending in a miniature coaxial ClickLoc connector with an integrated connector protector, providing resistance to fluid ingress and connection contamination.

Features

• Stainless steel armor provides physical protection for the coaxial cable against abrasion, cutting, and pinching.
• Zero unthreaded length (Option 00) allows the full 4.0-inch case (Option 40) to thread completely into the machine case.
• Integrated connector protector (Option 01) seals the ClickLoc connection from oil, moisture, and chemical contamination.
• Gold-plated brass ClickLoc connector provides secure mechanical locking and prevents vibration-induced loosening.
• TipLoc molding process forms a secure bond between the polyphenylene sulfide probe tip and the stainless steel case.
• CableLoc design delivers 220 N tensile pull strength to securely secure the FEP-insulated coaxial cable to the probe tip.

Applications

• Shaft radial vibration and axial position measurements in small-bore rotating machinery.
• Monitoring of aeroderivative gas turbines and high-speed turbomachinery with compact installation envelopes.
• Industrial compressors, generators, and pumps where target area is limited.
• Machinery protection systems requiring high-frequency response in tight clearance locations.

Ordering Information

Technical Specifications

Installation Guidelines

Ensure the following engineering guidelines are followed during installation of the proximity probe:

• Do not exceed the maximum rated installation torque of 5.1 N m (45 in lb) for 1/4-28 probe cases to avoid damage to the threads or case.
• Maintain a minimum probe-to-probe separation of 25 mm (1.0 in) for axial position or 23 mm (0.9 in) for radial vibration measurements to prevent electrical cross-talk.
• Avoid mounting probes near external magnetic fields to prevent interference with eddy-current signal generation.
• Always check that the combined length of the probe and extension cable matches the total calibrated system length of the Proximitor Sensor (either 5.0 meters or 7.0 meters).
• Protect the ClickLoc connector using the integrated connector protector to block fluid or oil contamination from degrading the high-frequency coaxial signal.

Compliance and Certifications

The 3300 NSv Proximity Probe system meets multiple international standards and hazardous area approvals, including:

• EMC Directive 2014/30/EU (EN 61000-6-2, EN 61000-6-4)
• RoHS Directive 2011/65/EU and China RoHS (15-year EFUP designation)
• Functional Safety: SIL 2 (HFT = 0), SIL 3 (HFT = 1)
• Hazardous Area Approvals (Option 05): ATEX, IECEx, and North American (cNRTLus) certifications for intrinsically safe (Class I, Zone 0/1/2, Groups A, B, C, D) and non-incendive/non-sparking (Class I, Division 2) installations when connected per approved drawing instructions.
