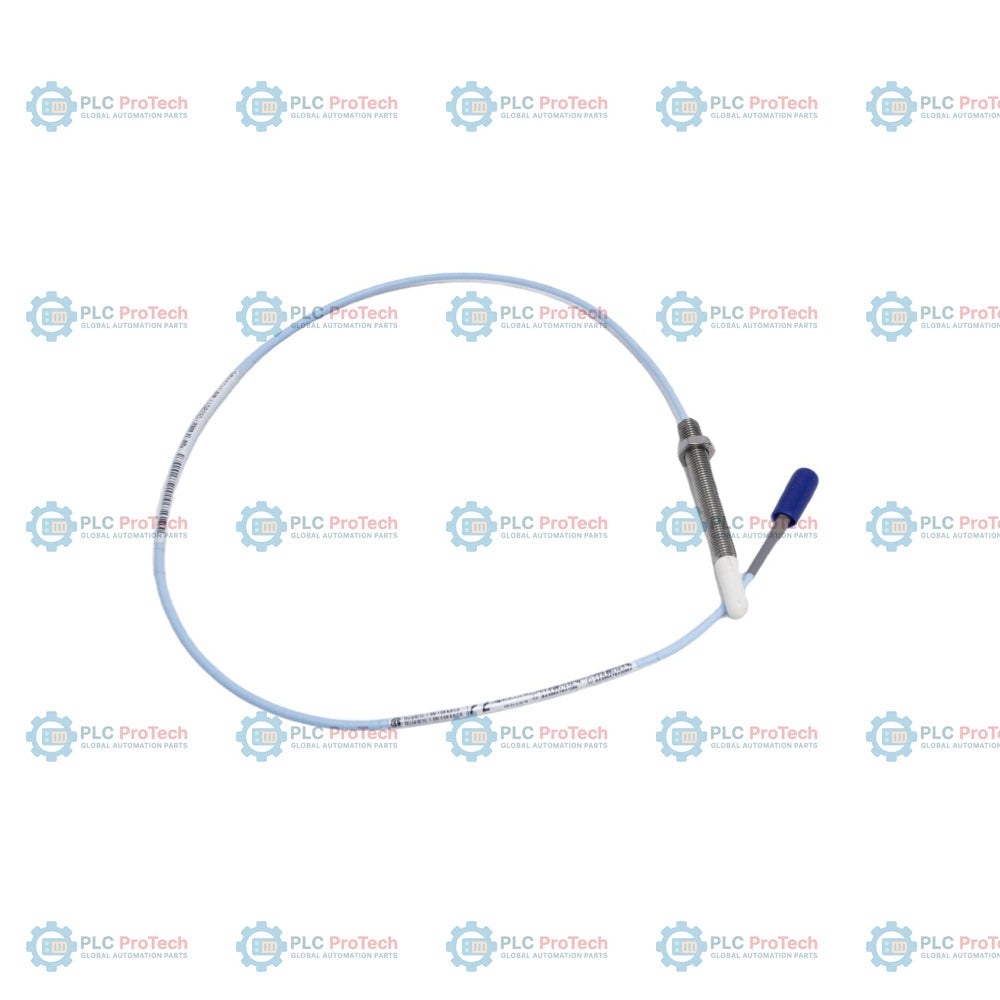

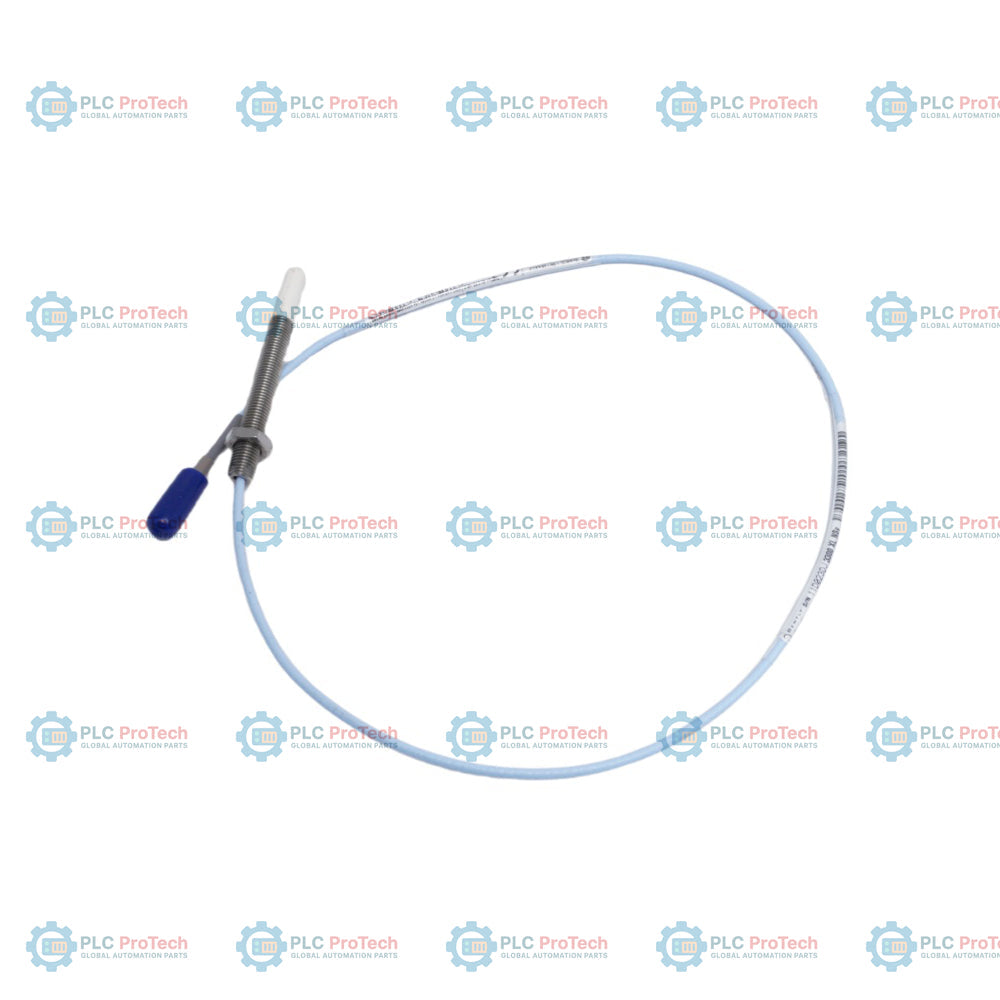

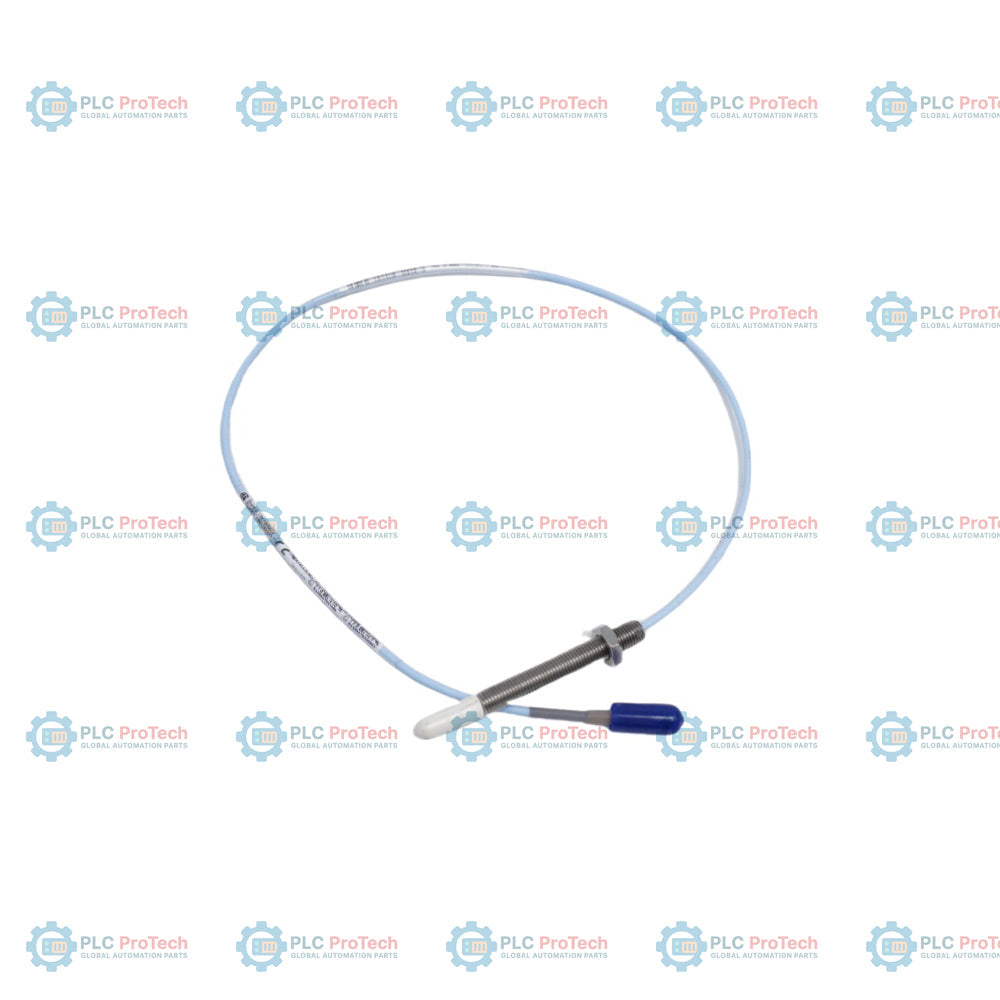

The 330903-00-11-05-02-05 is a 3300 XL NSv proximity probe configured with an M8x1 thread, 0.0 mm unthreaded length (Option 00), 110 mm case length (Option 11), and 0.5 m total length (Option 05). This transducer utilizes a miniature coaxial ClickLoc connector with standard cable (Option 02) and includes multiple agency approvals (Option 05) for hazardous area operation. As a core component of the 3300 XL NSv proximity transducer system, this probe is engineered for non-contact displacement measurement in machinery with reduced target area or limited clearance.
The 3300 XL NSv system features an enhanced side-view characteristic and smaller physical profile compared to standard 3300 XL 8 mm probes. This specific configuration, with its M8x1 mounting thread and unarmored standard cable, is suitable for high-speed equipment, small-bore machinery, and aeroderivative turbines where space constraints limit the use of larger transducer hardware.
| Option | Code | Description |
|---|---|---|
| Orderable Part Number | 330903-00-11-05-02-05 | 3300 XL NSv Proximity Probe, M8x1 thread, Unarmored |
| A - Unthreaded Length | 00 | 0.0 mm unthreaded length |
| B - Case Length | 11 | 110 mm case length |
| C - Total Length | 05 | 0.5 meter (20 in) length |
| D - Connector/Cable | 02 | Miniature ClickLoc connector, standard cable |
| E - Agency Approval | 05 | Multiple Approvals (CSA, ATEX, IECEx) |
| Parameter | Specification |
|---|---|
| Manufacturer | Bently Nevada |
| Part Number | 330903-00-11-05-02-05 |
| Probe Type | 3300 XL NSv Proximity Probe |
| Thread Size | M8x1 |
| Mounting | Standard Mount |
| Cable Type | Standard (Unarmored) |
| Connector | Miniature Coaxial ClickLoc |
| Total Length | 0.5 m |
| Linear Range | 1.5 mm (60 mils) |
| Recommended Gap | 1.0 mm (40 mils) |
| Agency Approvals | Multiple (CSA, ATEX, IECEx) |
Ensure the probe is installed in a manner consistent with Bently Nevada hazardous area drawings for intrinsically safe or non-incendive installations. The 3300 XL NSv system requires proper grounding and shielding using three-conductor shielded triad cable. When installing, verify that the total length of the probe and extension cable matches the Proximitor sensor system length to maintain calibrated accuracy. Use the provided ClickLoc connector system and standard environmental protection practices to prevent moisture ingress.
Global Express Shipping
Returns & Warranty
Manufacturer: Bently Nevada
Product No.: 330903-00-11-05-02-05
Country of origin:United States
Product Type: 3300 NSv Proximity Probes
Barcode: 8537101190
Payment: T/T, Western Union
Weight: 120g
Dimensions: 45 mm x 90 mm x 90 mm (H x W x D)
Shipping port: Xiamen
Warranty: 12 months
