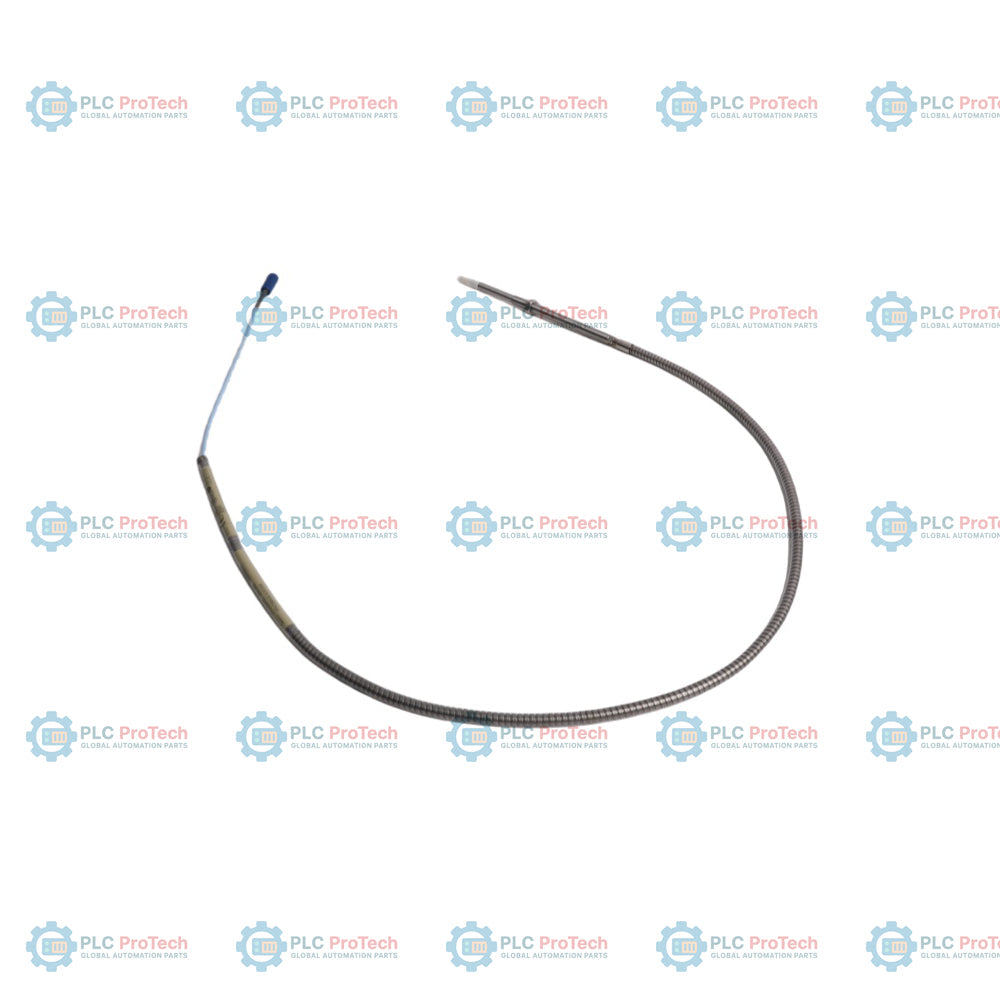

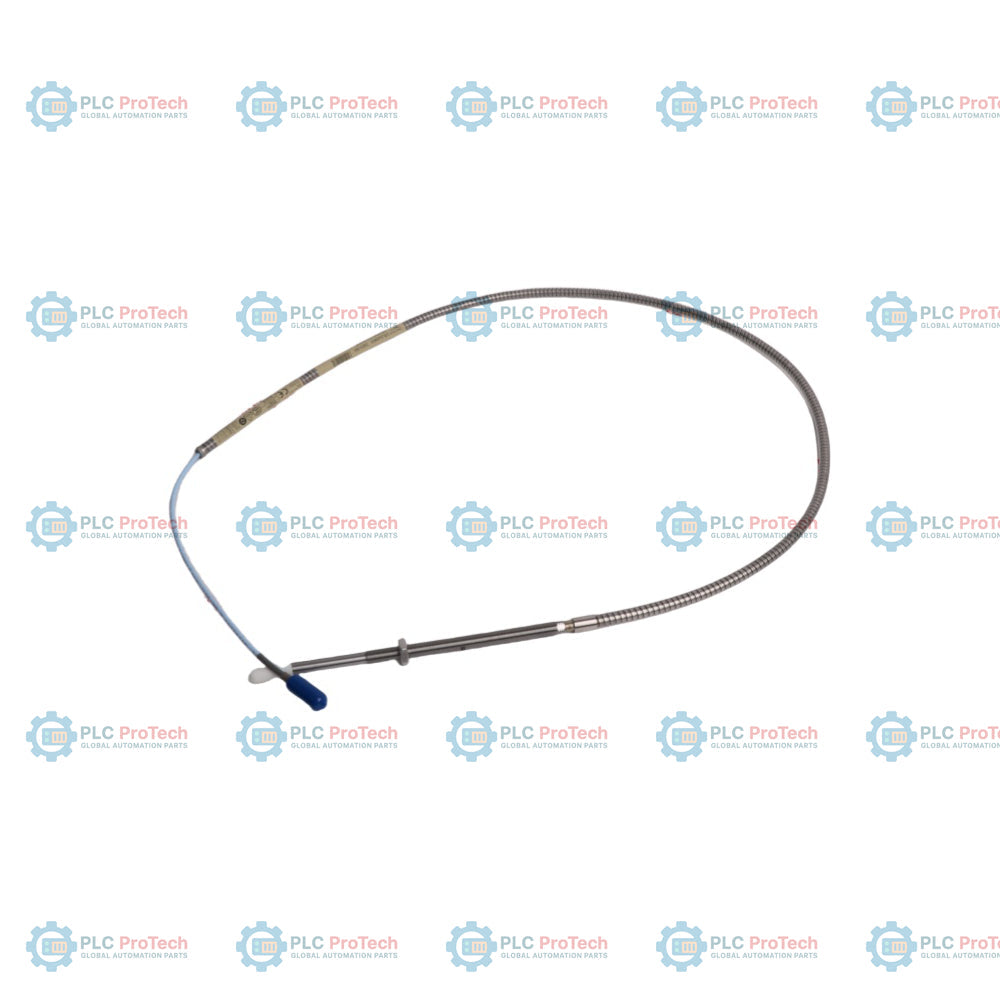

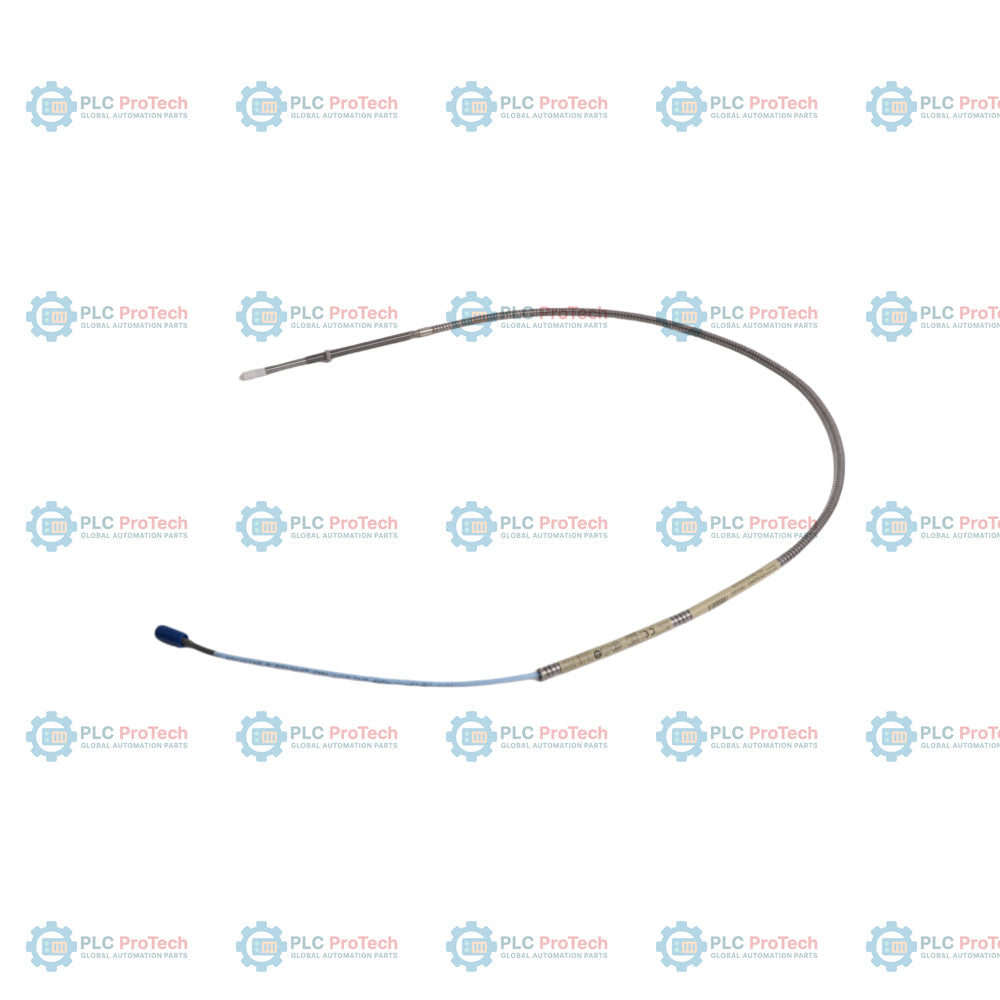

The 330904-09-17-05-01-05 is a 3300 XL NSv proximity probe designed for machinery monitoring applications involving reduced target areas and tight clearances. This Near-field (NSv) transducer configuration features a 0.9 inch unthreaded length (Option 09), a 1.7 inch case length (Option 17), and a 0.5 meter total length (Option 05). The probe terminates with a miniature coaxial ClickLoc connector (Option 01) and includes Agency Approval for hazardous locations (Option 05: CSA, ATEX, IECEx).
The 3300 XL NSv system is engineered specifically for applications where standard 3300 XL 8 mm probes are too large. It is optimized for use with the 330980 NSv Proximitor Sensor and 330930 extension cable to provide accurate non-contact displacement measurements on high-speed equipment, small-bore machinery, and aeroderivative turbines with limited target geometry. The system ensures signal integrity through the proprietary ClickLoc connector interface and standard coaxial cabling.
| Option | Code | Description |
|---|---|---|
| Orderable Part Number | 330904-09-17-05-01-05 | 3300 XL NSv Proximity Probe |
| A - Unthreaded Length | 09 | 0.9 in |
| B - Case Length | 17 | 1.7 in |
| C - Total Length | 05 | 0.5 m |
| D - Connector/Cable | 01 | Miniature coaxial ClickLoc connector, standard cable |
| E - Agency Approval | 05 | CSA, ATEX, IECEx |
| Manufacturer | Bently Nevada |
| Part Number | 330904-09-17-05-01-05 |
| System Type | 3300 XL NSv Proximity Transducer |
| Probe Diameter | 5 mm |
| Thread Size | 1/4-28 UNF |
| Total Length | 0.5 m |
| Connector Type | Miniature coaxial ClickLoc |
| Operating Temperature | -35 degC to +177 degC |
| Case Material | AISI 303 or 304 Stainless Steel |
| Probe Tip Material | Polyphenylene Sulfide (PPS) |
| Agency Approvals | CSA, ATEX, IECEx (Option 05) |
Ensure the probe is installed with adequate clearance from surrounding structural components to prevent electrical interference. Use the recommended torque settings for the 1/4-28 UNF threading to avoid damaging the probe body. Cables must be routed away from high-voltage AC lines to prevent noise induction. Always verify the gap voltage using a digital multimeter at the Proximitor terminal block during commissioning to ensure the probe is positioned within the specified linear range.
The 330904-09-17-05-01-05 conforms to hazardous area standards under Option 05, including CSA, ATEX, and IECEx directives for intrinsic safety in explosive atmospheres.
Global Express Shipping
Returns & Warranty
Manufacturer: Bently Nevada
Product No.: 330904-09-17-05-01-05
Country of origin:United States
Product Type: 3300 NSv Proximity Probes
Barcode: 8537101190
Payment: T/T, Western Union
Weight: 120g
Dimensions: 45 mm x 90 mm x 90 mm (H x W x D)
Shipping port: Xiamen
Warranty: 12 months
