Description

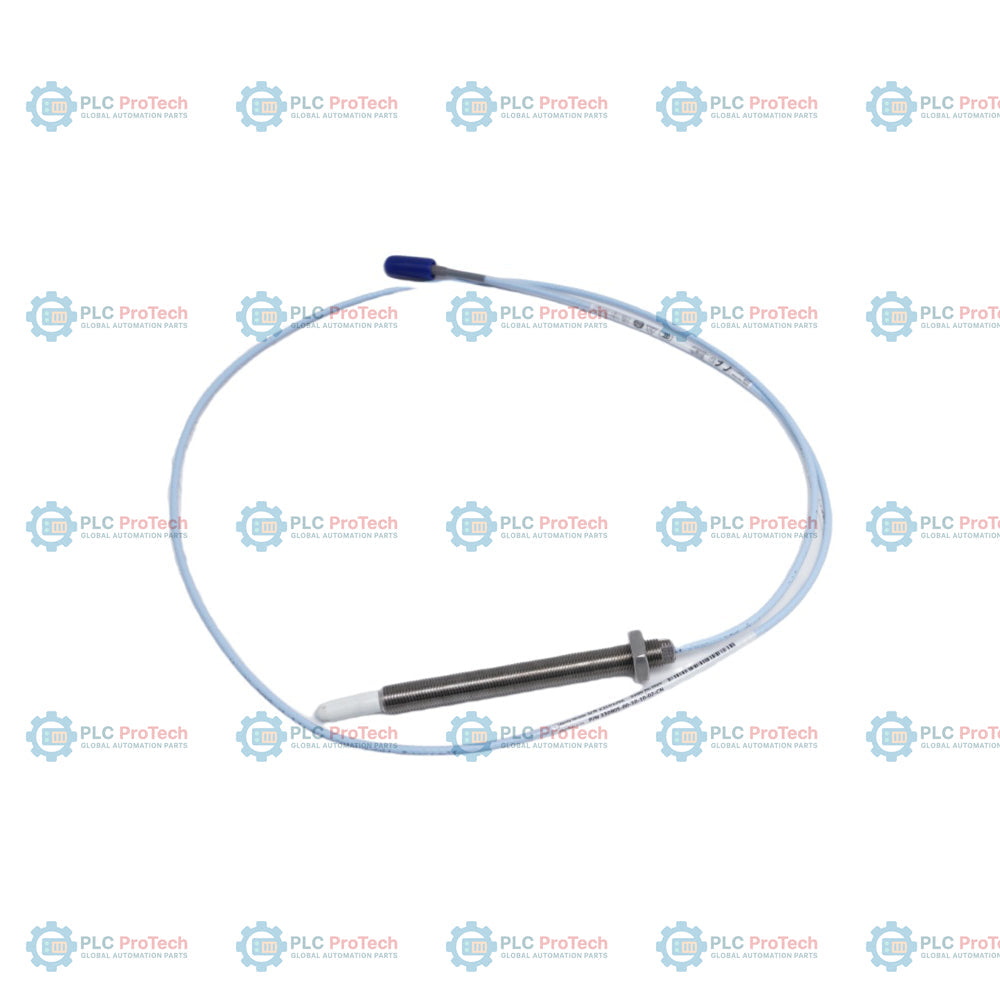

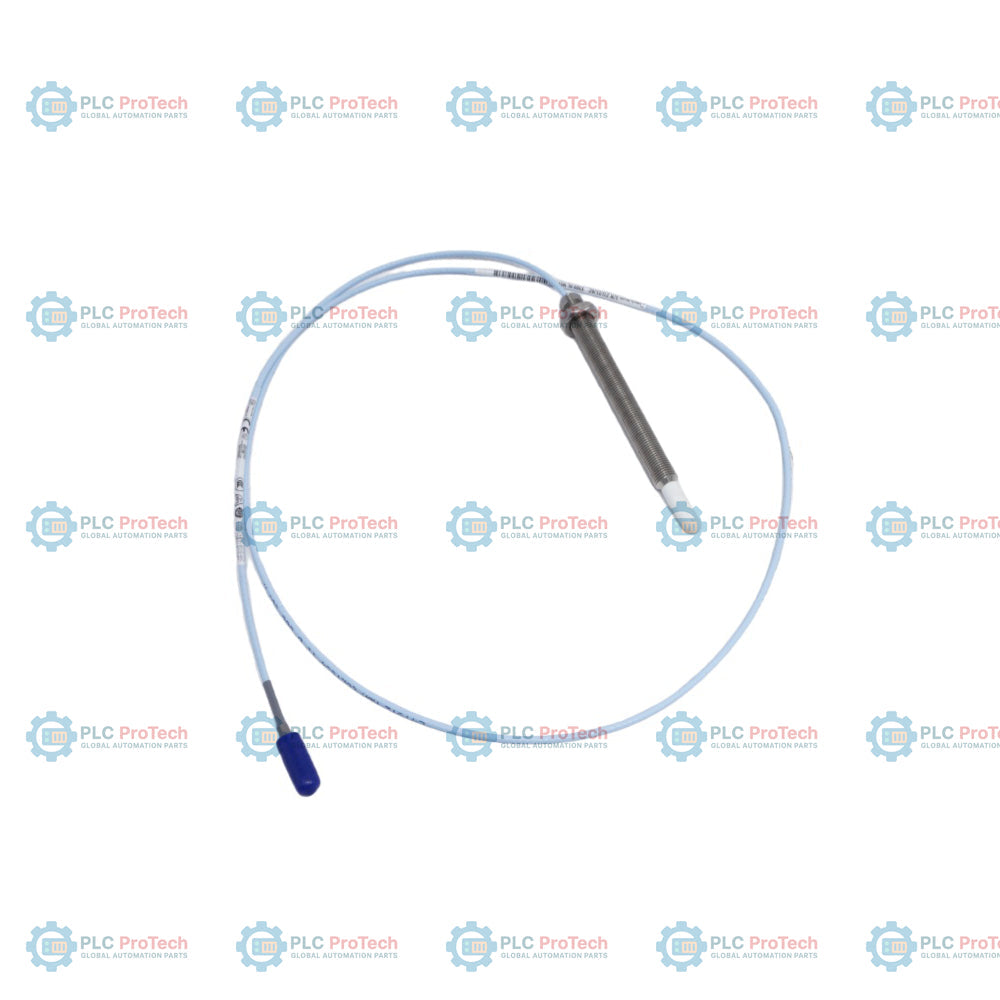

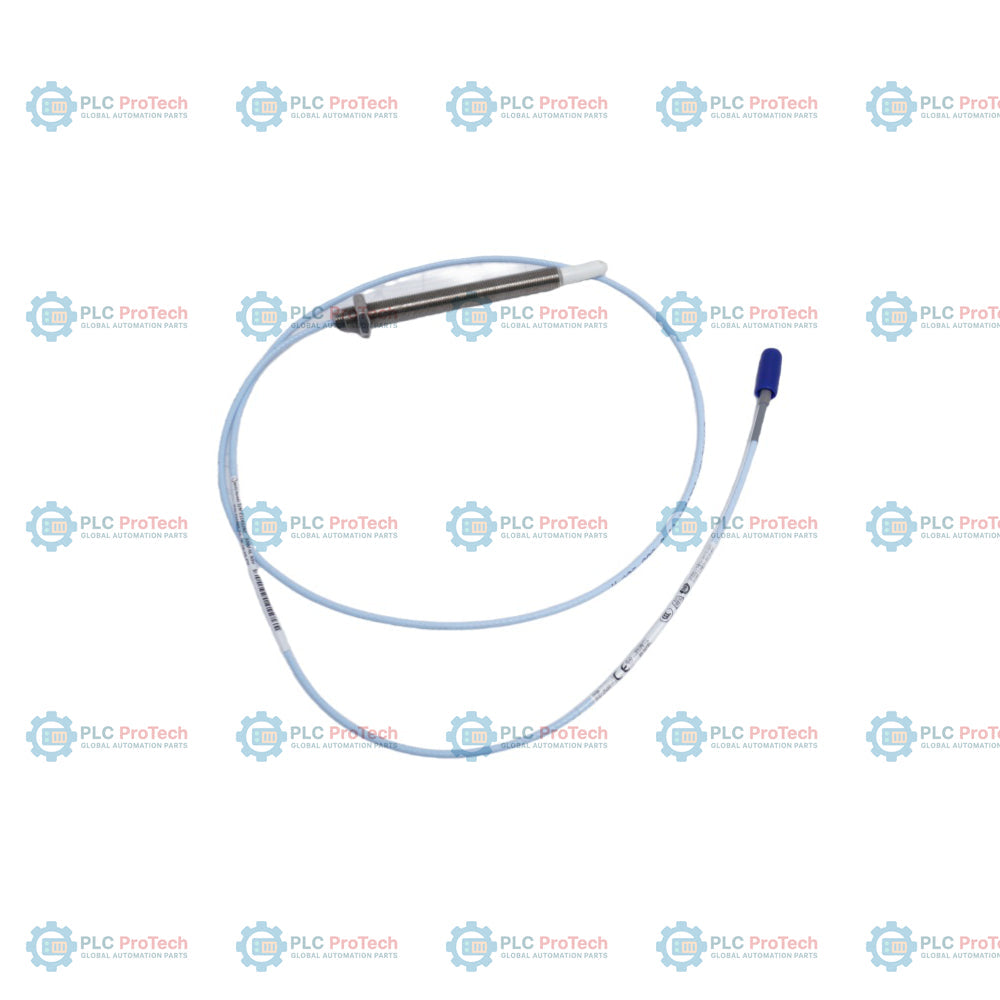

330905-00-10-05-02-00: M10x1 threaded 3300 XL NSv proximity probe, 0.0 inch unthreaded length (Option 00), 1.0 inch case length (Option 10), 0.5 meter total length (Option 05), with miniature ClickLoc connector and standard cable (Option 02).

The 3300 XL NSv proximity transducer system is designed for machinery installations where tight clearance, reduced target areas, or counterbore restrictions limit the use of standard 3300 XL 8 mm transducer systems. This non-contact eddy-current probe is intended for radial vibration, radial position, axial position, and speed measurements on small-diameter shafts or constrained target geometries. The system component 330905-00-10-05-02-00 provides a 0.5 m length configuration for applications requiring short leads between the probe tip and the extension cable connection.

Features

• M10x1 thread configuration with 1.0 inch case length for precise mounting in constrained spaces.
• Miniature ClickLoc coaxial connector ensures a reliable connection while maintaining a compact profile.
• Compatible with 3300 XL NSv Proximitor Sensors and extension cables for complete transducer system integration.
• Optimized for small-bore machinery and high-speed equipment where standard probe sizes are not feasible.
• Designed for fluid-film bearing machinery, aeroderivative turbines, and centrifugal compressors.

Applications

• Radial vibration and radial position measurements on shafts smaller than 51 mm (2 in).
• Axial (thrust) position measurements on flat targets smaller than 15 mm (0.6 in).
• Tachometer and zero speed measurements.
• Phase reference (Keyphasor) signals for high-speed rotating equipment.
• Installations with counterbore, side-view, or rear-view restrictions.

Ordering Information

Technical Specifications

Installation Guidelines

• Ensure the probe is mounted to provide sufficient clearance from the target to avoid physical impact.
• Use the specified mounting hardware to isolate the Proximitor Sensor from the housing ground.
• Protect connectors from environmental contamination using appropriate connector protectors if the installation environment demands it.
• Maintain proper cable routing and strain relief to prevent mechanical stress on the ClickLoc connections.
• Verify probe gap settings based on the required linear range for the specific measurement application.

Compliance and Certifications

• CE compliant (EMC Directive 2014/30/EU).
• RoHS compliant (Directive 2011/65/EU).
• China RoHS (EFUP 15 years).
