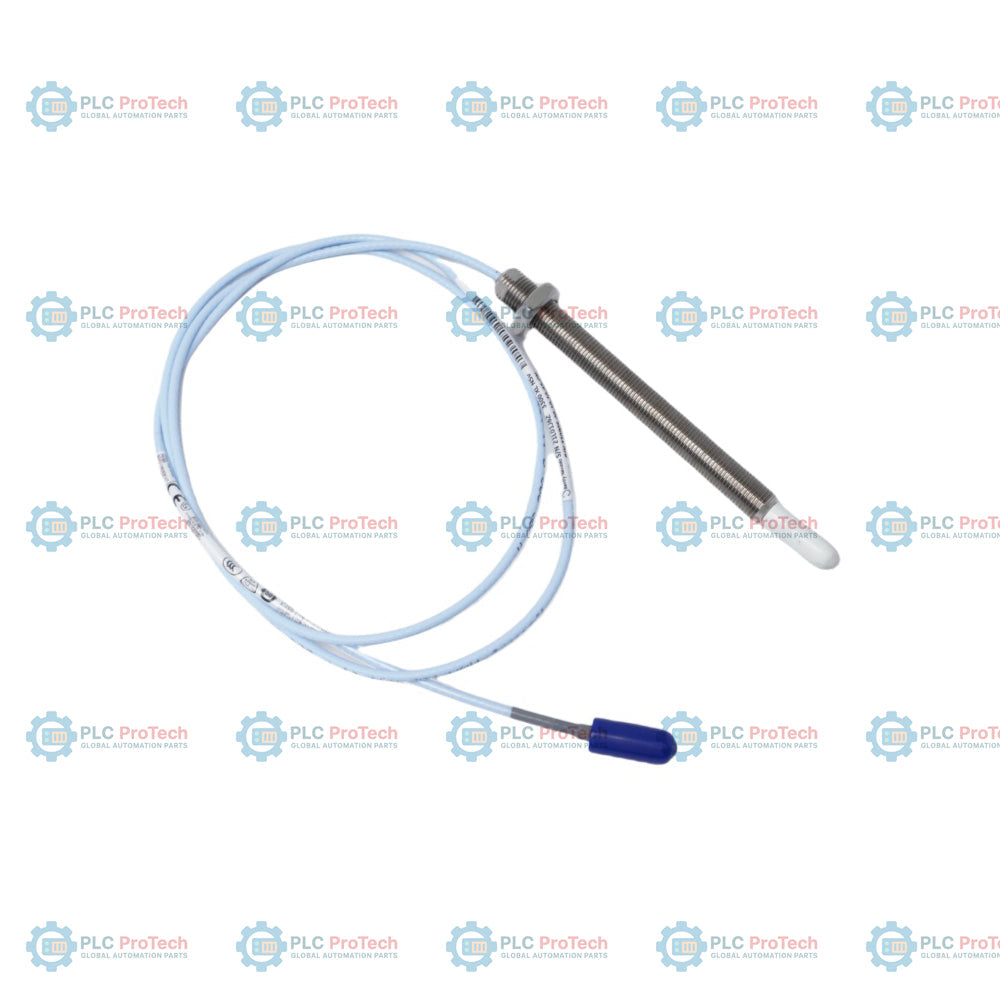

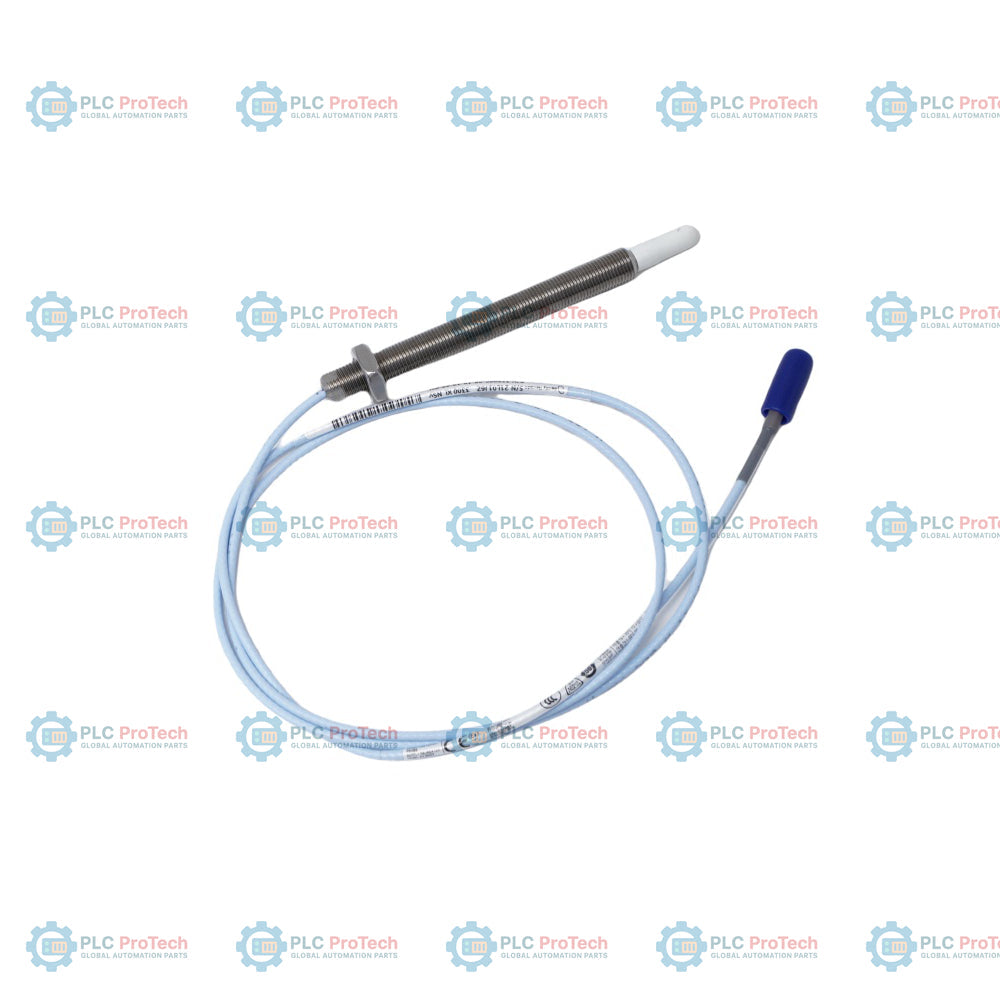

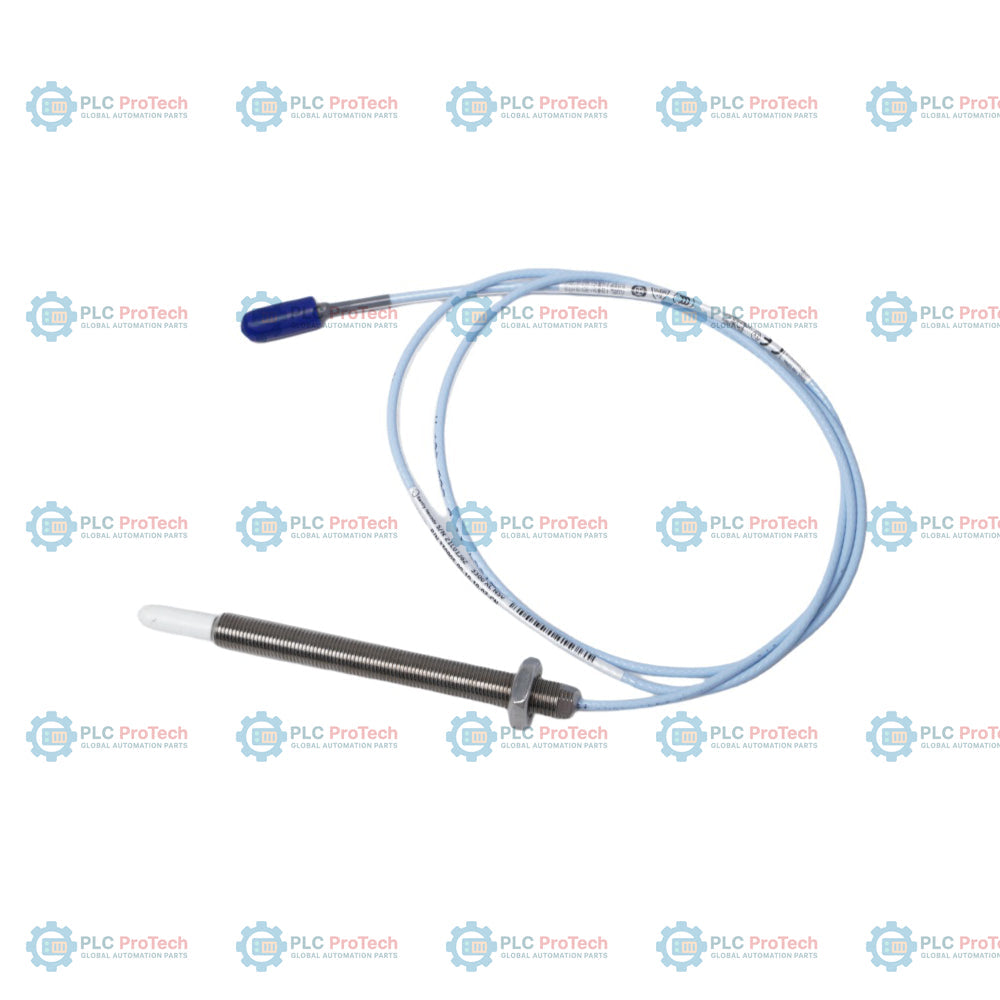

Bently Nevada 330905-00-18-05-02-05 3300 XL NSv Proximity Probe

SKU 330905-00-18-05-02-05

Disponibile
  • 12-month warranty
  • Free returns within 30 days
  • Manufacturer: Bently Nevada
  • Product No.: 330905-00-18-05-02-05
  • Origin United States
  • Product Type: 3300 NSv Proximity Probes
  • Barcode: 8537101190
  • Payment: T/T, Western Union
  • Weight: 0.12 kg
  • Dimensions: 45 mm x 90 mm x 90 mm (H x W x D)
  • Shipping port: Xiamen
  • Warranty: 12 months

Tags

3300 NSv Proximity Probes

Product Documentation

Technical Datasheet (PDF) Complete specifications and technical drawings.

Technical Datasheet

Bently Nevada 330905-00-18-05-02-05 3300 XL NSv Proximity Probe

Download Open in new tab
Quantità
Call sales Contact

Product Description

Description

330905-00-18-05-02-05 is a 3300 XL NSv proximity probe featuring an M10x1 thread, 0.0 in unthreaded length (Option 00), and 1.8 in case length (Option 18). This eddy-current displacement probe is designed for the 3300 XL NSv transducer system, providing reliable non-contact measurement in restricted installation environments where standard 3300 XL 8 mm probes cannot be used. The 3300 XL NSv system is optimized for small-bore machinery, such as aeroderivative turbines, refrigeration compressors, and process gas compressors, where shaft diameter or target area is limited (e.g., shafts smaller than 51 mm). This specific configuration includes a 0.5 meter total length (Option 05) and a standard ClickLoc miniature coaxial connector (Option 02) without armor, supporting multiple agency approvals (Option 05). It is used alongside the 330980 Proximitor Sensor and 330930 extension cable to form a complete vibration and position monitoring chain.

Features

  • M10x1 thread, non-armored probe body
  • 0.0 in unthreaded length (Option 00) for installation versatility
  • 1.8 in case length (Option 18)
  • 0.5 m total system length (Option 05)
  • Miniature coaxial ClickLoc connector (Option 02), standard cable
  • Multiple agency approvals (Option 05) for hazardous area operation
  • Designed for small target geometry and tight clearance applications

Applications

  • Radial vibration and radial position measurements on small-diameter shafts
  • Axial (thrust) position measurements on flat targets
  • Tachometer and zero speed measurements
  • Phase reference (Keyphasor signals)
  • Centrifugal air compressors and process gas compressors

Ordering Information

Option Code Description
Orderable Part Number 330905-00-18-05-02-05 3300 XL NSv Proximity Probe, M10x1, non-armored
A - Unthreaded Length 00 0.0 in
B - Case Length 18 1.8 in
C - Total Length 05 0.5 meter (20 in)
D - Connector/Cable 02 Miniature coaxial ClickLoc connector, standard cable
E - Agency Approval 05 Multiple Approvals

Technical Specifications

Parameter Specification
Manufacturer Bently Nevada (Baker Hughes)
Part Number 330905-00-18-05-02-05
Probe Diameter NSv (Small target optimized)
Thread Type M10x1
Cable Type 75 Ohm coaxial, standard
Connector Type Miniature ClickLoc
Temperature Range (Operating) -52 Celsius to +177 Celsius
Agency Approvals Multiple approvals (per Option 05)

Installation Guidelines

  • Ensure the Proximitor Sensor is installed in a protected area (minimum IP54 rating required for hazardous areas).
  • Use 3300 XL NSv extension cables (330930) compatible with the probe length to maintain system calibration.
  • Connectors should be protected from environmental contaminants using silicone tape or provided connector protectors.
  • Maintain proper clearance for installation; do not exceed probe thread engagement limits specified in the datasheet.
Shipping & Returns

Global Express Shipping

  • Standard Delivery: 4–6 business days via DHL, FedEx, and UPS.
  • Express Dispatch: Same-day dispatch for in-stock orders placed before 2:00 PM (GMT+8).
  • Worldwide Coverage: Serving over 150 countries.

Returns & Warranty

  • 30-Day Guarantee: Returns accepted for in-stock products in original, factory-sealed packaging.
  • 12-Month Warranty: Every industrial component is backed by our technical warranty.
FAQ
What is the primary application for the 330905-00-18-05-02-05 probe?
This probe is part of the 3300 XL NSv system, specifically used for measuring radial vibration or axial position on small-shaft machinery and targets with tight installation clearances.
Does this probe include armor?
No, the 02 option for the connector and cable indicates a standard cable without stainless steel armor.
Can this probe be used for hazardous areas?
Yes, this configuration includes Option 05 (Multiple Approvals), allowing use in hazardous locations when installed with approved Proximitor sensors according to site documentation.
What is the total length of this transducer system component?
The total length is 0.5 meters (20 inches), as indicated by the '05' in the third segment of the part number.
