Description

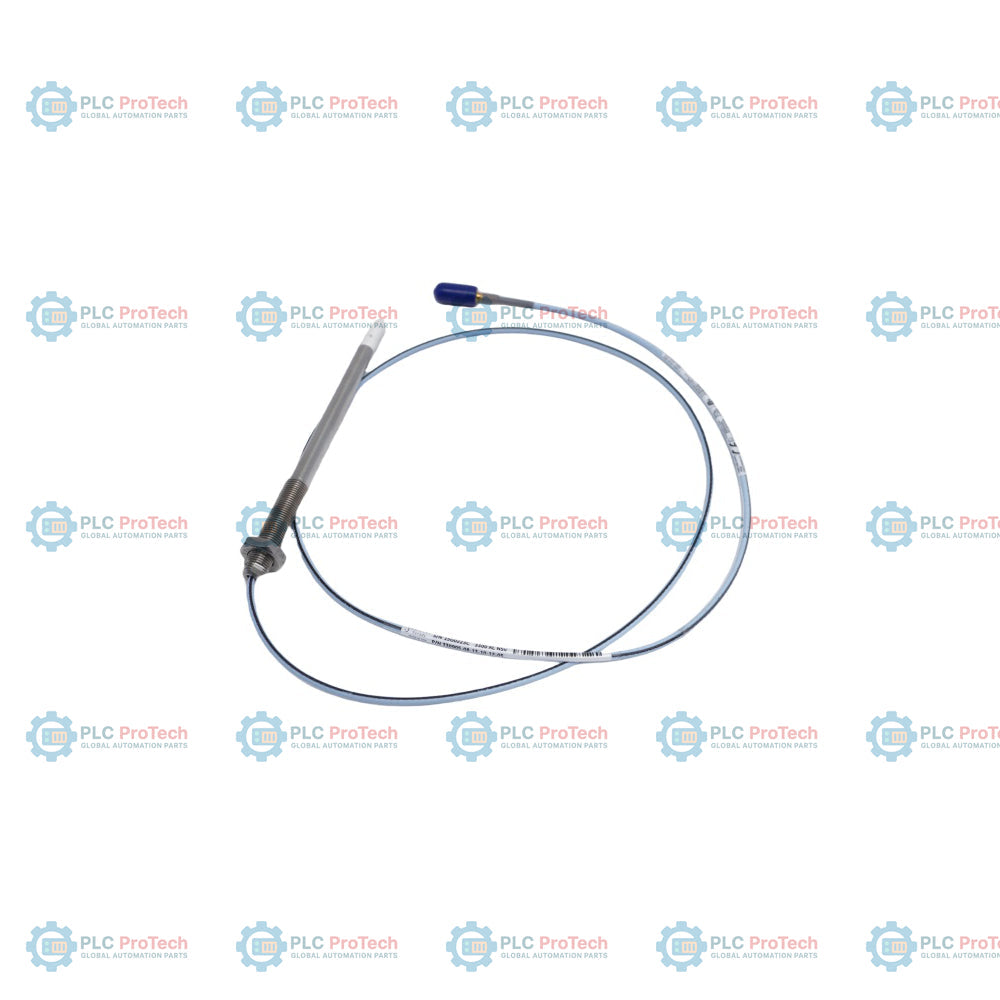

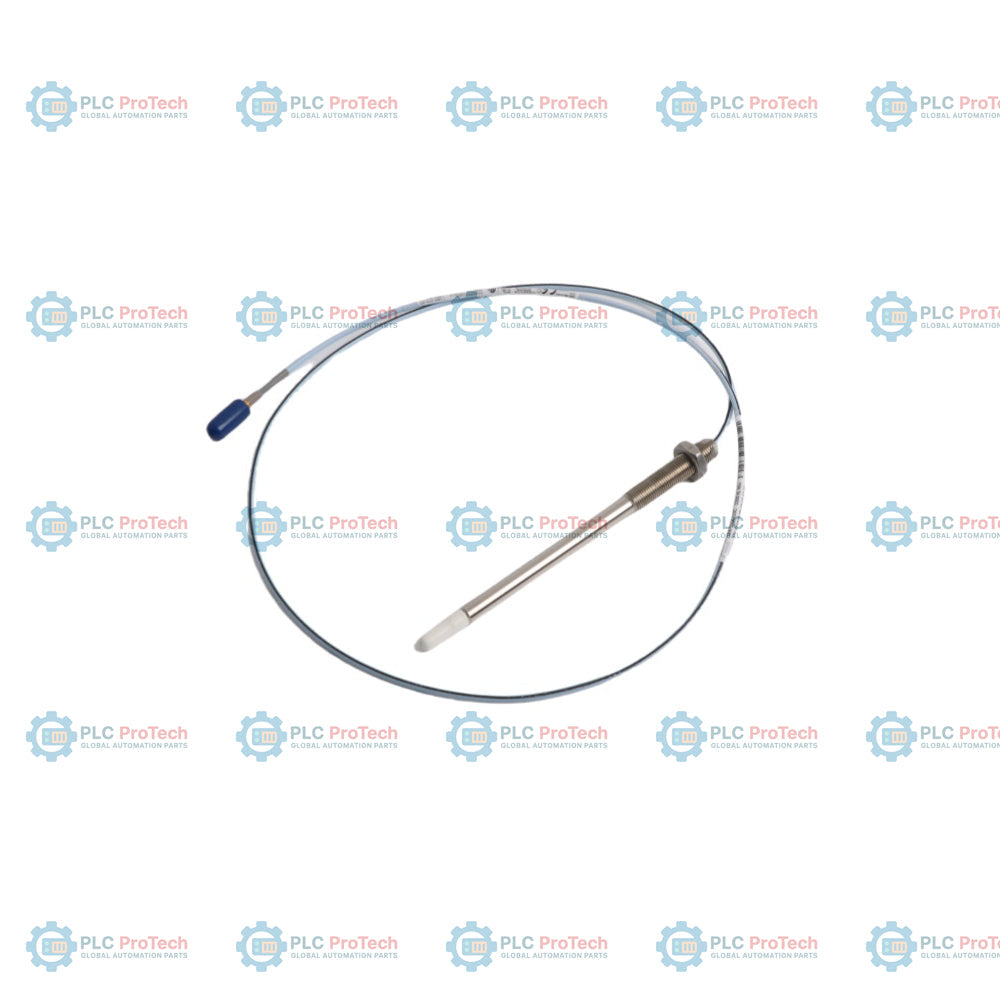

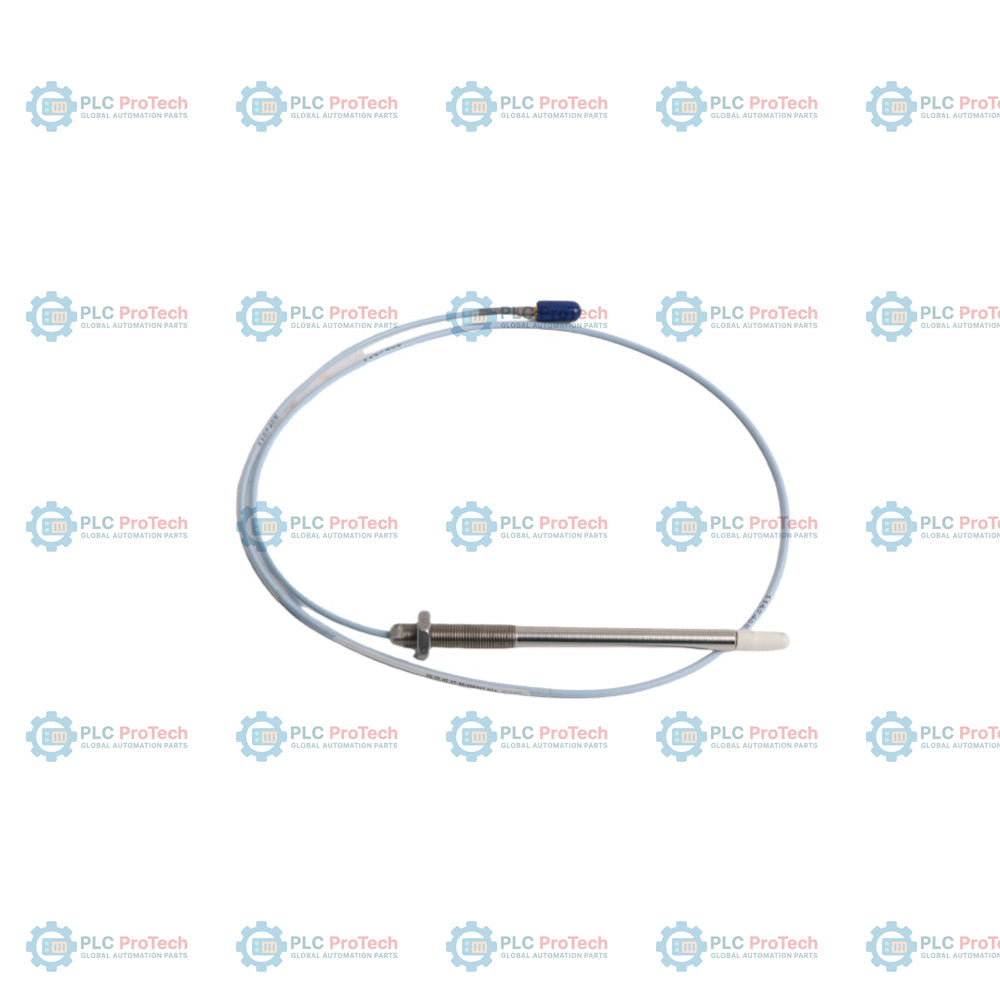

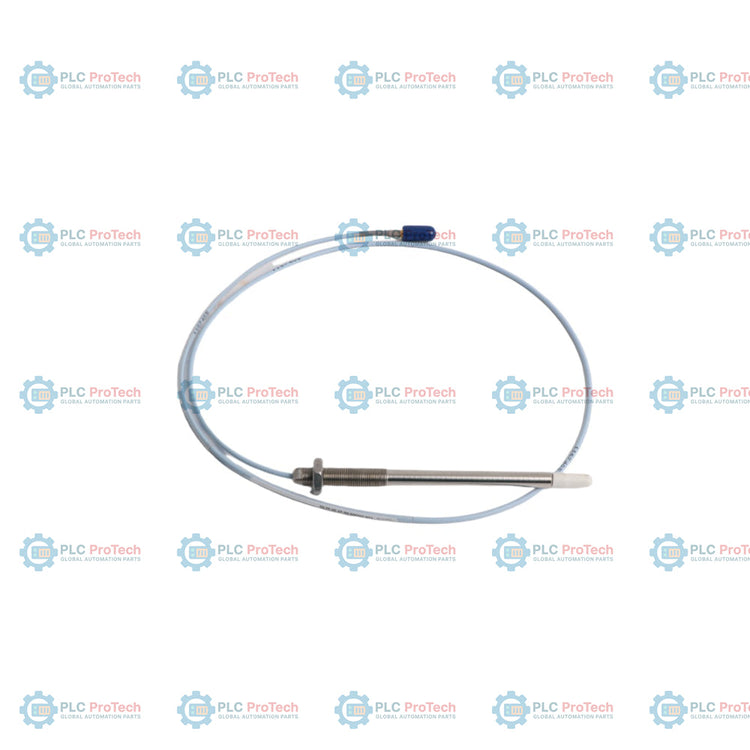

The 330905-08-13-10-02-05 is a 3300 XL NSv proximity probe featuring an M10x1 thread and an unarmored construction. This specific configuration includes an 80 mm unthreaded length (Option 08), a 130 mm case length (Option 13), and a 1.0-meter system length (Option 10). The probe utilizes a standard miniature coaxial ClickLoc connector (Option 02) and is certified with multiple hazardous area approvals (Option 05). The 3300 XL NSv Proximity Transducer System is engineered for machinery where space constraints limit the application of standard transducer systems. It is primarily used for radial vibration, axial position, tachometer, and Keyphasor measurements on fluid-filmed bearing machines. This probe is part of the NSv system, which requires compatibility with the 330980 Proximitor Sensor and 330930 extension cables to function as a complete measurement chain. It is optimized for applications with small target geometries, such as shafts smaller than 51 mm or targets smaller than 15 mm, providing superior side-view characteristics compared to legacy systems.

Features

• M10x1 probe thread configuration
• 80 mm unthreaded length
• 130 mm total case length
• 1.0 meter system total length
• Miniature coaxial ClickLoc connector for secure, reliable signal termination
• Standard cable (unarmored)
• Multiple hazardous area approvals (Option 05: CSA, ATEX, IECEx)
• Compatible with 3300 XL NSv Proximitor Sensor and extension cables

Applications

• Centrifugal air compressors
• Refrigeration compressors
• Process gas compressors
• Small-bore machinery and high-speed equipment
• Radial vibration and shaft position monitoring on constrained target areas
• Keyphasor and zero-speed measurement

Ordering Information

Option	Code	Description
Orderable Part Number	330905-08-13-10-02-05	3300 NSv Probe, M10x1 thread, without armor
A - Unthreaded Length	08	80 mm
B - Case Length	13	130 mm
C - Total Length	10	1.0 meter (39 in)
D - Connector/Cable	02	Miniature coaxial ClickLoc connector, standard cable
E - Agency Approval	05	Multiple approvals (CSA, ATEX, IECEx)

Technical Specifications

Parameter	Specification
Manufacturer	Bently Nevada (Baker Hughes)
Product Type	3300 XL NSv Proximity Probe
Probe Thread	M10x1
Case Material	Stainless Steel
Connector Type	Miniature coaxial ClickLoc
Operating Temperature	-55 degC to +177 degC
Storage Temperature	-55 degC to +177 degC
System Compatibility	3300 XL NSv Proximitor Sensor (330980), 3300 NSv Extension Cable (330930)

Installation Guidelines

• The NSv probe must be installed with a matching NSv Proximitor sensor and extension cable; components are not interchangeable with standard 3300 XL (non-NSv) hardware.
• Ensure the Proximitor sensor is mounted in a location providing at least IP54 protection in hazardous area applications.
• Use the recommended connector protectors on probe-to-extension cable and cable-to-Proximitor connections to prevent liquid ingress.
• Maintain the specified probe gap per the calibration curve provided with the Proximitor sensor.
• Follow Bently Nevada drawing 141092 for intrinsically safe (ia) installations and 140979 for non-incendive (nA/ec) installations.

Compliance and Certifications

• Multiple Approvals (Option 05)
• ATEX/IECEx: Ex ia IIC T5...T1 Ga; Ex ia IIIC T90C...T280C Dc
• CNRTLUS: Class I, Zone 0 AEx/Ex ia IIC T4/T5 Ga; Class I, Groups A, B, C, D
• CE Mark compliant
• RoHS compliant
• SIL 2 / SIL 3 Functional Safety rated (HFT=0 / HFT=1)
