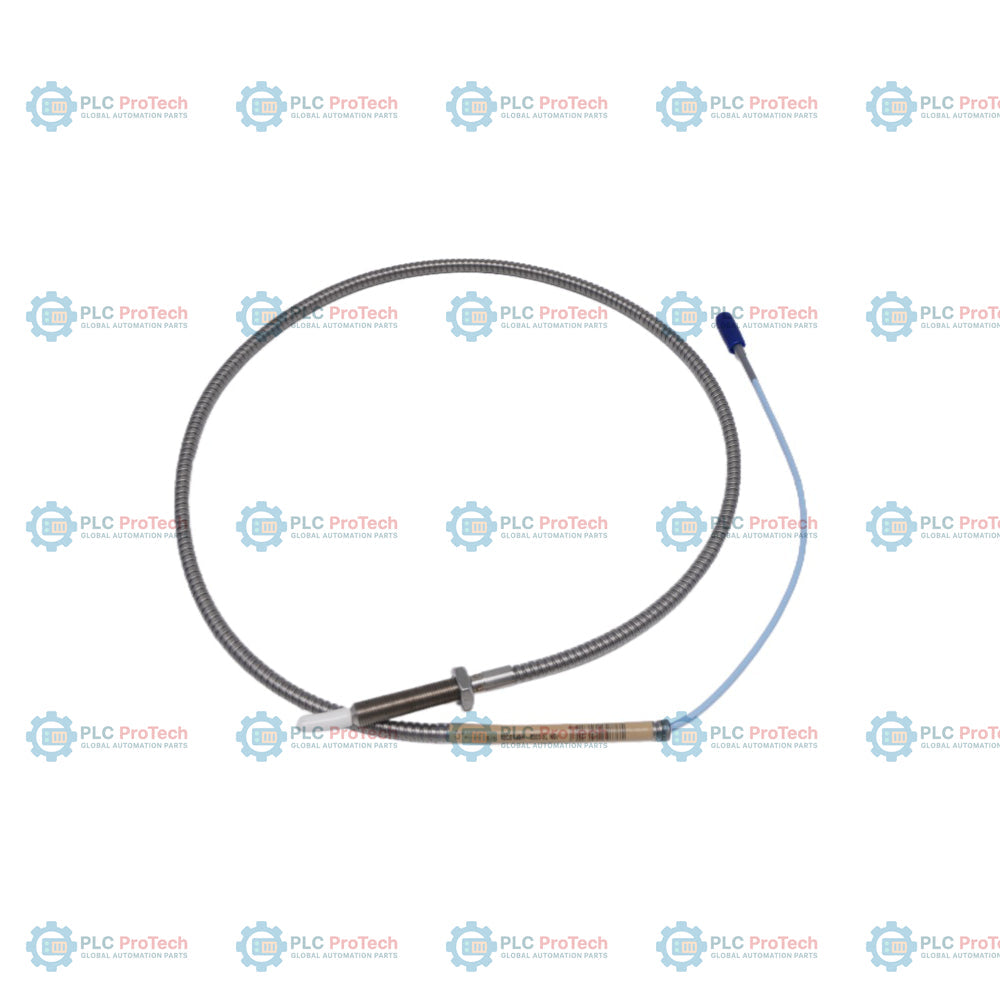

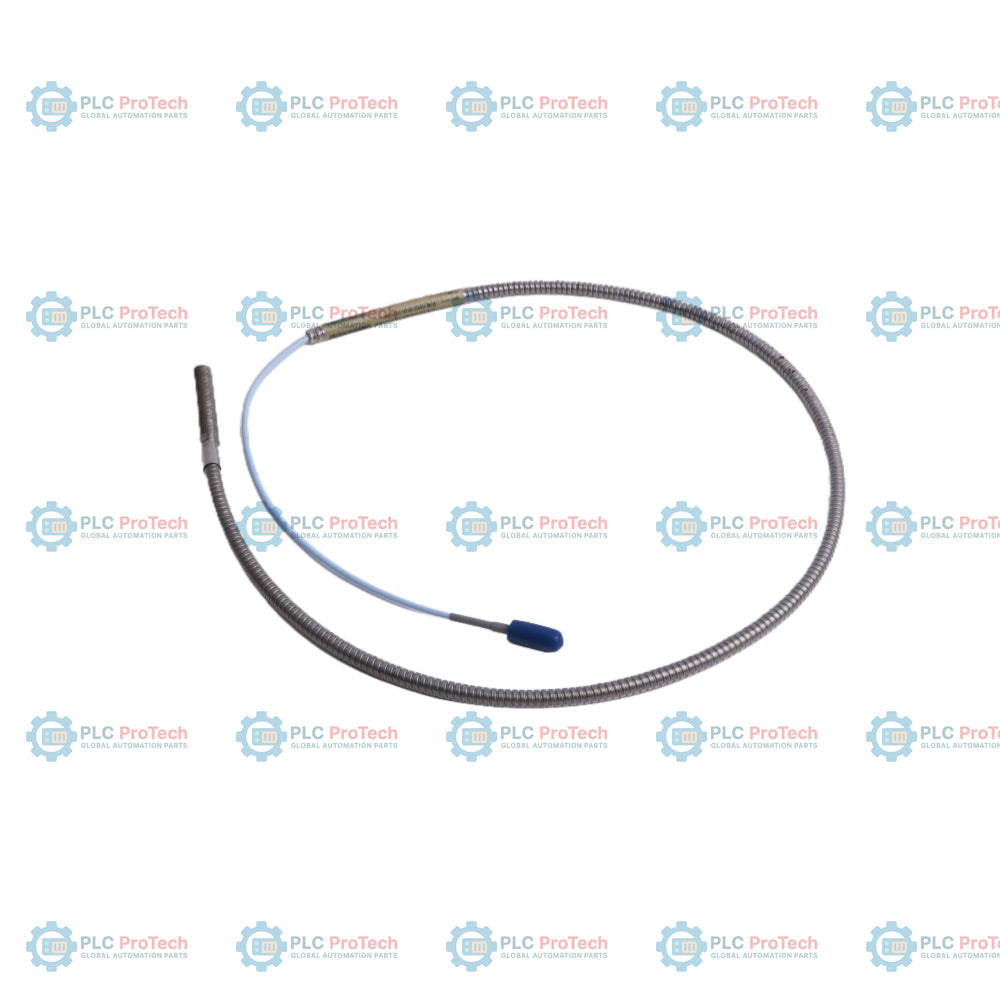

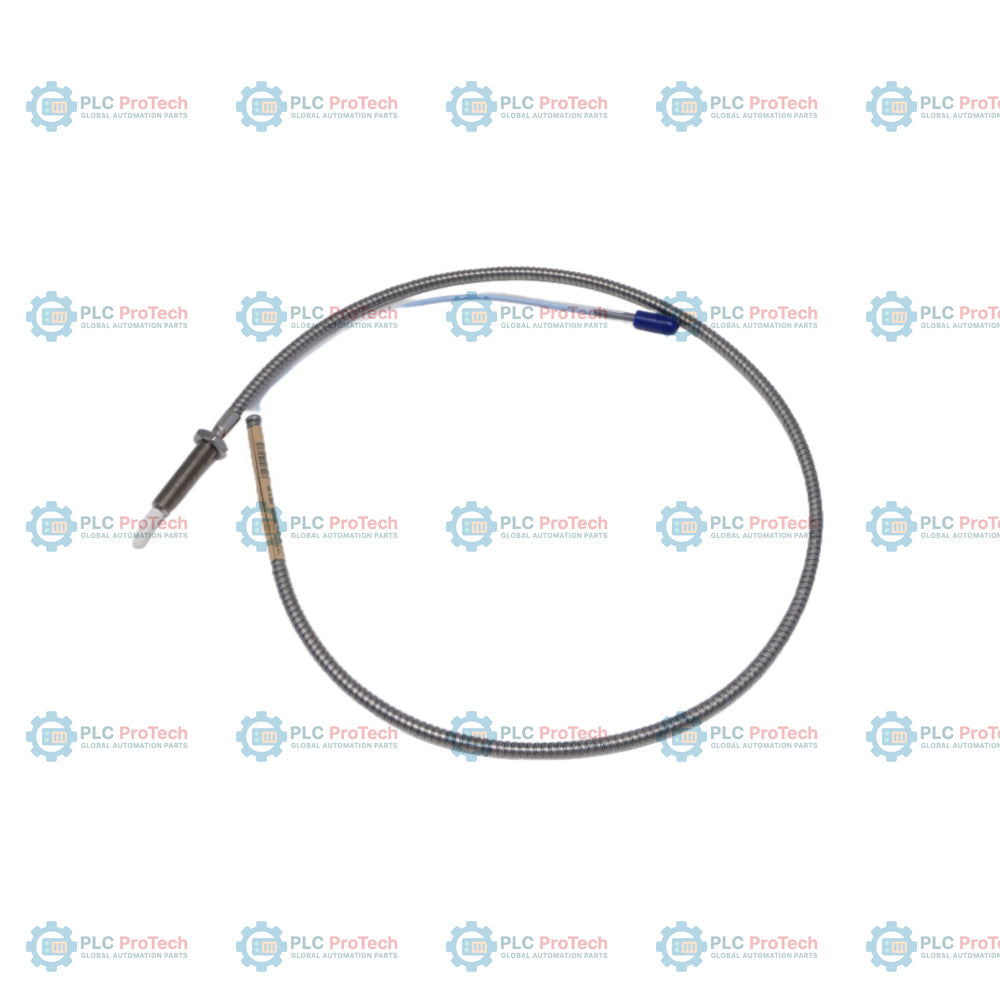

Option 00 (0 mm unthreaded length) and Option 05 (50 mm overall case length) specify this 3300 NSv armored metric probe configuration — 330910-00-05-02-00, a rugged 3300 NSv proximity probe designed with integrated stainless steel armor. It is used in tight installations and reduced target area scenarios where conventional 5 mm or 8 mm proximity systems cannot be deployed due to sideview or counterbore limitations. The probe features integrated M10x1 metric threads and robust stainless steel armor to protect the coaxial cable from physical abrasion, crushing, and harsh mechanical environments.
This variant is specifically configured for applications requiring a fully threaded casing of 50 mm without any unthreaded portion at the tip. It utilizes standard coaxial cable terminated with a miniature coaxial ClickLoc connector and is intended for non-hazardous locations where agency approvals are not required. It pairs with the 3300 XL NSv Proximitor Sensor (330980) and 3300 NSv Extension Cable (330930) to form a complete non-contact eddy-current measurement system.
| Option / Segment | Code Value | Description / Meaning |
|---|---|---|
| Base Part Number | 330910 | 3300 NSv Proximity Probe, Metric M10x1 thread, with stainless steel armor |
| Segment A: Unthreaded Length | 00 | 0 mm unthreaded length |
| Segment B: Overall Case Length | 05 | 50 mm overall case length |
| Segment C: Connector / Cable Type | 02 | Miniature coaxial ClickLoc connector, standard coaxial cable (no connector protector) |
| Segment D: Agency Approval | 00 | Approvals not required / standard commercial configuration |
| Parameter | Specification Value |
|---|---|
| Manufacturer | Bently Nevada (Baker Hughes) |
| Model SKU | 330910-00-05-02-00 |
| System Compatibility | 3300 XL NSv Transducer System |
| Thread Size | Metric M10x1 |
| Mechanical Protection | Integrated stainless steel armor |
| Linear Range | 1.5 mm (60 mils), beginning at 0.25 mm (10 mils) from the target |
| Recommended Gap Setting | 1.0 mm (40 mils) |
| Incremental Scale Factor (ISF) | 7.87 V/mm (200 mV/mil) |
| Deviation from Best Fit Straight Line (DSL) | Less than +/-0.06 mm (+/-2.3 mils) over linear range |
| Frequency Response | 0 to 10 kHz (+0, -3 dB) |
| Power Requirements | -17.5 Vdc to -26 Vdc at 12 mA maximum consumption |
| Output Resistance | 50 ohm |
| Cable Resistance | Center conductor: 0.220 ohm/m; Shield: 0.066 ohm/m |
| Cable Capacitance | 69.9 pF/m typical |
| Operating and Storage Temperature Range | -52 degC to +177 degC (-62 degF to +351 degF) |
| Relative Humidity Limit | 100% condensing, non-submersible (when connectors are protected) |
| Maximum Recommended Thread Torque | 11.3 N m (100 in lb) |
| Maximum Rated Thread Torque | 33.9 N m (300 in lb) |
| Minimum Bend Radius | 25.4 mm (1.0 in) |
| Probe Case-to-Lead Pull Strength | 220 N (50 lb) |
To avoid potential damage during installation, do not exceed the recommended installation torque of 11.3 N m (100 in lb) for this metric M10x1 threaded probe body. The minimum bend radius of 25.4 mm (1.0 in) must be observed for both armored and unarmored cable runs. Connectors must remain dry and free of contaminants; it is recommended to apply silicone self-fusing tape or a connector protector kit to the probe-to-extension cable junction to block moisture and process fluids. The field wiring should use a three-conductor shielded triad cable with a maximum length of 305 meters (1,000 feet) between the Proximitor Sensor and the monitoring system.
