Description

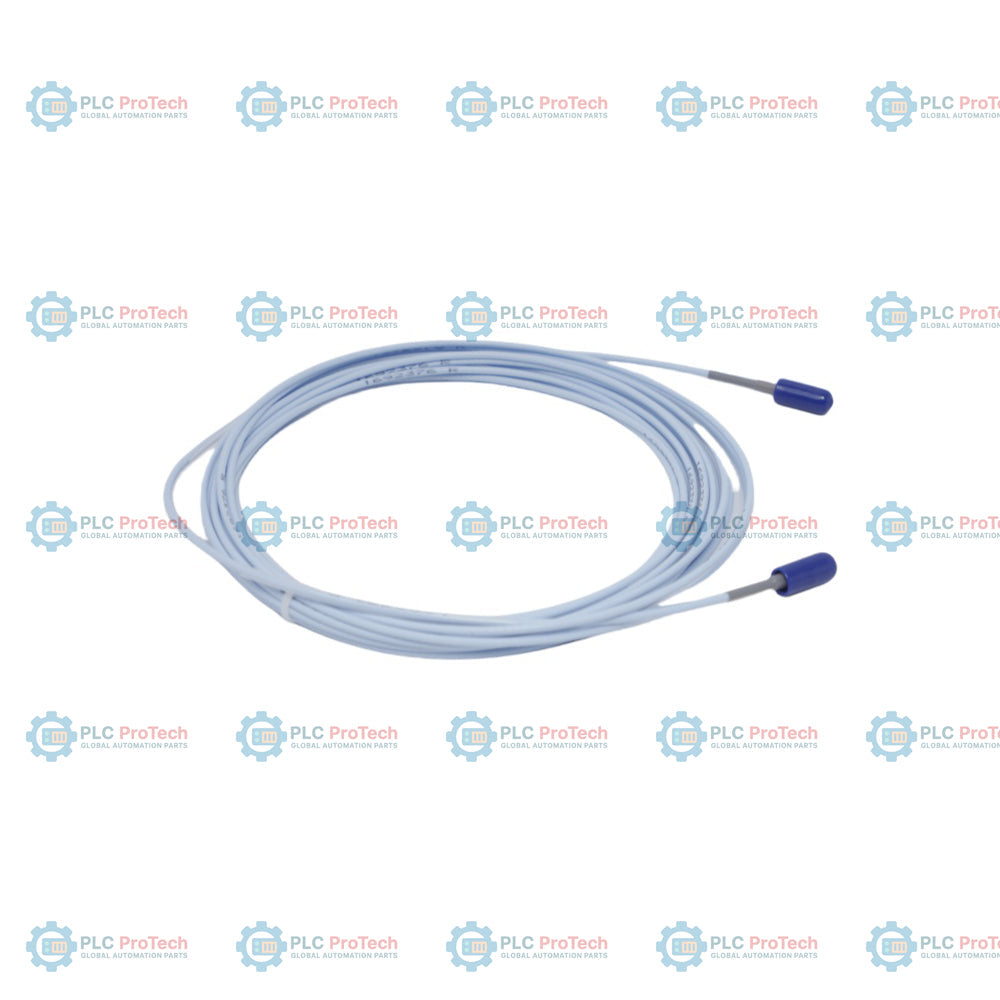

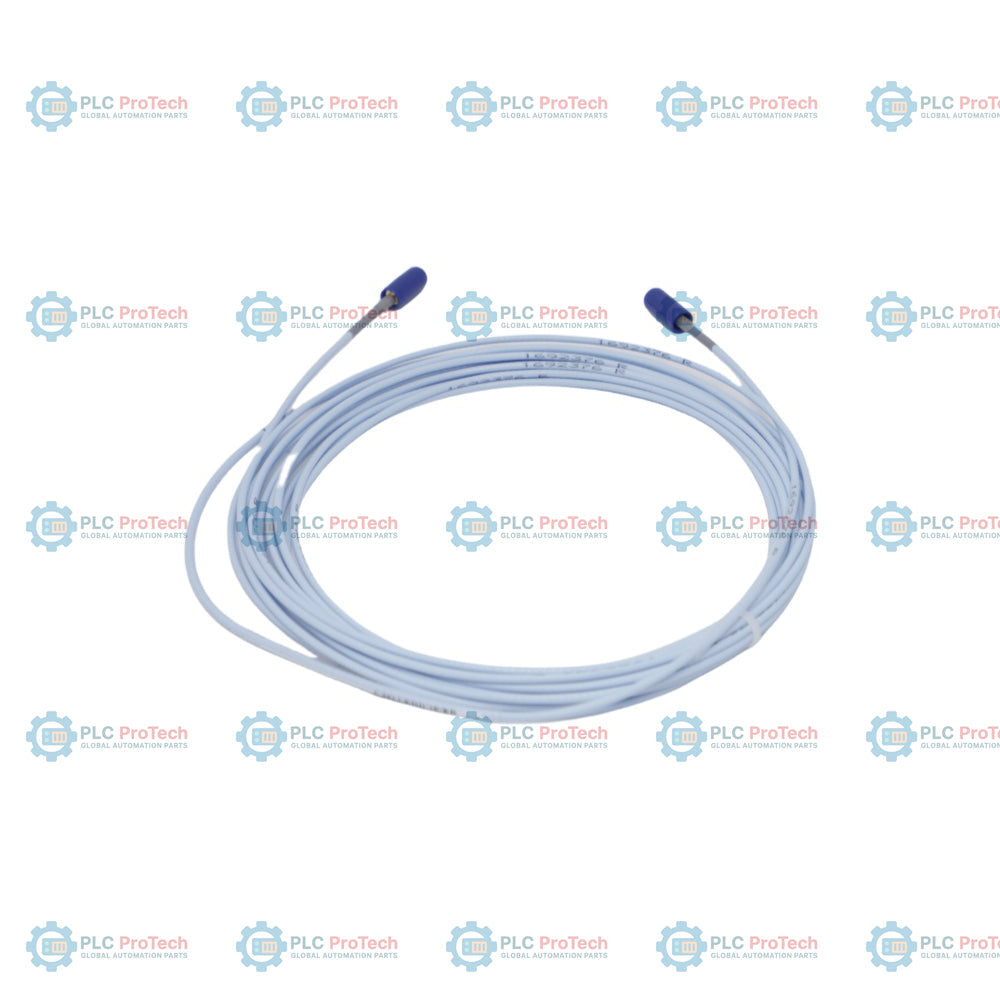

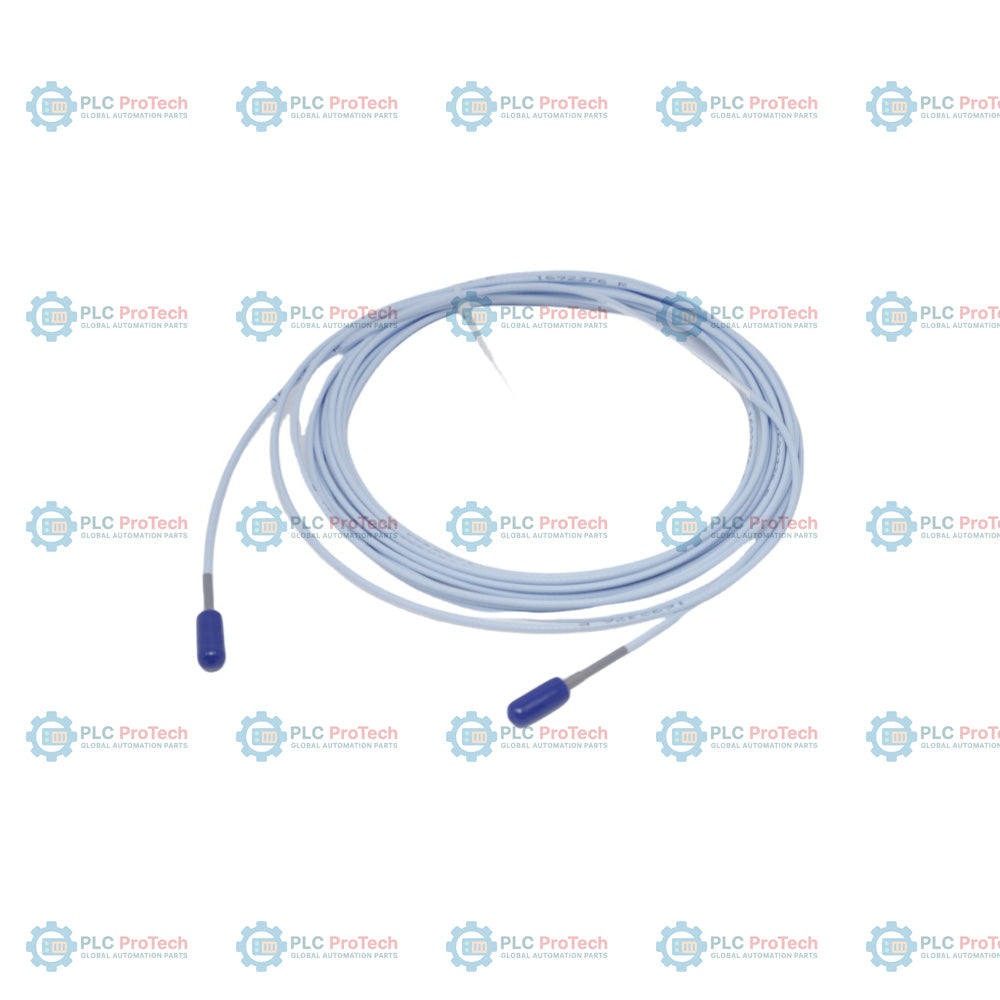

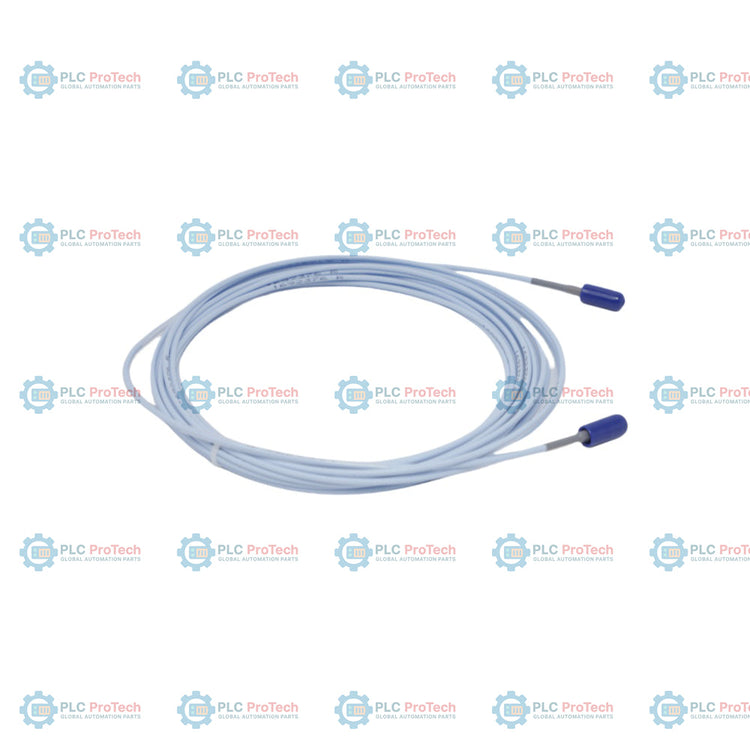

Option 060 (6.0 m length) and Option 00 (no stainless steel armor) specify this 3300 XL NSv extension cable configuration — 330930-060-00-00. This extension cable is a core component of the 3300 XL NSv Proximity Transducer System, designed for applications requiring high-precision vibration and position measurements where standard transducer systems are restricted by counter bore, side-view, or rear-view geometry. The 330930 extension cable maintains electrical compatibility and interchangeability with the 3300 NSv probe and the 3300 XL NSv Proximitor Sensor. It utilizes high-quality coaxial cabling and gold-plated brass ClickLoc connectors, which are engineered to lock into place and prevent accidental loosening in vibrating machinery environments. This cable configuration is typically used in small-bore machinery, aeroderivative turbines, and other rotating equipment where measurement accuracy on small targets is critical.

Features

• 6.0 m (19.7 ft) total cable length (Option 060)
• Standard configuration without stainless steel armor (Option 00)
• Gold-plated brass ClickLoc connectors for secure, vibration-resistant connections
• Electrical and mechanical compatibility with 3300 NSv probes and 3300 XL NSv Proximitor Sensors
• CableLoc design providing 220 N (50 lb) pull strength for high-reliability field termination
• Designed for critical machine protection, including radial vibration and axial position monitoring

Applications

• Radial vibration and radial position measurements on small-bore machinery
• Axial (thrust) position measurements for flat targets smaller than 15 mm
• Tachometer and zero-speed measurements
• Phase reference (Keyphasor) signals
• Applications with tight installation requirements (counter bore, side-view, or rear-view restrictions)

Ordering Information

Option	Code on This SKU	Description
Orderable Part Number	330930-060-00-00	3300 XL NSv Extension Cable
A - Cable Length	060	6.0 meters (19.7 feet)
B - Connector and Cable	00	Without stainless steel armor
C - Agency Approval	00	Not required

Technical Specifications

Manufacturer	Bently Nevada (Baker Hughes)
Part Number	330930-060-00-00
System Type	3300 XL NSv Proximity Transducer System
Component	Extension Cable
Cable Length	6.0 m (19.7 ft)
Armor	None (Unarmored)
Connectors	Gold-plated brass ClickLoc
Pull Strength	220 N (50 lb) CableLoc design
Operating Temperature	-55 degC to +177 degC
Agency Approvals	Not required (Option 00)

Installation Guidelines

• Ensure the total system length (probe + extension cable) matches the configuration requirements for the specific 3300 XL NSv Proximitor Sensor.
• Connector protectors are highly recommended for the probe-to-extension cable and cable-to-Proximitor connections to prevent liquid ingress.
• Avoid sharp bends in the cable during routing; ensure proper cable strain relief to maintain long-term reliability.
• Verify all ClickLoc connections are fully locked by rotating the connector collar until it clicks into place.
