System & Engineering Context

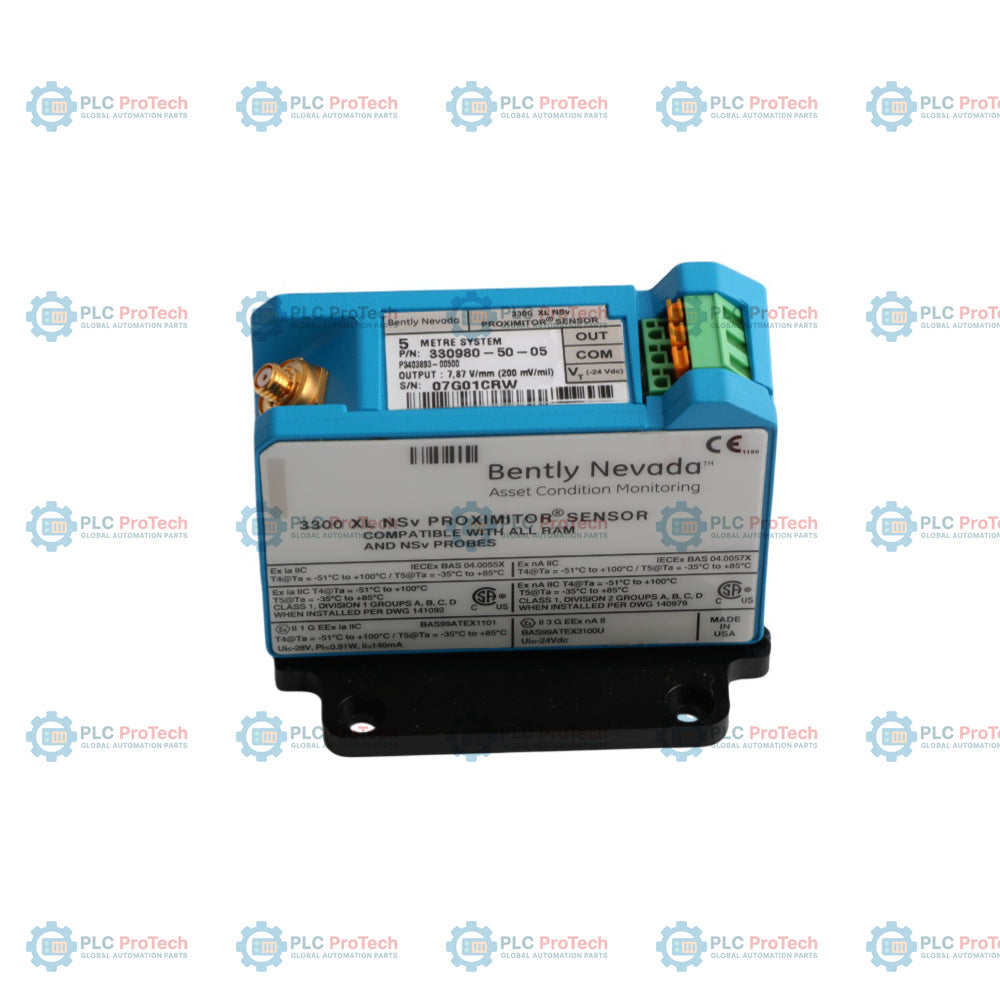

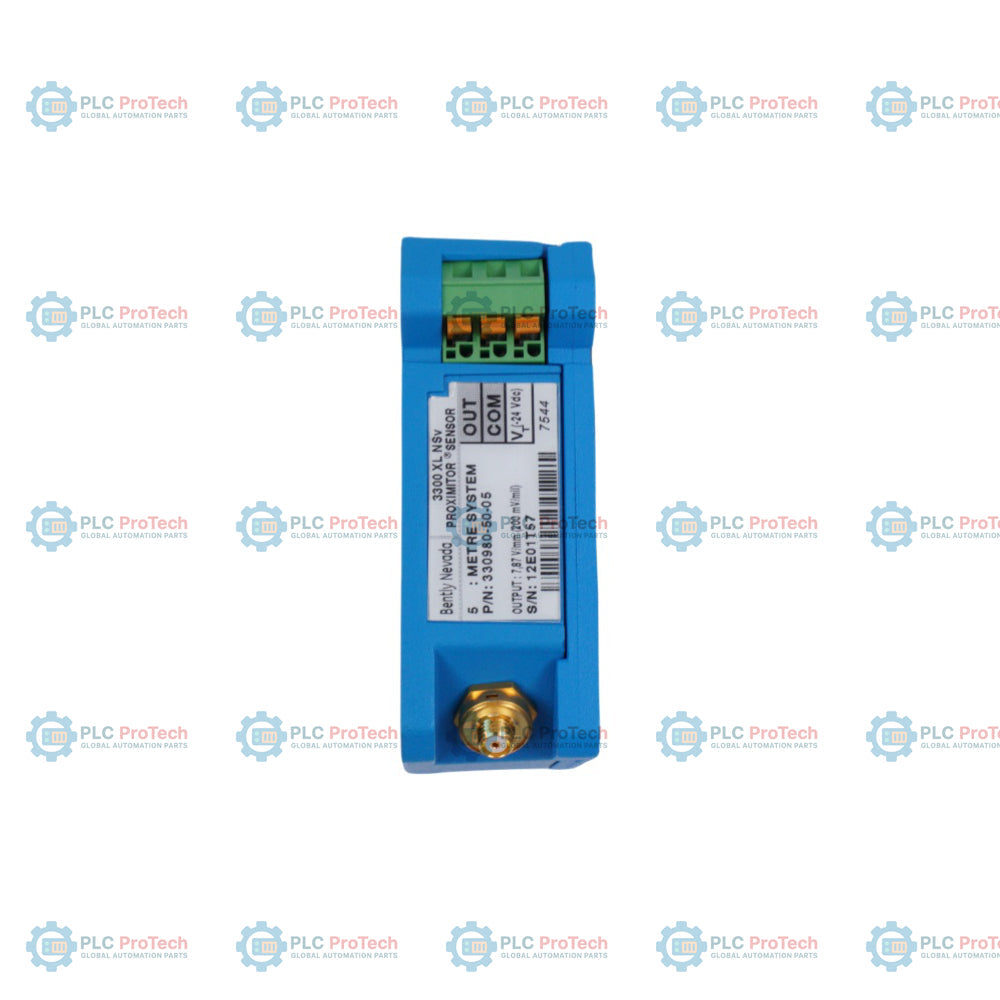

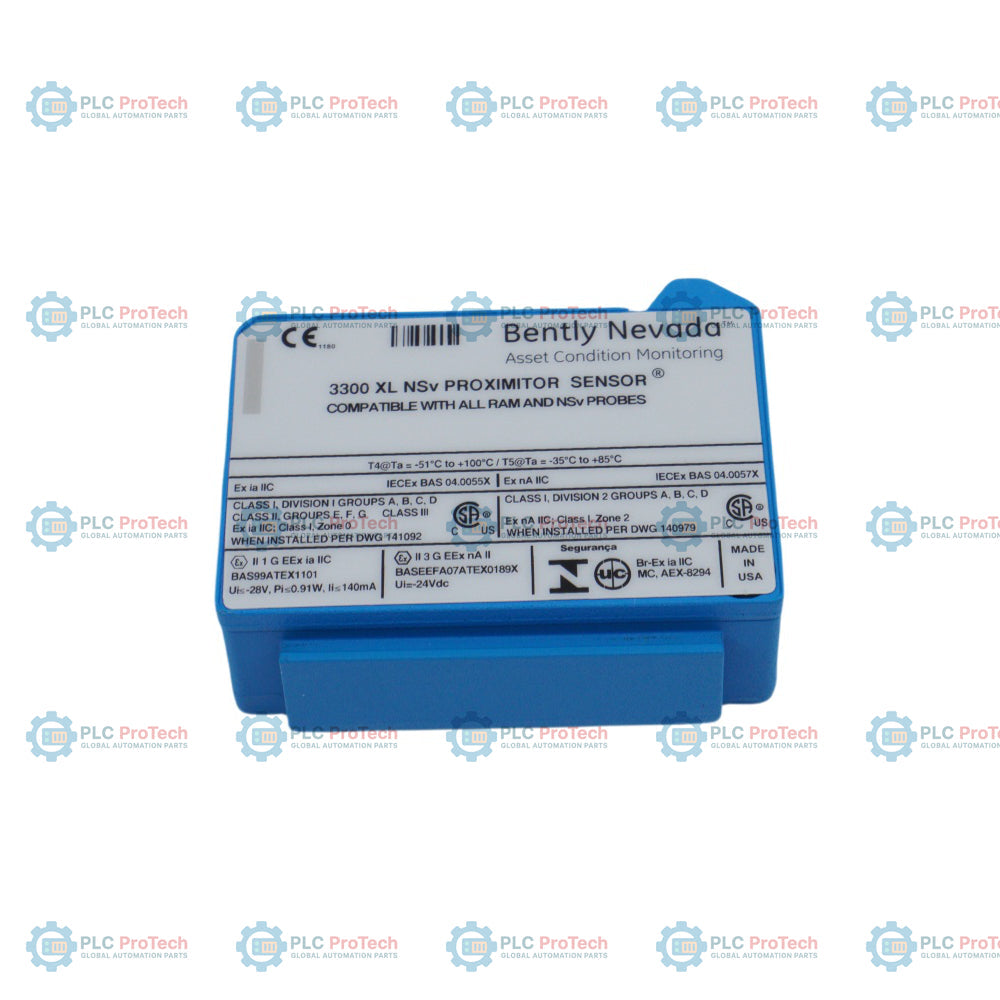

The Bently Nevada 330980-50-05 is a high-stability, active radio-frequency (RF) signal conditioning module designed as the core processing engine of the 3300 XL NSv Proximity Transducer System. The NSv (Narrow Side-view) sub-series is specifically deployed on fluid-filmed bearing assets where tight installation clearances, micro-diameter shafts (less than 51 mm / 2 in), or tight counterbores restrict the usage of standard 5mm and 8mm probes.

The primary electrical role of this Proximitor Sensor is to provide the high-frequency excitation carrier loop to a non-contacting 3300 NSv probe via a 75-ohm extension cable. It reads the raw modulation of the RF field caused by shaft eddy currents and converts these micro-gap fluctuations into a clean, linear, and continuous voltage output. This output features a native scale factor of 7.87 V/mm (200 mV/mil), making it fully compatible with raw vibration input channels on 3500 series machinery protection racks or directly linkable to external PLC/DCS analog tachometer and condition-monitoring loops.

Configuration Analysis & Suffix Matrix

The specific option configuration code 330980-50-05 defines a highly specialized build, providing integrated mechanical rails and hazardous area framework coverage:

• Base Model (330980): 3300 XL Narrow Side-view (NSv) Proximitor Sensor hardware platform.
• Total System Length (50): Calibrated exclusively for a 5.0-meter total electrical loop (e.g., combining a 0.5m probe with a 4.5m extension cable).
• Mounting Option (05): Integrated 35 mm DIN rail mounting framework. The module features structural ruggedized polymer feet designed to snap directly onto standard top-hat DIN tracks (EIA / IEC standards).
• Agency Approval Option (05): Multiple Approvals Certification. This covers comprehensive international safety protocols including ATEX, IECEx, and North American (CSA/FM) intrinsic safety and non-incendive markings for Class I, Zone 0/1/2 environments.

Real Physical Dimensions & Total Cabinet Mass

In high-density marshalling cabinets, substituting fake "box dimensions" for actual product envelopes results in critical thermal crowding and enclosure latch failures. Per official OEM design rules, the physical geometry and spatial clearances for the 330980-50-05 DIN rail unit are strictly defined as follows:

• Net Module Structural Mass: 255 grams (9.0 oz) nominal dry weight.
• Enclosure Footprint Height: 103.1 mm (4.06 in) absolute base-to-top execution.
• Enclosure Footprint Width: 81.3 mm (3.20 in) overall frame width.
• Enclosure Footprint Depth: 61.2 mm (2.41 in) protrusion from the base plate.
• The Critical Installation Clearance: 89.4 mm (3.52 in). According to the engineering blueprints, when mounted to a standard 35 mm DIN rail, a minimum clearance depth of 89.4 mm from the backplate is required to safely engage, pivot, and remove the Proximitor assembly without bending adjacent structural wire ducts or pinching terminal connections.

Core Applications

• Critical radial shaft vibration decoding on high-speed centrifugal refrigeration and air compressors.
• Dual-direction axial thrust position drift capture inside confined turbo-expander gearboxes.
• Multi-point speed sensing and Keyphasor phase reference logging on narrow-target generator shafts.

Technical Specifications

Marshalling Cabinet & Field Wiring Guidelines

• The 5.0-Meter Circuit Match Rule: This 330980-50-XX Proximitor must utilize an extension cable and probe layout that sums to exactly 5.0 meters of physical core line. Connecting this unit to a 7.0m or 9.0m cable system throws off the internal oscillator circuit’s balance, causing severe scaling distortion and triggering false channel warnings on the control panel.
• DIN Rail Group Thermal Spacing: While the 330980-50-05 operates efficiently up to +100 degC, when grouping more than ten Proximitors sequentially on a single DIN track within an unventilated junction box, maintain a minimum of 10 mm lateral spacing or install an active air baffle to avoid heat concentration.
• Power Supply Polarity Tracking: The terminal strip requires a negative power supply input (typically -24 Vdc). Wiring a standard positive instrument loop (+24 Vdc) to the power terminals will completely disable the unit and risks causing permanent reverse-polarity damage to the active RF output buffer stage.
• Shield Continuity and Isolation: The coax outer sheath ring connects directly to the internal terminal grid. Ensure the field instrumentation cable shield running from the Proximitor to the DCS is grounded at one single point (typically at the control room rack ground) to avoid creating massive 50/60 Hz electromagnetic loops.
