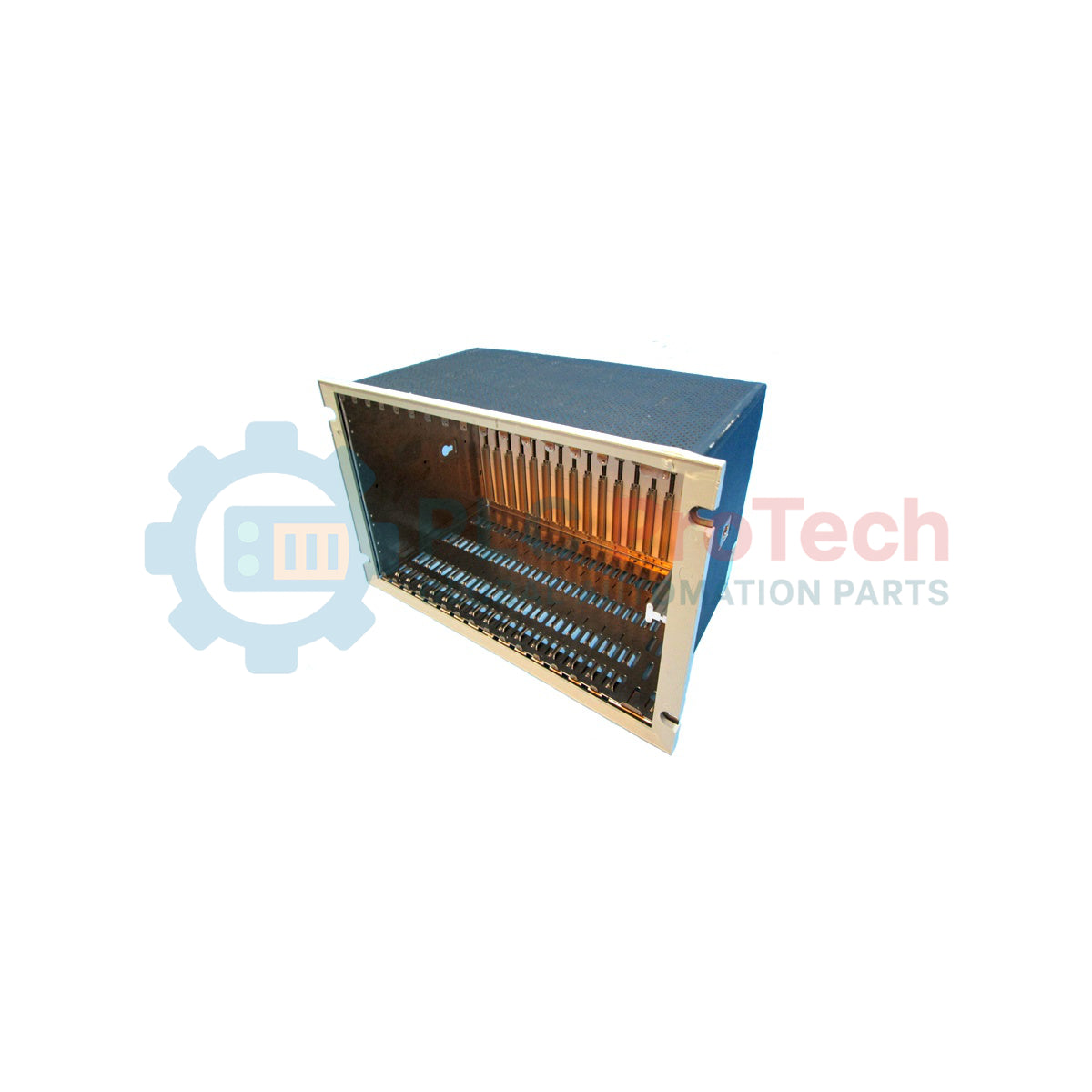

Providing the structural chassis and essential backplane data pathways for machinery protection, the Bently Nevada 3500/05-02-05-00-00-01 operates as a highly compact 7-slot mini rack. This specific hardware configuration is engineered to host a variety of 3500 series monitoring and power supply modules, facilitating real-time diagnostic communications and power distribution. By utilizing a physical 12-inch profile, it delivers industrial-grade machinery protection in applications where mounting space within standard control cabinets is strictly limited.
| Option Code | Selection Detail |
|---|---|
| 02 | 12-inch Mini-Rack (7 module slots) |
| 05 | Rack Mount Option, Mini-Rack |
| 00 | Agency Approval: None |
| 00 | Reserved: None |
| 01 | European Compliance Option: CE |
| Manufacturer | Bently Nevada |
| Model/Part Number | 3500/05-02-05-00-00-01 |
| Chassis Form Factor | 12-inch Mini-Rack |
| Physical Slots | 7 module slots |
| Mounting Mechanics | Rack Mount configuration |
| Compliance & Approvals | CE Compliant |
| Country of Origin | United States (U.S.A.) |
| Shipping Weight (Calculated) | 6.00 kg (13.23 lbs) |
Alternative Models & Compatibility
Note that the 3500 mini-rack utilizes a different physical backplane than standard 19-inch 14-slot configurations. While standard 3500 modules physically fit into the mini-rack, system planning must account for the limited slot count; certain high-density applications requiring extensive relay modules or dual redundant communications may exceed the 7-slot boundary.
Application Pitfalls & Engineering Notes
Thermal dynamics inside compact 12-inch configurations require structured thermal budgets. High-draw modules such as seismic monitors or machinery diagnostics cards can generate localized heat. Ensure at least 1 U of ventilation space above and below the rack within the cabinet, and verify that overall cabinet ambient temperatures do not exceed the module-specific thresholds.
Commissioning & Wiring Tips
Proper chassis grounding is critical to guarantee instrument signal integrity. Always tie the dedicated ground lug on the rear of the rack to a verified single-point low-impedance instrument ground system. Do not daisy-chain safety grounds or run shield drain wires across high-voltage AC paths, as noise on the backplane can disrupt highly sensitive 3500 monitor signal measurements.
CRITICAL WARNING:
Disconnect all primary power sources before performing mechanical installations. Verify that all power storage systems are discharged to prevent electrical shock or damage to internal rack backplane pins during cardinsertion.
Ensure physical spacing inside the instrument panel accommodates the 12-inch profile and provides required cabling clearances for rear-facing terminations.
Secure the rack housing to the enclosure rails using industrial-grade fasteners, ensuring a robust, low-vibration contact points.
Verify module slot guides are aligned before gently inserting card assemblies, securing front panels to prevent physical movement.
Global Express Shipping
Returns & Warranty
Manufacturer: Bently Nevada
Product No.: 3500/05-02-05-00-00-01
Country of origin:United States
Product Type: Machinery Protection System Racks
Payment: T/T, Western Union
Weight: 320g
Shipping port: Xiamen
Warranty: 12 months
