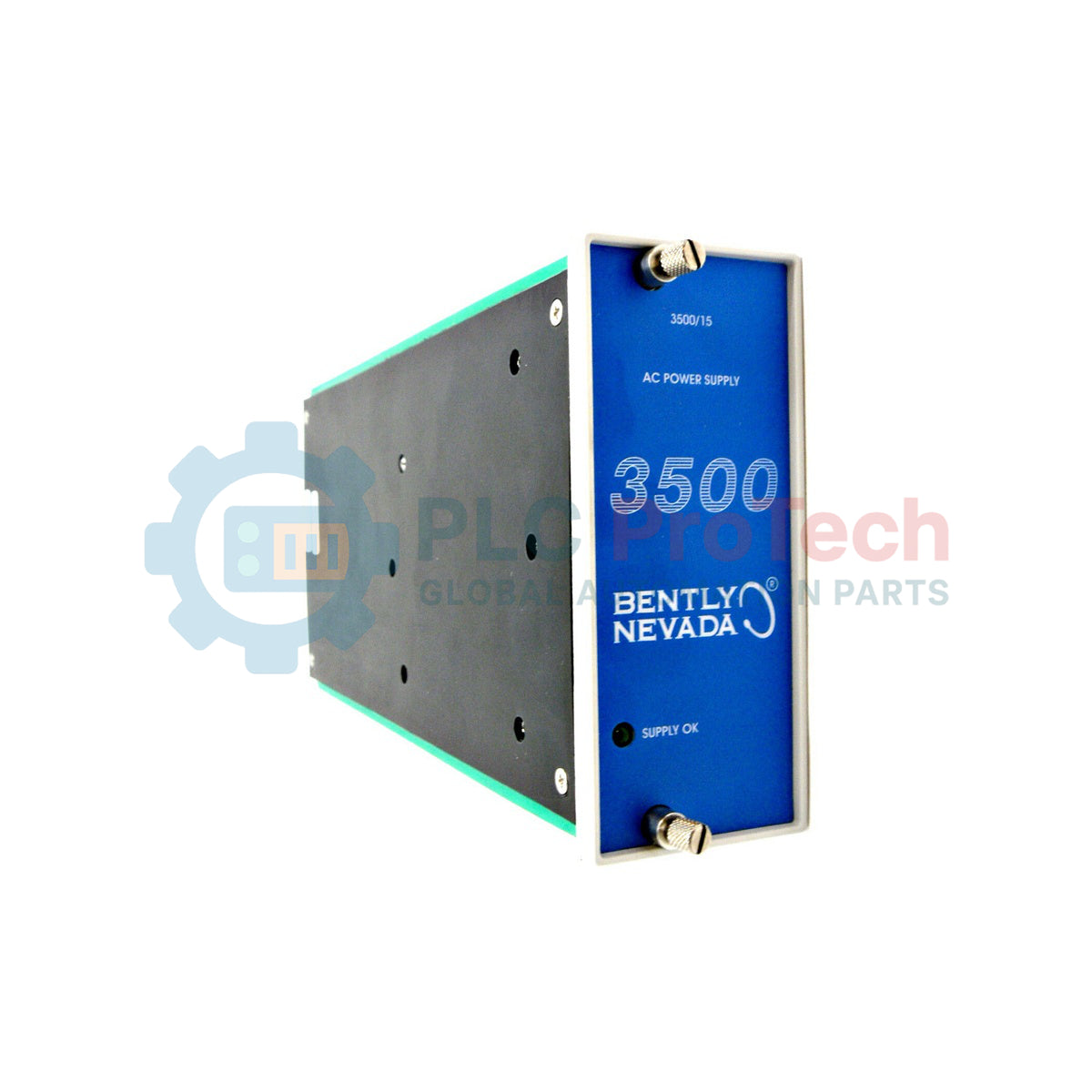

Bently Nevada 3500/15-05-05-CN is a 3500 Series rack power supply module designed to provide regulated and reliable electrical power for Bently Nevada 3500 machinery protection systems. It is widely used in power plants, oil and gas facilities, and heavy industrial processing units where continuous condition monitoring depends on stable rack-level power delivery.
This module supports universal AC input and dual-slot redundancy configuration, ensuring uninterrupted operation of critical monitoring systems. The design allows simultaneous installation of two power supplies for redundancy, reducing risk of system shutdown due to single power failure.
The CN configuration indicates country-specific hazardous area compliance requirements for regulated industrial environments.
| Element | Description |
|---|---|
| 3500/15 | 3500 Series power supply module |
| 05 | Universal AC input 85 to 264 Vac rms (top slot) |
| 05 | Universal AC input 85 to 264 Vac rms (bottom slot) |
| CN | Country-specific approvals |
This configuration defines input compatibility and redundancy architecture for rack power distribution.
| Parameter | Specification |
|---|---|
| Model | 3500/15-05-05-CN |
| Brand | Bently Nevada |
| Origin | United States |
| Dimensions | 25.15 cm x 5.08 cm x 12.07 cm |
| Weight | Not specified (typical rack module design approx. 2–3 kg system-level) |
| Shipping Weight | 3 kg |
| Input Voltage | 85 to 264 Vac rms |
| Operating Temperature | -30 deg C to +65 deg C |
| Storage Temperature | -40 deg C to +85 deg C |
| Humidity | 95 percent non-condensing |
| System | 3500 machinery protection system |
Is this power supply redundant?
Yes. The 3500/15 supports dual power supply configuration for redundancy.
Can it operate on global voltage standards?
Yes. It supports universal AC input from 85 to 264 Vac.
What happens if one power module fails?
The system continues operating using the remaining active supply.
Is this compatible with all 3500 racks?
It is compatible with standard Bently Nevada 3500 rack systems.
Install both power supplies in dual configuration when system uptime is critical.
Ensure proper rack grounding to reduce electrical noise and improve system stability.
Verify airflow clearance to maintain thermal stability under high load conditions.
Do not mix incompatible power module revisions within the same rack.
Use redundant power configuration in turbine protection and compressor monitoring systems.
Maintain stable environmental conditions to extend module lifecycle.
Inspect connectors during scheduled maintenance cycles to prevent intermittent power loss.
Ensure correct slot placement to avoid configuration mismatch in rack systems.
Global Express Shipping
Returns & Warranty
Manufacturer: Bently Nevada
Product No.: 3500/15-05-05-CN
Country of origin:United States
Product Type: 3500/15 Power Supply
Payment: T/T, Western Union
Weight: 3000g
Dimensions: 25.15cm x 5.08cm x 12.07cm
Shipping port: Xiamen
Warranty: 12 months
