Product Overview

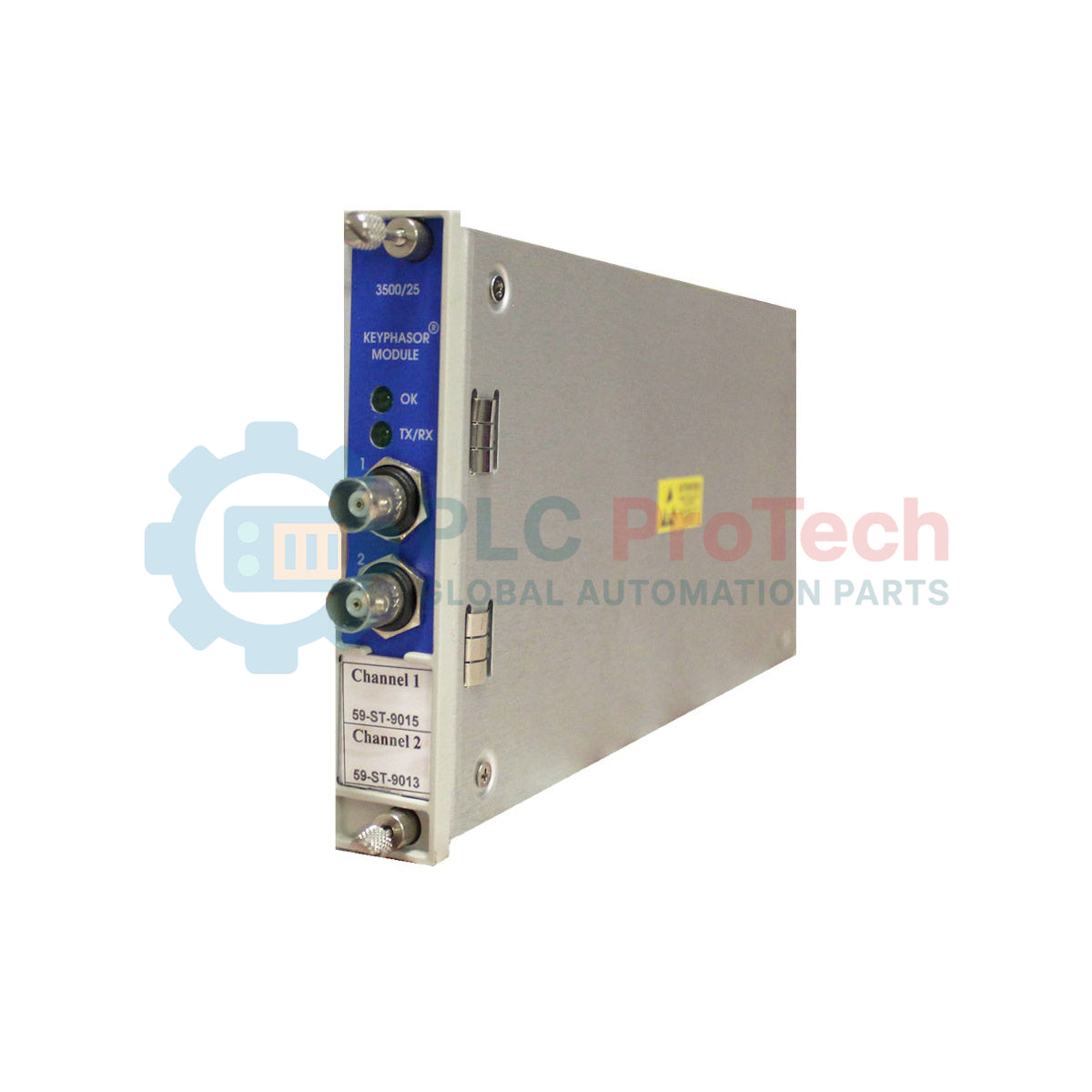

The 3500/25-01-01-01 is a high-performance, half-height module designed to provide critical phase reference signals for the Bently Nevada 3500 Machinery Protection System. This 3500/25-01-01-01 (comprising the 149369-01 main board and 125800-01 I/O) processes pulse signals from proximity probes or magnetic pickups to determine shaft rotative speed and phase angle. In industrial sectors such as power generation, oil refining, and petrochemical processing, the Enhanced Keyphasor is indispensable for synchronous data acquisition and vector analysis. By providing accurate timing information for vibration signals, it enables the detection of rotor imbalances and shaft cracks. Its ability to support multiple Keyphasor signals in a single rack ensures maximum system flexibility, reducing the risk of catastrophic machinery failure and optimizing maintenance schedules through precise diagnostic data.

Suffix Breakdown

The hardware architecture and certification levels of the 3500/25-01-01-01 are detailed as follows:

• 3500/25: Base model for the Enhanced Keyphasor Module.

• -01 (Channels): Single half-height 2-channel Keyphasor card.

• -01 (I/O Type): Equipped with an I/O module featuring Internal Terminations, simplifying cabinet wiring by eliminating the need for external terminal blocks.

• -01 (Agency Approval): Certified for cNRTLus (Class 1, Division 2), permitting installation in North American hazardous locations.

• 149369-01: The specific internal part number for the Enhanced Keyphasor main module.

• 125800-01: The specific part number for the Keyphasor I/O module with internal terminations.

Technical Specifications

Operational Insights & FAQs

What is the difference between a standard and an Enhanced Keyphasor module?

The Enhanced Keyphasor module (3500/25) provides superior signal processing capabilities compared to older versions, including improved support for high-speed applications and better integration with modern diagnostic software for phase-locked loop (PLL) tracking.

Can I install this module in any slot of the 3500 rack?

Keyphasor modules must be installed in the dedicated half-height slots. Because it is a half-height module, you can install two Keyphasor modules in a single full-height slot location using the appropriate internal rack structure.

Does the 125800-01 I/O module require external resistors?

No. The "Internal Terminations" designation indicates that the necessary circuitry to terminate the incoming signals is built directly into the I/O module, reducing components and potential failure points in the signal chain.

Engineering & Installation Guide

Keyphasor Trigger Thresholds

For reliable phase triggering, the threshold must be set correctly within the 3500 Rack Configuration Software. For standard proximity probe targets (notches or projections), set the threshold to ensure the trigger occurs at the same point on the pulse leading edge. A common best practice is to set the hysteresis to prevent multiple triggers from signal noise on the pulse flanks.

Internal Terminations and Grounding

When wiring the 125800-01 I/O module, ensure that the cable shields are terminated at the designated shield terminals on the I/O module itself. This provides a clean path to the rack ground. Avoid "daisy-chaining" shield wires, as this can introduce phase jitter which negatively impacts the accuracy of vibration vector readings.

Speed and Phase Diagnostic Integrity

The Enhanced Keyphasor module supports speeds up to 1,200,000 cpm. For high-speed applications (e.g., centrifugal compressors or turbochargers), ensure the target notch/projection provides a clean, steep-walled pulse. If the pulse is too wide or has a slow rise time, the phase accuracy will degrade, leading to errors in the filtered vibration data used for balancing.
