Description

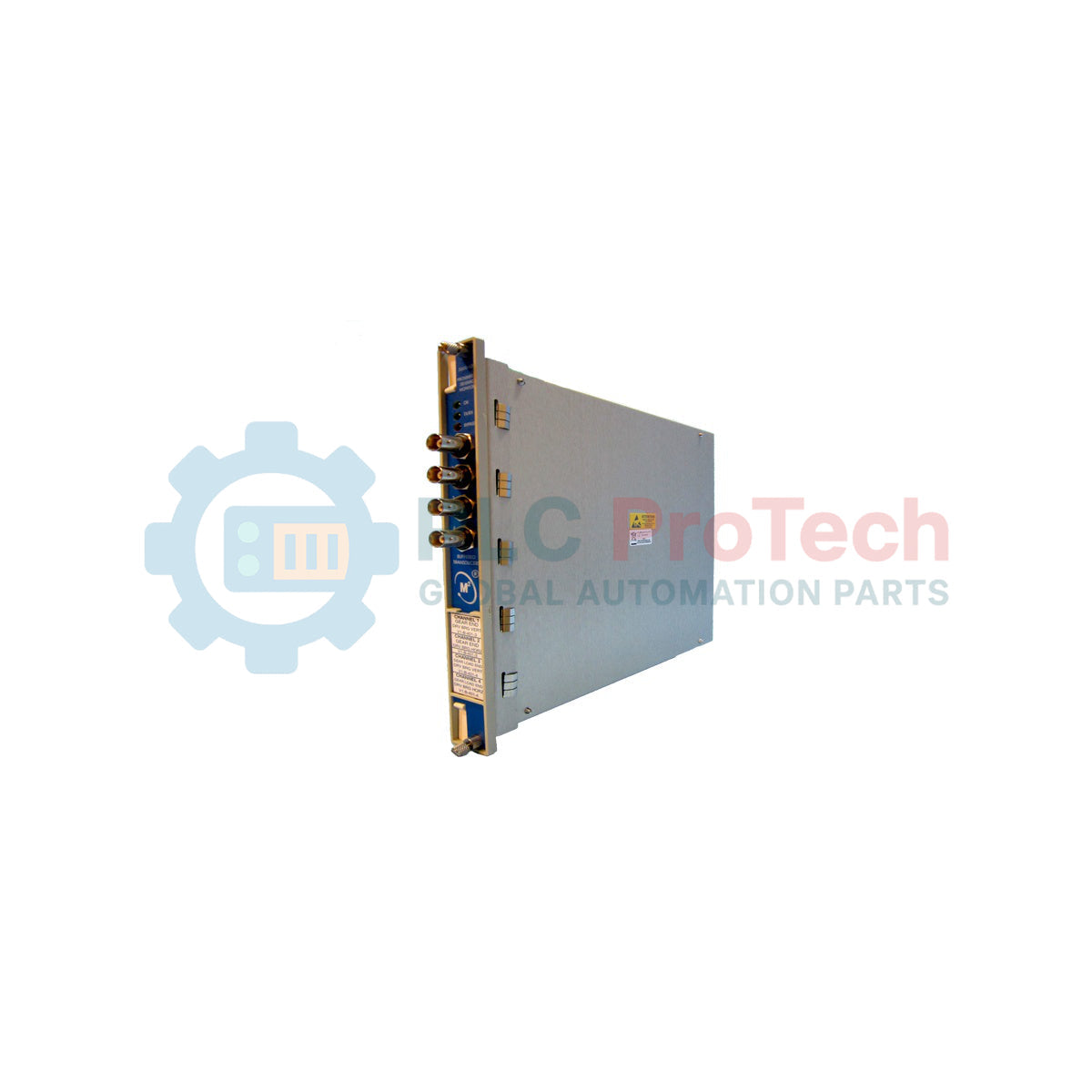

Continuous machinery monitoring systems rely on high-integrity signal conditioning and processing. The 3500/42-01-CN is a four-channel Proximitor Seismic Monitor designed for the Bently Nevada 3500 Series Machinery Protection System. This module accepts input signals from various proximity probes, accelerometers, and velocity transducers, conditioning them to provide radial vibration, thrust position, expansion, or velocity measurements. It compares these conditioned signals against user-programmable alarm setpoints to drive protection relays and safeguard critical rotating machinery.

This configuration incorporates the 128229-01 I/O module, which features internal terminations to simplify wiring directly within the rack assembly. The "CN" configuration specifies country-specific agency approvals, making it compliant with designated regional regulatory standards. The monitor utilizes integrated software-driven configuration to set up channel parameters, alert levels, and bypass controls, ensuring seamless integration with the Bently Nevada System 1 condition monitoring platform.

Features

• Four independent, fully programmable channels for versatile machinery protection.
• Compatible with proximity probes, acceleration sensors, and velocity transducers.
• Supplied with the 128229-01 I/O module featuring internal terminations for simplified field wiring.
• Continuous monitoring of amplitude, phase, and overall machine vibration parameters.
• Dedicated OK, Alert, and Danger status LEDs for rapid visual diagnostics on the front panel.
• CN approval designation for localized regional compliance.

Applications

• Steam turbines and gas turbines in power generation utilities.
• Multi-stage industrial compressors and expanders.
• Large-scale cooling tower fans and blowers.
• Heavy-duty pumps and generators in oil, gas, and petrochemical processes.

Technical Specifications

Installation Guidelines

• Ensure the 3500 rack system is completely de-energized before installing or removing the 3500/42-01-CN monitor module.
• Slide the main monitor module into a free slot in the 3500 rack backplane and secure the chassis screws.
• Install the 128229-01 I/O module directly behind the main monitor in the corresponding rear chassis slot.
• Connect field sensor cabling to the internal termination block, ensuring correct polarity and channel alignment.
• Route field wiring away from high-voltage AC cables to minimize electromagnetic interference (EMI).
• Verify grounding compliance; shield lines should be terminated at the designated rack ground and insulated at the sensor end.
