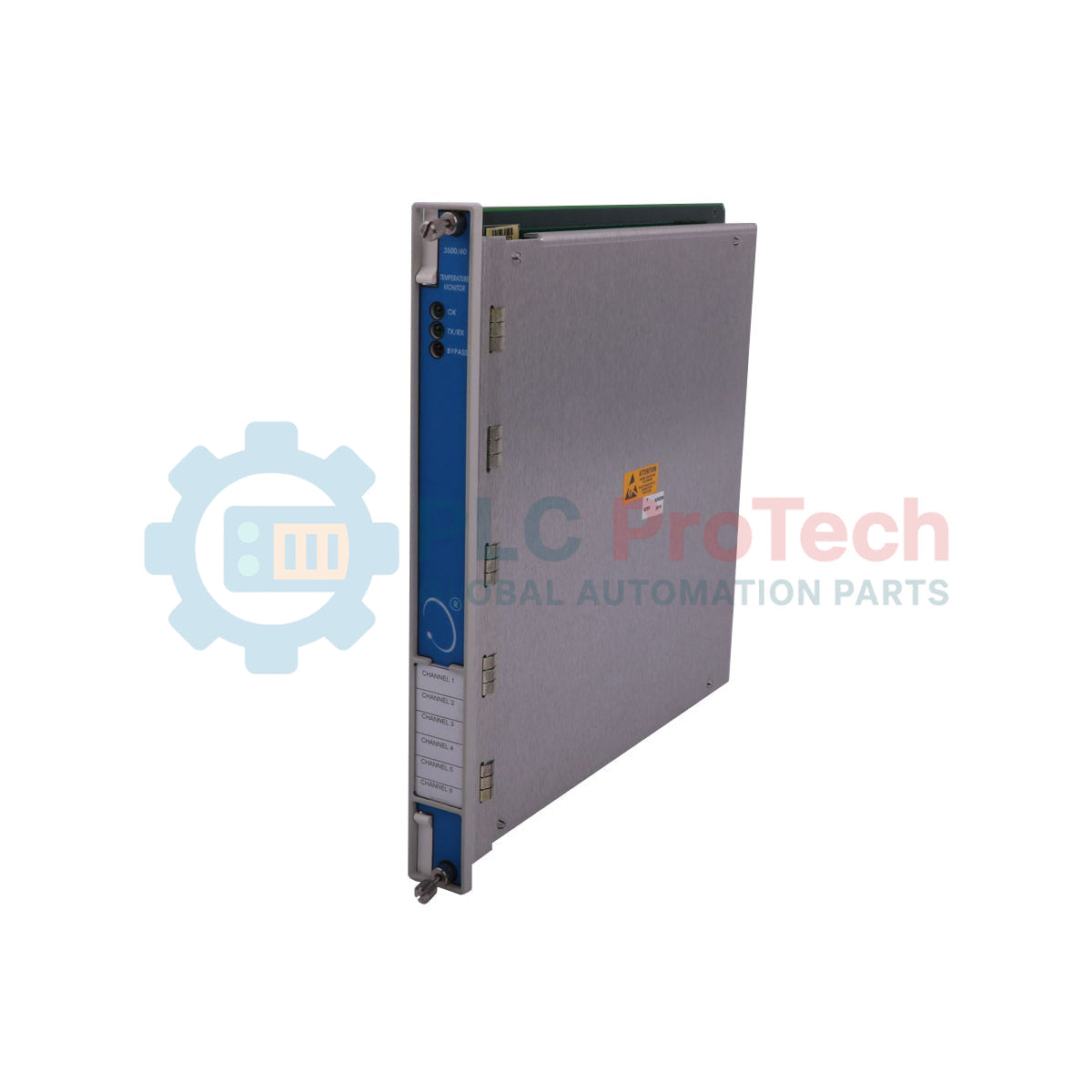

Processing and continuous monitoring of temperature inputs within critical machinery protection systems is executed by the Bently Nevada 3500/60-01-00, a dedicated 3500 Series module configuration. This specialized module processes signals from both Resistance Temperature Detectors (RTDs) and Thermocouples (TC) to provide continuous, high-accuracy temperature tracking. Designed without recorder outputs, the 3500/60-01-00 utilizes an RTD/TC Non-Isolated I/O Module with Internal Terminations to maximize channel density and simplify wiring architectures directly within the monitor rack. It operates with a nominal power consumption of 7 watts, ensuring minimal thermal load inside the enclosure while delivering steady performance for machinery protection.
| Manufacturer | Bently Nevada |
| Model Number | 3500/60-01-00 |
| Series | 3500 Series Machinery Protection System |
| I/O Module Type | 01 - RTD/TC Non-isolated I/O Module |
| Termination Type | Internal Terminations |
| Power Consumption | 7 Watts (Nominal) |
| Agency Approval Option | 00 - None |
| Recorder Outputs | None |
| Country of Origin | United States (USA) |
| Shipping Weight | 2.0 kg |
The 3500/60-01-00 configuration utilizes a non-isolated I/O interface. If your site electrical design requires isolation to protect against high common-mode voltages or severe field noise, consider the 3500/60-02-00 variant, which integrates isolated I/O modules. Ensure that any replacement of the I/O module is matched by a corresponding configuration update within the 3500 Rack Configuration Software to prevent system configuration faults (slot mismatch errors).
Because this module utilizes non-isolated I/O (Option 01), it shares a common ground across channels. It is critical that the RTD or thermocouple sensor tips installed on the machinery are electrically isolated from the machine frame. If a sensor tip becomes grounded to the machine frame, ground loops and common-mode voltages will degrade temperature readings, cause erratic measurements, or trigger false alarms. Always verify sensor insulation resistance during routine maintenance cycles.
When wiring to the internal termination block, use shielded, twisted-pair cables for all temperature sensor runs. Connect the shield drain wire only at the designated terminal on the 3500/60 I/O module. Do not connect the shield at the sensor junction box, as this will establish a ground loop. Keep signal wiring physically separated from high-voltage AC power lines to avoid electromagnetic interference on sensitive thermocouple readings.
De-energize the 3500 rack and all connected field circuitry before installing or removing modules. Live-plugging under load, especially on field I/O connections, poses a risk of electrical damage to the module circuitry and may cause unexpected tripping of connected machinery protection loops.
