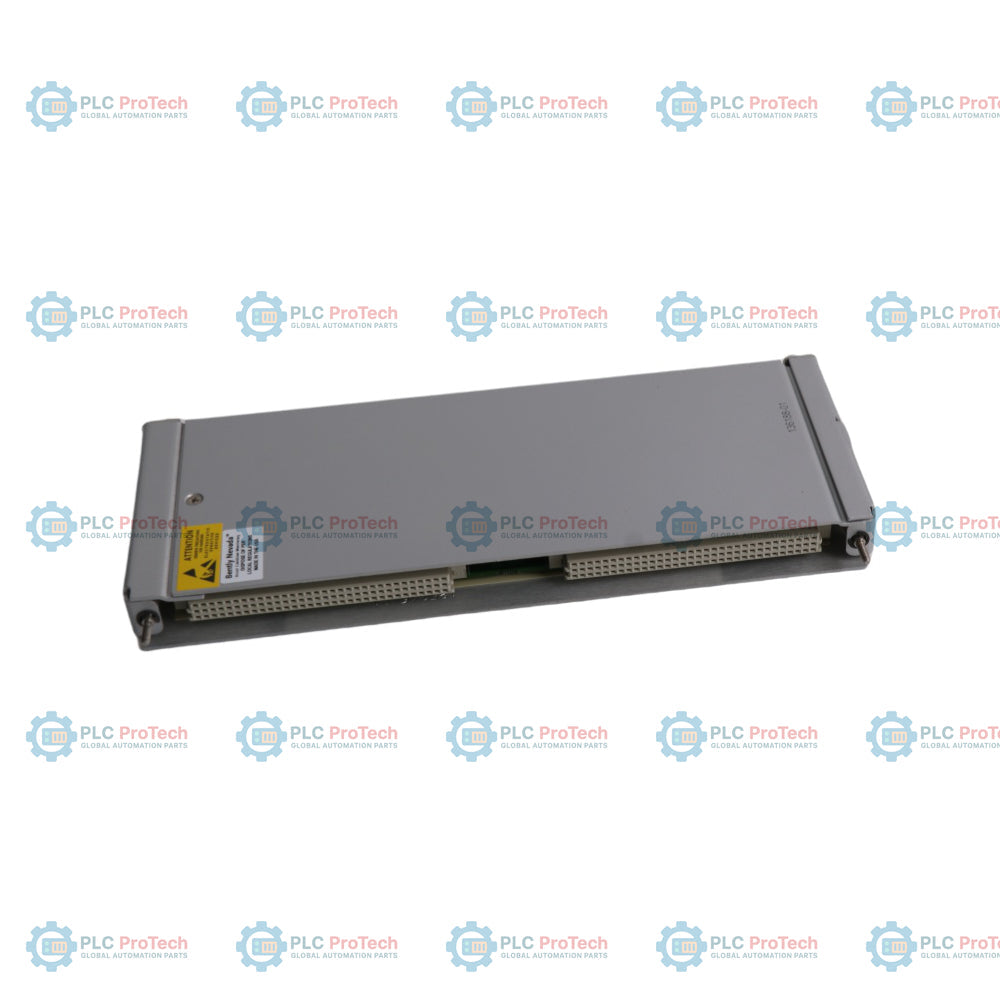

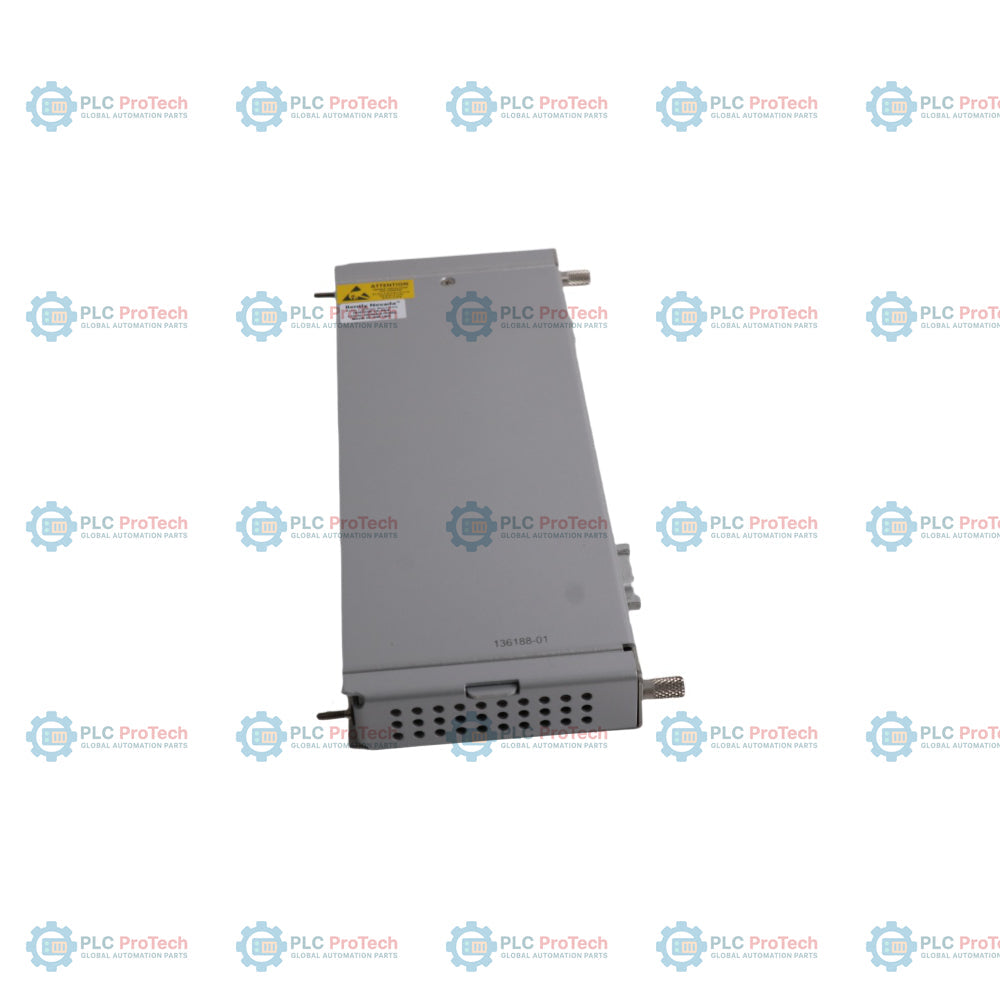

The Bently Nevada 3500/92-03-01-00 is a Communication Gateway Module designed for the 3500 Series Machinery Protection System. Its primary purpose is to provide continuous, high-speed communication capability for all rack-monitored values and statuses, enabling seamless integration with distributed control systems (DCS), programmable logic controllers (PLC), human-machine interfaces (HMI), and other plant automation systems.
The module features comprehensive communication interfaces, utilizing both Ethernet TCP/IP and serial channels (RS232) via the 136188-01 I/O module. It handles internal data collection by pulling current measured values, time stamps, module statuses, and alarm statuses from other monitor modules within the rack via a high-speed internal network. Additionally, the 3500/92 supports direct Ethernet communication with proprietary 3500 Rack Configuration Software and Data Acquisition Software. This specific variant features a Configurable Modbus Register Utility to map system data efficiently into host automation networks.

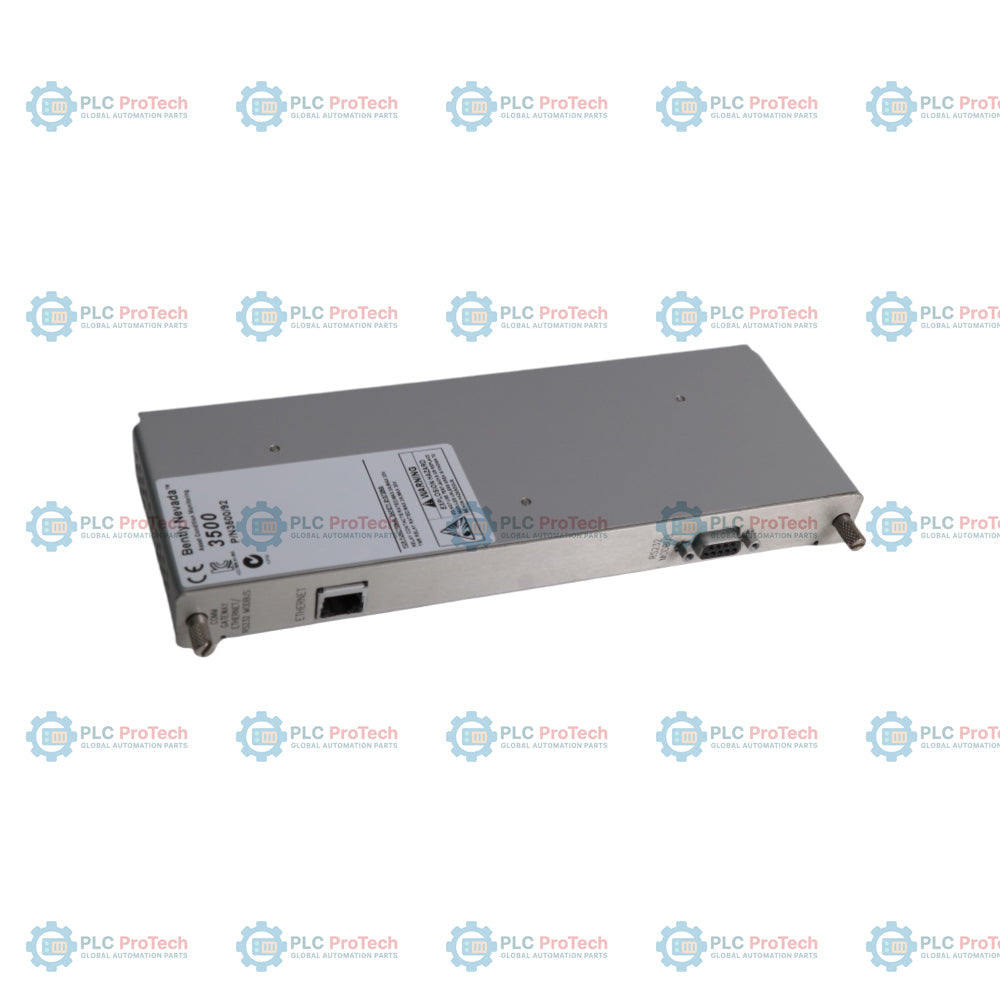

| Parameter | Specification |
| Manufacturer | Bently Nevada |
| Country of Origin | USA |
| Power Consumption | 5.0 Watts typical with Modbus RS232/RS422 I/O Module |
| Data Types | Current measured values with time stamp, module statuses, current alarm statuses |
| Update Time | Less than 1 second for all modules in the 3500 rack |
| OK LED Output | Indicates when the 3500/92 is operating properly |
| TX/RX LED Output | Indicates when the 3500/92 is communicating with other modules in the 3500 rack |
| BNC Host Protocol | Ethernet TCP/IP connection to 3500 Configuration and Data Acquisition Software |
| Modbus Protocol | Based on AEG Modicon PI-MBUS-300 Reference Manual, Remote Terminal Unit (RTU) transmission mode |
| Ethernet Link Speed | 10 Mbps, conforms to IEEE 802.3 |
| Ethernet Protocol | Ethernet TCP/IP frame and Modbus/TCP |
| Ethernet Connection | RJ-45 for 10BASE-T Ethernet cabling |
| Operating Temperature | -30 degC to +65 degC (-22 degF to +149 degF) |
| Storage Temperature | -40 degC to +85 degC (-40 degF to +185 degF) |
| Humidity | 95% non-condensing |
| Main Board Dimensions (H x W x D) | 241 mm x 24.4 mm x 242 mm (9.50 in x 0.96 in x 9.52 in) |
| I/O Module Dimensions (H x W x D) | 241 mm x 24.4 mm x 99.1 mm (9.50 in x 0.96 in x 3.90 in) |
| Main Board Weight | 0.82 kg (1.8 lb.) |
| I/O Module Weight | 0.44 kg (0.96 lb.) |
| Total Assembly Weight | 1.26 kg (2.76 lb.) |
| Connector Pin | Function |
| RJ-45 Jack | 10BASE-T Ethernet TCP/IP and Modbus/TCP Interface |
| Serial Port (RS232) | Modicon Modbus RTU Serial Communication Interface |
What is the function of the 3500/92 module?
It acts as a communication gateway, exporting data from a 3500 machinery protection rack to external automation systems like PLCs and DCS.
Which interfaces are provided on the 136188-01 I/O module?
It provides an RJ-45 Ethernet connection and an RS232 serial interface.
What protocols can run over the Ethernet connection?
It supports Modbus/TCP protocol as well as the proprietary Bently Nevada host protocol for software applications.
How does this module differ from the older 3500/90 module?
It removes the fixed primary value Modbus registers and replaces them with a flexible Configurable Modbus Register Utility.
How long does it take for the module to refresh data from the rack?
The data collection rate varies by configuration but is guaranteed not to exceed 1 second for all modules.
What is the typical power consumption of this specific I/O setup?
The system typically consumes 5.0 Watts when equipped with the Modbus RS232 I/O module configuration.
Can I connect my 3500 Configuration Software through this gateway?
Yes, it allows Ethernet communications with the 3500 Rack Configuration and Data Acquisition Software packages.
What should I check if the TX/RX LED is dark?
Verify that the module is correctly seated and that the internal rack communication bus is active and functioning.
Is a firmware upgrade mandatory when swapping in a new 136188-01 interface?
Older main gateway modules require a firmware upgrade using kit 126M4118-01 to properly recognize the new I/O hardware.
What are the environmental storage limitations for this hardware?
The module must be stored within an environment ambient temperature range of -40 degC to +85 degC.
