The 990-04-70-02-00 is a loop-powered vibration transmitter designed for straightforward integration into rotating equipment protection and monitoring systems. It translates proximity probe vibration input into a standard 4 to 20 mA signal for use in PLC and DCS environments, focusing on stable long-term trending rather than full diagnostic vibration analysis.
This version uses a bulkhead screw mounting design, making it more suitable for installations where panel surface mounting is preferred over DIN rail systems. In practice, it is often selected for compact OEM skids, retrofit panels, or locations where mechanical fixation strength is prioritized over modular rail layouts.
Engineers typically deploy this model on compressors, pumps, and small rotating machines where vibration thresholds need continuous supervision without adding complexity to the control architecture. The integrated signal conditioning electronics reduce external wiring and simplify commissioning during machine build or site installation.
The 0-4 mils pp full-scale range supports tighter vibration resolution, which is useful in applications requiring early detection of mechanical wear or imbalance trends.
| Equipment Type | Monitoring Purpose |
|---|---|
| Small centrifugal compressors | Shaft vibration monitoring |
| Industrial pumps | Bearing condition trending |
| Fans and ventilation systems | Imbalance detection |
| OEM machinery packages | Embedded vibration feedback |
| Process skids | Continuous condition monitoring |
| Auxiliary drive systems | Basic protection logic input |
| Parameter | Code Description |
|---|---|
| Model | 990 Vibration Transmitter |
| Full-scale Option | -04 = 0-4 mils pp (0-100 µm pp) |
| System Length Option | -70 = 7.0 metres (23.0 feet) |
| Mounting Option | -02 = Bulkhead screws |
| Agency Approval Option | -00 = Not required |
| Item | Specification |
|---|---|
| Part Number | 990-04-70-02-00 |
| Manufacturer | Bently Nevada |
| Product Type | 2-Wire Vibration Transmitter |
| Availability | In Stock |
| Condition | New & Original in Factory Packing |
| Factory Warranty | 12 Months |
| Input Source | 3300 NSv proximity probe system |
| Output Signal | 4 to 20 mA DC |
| Power Requirement | +12 to +35 Vdc loop supply |
| Full-scale Range | 0-4 mils pp (0-100 µm pp) |
| System Cable Length | 7.0 metres |
| Mounting Method | Bulkhead screw fixation |
| Operating Temperature | -35 degC to +85 degC |
| Storage Temperature | -51 degC to +100 degC |
| Net Weight | 0.54 kg |
| Shipping Weight | 2 kg |

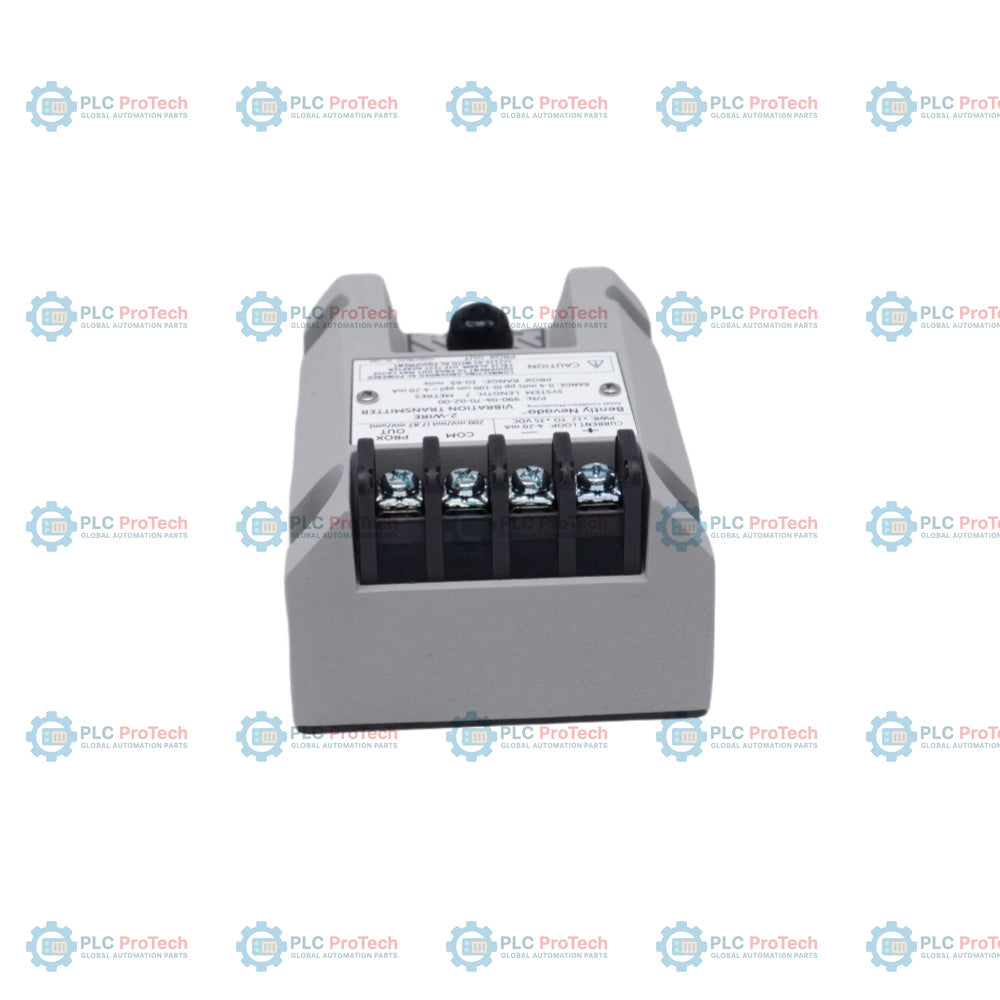

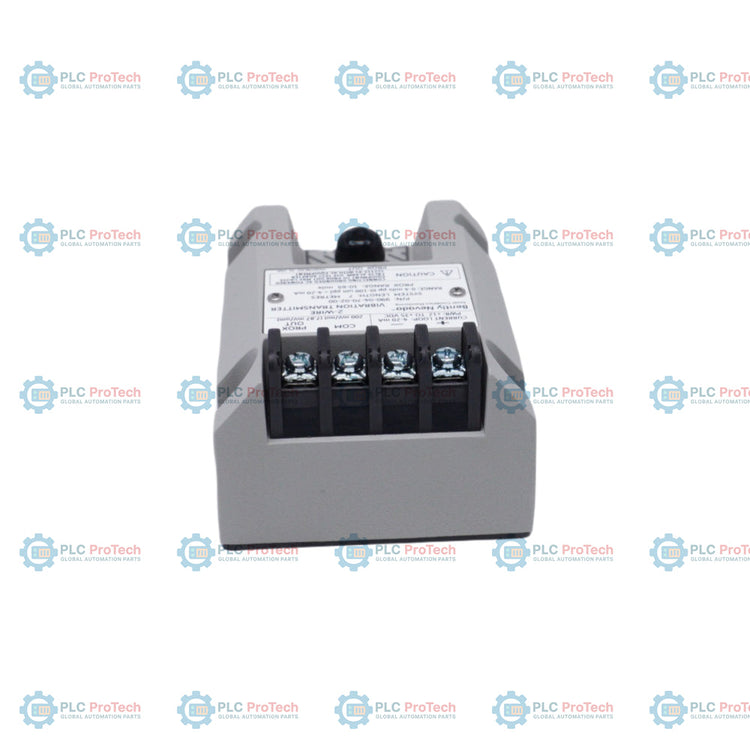

| Terminal / Interface | Function |
|---|---|
| Probe Input | Accepts 3300 NSv proximity probe signal |
| 4-20 mA Output | Vibration signal to PLC/DCS |
| Power Input | Loop-powered DC supply |
| PROX OUT | Dynamic vibration diagnostic output |
| COM | Signal reference |
This version is typically installed directly onto a control panel surface using bulkhead screws, which provides better mechanical rigidity in environments with vibration or limited DIN rail availability.
Cable routing should maintain separation between low-level probe wiring and high-current conductors to reduce induced noise. Proper shielding and grounding practices are important for maintaining signal stability over long cable runs.
During commissioning, verify probe gap alignment before energizing the loop. Once operational, confirm that the 4 to 20 mA signal stabilizes under steady machine conditions before enabling protection logic in the control system.
The PROX OUT interface should be used only with appropriate isolated measurement equipment to avoid ground loop effects.
Why choose bulkhead screw mounting for this model?
It is preferred when panel rigidity and fixed mechanical mounting are required instead of DIN rail flexibility.
Is this transmitter suitable for PLC integration?
Yes, it provides a standard 4 to 20 mA output designed for PLC analog input modules.
What probe system is required?
It is designed for use with the Bently Nevada 3300 NSv proximity probe family.
What is the purpose of the 0-4 mils range?
It provides higher resolution vibration monitoring for tighter mechanical tolerances.
Does it support diagnostic signal access?
Yes, PROX OUT provides raw vibration data for external analysis tools.
Is this a rack-based monitoring system?
No, it is a standalone transmitter intended for simplified machine protection.
What happens during probe failure?
The output drops to a fault condition below normal operating current levels.
What environments can it operate in?
It is designed for industrial environments with temperatures from -35 degC to +85 degC.
Can it be used on compressors and pumps?
Yes, it is commonly used on small rotating machinery such as compressors and pumps.
Is this version available immediately?
Yes, it is listed as in stock.
Global Express Shipping
Returns & Warranty
Manufacturer: Bently Nevada
Product No.: 990-04-70-02-00
Country of origin:United States
Product Type: Vibration Transmitter
Barcode: 8537101190
Payment: T/T, Western Union
Weight: 540g
Dimensions: 53.3 mm x 73.9 mm x 100.1 mm
Shipping port: Xiamen
Warranty: 12 months
