Bently Nevada

Bently Nevada Model 330100 Pn.102046-50 Custom Proximitor

SKU 102046-50

Disponibile
  • 12-month warranty
  • Free returns within 30 days
  • Manufacturer: Bently Nevada
  • Product No.: 102046-50
  • Origin United States
  • Product Type: Proximitor
  • Payment: T/T, Western Union
  • Weight: 0.25 kg
  • Dimensions: 8.0 cm x 6.0 cm x 6.0 cm (W x H x D)
  • Shipping port: Xiamen
  • Warranty: 12 months
Quantità
Call sales Contact

Product Description

Description

The Bently Nevada 330100 (P/N 102046-50) is a Custom Proximitor designed for non-contact shaft vibration and axial position measurement in rotating machinery monitoring systems. The unit conditions radio frequency (RF) signals sent to a paired eddy current proximity probe to generate a DC voltage output proportional to static gap distance and an AC voltage output proportional to dynamic shaft vibration. Designed to operate with an 8 mm probe tip diameter and a 5-meter total system cable length, the device conditions analog transducer signals calibrated specifically for AISI 4140 target material at a scale factor of 200 mV/mil.

Features

  • Pre-calibrated for AISI 4140 target material with a scale factor of 200 mV/mil
  • Compatible with 8 mm probe tip diameter proximity sensors
  • Matched for 5-meter total system cable length configuration
  • Direct terminal connections for power, signal ground, and output lines
  • CSA certified for hazardous location installations

Applications

  • Industrial steam turbine and gas turbine shaft vibration monitoring
  • Centrifugal compressor shaft position and radial displacement tracking
  • Boiler feed pump shaft displacement and thrust position measurement
  • High-speed industrial gearbox proximity transducer signal processing

Ordering Information

Part Number Description
330100 3300 Series Custom Proximitor
102046-50 Dresser Rand TSE 060-987-169 Custom Proximitor Assembly

Technical Specifications

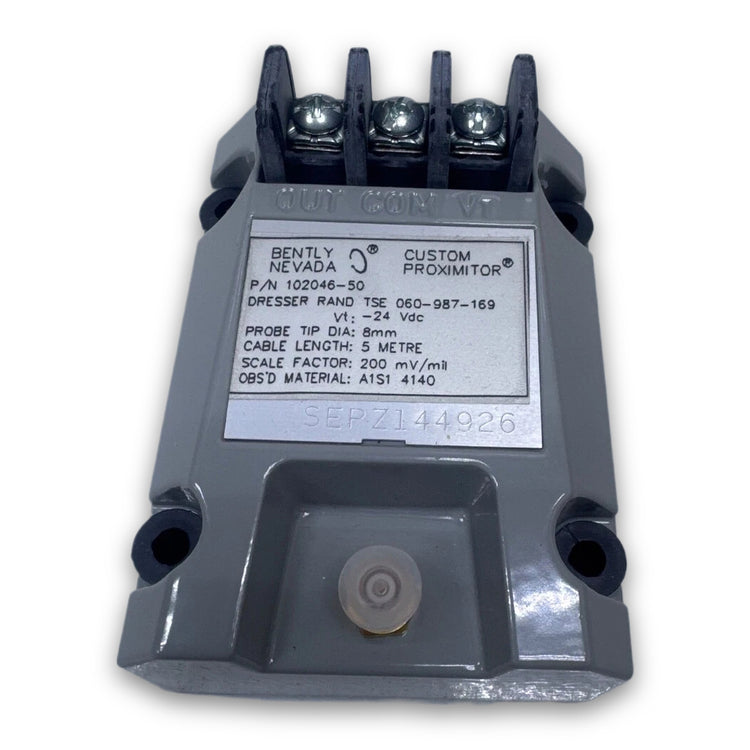

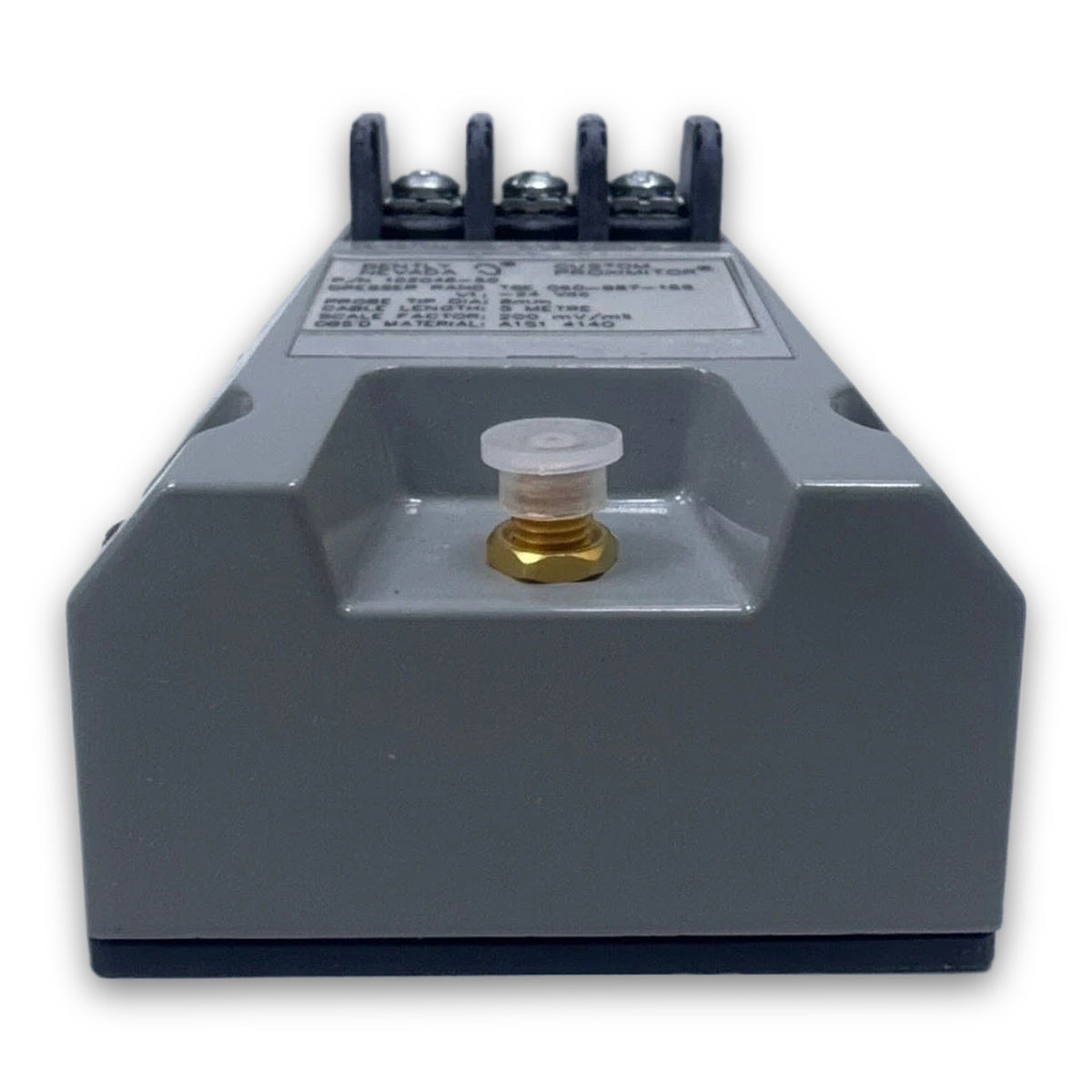

Parameter Specification
Manufacturer Bently Nevada
Model 330100
Part Number 102046-50
Customer Part Number Dresser Rand TSE 060-987-169
Supply Voltage (Vt) -24 Vdc
Probe Tip Diameter 8 mm
System Cable Length 5 METRE
Scale Factor 200 mV/mil
Observed Material AISI 4140

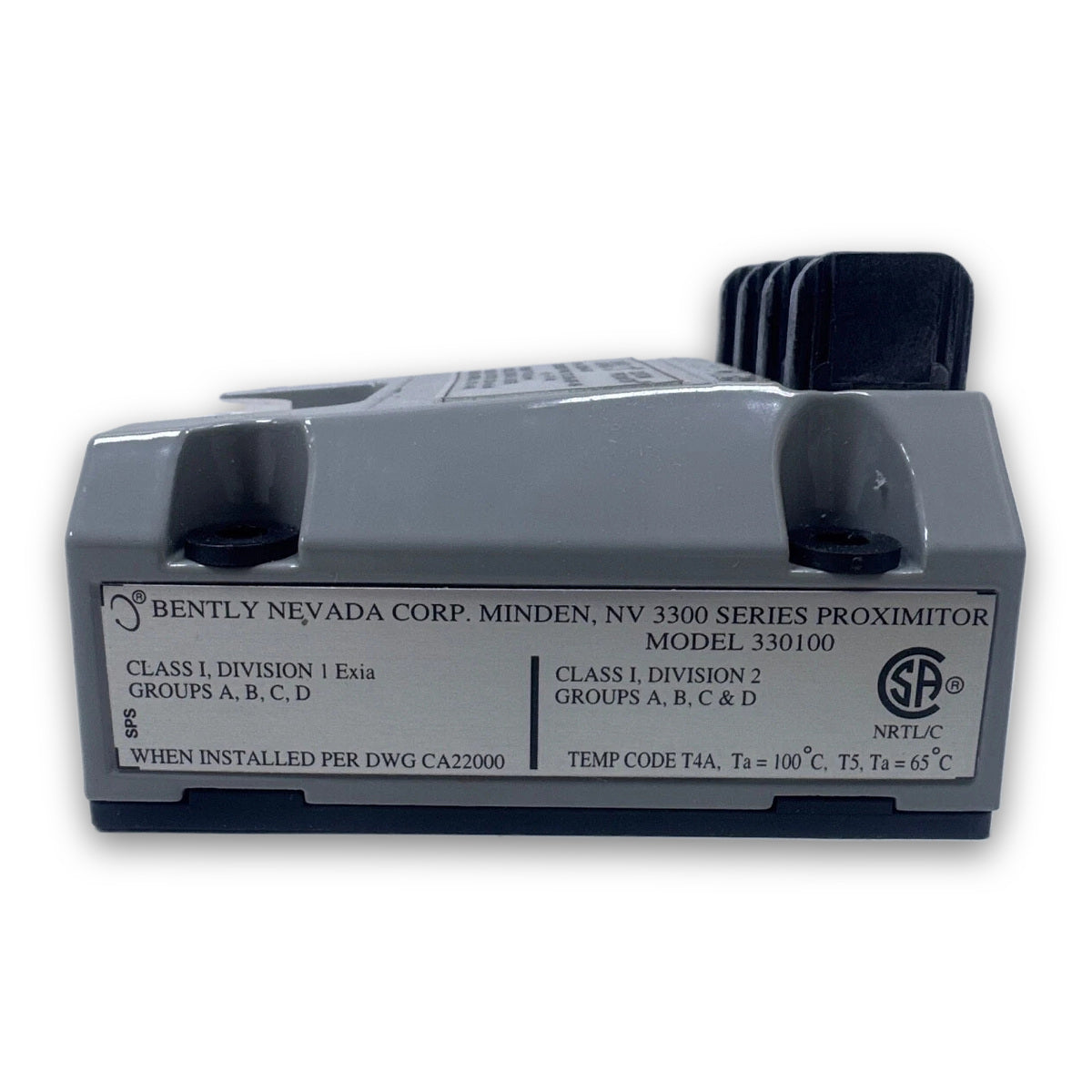

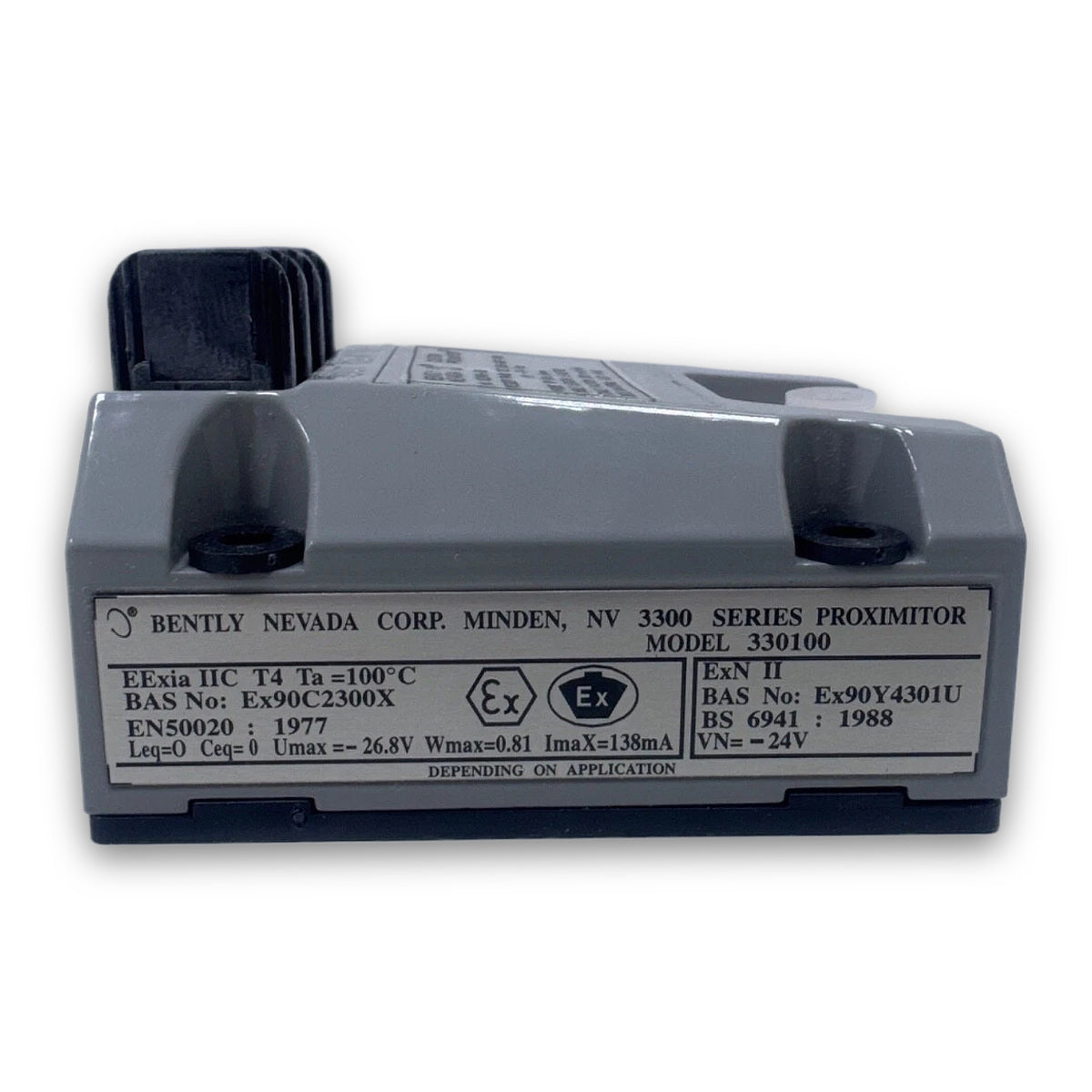

Hazardous Area Classifications Class I, Division 1 Exia, Groups A, B, C, D; Class I, Division 2, Groups A, B, C & D
Operating Temperature Code T4A (Ta = 100 degC), T5 (Ta = 65 degC)

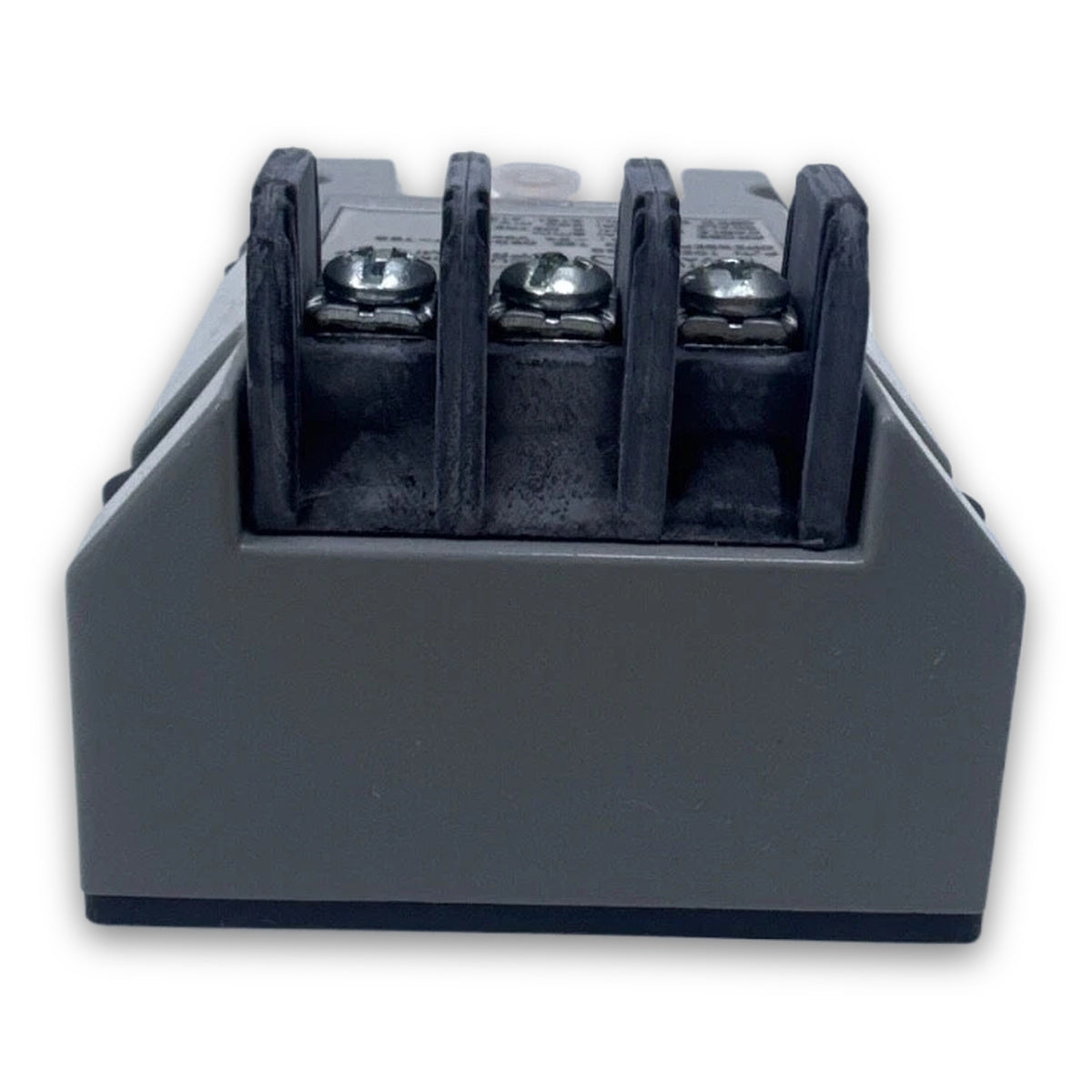

Connections/Interfaces

Connector Pin Function
OUT Signal Output Line
COM Common / Circuit Ground
Vt Supply Voltage (-24 Vdc Input)

Installation Guidelines

  • Ensure power supply wiring matches the specified -24 Vdc operating voltage.
  • Install in accordance with installation drawing DWG CA22000 for hazardous location compliance.
  • Maintain clean, tight connections on terminal block terminals labeled OUT, COM, and Vt.
  • Ensure the physical cable length matches the 5-meter system rating for optimal calibration accuracy.
  • Verify target material compatibility with AISI 4140 to prevent scale factor error.

Compliance and Certifications

  • CSA NRTL/C Class I, Division 1 Exia, Groups A, B, C, D
  • CSA NRTL/C Class I, Division 2, Groups A, B, C & D
Shipping & Returns

Global Express Shipping

  • Standard Delivery: 4–6 business days via DHL, FedEx, and UPS.
  • Express Dispatch: Same-day dispatch for in-stock orders placed before 2:00 PM (GMT+8).
  • Worldwide Coverage: Serving over 150 countries.

Returns & Warranty

  • 30-Day Guarantee: Returns accepted for in-stock products in original, factory-sealed packaging.
  • 12-Month Warranty: Every industrial component is backed by our technical warranty.
FAQ
What power supply voltage does the module require for operation?
The device requires a -24 Vdc supply voltage applied across the Vt and COM terminals.
Which probe tip size and cable length match this calibration?
The module is calibrated for an 8 mm probe tip diameter and a 5-meter total system cable length.
What target material is required for accurate scale factor response?
The unit is pre-calibrated specifically for AISI 4140 observed target material at a scale factor of 200 mV/mil.
