Product Overview

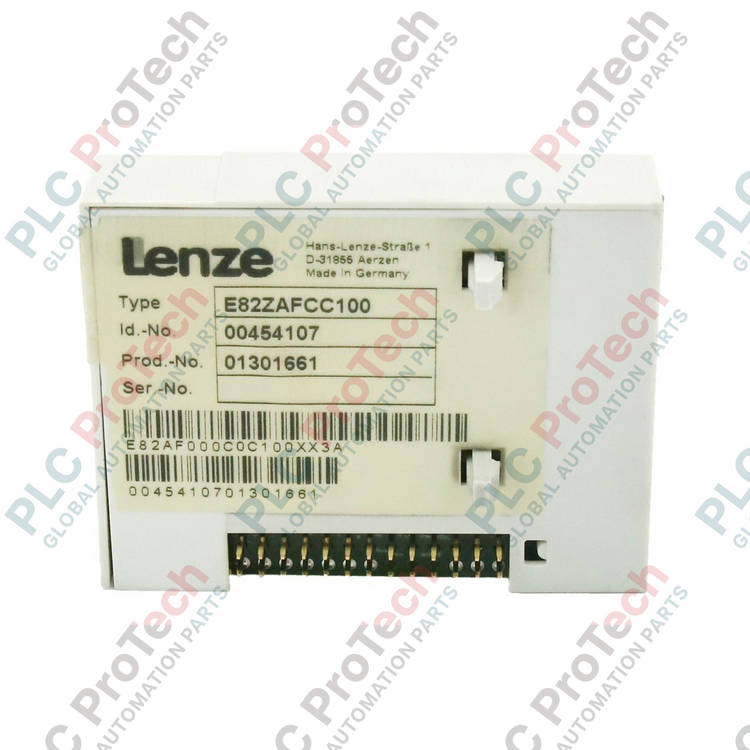

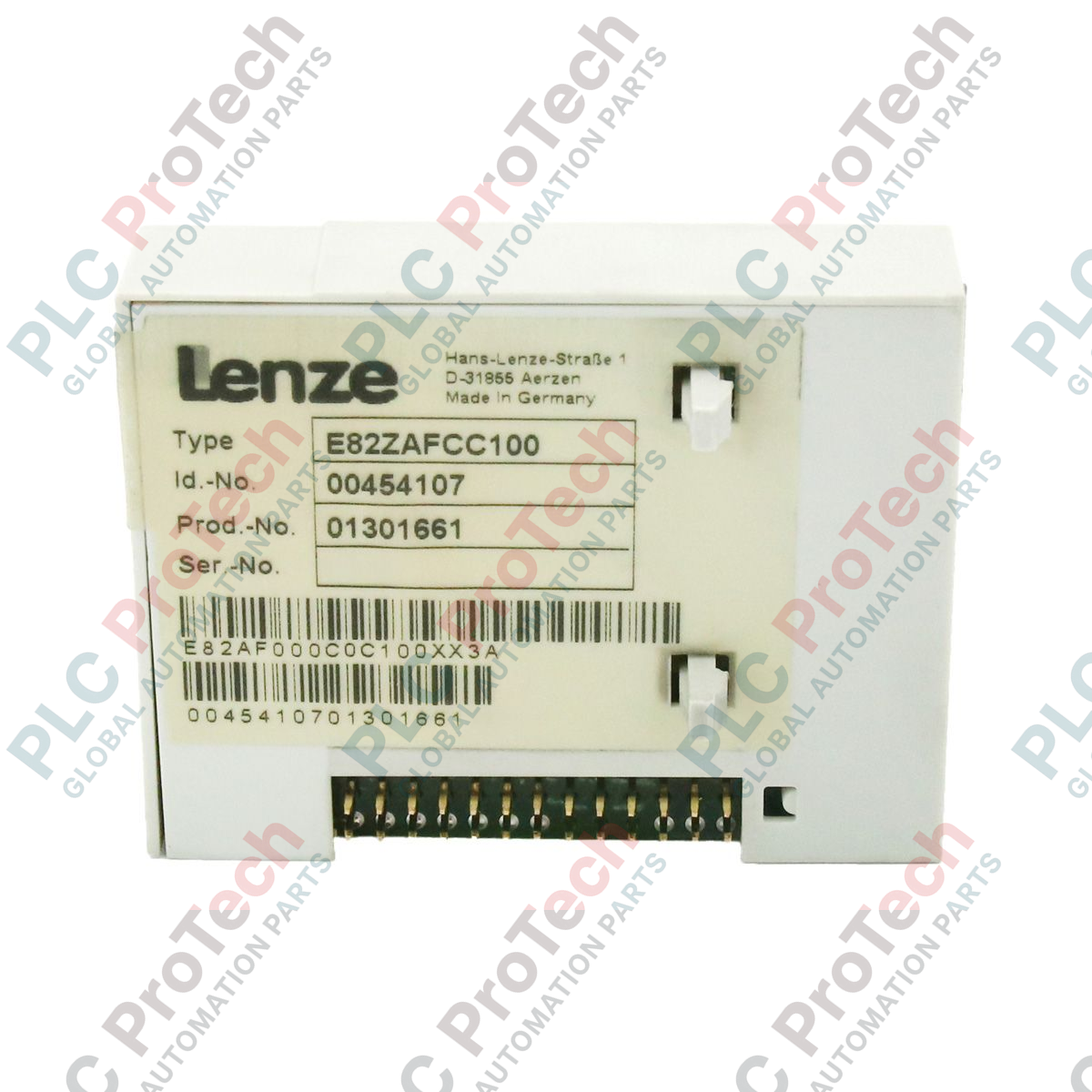

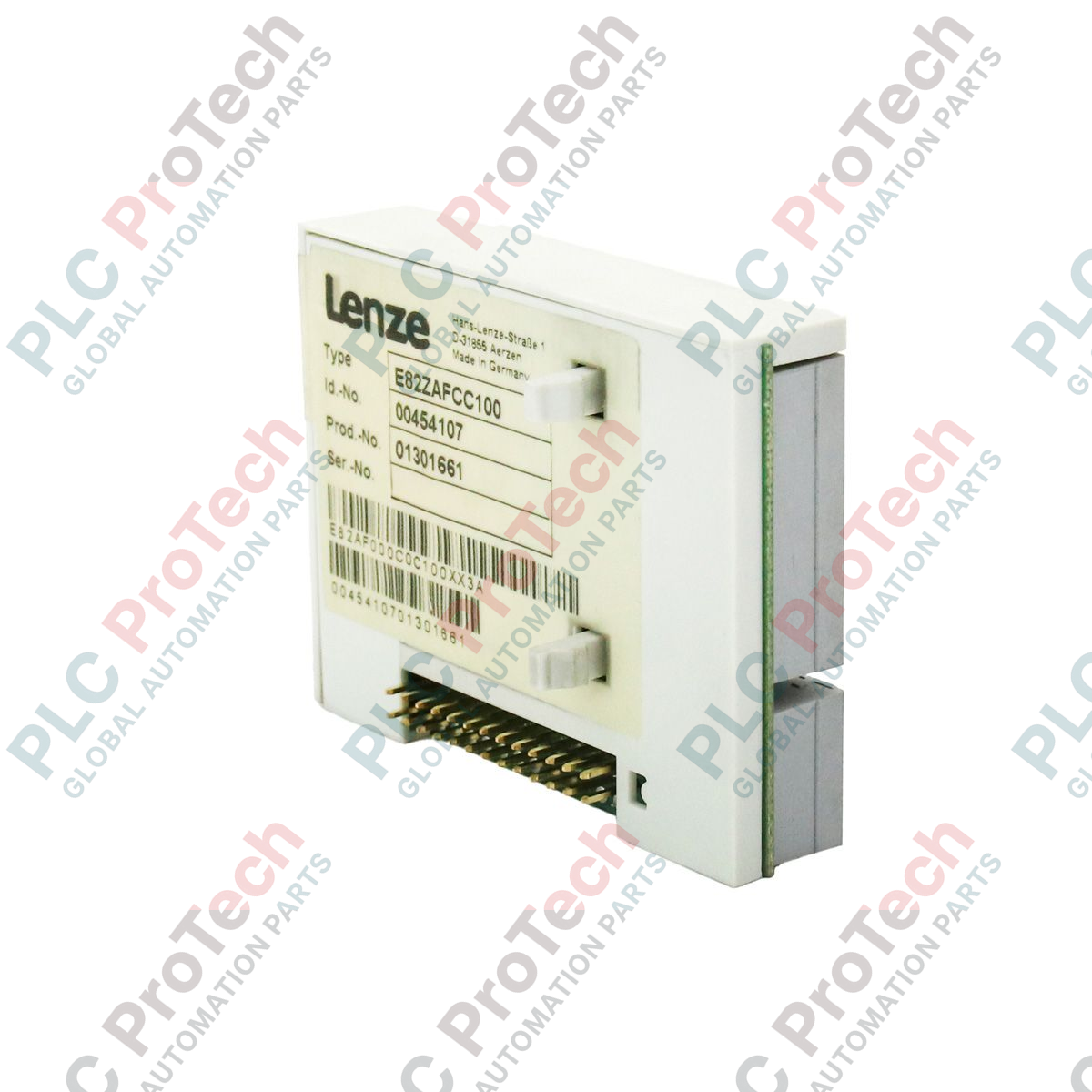

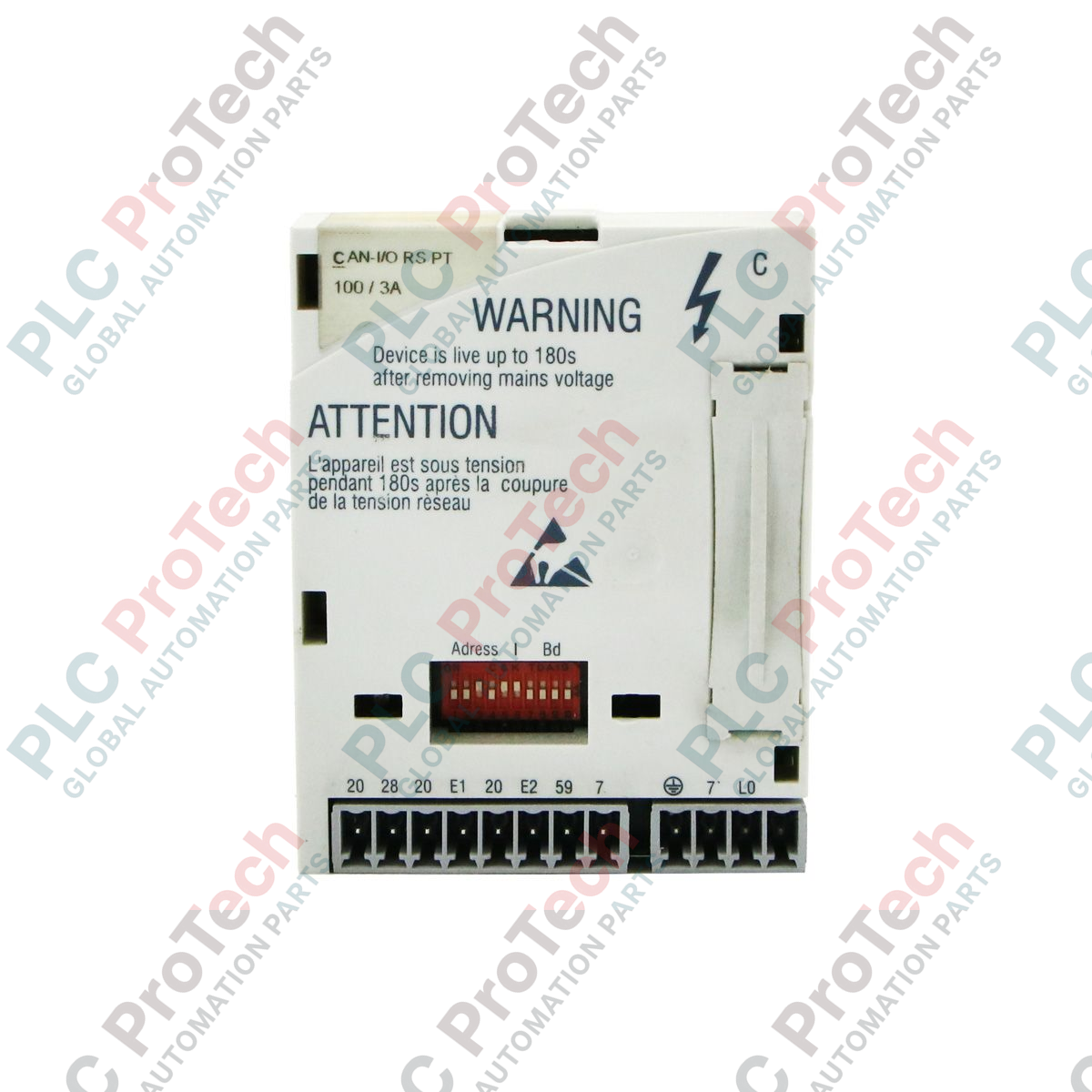

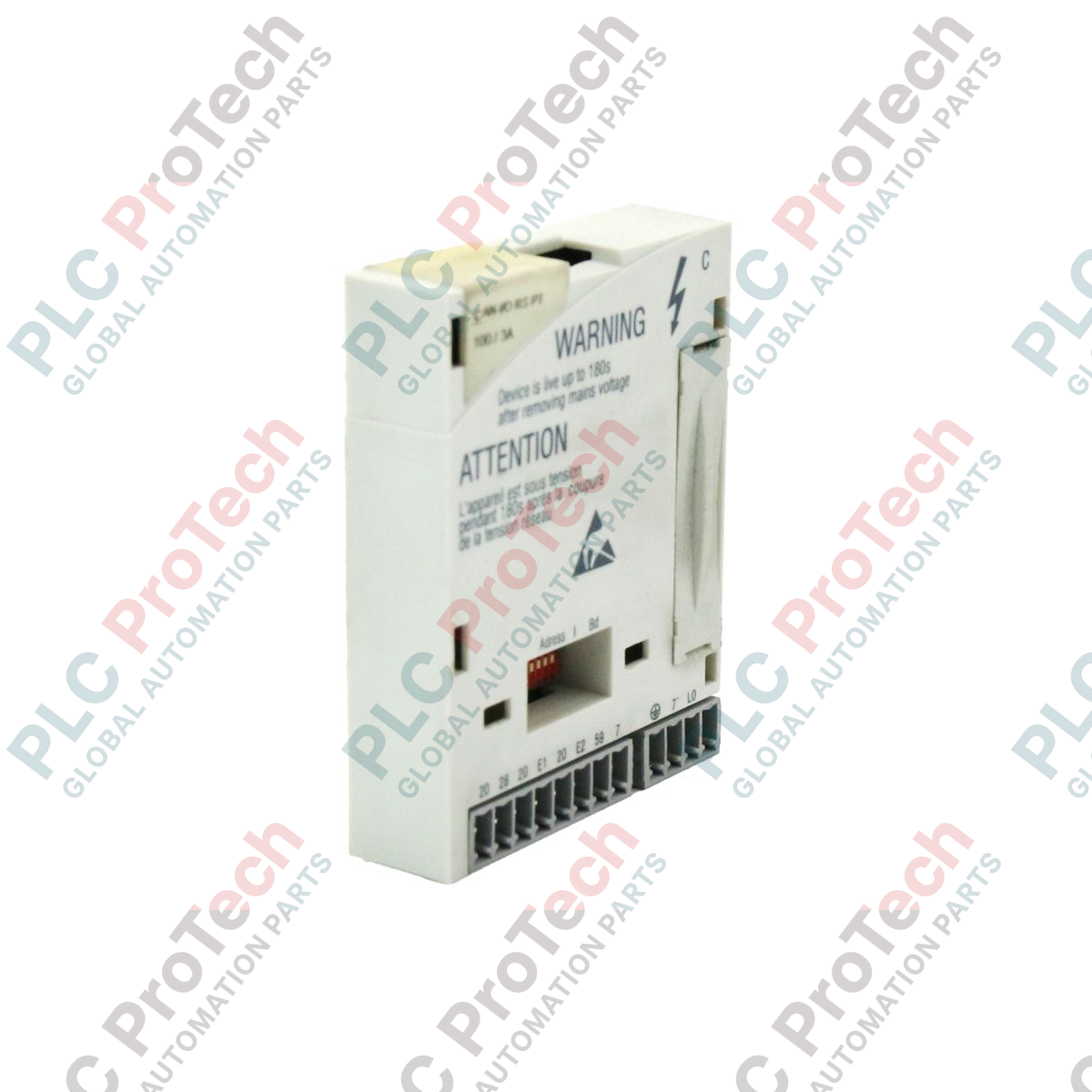

The E82ZAFCC100 (E82ZAFCC100) is a high-precision CAN-I/O communication and functional interface designed for the Lenze 8200 Vector inverter range. In high-demand B2B sectors such as food processing, automated warehousing, and pharmaceutical packaging, this module acts as a localized controller and networking hub. By utilizing the E82ZAFCC100, engineers can achieve rapid data exchange across System Bus (CAN) networks, significantly improving the synchronization of multi-axis drive systems. This reduces mechanical stress on motor couplings and minimizes the risk of production line bottlenecks. Despite its "Phase-Out" status, this module remains an essential component for maintaining and optimizing legacy 8200 Vector architectures where high-speed signal processing is non-negotiable.

Technical Configuration

The E82ZAFCC100 architecture is built around the CANopen protocol, providing a robust RS-485 physical layer interface for deterministic communication. This "PT" (Pluggable Terminal) variant is engineered for modularity, allowing for rapid hardware swaps without the need for complex rewiring. It features an integrated internal logic processor that handles basic I/O tasks independently of the main inverter CPU, reducing the computational load on the drive. The unit supports various baud rates and PDO (Process Data Object) mapping, making it highly adaptable to diverse industrial bus structures. Its compact 5.10 cm width ensures it fits seamlessly into the inverter's standard expansion slot without increasing the drive's footprint.

Technical Specifications

Technical FAQs

Does the E82ZAFCC100 require external power for the CAN communication?

No, the module is powered internally through the 8200 Vector inverter's interface slot. However, ensure the inverter control terminals are correctly powered to maintain signal logic.

What is the maximum cable length supported by the CAN interface?

The distance depends on the baud rate. At 1 Mbit/s, the maximum cable length is 40 meters. For longer runs (up to 1000 meters), the baud rate must be reduced to 20 kbit/s or lower.

Can this module be used for basic digital I/O expansion without a CAN network?

Yes, the module includes integrated I/O terminals that can be utilized as local digital inputs or outputs, even if the CANopen networking capabilities are not fully exploited.

What should I check if the inverter does not recognize the module?

First, ensure the module is fully seated in the slot and the locking screws are secure. Check parameter C0002 to verify if the inverter requires a manual reset to initialize the new hardware.

Engineering & Installation Guide

• Bus Termination and Grounding: The CAN bus must be terminated with a 120 Ohm resistor at both ends of the physical line to prevent signal echoes. When wiring the RS-485/CAN terminals, use twisted-pair shielded cables. The shield should be grounded at the inverter's PE (Protective Earth) rail using a low-impedance clamp to prevent electromagnetic interference from the motor cables.

• Hot-Plugging Prohibition: Never install or remove the E82ZAFCC100 while the inverter is powered on. Doing so can cause electrical arcing across the interface pins, potentially damaging the control board of the 8200 Vector drive. Always wait at least 3 to 5 minutes after power-down for the DC bus capacitors to discharge.

• Extreme Environment Protection: While rated for up to 55 deg C, in environments with high humidity or chemical vapors, ensure the control cabinet is equipped with an appropriate air filter or heat exchanger. The module's PCB is sensitive to conductive dust, which can lead to short circuits between the high-density pin headers.
