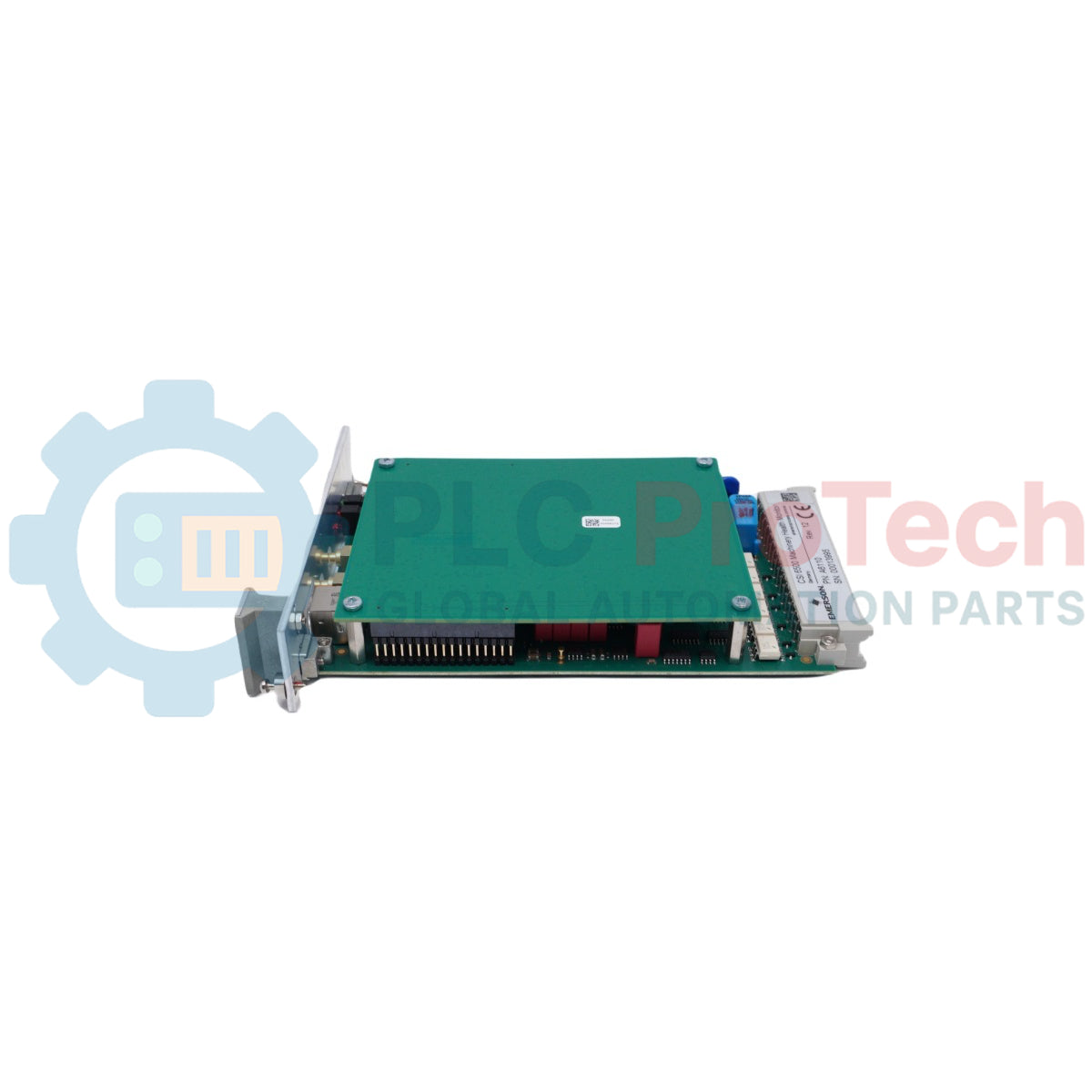

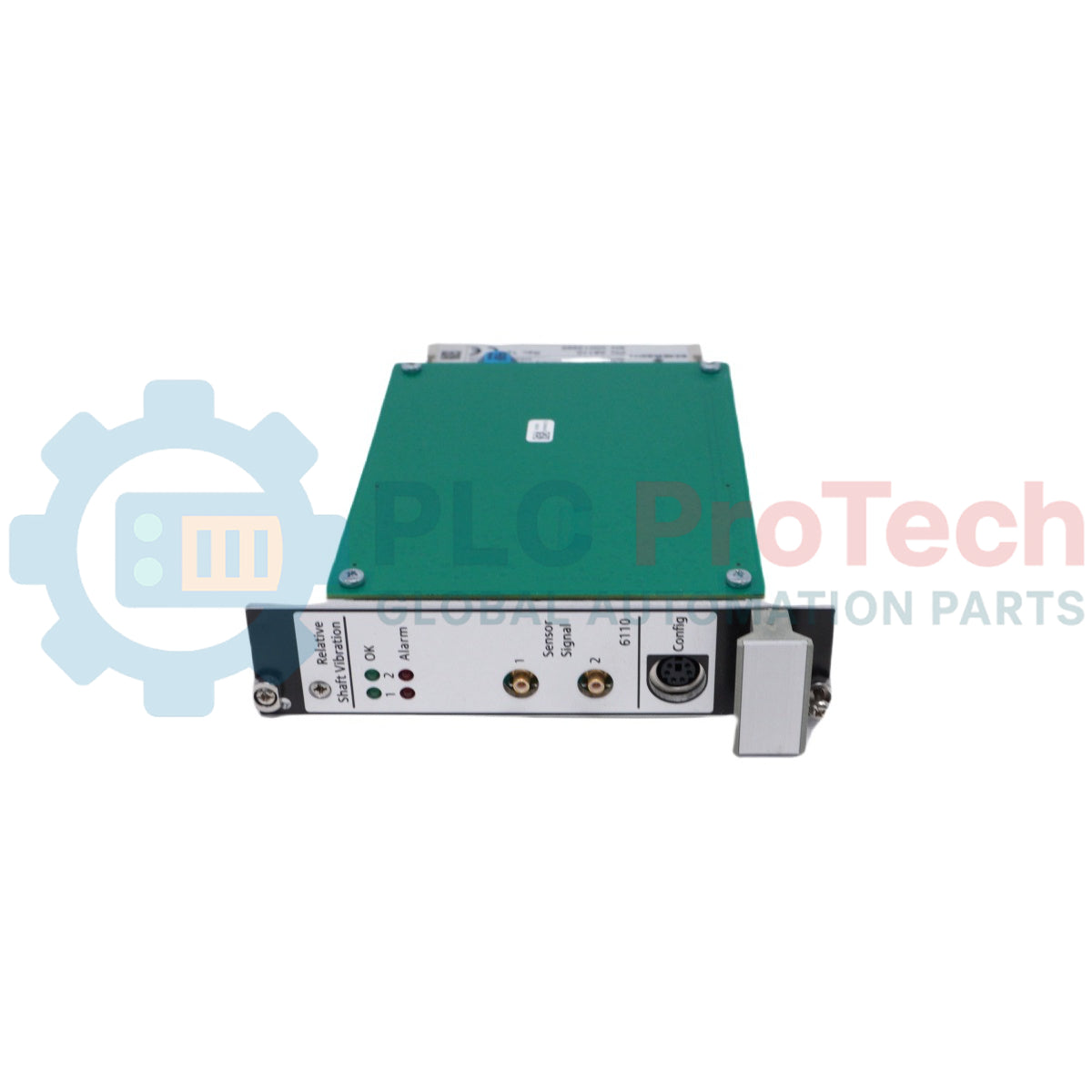

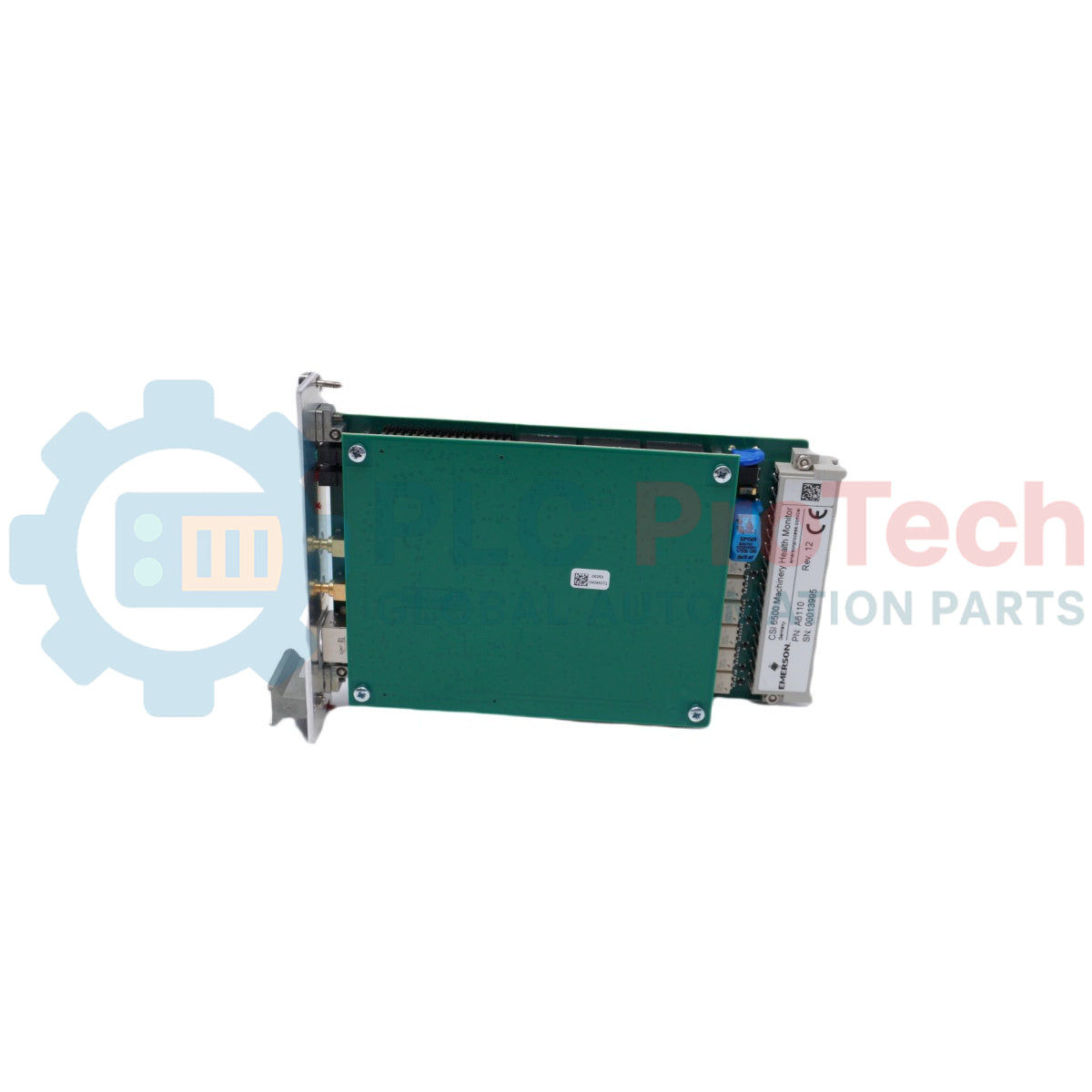

Emerson A6110 AMS 6500 Shaft Relative Vibration Monitor

SKU A6110

Disponibile

12-month warranty
Free returns within 30 days

Manufacturer: Emerson
Product No.: A6110
Origin United States
Product Type: Shaft Relative Vibration Monitor
Barcode: 8537101190
Payment: T/T, Western Union
Weight: 0.3 kg
Dimensions: 3.00 cm x 26.00 cm x 16.00 cm (W x H x D)
Shipping port: Xiamen
Warranty: 12 months

Product Documentation

Technical Datasheet (PDF) Complete specifications and technical drawings.

Quantità

Call sales Contact

Product Description

Description

The Emerson A6110 is a shaft relative vibration monitor designed for monitoring rotating machinery critical assets within the AMS 6500 Machinery Health Monitor architecture. The A6110 standard 1-slot hot-swappable module accepts input signals from non-contact displacement sensors via two independent or combined monitoring channels. Built to API 670 machinery protection standards, the module interfaces with the system backplane and Modbus TCP/IP communication networks to deliver dynamic signal processing, including Smax, 1x, 2x, 1/2x, and phase angle tracking. The card integrates directly into PlantWeb and DeltaV network platforms to deliver real-time machine malfunction detection and protection for industrial turbo machinery.

Features

API 670 compliant 1-slot hot-swappable protection module architecture
Independent dual-channel or combined monitoring modes (Smax, True S peak-to-peak)
Front and rear raw buffered outputs with 0.1-16 kHz frequency range
Dedicated 0-10 VDC shaft position (gap) voltage outputs per channel
Integrated Mini DIN front panel connector supporting RS-232 configuration interfaces
Self-checking diagnostics monitoring hardware integrity, sensor connections, cable conditions, and internal temperature
Remote-selectable limit multiply and trip bypass capabilities
Proportional 0/4-20 mA and 0-10 VDC output options per channel

Applications

Steam turbines
Gas turbines
Hydro turbo machinery
Industrial turbo compressors

Ordering Information

Model Number	Product Description
A6110	Vibration Monitor

Technical Specifications

Parameter	Specification
Manufacturer	Emerson
Model	A6110
Transducer Inputs	Two, independent or combined monitoring modes
Input Resistance	>100 kOhm
Input Voltage Range	0 to -22 VDC
Input Frequency Range	Lower cutoff 1 or 5 Hz; Upper cutoff 50-2000 Hz adjustable
Smallest Measuring Range	0-400 mV
Largest Measuring Range	0-8000 mV
Sensor Power Nominal Voltage	-26.7 V
Sensor Power Current	Nominal 20 mA, maximum 35 mA
Front Buffered Output Signal	+/-10 V, 100 Ohm load, freq. range 0.1-5 kHz (-3 dB)
Current Outputs	0/4-20 mA proportional to main value
Current Output Load	<500 Ohm
Voltage Outputs	0-10 VDC proportional to main value
Voltage Output Load	>10 kOhm
DC Gap Voltage Outputs	0-10 VDC proportional to shaft position
Rear Buffered Output Range	0.1-16 kHz (-3 dB)
Output Accuracy	+/-1% of full scale
Settling Time	Configurable 0-10 seconds
Alarm Setpoints	Alert and Danger, selectable normally open or normally closed
Alarm Time Delays	0-5 second delay per channel
Chassis Space	1 slot

Connections/Interfaces

Connector Pin	Function
Mini DIN Front Connector	RS-232 interface for module configuration, parameters, and status monitoring
Front Buffered Outputs	Dual raw signal outputs identical to transducer sensor inputs
Rear Current Outputs	Dual 0/4-20 mA outputs proportional to channel main value
Rear Voltage Outputs	Dual 0-10 VDC outputs proportional to main value
Rear DC Voltage Outputs	Dual 0-10 VDC outputs proportional to shaft position (gap)
Rear Buffered Outputs	Dual AC/DC raw buffered output signals
Remote Control Inputs	Dedicated relay input terminals for Limit Multiply and Trip Bypass

Installation Guidelines

Module Insertion: Insert the 1-slot hot-swappable module into the designated slot of the AMS 6500 rack housing.
Handle Assembly: Utilize the integrated front handle to insert or remove the card from the rack frame and display point identification label tags.
Field Wiring Isolation: Ensure field transducer input cables are galvanically separated from system voltages and power supply lines.
Config Port Access: Connect an RS-232 communication cable to the front-panel Mini DIN interface socket for local parameter adjustment via configuration software.

Compliance and Certifications

Machinery Protection: API 670 compliant

Shipping & Returns

Global Express Shipping

Standard Delivery: 4–6 business days via DHL, FedEx, and UPS.
Express Dispatch: Same-day dispatch for in-stock orders placed before 2:00 PM (GMT+8).
Worldwide Coverage: Serving over 150 countries.

Returns & Warranty

30-Day Guarantee: Returns accepted for in-stock products in original, factory-sealed packaging.
12-Month Warranty: Every industrial component is backed by our technical warranty.

FAQ

How many chassis slots does the vibration monitoring module occupy?

The module installs into a single slot inside the standard machinery health rack.

What local communication interface is available on the front panel?

A Mini DIN socket provides an RS-232 serial interface for configuration and status monitoring.

What sensor supply voltage does the device provide to field transducers?

The internal power supply delivers a nominal -26.7 VDC galvanically isolated sensor voltage.
