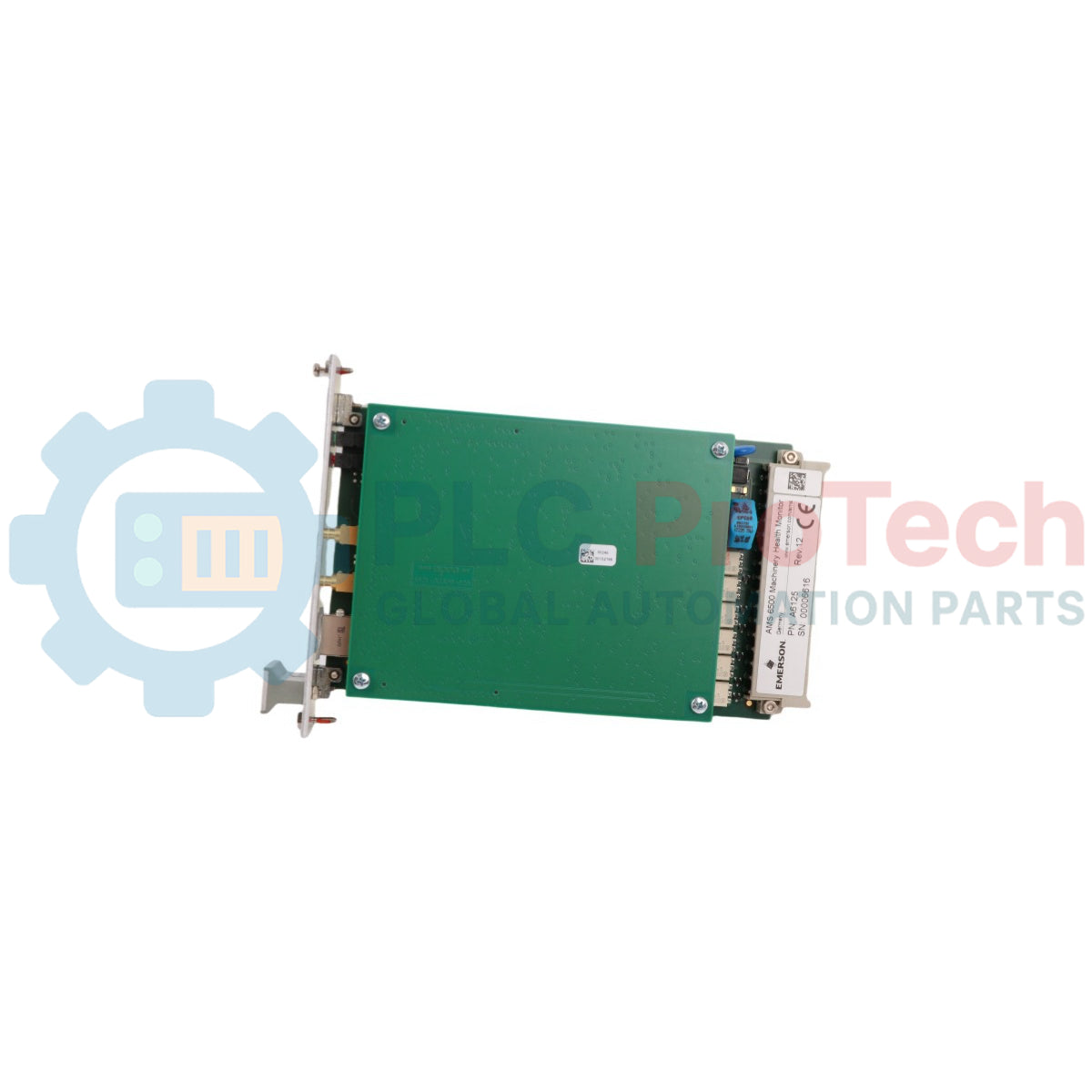

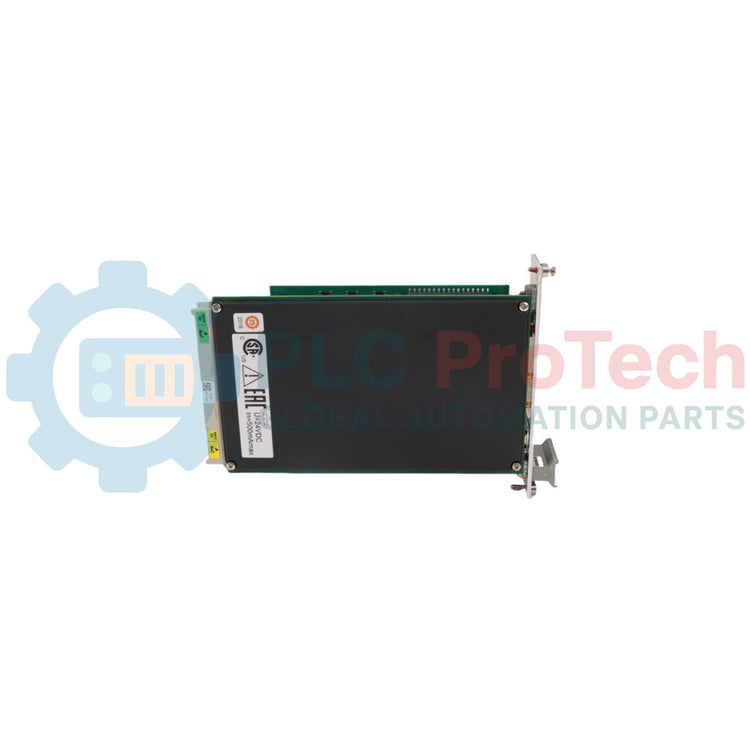

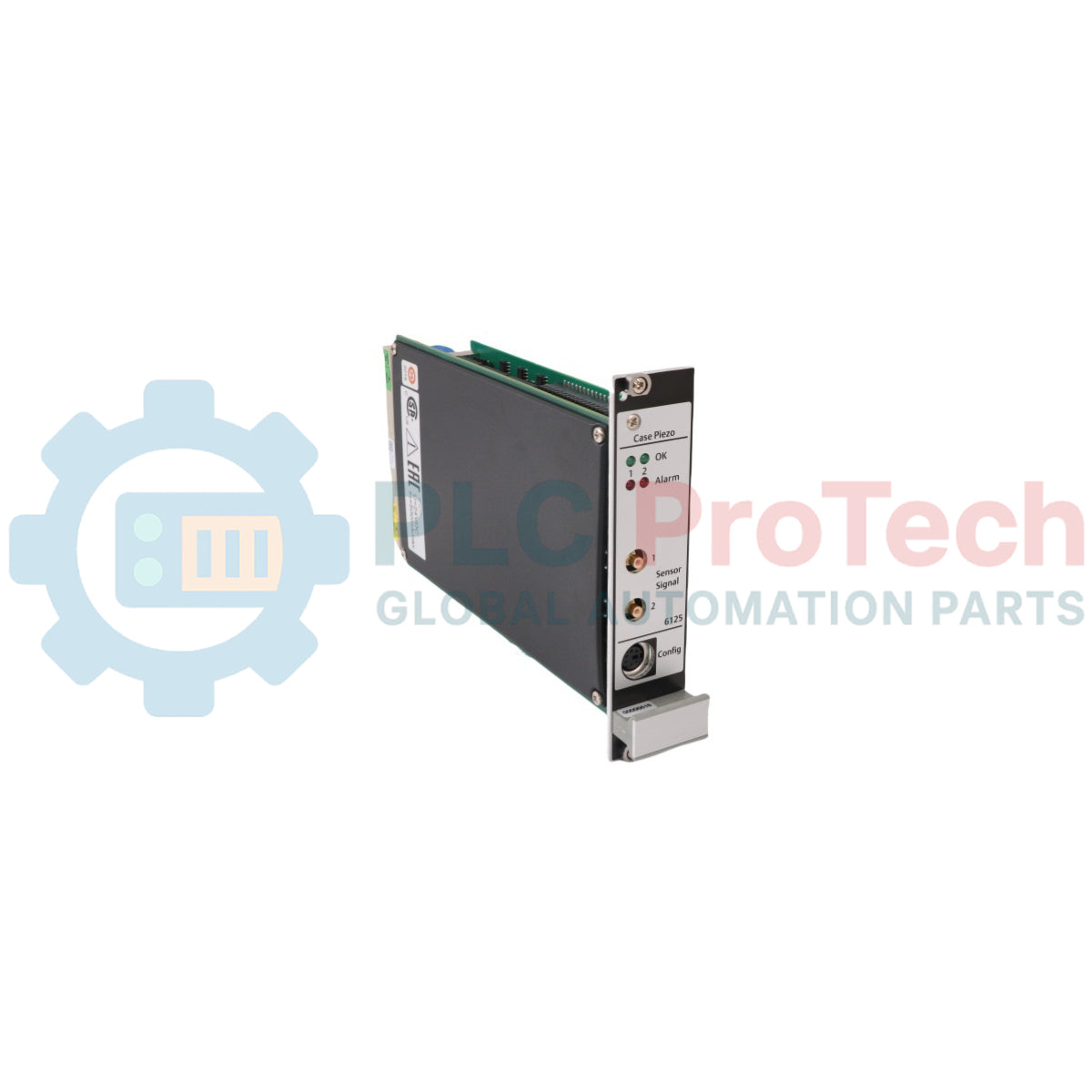

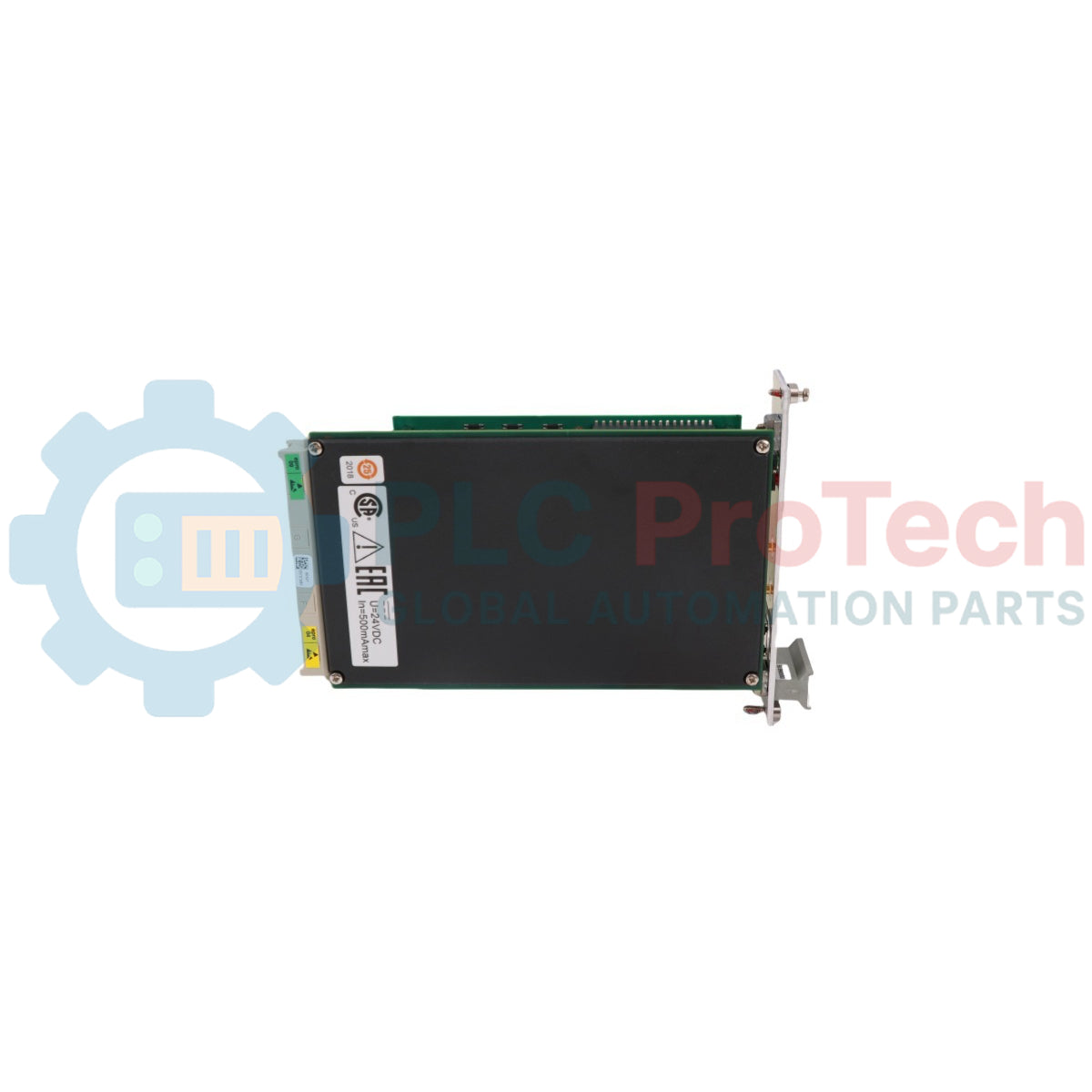

The Emerson A6125 (part of the AMS 6500 / CSI 6500 series) acts as a high-performance, dual-channel monitor specifically designed to capture and process absolute case vibration. Utilizing piezoelectric sensor technology, this module excels in monitoring machines with rolling-element bearings and high-frequency components, such as gearboxes, small pumps, and industrial fans.
By converting raw signals from piezoelectric accelerometers or velocity sensors into actionable vibration data, the A6125 ensures that operators receive real-time alerts on mechanical degradation. Its high-speed processing capabilities allow it to detect early-stage bearing wear and gear mesh faults, making it an indispensable asset for comprehensive Machinery Protection Systems (MPS). The module integrates seamlessly into the AMS 6500 rack, providing a unified interface for both protection and predictive maintenance.
The A6125 hardware architecture focuses on signal purity and high-speed logic to ensure machine safety in real-time.
The module monitors two independent measurement points simultaneously. This dual-path design allows for "A/B" comparison or X-Y monitoring, ensuring that the system captures the full vibration profile of a bearing housing without requiring additional rack space.
Built-in configurable high-pass and low-pass filters eliminate unwanted low-frequency "noise" or irrelevant high-frequency electrical interference. This ensures that the monitor only triggers alarms based on actual mechanical movement, significantly reducing the risk of expensive false trips.
The A6125 features independent alarm and danger relays. In the event that vibration levels exceed pre-set safety thresholds, the module executes trip commands in milliseconds, isolating the asset before catastrophic failure occurs.
| Parameter | Specification Details |
| Input Signals | Piezoelectric Accelerometers / Velocity Sensors |
| Monitoring Mode | Absolute Case Vibration |
| Frequency Range | 2 Hz to 20,000 Hz (Sensor Dependent) |
| Measurement Units | g (Acceleration), mm/s or in/s (Velocity) |
| System Compatibility | Emerson AMS 6500 / CSI 6500 Rack |
| Accuracy | ±1% of Full Scale |
| Relay Outputs | Individual Alert and Danger Contacts |
| Output Signal | 0/4-20 mA Analog Outputs |
To maximize the efficacy of the A6125, engineers must adhere to strict signal grounding and sensor mounting protocols.
Because piezoelectric sensors monitor case vibration, the mounting surface must be perfectly flat and free of paint or rust. Use a mounting stud or high-strength adhesive to ensure the sensor is "stiffly" coupled to the machine. Any mechanical looseness at the sensor base will manifest as false high-frequency noise on the A6125 display.
The signal cable between the sensor and the A6125 module must be a twisted, shielded pair. Terminate the shield only at the rack end (common ground) to prevent ground loops. In high-EMI environments, use rigid conduit to protect the high-impedance signal from electrical induction.
The A6125 represents a bridge between basic protection and advanced diagnostics. While standard proximity probes monitor the shaft, the A6125 monitors the housing, catching faults that shaft probes might miss, such as outer-race bearing cracks or structural resonance.
Its modular "hot-swap" design allows maintenance teams to replace modules without powering down the entire AMS 6500 rack, ensuring continuous protection of critical plant assets. The module's ruggedized front-panel LEDs provide instant visual status of "OK," "Alert," and "Danger" states, allowing for quick floor-level inspections.
Q1: Can the A6125 convert acceleration signals into velocity?
A1: Yes. The A6125 features internal integration circuitry that allows it to convert raw acceleration input (g) into velocity (mm/s or in/s), which is often the preferred metric for identifying general machine health according to ISO standards.
Q2: What happens if the sensor cable is cut or disconnected?
A2: The A6125 includes an "OK" monitoring circuit. If the sensor bias voltage falls out of the designated range (indicating a short or open circuit), the "OK" LED will turn off and the "Danger" relay will be inhibited to prevent a false machine trip.
Q3: Is this module compatible with the older CSI 6000 racks?
A3: Generally, the A6125 is designed for the 6500 series. While there is legacy overlap, it is highly recommended to verify the backplane compatibility and firmware version of your rack before installation to ensure full digital communication.
Q4: How do I configure the alarm setpoints?
A4: Setpoints are configured via the AMS 6500 Configuration Software. You can define "Alert" levels for early warning and "Danger" levels for automatic shutdown, with adjustable time delays to account for transient vibrations during machine startup.
Global Express Shipping
Returns & Warranty
Manufacturer: Emerson
Product No.: A6125
Country of origin:United States
Product Type: Case Piezoelectric Vibration Monitor
Barcode: 8537101190
Payment: T/T, Western Union
Weight: 300g
Dimensions: 18.8cm x 12.7cm x 3cm
Shipping port: Xiamen
Warranty: 12 months
