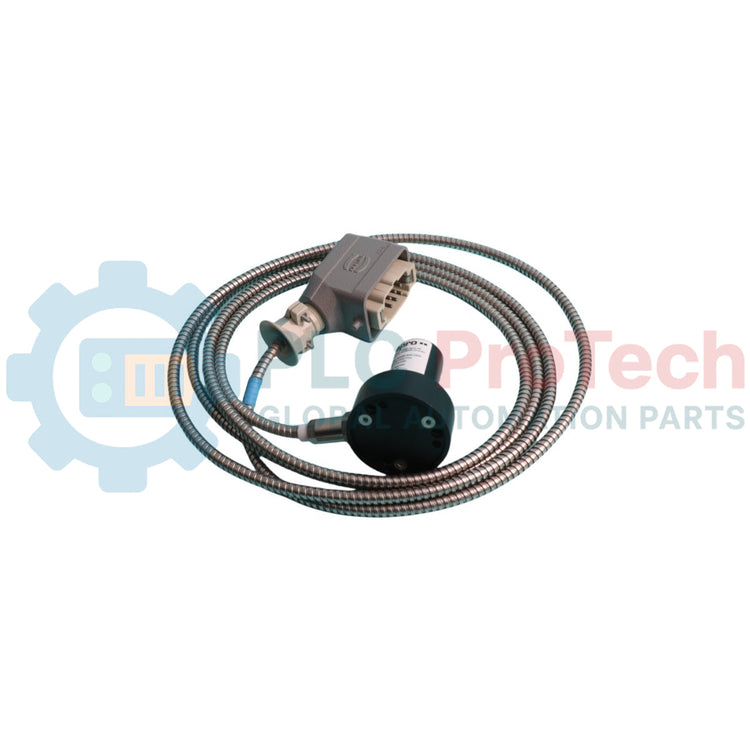

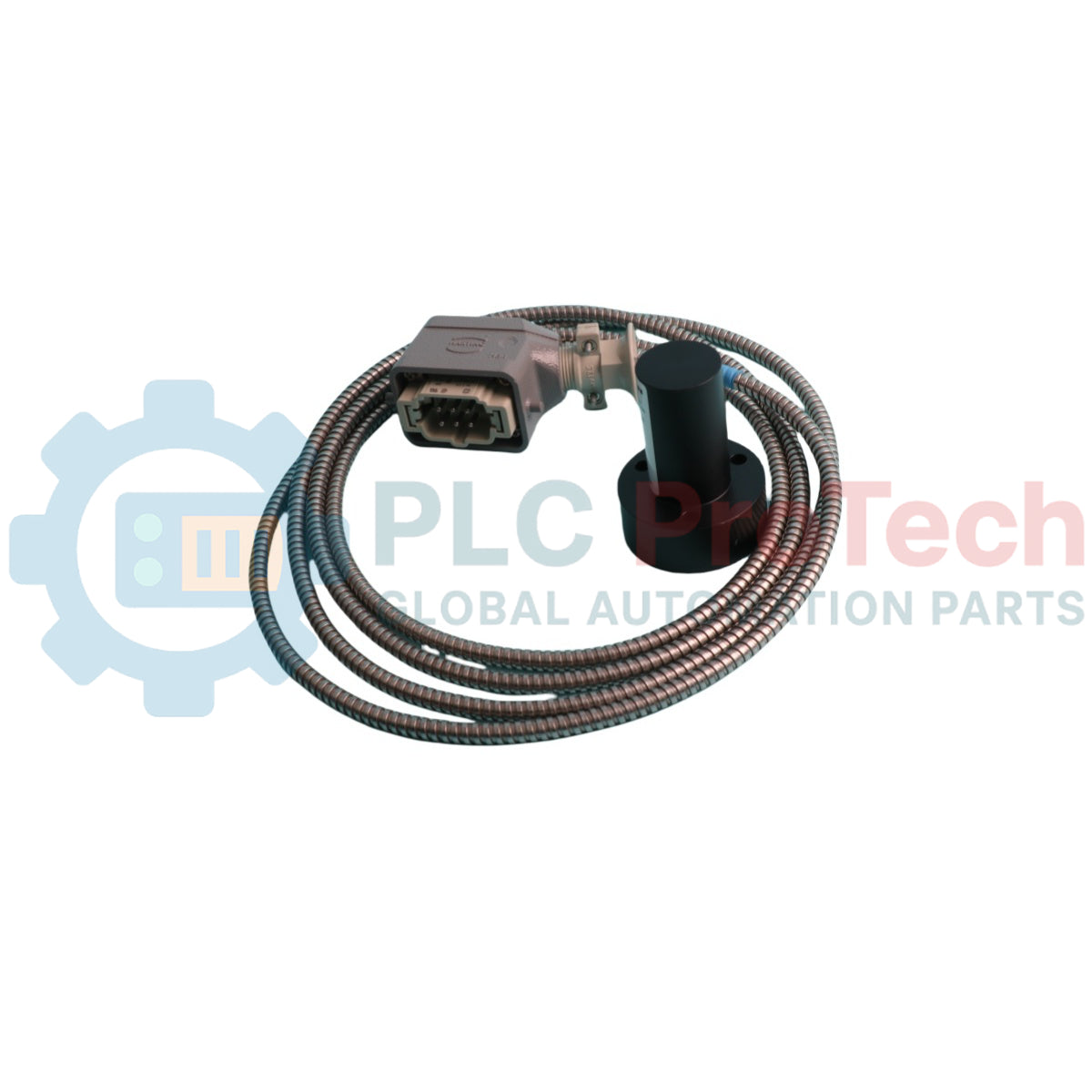

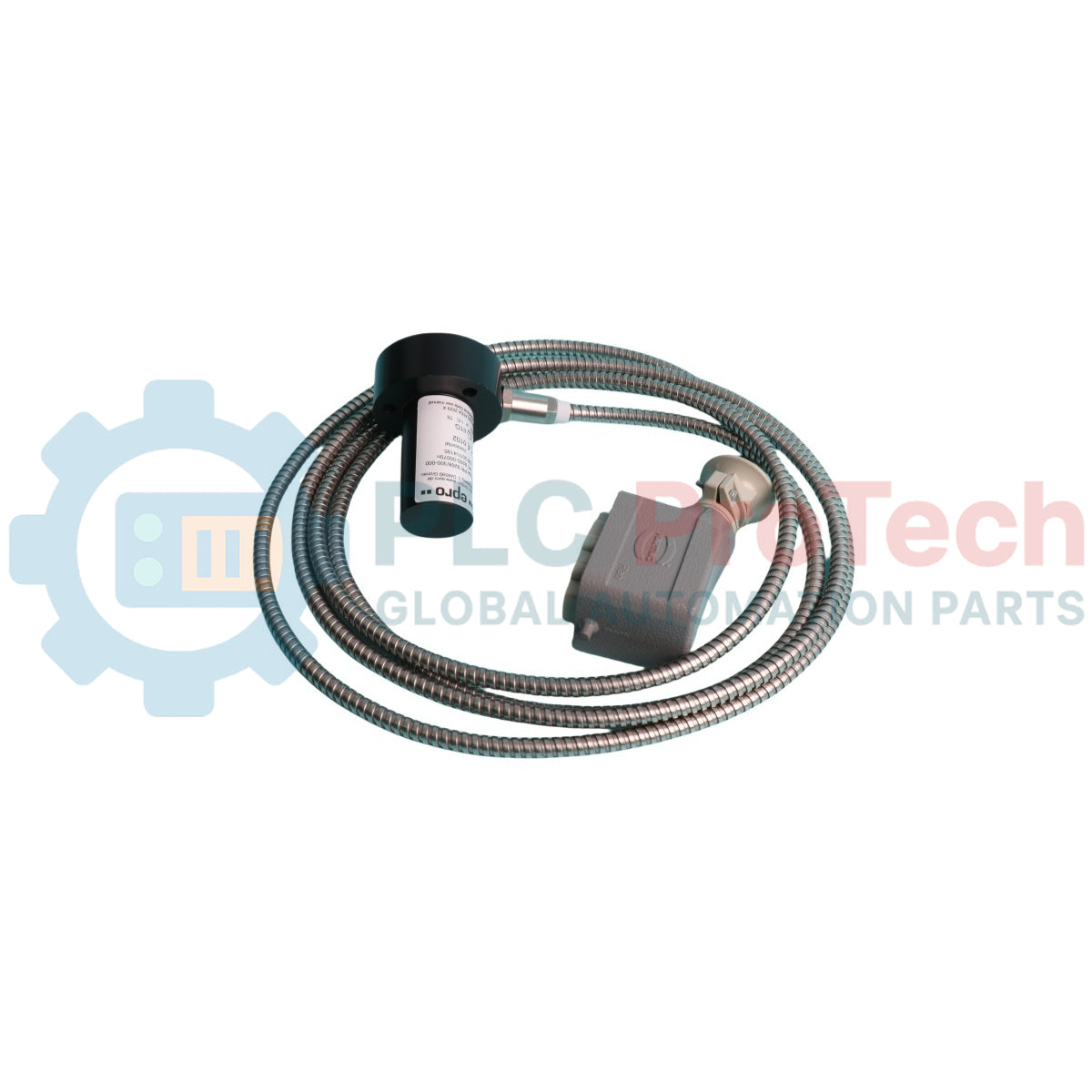

The Emerson PR9268/017-100 is a mechanical electrodynamic velocity sensor designed for absolute vibration measurement of critical turbomachinery applications. It provides case vibration monitoring for systems such as steam, gas, and hydro turbines, as well as compressors, pumps, and fans. Operating as a self-powered device, this velocity sensor converts mechanical vibration into an electrical signal proportional to velocity, transmitting dynamic data to continuous machinery protection systems like AMS monitoring platforms.
| Parameter | Specification |
|---|---|
| Manufacturer | Emerson |
| Sensor Type | Omni Directional |
| Power Requirements | Self-Powered |
| Sensitivity | 17.5 mV/mm/s |
| Frequency Range | 14 to 1000 Hz |
| Natural Frequency | 14 Hz $\pm$ 7% @ 20 degC (68 degF) |
| Transverse Sensitivity | < 0.1 @ 80 Hz |
| Vibration Amplitude | 500 $\mu$m peak-peak |
| Amplitude Linearity | < 2% |
| Maximum Acceleration | 10g (98.1 $m/s^2$) peak-peak continuous / 20g (196.2 $m/s^2$) peak-peak intermittent |
| Maximum Transverse Acceleration | 2g (19.62 $m/s^2$) |
| Damping Factor | ~0.696 @ 20 degC (68 degF) |
| Resistance | 1723 $\Omega$ $\pm$ 2% |
| Inductance | $\le$ 90 mH |
| Active Capacity | < 1.2 nF |
| Operating Temperature Range | -20 to +100 degC (-4 to 212 degF) |
| Protection Class | IP65 |
| Relative Humidity | 0 to 100%, Non Condensing |
| Housing Material | Stainless Steel |
| Cable Core Material / Size | PTFE, 3x 0.5 $mm^2$ |
| Armor Material | Stainless Steel |
| Plug Material | Die Cast Aluminium |
Global Express Shipping
Returns & Warranty
Manufacturer: Emerson
Product No.: PR9268/017-100
Country of origin:United States
Product Type: Mechanical velocity sensor
Barcode: 8537101190
Payment: T/T, Western Union
Weight: 930g
Dimensions: 29.5 mm x 30 mm x 30 mm (H x W x D)
Shipping port: Xiamen
Warranty: 12 months
