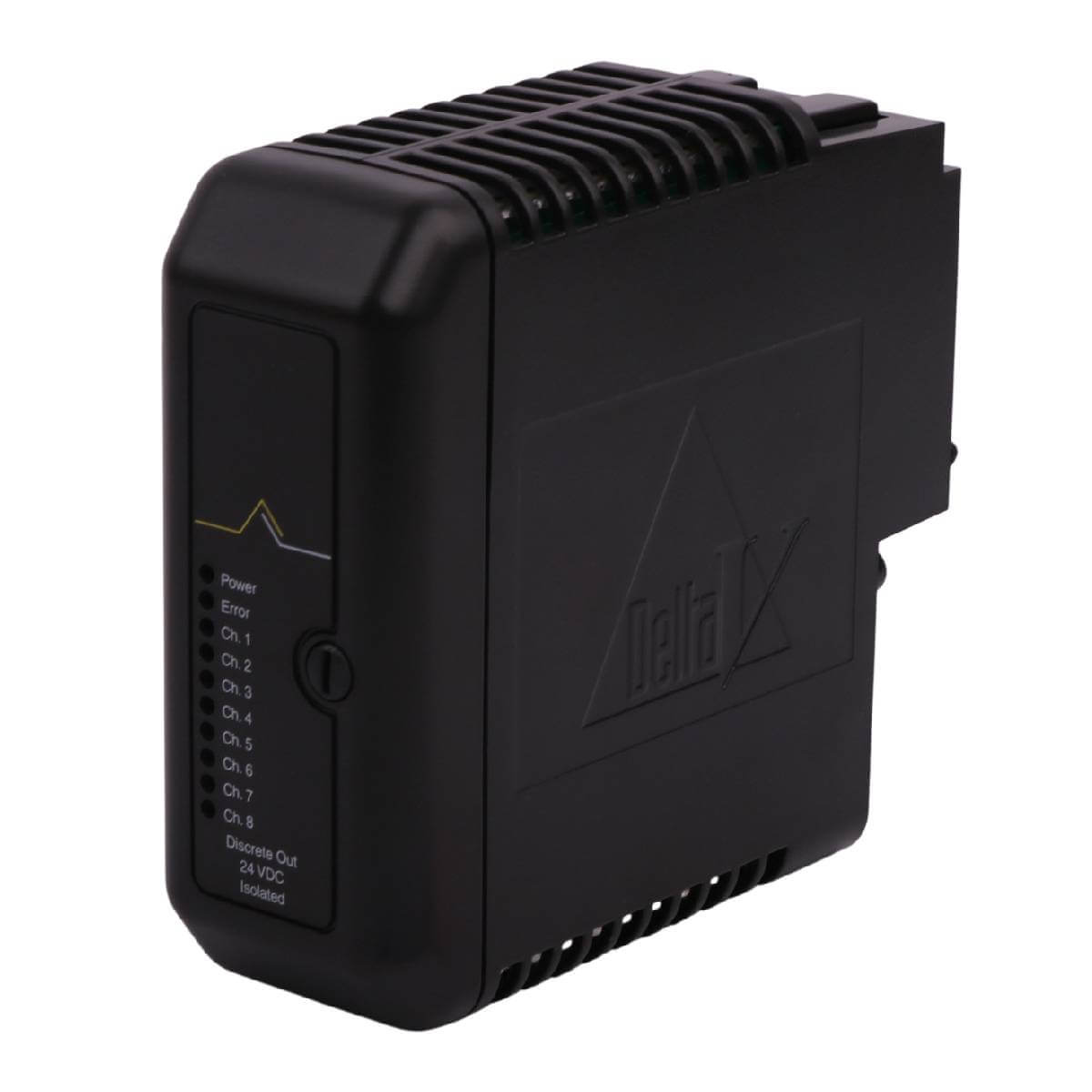

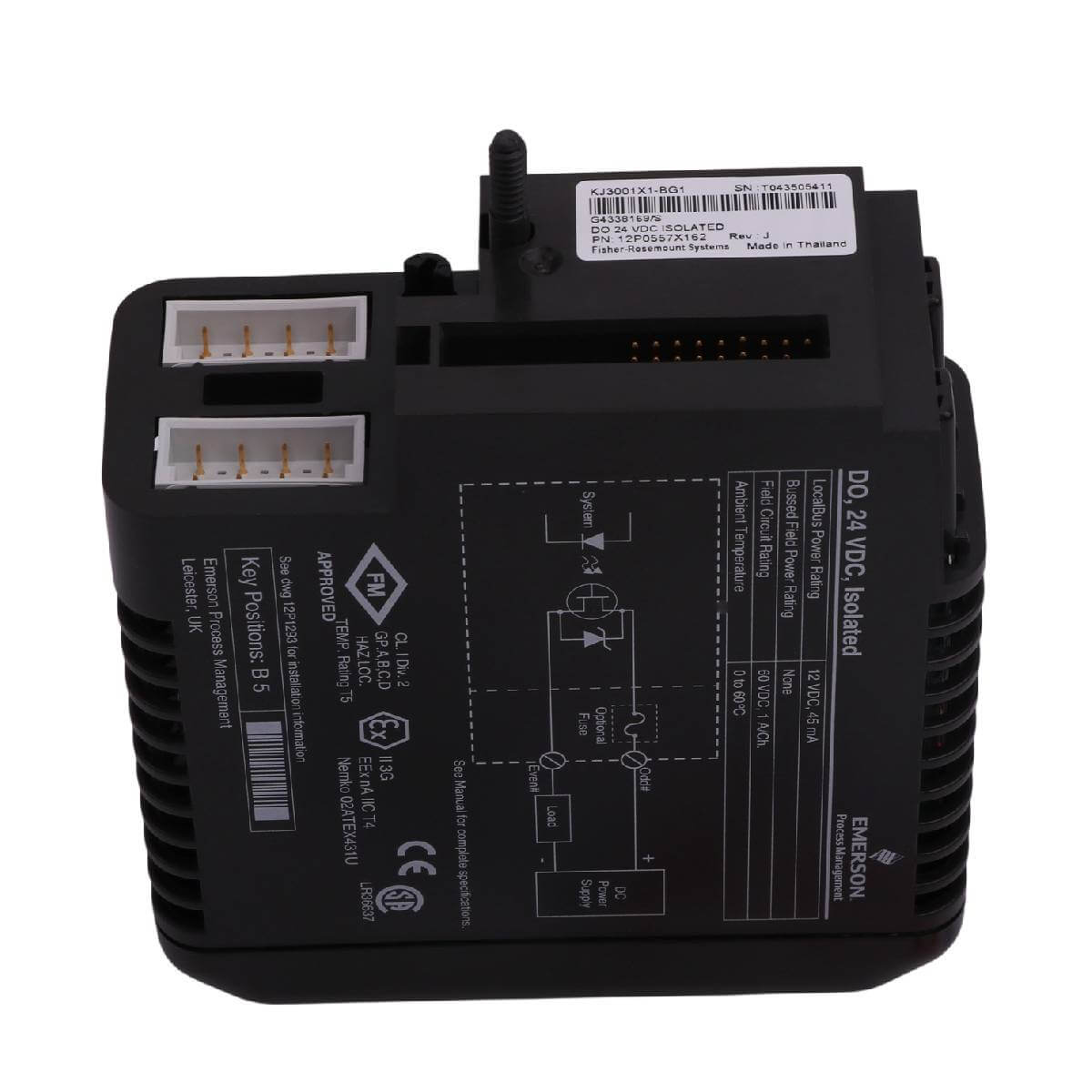

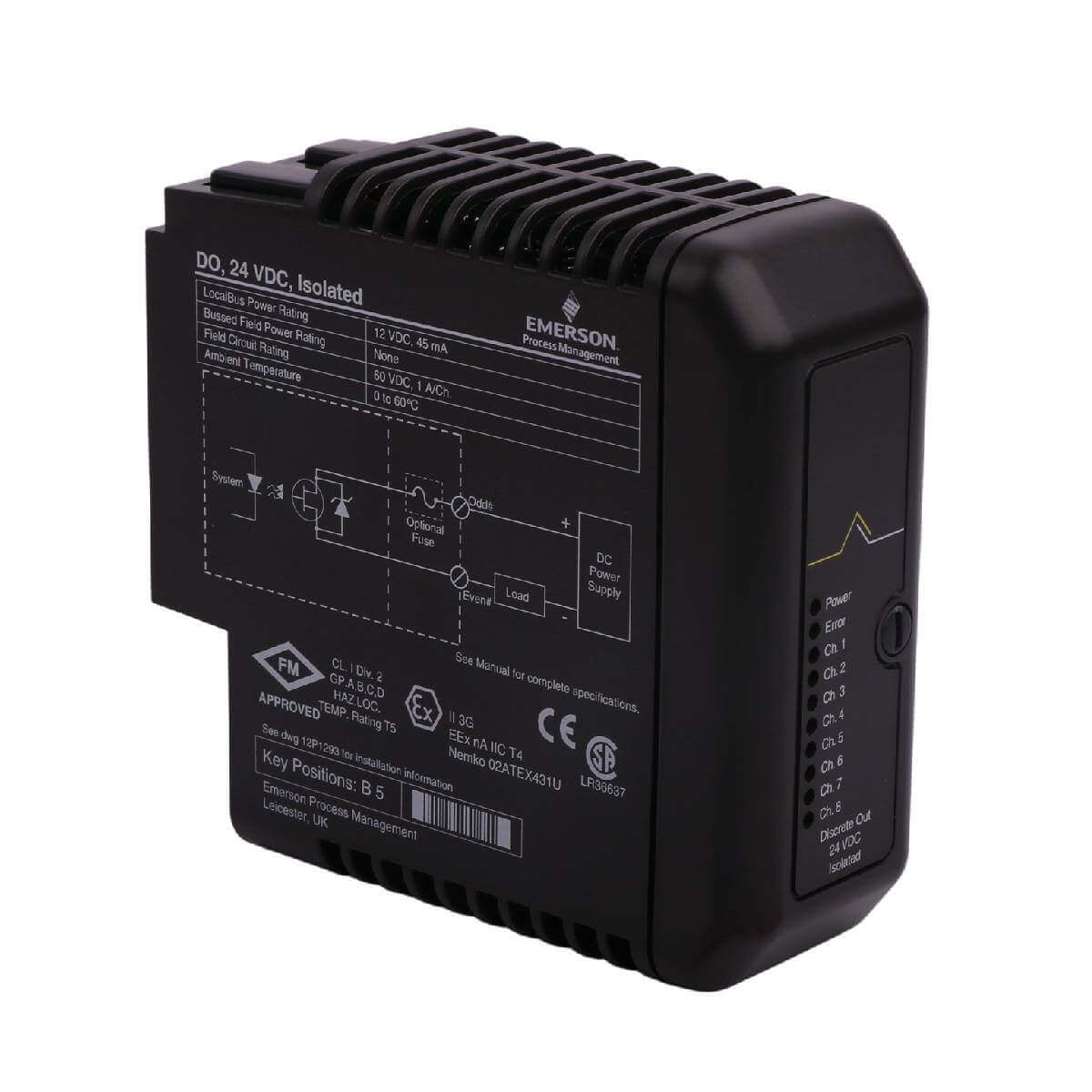

Emerson VE4002S1T1B2 KJ3001X1-BG1 12P0557X162 DeltaV Discrete Output Module

SKU KJ3001X1-BG1

Disponibile
  • 12-month warranty
  • Free returns within 30 days
  • Manufacturer: Emerson
  • Product No.: KJ3001X1-BG1
  • Origin United States
  • Product Type: Discrete Output Module
  • Barcode: 8537101190
  • Payment: T/T, Western Union
  • Weight: 0.2 kg
  • Dimensions: 4.2 x 12.5 x 10.5 cm
  • Shipping port: Xiamen
  • Warranty: 12 months

Tags

DeltaV Discrete Output Modules
Quantità
Call sales Contact

Product Description

Description

The KJ3001X1-BG1 is an isolated 8-channel discrete digital output module developed by Emerson for use within DeltaV™ distributed control systems. This field-mounted control component serves as an interface between system logic control and field equipment, transforming internal execution commands into isolated 24 VDC output signals. Engineered specifically to interface with automated infrastructure like solenoid valves, relays, and industrial indicators, it provides physical separation between the internal system architecture and external field power distribution loops to manage noise isolation and eliminate ground loops.

Features

  • 8 individual isolated discrete channels
  • Non-sparking deployment configuration
  • Galvanic isolation barriers for up to 60 VDC operational limits
  • Compatible with fused I/O termination mechanisms

Applications

  • Distributed Control Systems (DCS) process automation
  • Solenoid valve control circuits
  • Relay and indicator line switching
  • Hazard-rated process environment control loops

Ordering Information

Model Number Description
KJ3001X1-BG1 Discrete Output Module, 8 Point, 24 VDC Isolated
VE4002S1T1B2 Fused I/O Termination Block

Technical Specifications

Parameter Specification
Manufacturer Emerson (Fisher-Rosemount Systems)
Product Model KJ3001X1-BG1
Spare Model / PN 12P0557X162
Revision K
Module Type DO 24 VDC ISOLATED
Output Type Discrete, Isolated, 8 Point
LocalBus Power Rating 12 VDC, 45 mA
Bussed Field Power Rating None
Field Circuit Rating 60 VDC, 1 A/Ch.
Ambient Temperature 0 to 60 degC
Key Positions B 5
Estimated Shipping Size 4.2 x 12.5 x 10.5 cm
Weight 0.2 kg

Connections/Interfaces

Connector Pin Function
Odd# + DC Power Supply / Optional Fuse Connection
Even# Load (-)

Installation Guidelines

  • Establish precise mechanical orientation using the predefined Key Positions B 5 on the module carrier before locking the housing.
  • Consult system engineering drawing 12P1293 for complete loop installation layouts.
  • Restrict field wiring parameters to the defined limits of 60 VDC, 1 A maximum per channel circuit.
  • Wire the external system loads in series with the designated Odd# polarity terminals (+ DC supply) and the Even# polarity terminals (Load side).
  • Keep ambient environment values between 0 and 60 degC without obstruction to top and bottom heat dissipation slots.

Compliance and Certifications

  • FM APPROVED: CL. I Div. 2 GP. A,B,C,D HAZ. LOC. TEMP. Rating T5
  • ATEX: II 3G EEx nA IIC T4 (Nemko 02ATEX431U)
  • CE Marked
  • CSA Certified (LR36637)
Shipping & Returns

Global Express Shipping

  • Standard Delivery: 4–6 business days via DHL, FedEx, and UPS.
  • Express Dispatch: Same-day dispatch for in-stock orders placed before 2:00 PM (GMT+8).
  • Worldwide Coverage: Serving over 150 countries.

Returns & Warranty

  • 30-Day Guarantee: Returns accepted for in-stock products in original, factory-sealed packaging.
  • 12-Month Warranty: Every industrial component is backed by our technical warranty.
FAQ
What function do the Odd and Even pin mappings provide on the block?
The Odd pins connect directly to the positive terminal of the external DC power supply through an optional fuse loop, while the Even pins connect through the external field load to the negative terminal.
Does this output block provide onboard power to the field loop?
No. The bussed field power rating is specified as None, meaning all operational field loops require power routing from an external DC power supply.
Is the unit suitable for deployment in hazardous industrial areas?
Yes, it is rated for hazardous locations with Class I Division 2 Groups A, B, C, D (Temp Rating T5) approvals and ATEX II 3G EEx nA IIC T4 certification.
Reviews
