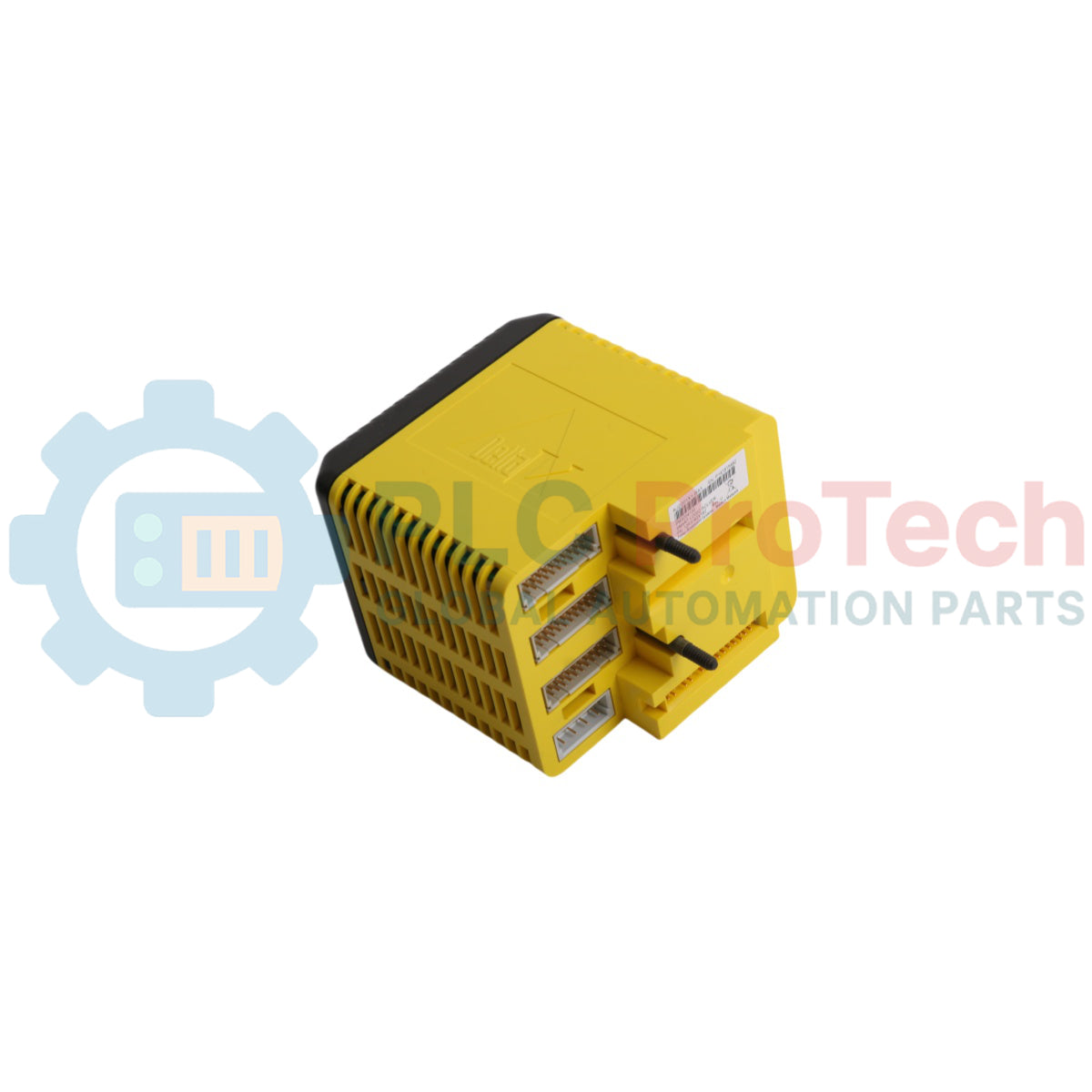

EMERSON SLS1508 VS3202 KJ2201X1-BA1 12P3162X162

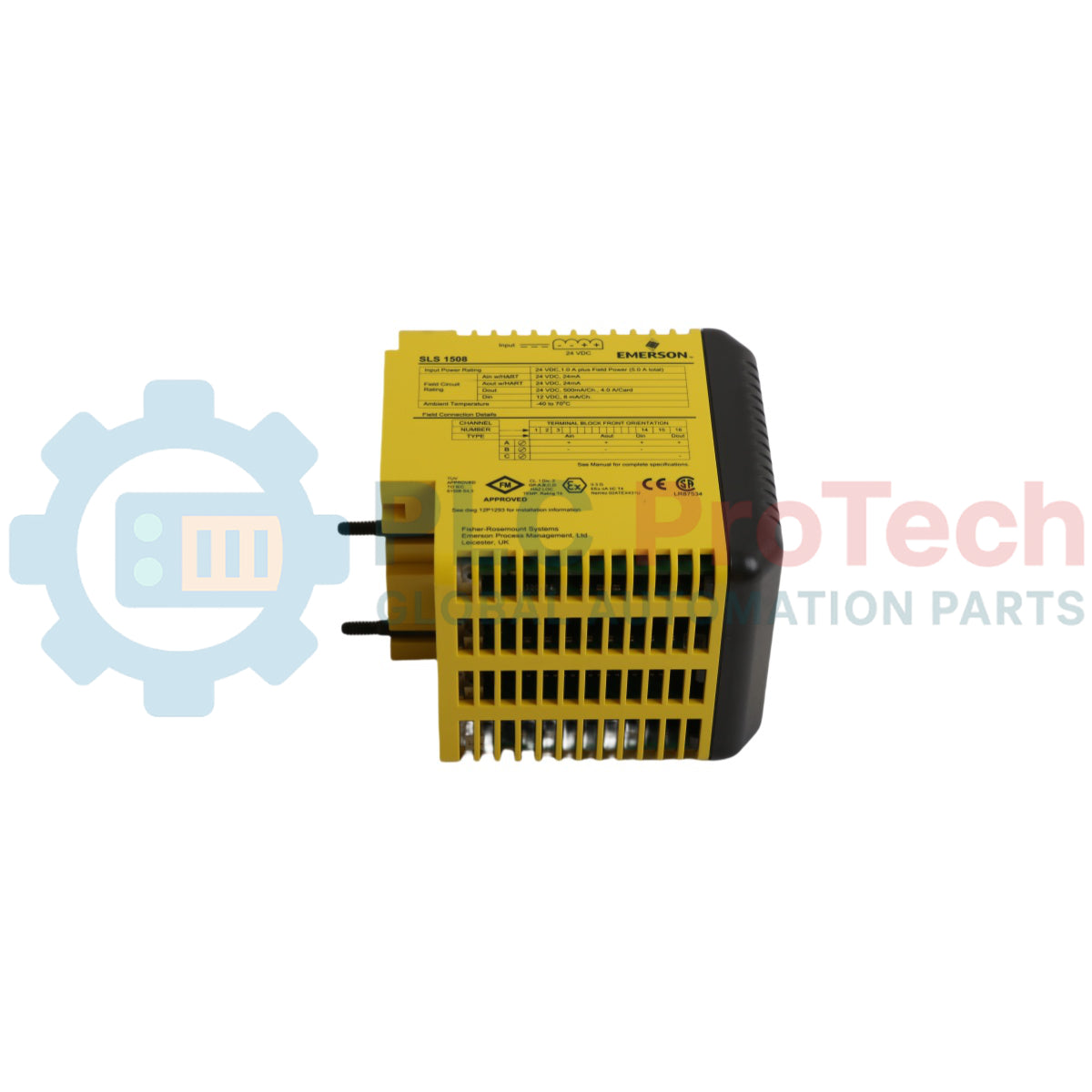

EMERSON SLS1508 VS3202 KJ2201X1-BA1 12P3162X162

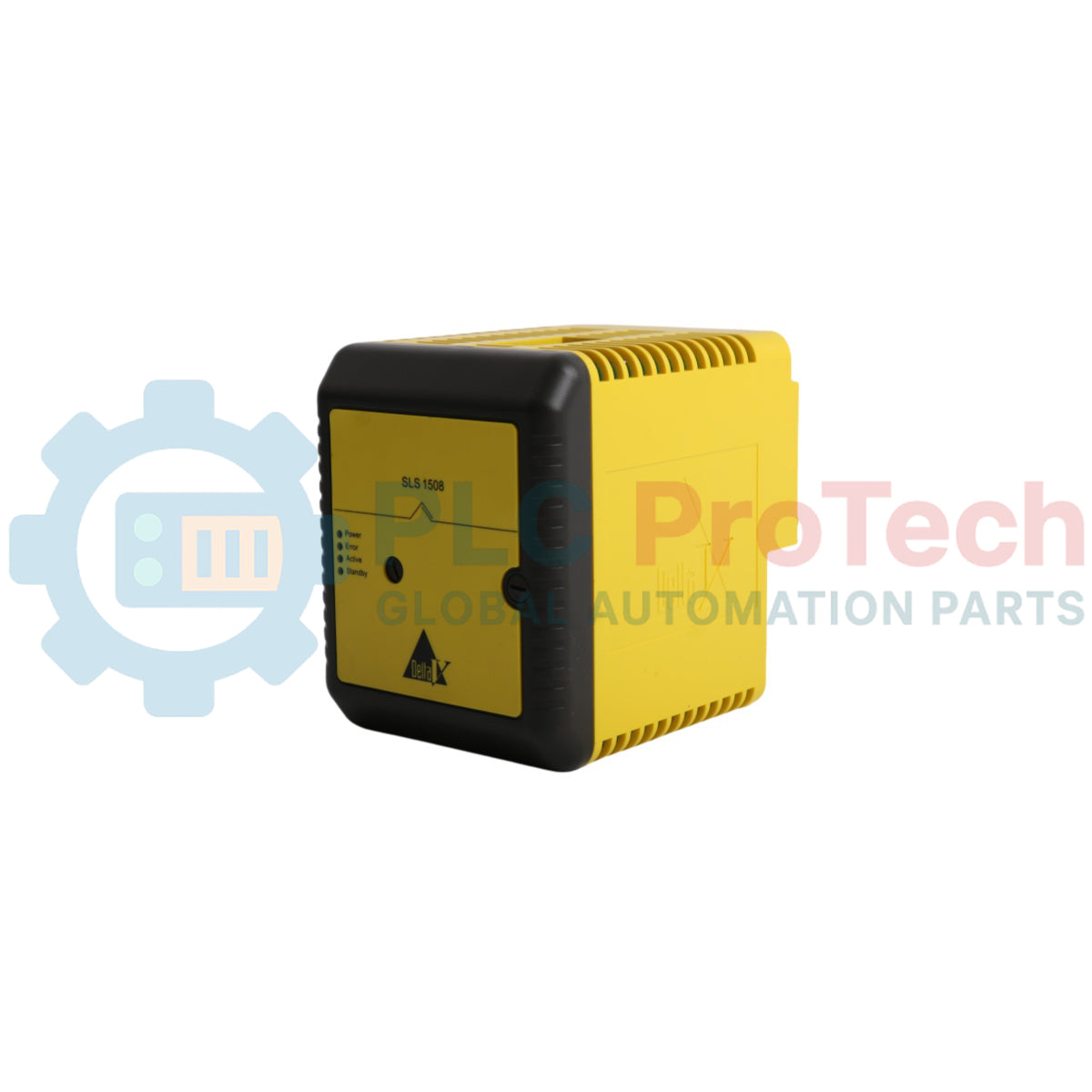

EMERSON SLS1508 VS3202 KJ2201X1-BA1 12P3162X162
1 / 3

Emerson

Emerson VS3202 KJ2201X1-BA1 DeltaV SIS Logic Solver Module

SKU VS3202 KJ2201X1-BA1

Disponibile
  • 12-month warranty
  • Free returns within 30 days
  • Manufacturer: Emerson
  • Product No.: VS3202 KJ2201X1-BA1
  • Origin United States
  • Product Type: Logic Solver Module
  • Barcode: 8537101190
  • Payment: T/T, Western Union
  • Weight: 0.5 kg
  • Dimensions: 8.3cm x 12.5cm x 10.5cm
  • Shipping port: Xiamen
  • Warranty: 12 months

Tags

DeltaV SIS Logic Solver Module

Product Documentation

Technical Datasheet (PDF) Complete specifications and technical drawings.

Technical Datasheet

Emerson VS3202 KJ2201X1-BA1 DeltaV SIS Logic Solver Module

Download Open in new tab
Quantità
Call sales Contact

Product Description

Description

The Emerson VS3202 KJ2201X1-BA1 is a safety-certified safety instrumented system module engineered as part of the DeltaV SIS platform. This logic solver, also designated as the SLS 1508, provides dedicated safety loop execution independent from standard regulatory control layers while remaining integrated within the configuration and diagnostic environment. The module communicates with intelligent field sensors via the HART protocol to diagnose faults before they manifest as process interruptions. It is built to fulfill safety instrumented functions across modern processing facilities, ensuring continuous process availability and asset protection.

Features

  • Decoupled execution system separating emergency safety logic from regulatory process control
  • Integrated safety bus capabilities managing field level instrumentation directly via HART diagnostics
  • Scalable architecture allowing step-by-step sizing adjustments to fit individual application footprints
  • Hot-swappable hardware design permitting the online addition of redundant safety components

Applications

  • Safety Instrumented Systems (SIS) logic solving loops
  • Emergency Shutdown (ESD) architectures
  • Fire and Gas (F&G) management integration
  • High-integrity burner management and protection systems

Ordering Information

Description Model Number
DeltaV SLS 1508 Redundant Logic Solver – includes Terminal Block VS3202 VS3202 / SLS 1508

Technical Specifications

Power Specifications

Parameter Specification
Local Bus Power 24 VDC at 1 A
Field Power 4 A (maximum)

Environmental Specifications

Parameter Specification
Ambient Temperature -40 degC to +70 degC
Shock 10g 1/2 Sinewave for 11msec
Vibration 1mm Peak to Peak from 2 to 13.2Hz; 0.7g from 13.2 to 150Hz
Airborne Contaminants ISA-S71.04-1985 Airborne Contaminants Class G3
Relative Humidity 5 to 95% Non-Condensing

Installation Guidelines

  • Ensure field power supplied to this device, either at the field terminal or as bussed field power through the carrier, is completely removed before connecting or disconnecting the module.
  • Do not remove or insert the unit with system power energized unless the area is verified to be non-hazardous.
  • Mount the module within environments complying with ISA-S71.04-1985 Class G3 standards to prevent corrosion from airborne contaminants.
  • Verify all redundant wiring and bus configurations are completed prior to initial software commissioning or online extension steps.

Compliance and Certifications

  • ATEX: II 3G Ex ec IIC Gc (FM16ATEX0056U)
  • UKEX: Ex ec IIC Gc (FM21UKEX0017U)
  • FM Approved: CL. I Div. 2 GP. A,B,C,D; CL. I Zone 2 AEx/Ex ec IIC Gc (FM17US0286U, FM17CA0145U)
  • TÜV NORD: IEC 61508:2000 SIL 3 Capability
  • CE: Certified
Shipping & Returns

Global Express Shipping

  • Standard Delivery: 4–6 business days via DHL, FedEx, and UPS.
  • Express Dispatch: Same-day dispatch for in-stock orders placed before 2:00 PM (GMT+8).
  • Worldwide Coverage: Serving over 150 countries.

Returns & Warranty

  • 30-Day Guarantee: Returns accepted for in-stock products in original, factory-sealed packaging.
  • 12-Month Warranty: Every industrial component is backed by our technical warranty.
FAQ
Can this safety module be removed or inserted while the system is energized?
The module cannot be removed or inserted with system power energized unless the surrounding environment is explicitly verified to be non-hazardous.
What is the certified ambient operating temperature limit for the device?
The device is certified to operate within an ambient temperature range of -40 degC to +70 degC.
What standard must be met regarding airborne contamination at the installation site?
The installation site should satisfy the requirements for an ISA-S71.04-1985 Airborne Contaminants Class G3 environment.
