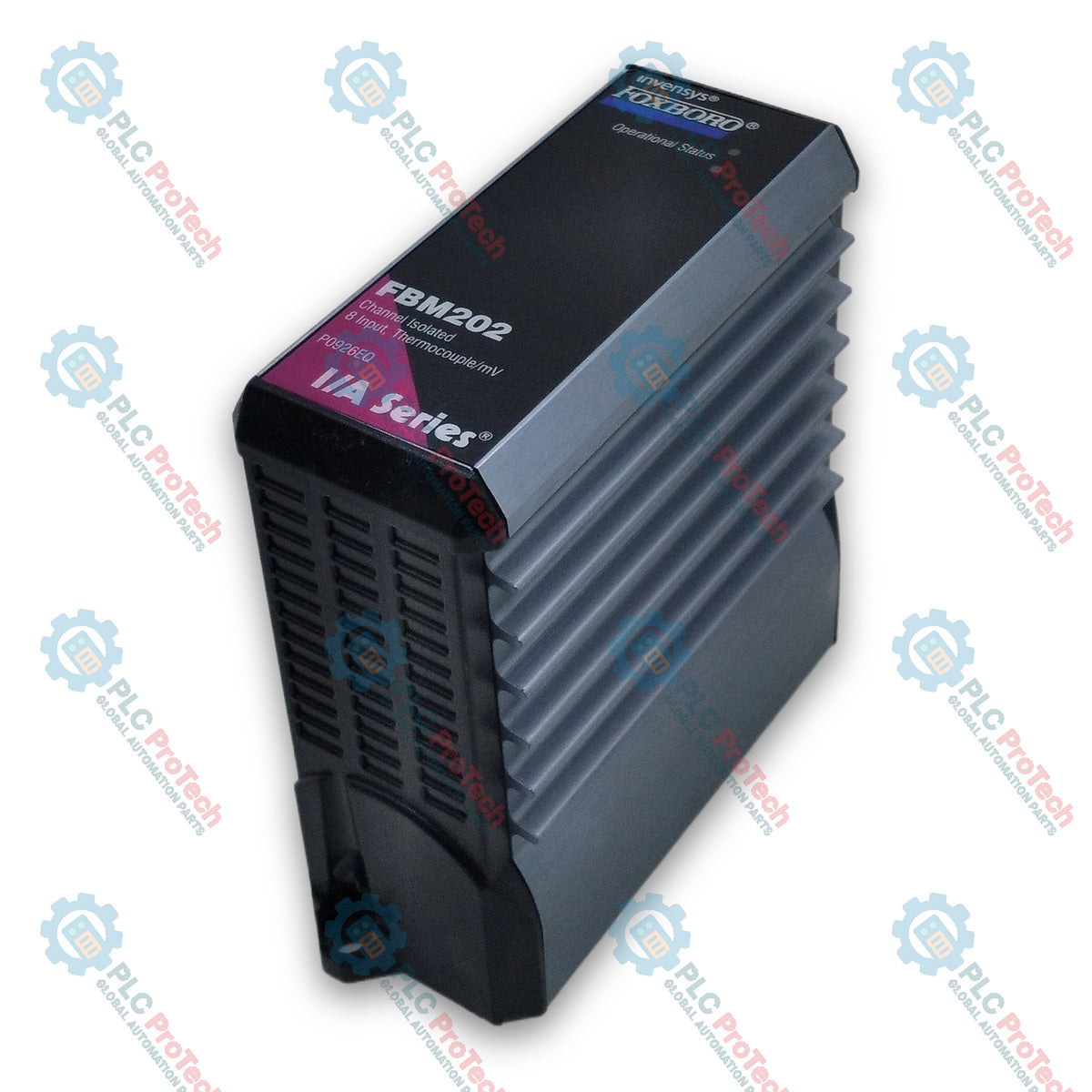

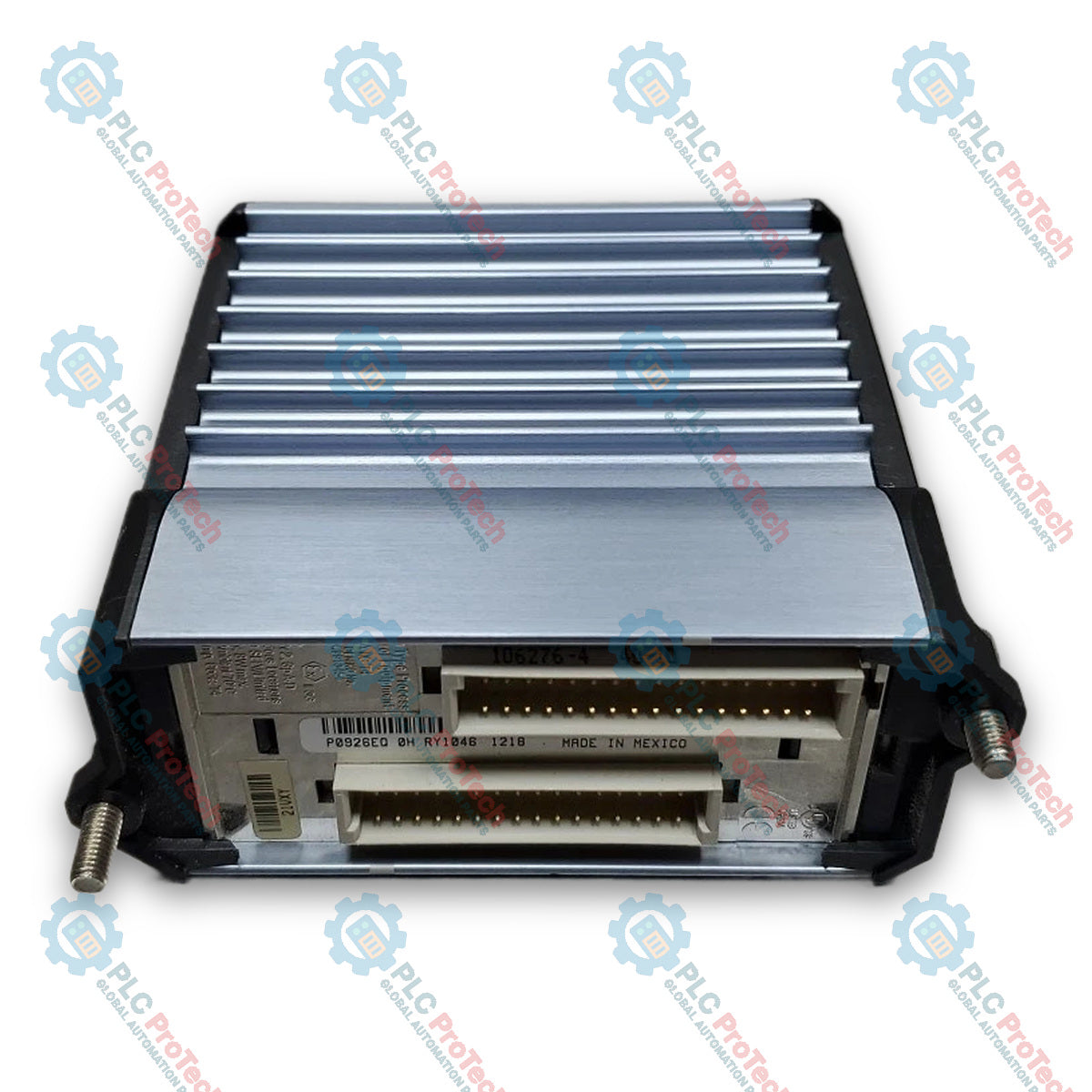

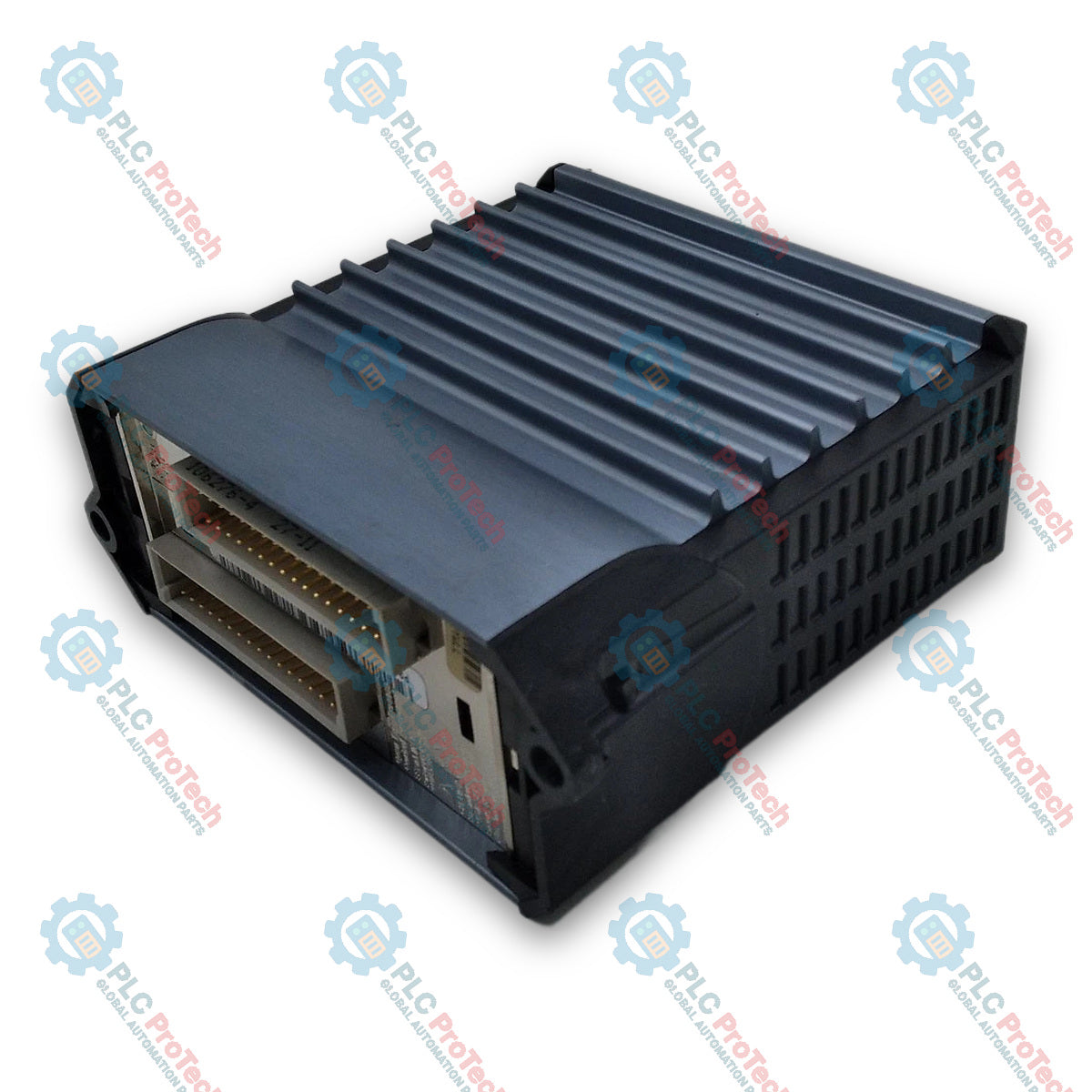

The Foxboro FBM202 P0916AC is a DIN rail-mounted passive termination assembly designed to interface eight isolated thermocouple/mV analog input signals with an FBM202 module within the Foxboro I/A Series and Foxboro Evo DCS platforms. The P0916AC termination assembly incorporates a 4-wire 100 ohm platinum RTD (IEC 751, Class B) to provide cold-junction reference temperature compensation for accurate thermocouple measurements. Each input channel on the associated FBM202 module provides galvanic isolation from other channels and ground, supporting standard thermocouple types B, E, J, K, N, R, S, T, and millivolt input signals. Signal processing involves per-channel Sigma-Delta A/D conversion, upscale thermocouple burnout detection, and configurable integration periods. The P0916AC termination assembly connects to the baseplate-mounted FBM202 module via a removable Type 2 termination cable, conveying field signals to the module and communicating via the redundant 2 Mbps module Fieldbus to Fieldbus Communication Modules or Control Processors.
| Part Number | Description | Material | Connection Type |
|---|---|---|---|
| P0916AC | Eight-channel thermocouple/mV passive feedthrough TA with RTD | PVC | Compression |
| P0916AD | Eight-channel thermocouple/mV passive feedthrough TA with RTD | PVC | Ring Lug |
| P0916XH | Eight-channel thermocouple/mV passive feedthrough TA with RTD | PA | Compression |
| P0917JL | Eight-channel thermocouple/mV passive feedthrough TA with RTD | PA | Ring Lug |
| P0928CN | Baseplate-mounted TA for two sets of eight thermocouple/mV channels | PC/ABS | Compression |
| Category | Specification | Parameter / Value |
|---|---|---|
| General | Manufacturer | Foxboro by Schneider Electric |
| Part Number | P0916AC | |
| Compatible Module | FBM202 (P0926EQ) | |
| Input Specifications | Channels | 8 isolated thermocouple/mV input channels |
| Input Range | -10.5 to +69.5 mV dc (0 to 64000 raw counts); Full range: 71.419 mV (65535 raw counts) | |
| Thermocouple Types | B, E, J, K, N, R, S, T and other millivolt signals | |
| Differential Input Impedance | 10 Mohm | |
| Burnout Detection | Full upscale value | |
| Common Mode Voltage | Up to 30 V ac or 60 V dc | |
| Accuracy & Performance | Millivolt Input Accuracy | +0.03% of span (+-27 uV) at 25 degC |
| RTD Channel Accuracy | +0.03% of span | |
| RTD Reference Junction Conformity | +-0.25 degC | |
| Thermocouple Conformity | +0.25 degC | |
| Accuracy Temperature Coefficient | +-50 ppm/degC | |
| RTD Reference Junction Measurement Accuracy | +-0.50 degC (using RTD internal to Foxboro TAs) | |
| Reference Junction Type | 4-wire 100 ohm platinum RTD (IEC 751, Class B) | |
| Electrical Isolation | Channel Isolation | Galvanic isolation per channel; withstands 600 V ac for 1 minute between channel and ground or channel to channel |
| Environmental | Operating Temperature (PVC TA) | -20 to +50 degC (-4 to +122 degF) |
| Storage Temperature | -40 to +70 degC (-40 to +158 degF) | |
| Relative Humidity | 5 to 95% (noncondensing) | |
| Altitude | -300 to +3,000 m (-1,000 to +10,000 ft) operating | |
| Contamination | Class G3 (Harsh) per ISA Standard S71.04 | |
| Mechanical | TA Material | Polyvinyl Chloride (PVC) |
| Termination Type | Compression screw terminals | |
| Compression Accepted Wiring Sizes | Solid/Stranded: 0.2 to 4 mm2 / 24 to 12 AWG; Stranded with Ferrules: 0.2 to 2.5 mm2 | |
| Weight (Compression TA) | 159 g (0.35 lb) approximate | |
| Dimensions (Compression TA) | 125 mm x 76 mm x 72 mm (4.93 in x 2.99 in x 2.83 in) |
| Connector Pin / Terminal | Function |
|---|---|
| Field Termination Compression Screw | Direct connection for 8 two-wire thermocouple/mV analog input field signals |
| Internal RTD Connection | Connections to the integral 4-wire 100 ohm platinum RTD for reference junction compensation |
| Cable Interface | 25-pin D-subminiature connector linking to the FBM baseplate via Type 2 cable |
Global Express Shipping
Returns & Warranty
Manufacturer: Foxboro
Product No.: FBM202
Country of origin:France
Product Type: Thermocouple/mV Input Module
Payment: T/T, Western Union
Weight: 159g
Dimensions: 102 mm x 45 mm x 104 mm (H x W x D)
Shipping port: Xiamen
Warranty: 12 months
